The Air Gap Penalty: Why Wireless EV Charging Struggles to Match Plug-In Efficiency

Proponents of wireless electric vehicle charging envision a frictionless future where drivers never touch a heavy cable, parking over a magnetic pad at home or gliding over electrified highways that power the battery in motion. To these startups and automakers, the technology is the ultimate adoption catalyst, removing the primary physical barrier to EV ownership.

Grid engineers and physicists, however, view the technology as an expensive thermodynamic compromise. They argue that transmitting kilowatts of power across an air gap inherently wastes electricity, and that scaling a less efficient charging method across millions of vehicles will place an unnecessary and massive burden on already strained electrical grids.

The marketing language surrounding wireless power transfer often blurs the line between what is commercially available today and what remains in the laboratory. Press releases frequently highlight dynamic charging—the ability to charge a vehicle while driving at highway speeds—as a near-term reality. However, the actual capability shipping to consumers in 2026 is strictly stationary. These are flat, heavy pads installed on garage floors, capable of delivering up to 11 kilowatts of power to a receiver bolted to the underside of the vehicle, provided the driver parks with precise alignment.

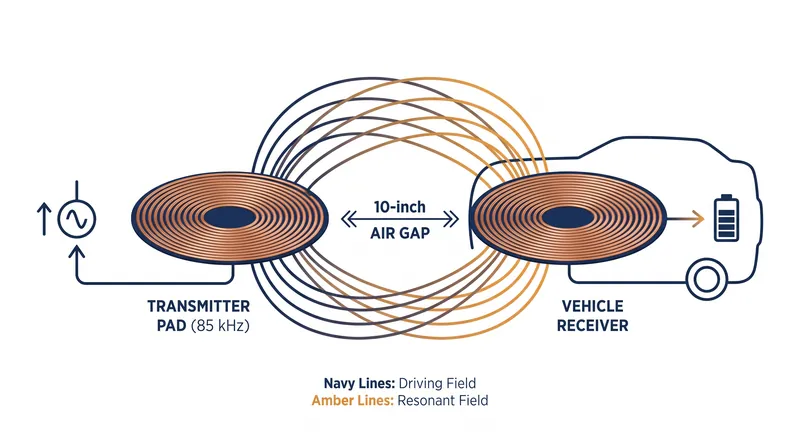

At the core of this technology is magnetic resonance. Unlike the inductive charging used for smartphones, which requires the device to physically touch the pad, magnetic resonance allows power to cross a larger air gap. The SAE J2954 standard, published by SAE International in October 2020, established the global baseline for this process.

It uses an operating frequency of 85 kilohertz to create an oscillating magnetic field between a transmitter coil on the ground and a receiver coil on the vehicle. When the two coils are tuned to the same resonant frequency, energy transfers across the gap of up to 254 millimeters, or exactly 10 inches.[1]

"The SAE J2954 standard is a game-changer by giving a 'cook book' for wireless charging," said Jesse Schneider, chair of the SAE J2954 task force, upon the standard's release. That cookbook ensures interoperability, meaning a vehicle from one manufacturer can charge on a pad built by another.

Yet, the physics of that transfer introduce an unavoidable penalty. A physical copper cable is highly efficient; according to the US Department of Energy, a standard Level 2 conductive charger operates at roughly 99 percent efficiency from the wall to the vehicle's onboard charger.[1]

Wireless charging cannot match that direct connection. The SAE J2954 standard requires a minimum efficiency of 85 percent, with peak theoretical efficiency reaching 94 percent under perfect conditions. That missing 5 to 14 percent of energy does not disappear; it is lost as heat during the magnetic transfer. While a few percentage points may seem trivial for a single charging session, the cumulative effect at scale represents a significant thermodynamic tax on the electrical grid.[1]

The efficiency of magnetic resonance is also highly dependent on spatial alignment. If a driver parks slightly off-center, or if the air gap changes due to vehicle suspension settling, the magnetic coupling weakens and efficiency drops further. To mitigate this, manufacturers have developed complex software interfaces that guide the driver into the exact optimal position using the vehicle's cameras and dashboard display. Even with these aids, real-world efficiency rarely hits the 94 percent theoretical peak established in the laboratory.

Beyond the energy loss, the hardware itself introduces a physical penalty to the vehicle. The receiver pad, cooling systems, and associated power electronics add roughly 20 to 30 kilograms of mass to the car. In the electric vehicle industry, where engineers spend millions of dollars to shave a few kilograms off a chassis to improve aerodynamic range, permanently carrying a heavy copper coil solely to avoid plugging in a cable is a trade-off many automakers have been hesitant to make as standard equipment.

Despite these physical constraints, research into high-power wireless transfer continues to break records. In March 2024, researchers at the Oak Ridge National Laboratory successfully demonstrated a 270-kilowatt wireless power transfer to a Porsche Taycan. "We have achieved the highest power density in the world for a wireless charging system for this class of vehicle," stated ORNL researcher Omer Onar. That milestone proved that wireless systems could theoretically match the speed of DC fast chargers, though the system required a specialized polyphase coil design and remains far from commercial deployment.

The cost of installing these systems remains another significant barrier. A standard Level 2 wall connector costs between $400 and $600, plus a few hundred dollars for an electrician to install it. Aftermarket wireless charging systems currently retail for between $3,000 and $4,000, requiring both grid-side installation and modifications to the vehicle's high-voltage architecture. For the consumer, the return on that investment is measured entirely in the seconds saved by not handling a charging cable.

The ultimate vision—dynamic electrified roads—faces even steeper infrastructure hurdles. Embedding transmitter coils into hundreds of miles of asphalt requires tearing up existing highways, running high-voltage grid connections to remote stretches of road, and developing systems that can instantly detect a passing vehicle, energize the coil for a fraction of a second, and power down before the next vehicle arrives. Pilot projects in Europe and the United States have proven the concept works at low speeds, but the capital expenditure required to scale it is staggering.

For autonomous vehicle fleets, however, wireless charging is not a luxury; it is a necessity. A self-driving taxi cannot plug itself in. For these specialized applications, the efficiency loss and hardware costs are acceptable business expenses to keep the fleet operational without human intervention. This is where the technology is finding its strongest commercial foothold in 2026, serving as the automated refueling mechanism for robotaxis and warehouse logistics vehicles.

The tension between convenience and efficiency will dictate the technology's consumer future. As battery capacities grow and grid operators work to manage peak loads, the deliberate waste of electricity for the sake of convenience will face increasing scrutiny. The physics of the air gap are immutable, and until the cost of wasted energy is outweighed by the value of a frictionless experience, wireless charging will likely remain a premium feature rather than the industry standard.
