How Instant Torque and Field Weakening Replaced the Car Transmission

In early 2008, Tesla Motors faced a mechanical crisis that threatened to bankrupt the company before its first car shipped. The original two-speed manual transmissions designed for the Tesla Roadster were failing catastrophically under the immediate, violent torque of the electric motor.[4]

Engineers realized that building a gearbox strong enough to survive the electric motor's output would add unacceptable weight and complexity to the vehicle. Instead, they abandoned the multi-speed transmission entirely, pivoting to a single-speed BorgWarner reduction gear.[3]

That emergency redesign established the mechanical template for almost every electric vehicle on the road today. By replacing physical gear changes with advanced electromagnetic software control, automakers eliminated the most complex component of the traditional automotive drivetrain.[4]

The internal combustion engine requires a transmission because it cannot produce rotational force, or torque, from a standstill. A gasoline engine must idle at roughly 800 revolutions per minute (RPM) just to sustain its own operation, requiring a clutch to disconnect it from the wheels.[1]

The Zero-RPM Advantage

To accelerate a heavy vehicle from a dead stop, a combustion engine relies on a low first gear—often a 4:1 ratio—to multiply its weak low-RPM torque. As vehicle speed increases, the driver must shift through progressively higher gears to keep the engine within its narrow optimal power band between 2,000 and 5,000 RPM.[1]

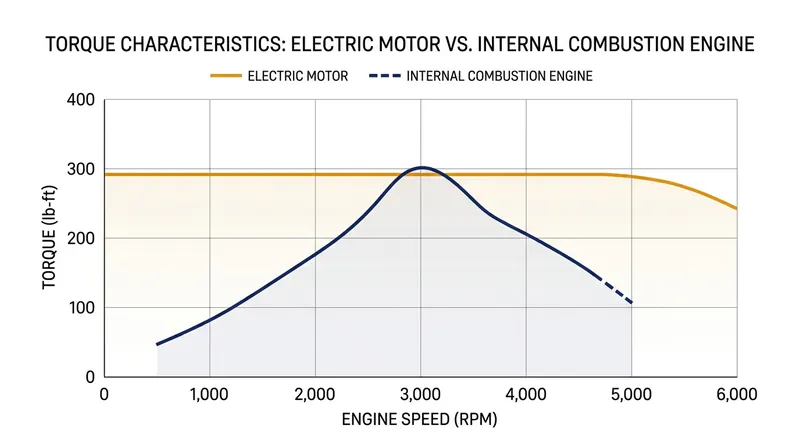

Electric motors operate under entirely different physical laws. A permanent magnet synchronous motor (PMSM) generates its maximum torque at exactly zero RPM, delivering the full force of its magnetic fields the millisecond current flows through its copper stator windings.[2]

This instant rotational force allows engineers to use a single, fixed reduction gear—typically a ratio between 9.0:1 and 10.0:1. This fixed ratio multiplies the motor's torque enough to launch a 4,500-pound vehicle aggressively, while still allowing the wheels to turn at highway speeds.[3]

"The electric motor's ability to deliver peak torque from a standstill fundamentally changes the math of vehicle propulsion," notes a 2023 drivetrain analysis by Oak Ridge National Laboratory. "It renders the traditional multi-speed gearbox redundant for standard passenger applications."

However, a single gear ratio creates a severe high-speed problem driven by a phenomenon called Back Electromotive Force, or Back EMF. As the motor's magnetic rotor spins faster inside the stator, it acts like a generator, creating its own voltage that pushes back against the battery's supply.[2]

Hitting the Back EMF Wall

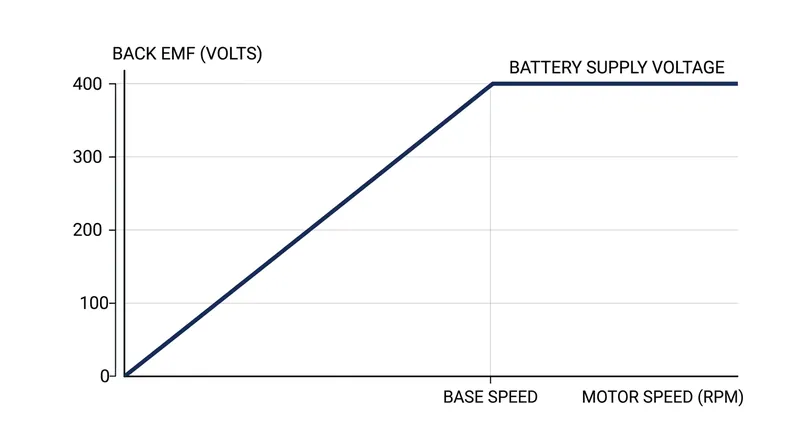

This reverse voltage increases linearly with the motor's rotational speed. In a typical 400-volt EV architecture, the Back EMF will eventually rise to match the 400 volts coming from the battery pack, typically around 4,000 to 5,000 RPM.[2]

Engineers call this threshold the "base speed." Once the motor hits base speed, the inverter can no longer push additional current into the stator windings because the Back EMF is blocking it, causing the motor's torque output to plummet.[1]

If an electric vehicle relied purely on this basic magnetic relationship, a car with a 9.0:1 gear ratio would accelerate violently to 45 mph and then hit a wall, unable to push past the motor's base speed.[4]

To break through this invisible barrier, modern EV inverters employ a software technique called field weakening. Instead of adding mechanical gears, the vehicle's computer manipulates the magnetic fields inside the motor thousands of times per second to artificially suppress the Back EMF.[1]

Software Replaces Hardware

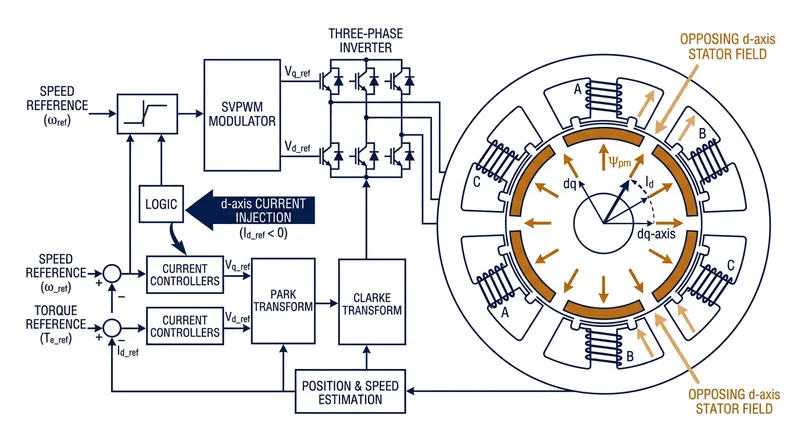

The inverter achieves this by splitting the alternating current it sends to the motor into two distinct vectors. One vector produces the actual rotational torque, while the second vector—the d-axis current—is injected specifically to oppose and weaken the permanent magnets on the spinning rotor.[2]

By actively weakening the rotor's magnetic field, the inverter lowers the Back EMF voltage. This creates electrical headroom, allowing the battery to push more current into the motor and forcing the rotor to spin faster than its natural base speed.[1]

"Field weakening allows us to extend the motor's operating range from a base speed of 5,000 RPM all the way to 15,000 RPM or beyond," explains a 2022 technical paper published by SAE International. "The motor trades torque for speed, maintaining a constant power output."[1]

This electromagnetic trade-off perfectly matches the physics of driving. A vehicle needs massive torque at low speeds to overcome inertia, but requires less torque—and more raw horsepower—to maintain aerodynamic momentum at 75 mph on the highway.[4]

Field weakening is highly computationally intensive, requiring the inverter's microprocessors to calculate rotor position and adjust phase currents at frequencies exceeding 10,000 hertz. The capability only became viable for mass-market vehicles with the advent of high-speed insulated-gate bipolar transistors and silicon carbide chips.

The High-Speed Exceptions

While field weakening solves the highway cruising problem for 95 percent of passenger vehicles, the technique has thermal and efficiency limits. Pushing a motor to 16,000 RPM generates significant heat, and the constant power band eventually tapers off at extreme velocities.[2]

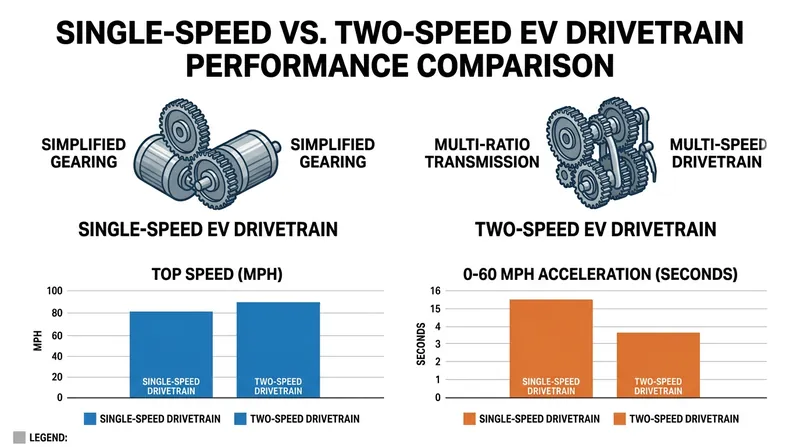

This limitation explains why the Porsche Taycan, introduced in 2019, features a unique two-speed automated transmission on its rear axle. Porsche engineers determined that a single gear could not deliver both a sub-three-second 0-60 mph launch and a sustained Autobahn top speed of 161 mph.

"The two-speed transmission on the rear axle is an innovation developed by Porsche," the automaker's engineering division stated in its technical documentation. "First gear gives the Taycan even more acceleration from a standing start, while second gear ensures high efficiency and power reserves at high speeds."

Heavy commercial vehicles also stretch the limits of single-speed architectures. An 80,000-pound electric semi-truck requires such massive starting torque that a single reduction gear would leave it severely underpowered at highway speeds, prompting manufacturers to adopt two- or three-speed heavy-duty EV transmissions.

For standard passenger cars, however, the industry is moving toward even faster motors rather than multiple gears. In 2021, Tesla introduced a carbon-wrapped rotor for its Plaid vehicles, preventing the motor from flying apart under centrifugal force and allowing it to spin at 20,000 RPM.[4]

The Efficiency Dividend

By spinning the motor faster and using a slightly higher reduction ratio, automakers can extract more power from a smaller, lighter physical package. This approach maximizes the vehicle's overall efficiency by eliminating the parasitic friction losses inherent in multi-speed gearboxes.

A traditional automatic transmission contains hundreds of moving parts, multiple clutches, and heavy hydraulic fluid, all of which consume energy. A single-speed EV reduction gear contains just three or four robust steel gears bathed in a small amount of lifetime lubricating oil.[3]

This mechanical simplicity translates directly into manufacturing cost savings and long-term reliability. Without physical gears to shift, the drivetrain experiences no shock loads or torque interruptions, delivering the seamless, linear acceleration that defines the modern electric driving experience.[4]

The transition from physical gears to electromagnetic field manipulation represents a broader shift in automotive engineering. Capabilities that once required heavy, complex mechanical hardware are increasingly being replicated and surpassed by high-speed silicon and advanced control algorithms.[4]

Thermal Management Challenges

The reliance on field weakening does introduce specific engineering challenges, particularly regarding thermal management. The d-axis current injected to suppress the magnetic field generates no rotational force, but it still produces resistive heating within the copper stator windings.[2]

To prevent the motor from overheating during sustained high-speed highway driving, automakers must implement aggressive liquid cooling systems. Advanced designs now pump dielectric cooling fluid directly through the center of the spinning rotor shaft to extract heat from the internal magnets.

The single-speed electric drivetrain stands as a triumph of software over physical machinery. By mastering the invisible magnetic forces inside the motor casing, engineers have rendered a century of complex transmission development entirely obsolete for the everyday driver.[4]
