Constant-Current Charging Limits and Copper Dissolution: Why EV Batteries Degrade at Extreme Charges

The binding constraint for any electric vehicle battery is that lithium ions must physically fit inside their host materials before the applied voltage forces them to destroy the cell. For modern lithium-ion chemistry, that constraint means the battery can never be truly empty or completely full.[1][5]

Automakers market vehicles with usable capacities that imply a linear scale from zero to one hundred percent. The electrochemical reality is that operating at the absolute extremes of a cell's physical capacity triggers irreversible structural damage.[5]

To prevent this, battery management systems enforce strict boundaries on how much energy can flow in or out at the edges. The software lies to the dashboard to keep the chemistry alive.[4]

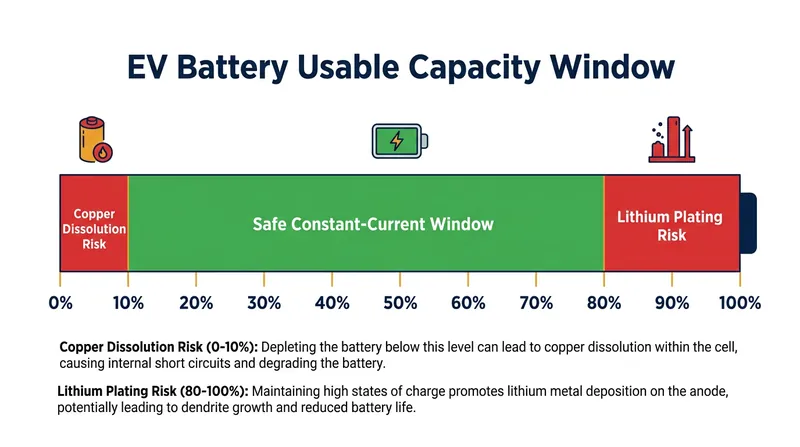

The illusion of the dashboard percentage

When an electric vehicle displays a ten percent state of charge, the physical battery still contains reserve energy. The manufacturer locks this buffer away to prevent the cell voltage from dropping below a critical threshold, typically around 3.0 volts for standard nickel-manganese-cobalt cells.[1][4]

"The dashboard zero is not an electrochemical zero," notes a 2024 technical review from Argonne National Laboratory. "If a consumer could actually drain a cell to zero volts, they would permanently destroy the battery in a single cycle."[1]

The software enforces a constant-current limit that aggressively tapers the power output as the battery approaches this artificial floor. The vehicle enters a reduced-power mode, limiting acceleration to prevent sudden voltage sags that could breach the safety threshold.[4]

This protective throttling is not merely about preserving range. It is a necessary intervention to stop the internal metallic architecture of the battery from dissolving into the liquid electrolyte.[2]

Copper dissolution at the bottom

The most severe degradation mechanism at a low state of charge involves the copper foil used as the anode current collector. Copper is highly conductive and electrochemically stable under normal operating conditions, but it becomes vulnerable when the battery is nearly empty.[2]

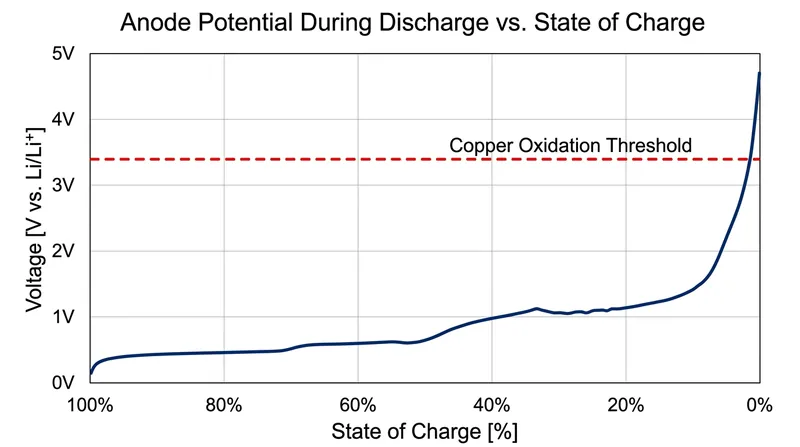

As a battery discharges, lithium ions move from the graphite anode back to the cathode. This movement causes the electrical potential of the anode to rise relative to the lithium reference.[1][2]

If the cell voltage drops too low, the anode potential crosses a critical threshold of approximately 3.4 volts versus lithium. At this point, the copper foil begins to oxidize, dissolving copper ions directly into the electrolyte solution.[2]

"Copper dissolution is a silent killer for lithium-ion cells," explains a 2025 paper in the Journal of The Electrochemical Society. "Once the copper enters the electrolyte, the structural integrity of the current collector is permanently compromised."[2]

The true danger manifests when the battery is recharged. The dissolved copper ions are forced back toward the anode, where they plate out as solid metallic copper dendrites that can pierce the separator and cause an internal short circuit.[2]

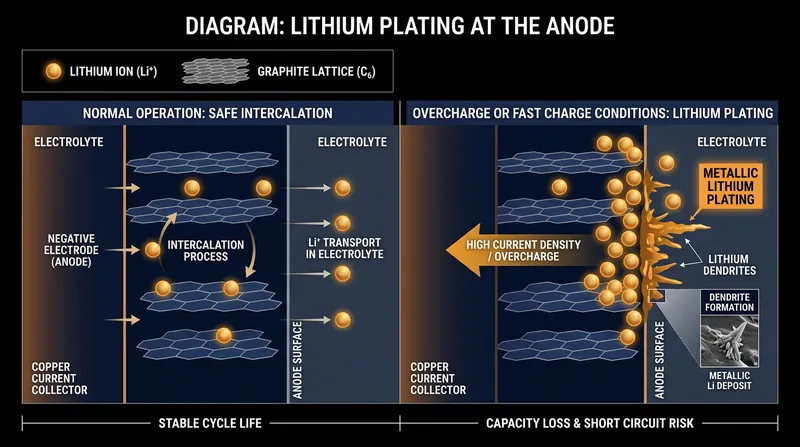

Lithium plating at the top

The top end of the battery's capacity presents a different, but equally destructive, kinetic bottleneck. Above an eighty percent state of charge, the graphite anode is nearly saturated with lithium ions, leaving very few empty spaces for new ions to enter.

If a high charging current is applied to a nearly full battery, the lithium ions arrive at the anode faster than they can intercalate into the graphite structure. The excess ions pile up on the surface.

Instead of safely storing themselves inside the carbon lattice, the ions accept electrons at the surface and turn into metallic lithium. This process, known as lithium plating, permanently consumes active lithium and reduces the battery's total capacity.[1]

A 2023 study published in Nature Energy quantified this effect, finding that fast-charging a standard cell from eighty to one hundred percent degrades the capacity three times faster than charging from twenty to eighty percent.

"The intercalation process requires physical time," the Nature Energy authors wrote. "You cannot force ions into a saturated lattice with higher voltage without triggering parasitic metallic plating on the anode surface."

The constant-current defense

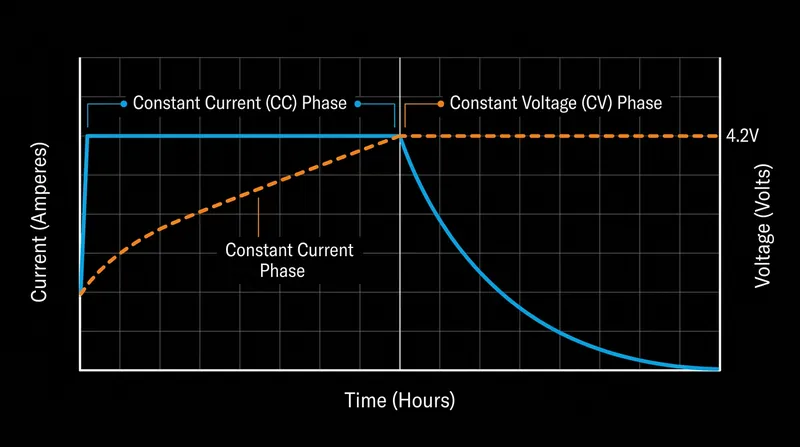

To navigate these dual hazards, battery management systems utilize a charging protocol known as constant-current constant-voltage. This algorithm dynamically adjusts the electrical flow based on the real-time state of the cell.[4]

During the middle portion of the charge cycle—typically between twenty and eighty percent—the system applies a high constant current. The battery can safely absorb this energy because the anode has plenty of empty space and the cell voltage remains within safe limits.[3][4]

As the battery reaches eighty percent, the voltage hits its maximum safe limit, usually around 4.2 volts. The system then switches to a constant-voltage mode, holding the voltage steady while the current exponentially tapers off.[3][4]

This tapering is why the last twenty percent of a charge takes disproportionately longer than the first eighty percent. The software is deliberately slowing the flow of ions to prevent lithium plating on the saturated anode.[4]

A similar throttling occurs at the bottom of the discharge cycle. By limiting the constant-current draw when the battery is nearly empty, the system prevents the sudden voltage drops that would trigger copper dissolution.[2][4]

Chemistry dictates the limits

The specific thresholds for these degradation mechanisms depend entirely on the underlying battery chemistry. The widely used nickel-manganese-cobalt architecture is particularly sensitive to high voltages, requiring strict management above eighty percent.[3]

Lithium iron phosphate batteries, by contrast, operate at a lower nominal voltage and possess a more robust crystalline structure. This allows them to tolerate higher states of charge with significantly less risk of lithium plating.[3]

Automakers utilizing lithium iron phosphate cells often recommend charging to one hundred percent at least once a week. This is not because the chemistry is immune to degradation, but because the flatter voltage curve requires regular full charges to calibrate the software's capacity estimates.[3][5]

"LFP cells still experience stress at the absolute extremes," notes Battery University's 2026 technical guide. "However, the kinetic threshold for lithium plating is shifted high enough that the daily operational risk is negligible compared to NMC architectures."[3]

Engineering around the bottleneck

The battery industry is actively developing new materials to expand the safe operating window and reduce reliance on software buffers. Silicon-dominant anodes are a primary focus, as they can absorb lithium ions significantly faster than traditional graphite.[1][5]

By increasing the absorption rate, silicon anodes delay the onset of lithium plating, allowing for higher constant-current charging limits even past the eighty percent threshold. However, silicon suffers from severe physical swelling, creating a different set of mechanical constraints.[1]

Solid-state batteries attempt to solve the problem by replacing the liquid electrolyte with a solid ceramic or polymer separator. This physical barrier mechanically suppresses both copper dendrites and lithium plating, theoretically allowing for full utilization of the cell's capacity.[5]

Until these next-generation architectures reach commercial scale, the software buffer remains the only viable defense. The dashboard will continue to display a simplified zero to one hundred percent, while the battery management system quietly enforces the strict electrochemical realities of the cell.[4][5]
