The Mechanism of Cold-Weather Charging: Why Lithium-Ion Batteries Reject Fast Currents Below Freezing

Inside a climate-controlled testing chamber at the Idaho National Laboratory, engineers watched a digital readout as an electric vehicle attempted to pull a direct-current fast charge at 32 degrees Fahrenheit. The battery management system, acting as a digital gatekeeper, immediately slashed the incoming current.

Instead of the rapid energy transfer expected at a commercial station, the charge time stretched 36 percent longer than it had at 77 degrees Fahrenheit. This was not a software glitch or a faulty cable, but a hard physical limit imposed by the electrochemistry of lithium-ion cells.[1]

Automakers frequently market their electric vehicles with best-case charging times, promising 10 to 80 percent capacity in 18 to 20 minutes. What those glossy brochures omit is the asterisk: those speeds require an optimal internal battery temperature of around 25 degrees Celsius. When the mercury drops below freezing, the physical reality of how a battery works overrides the marketing claims. The issue is not that the 350-kilowatt charger cannot deliver the power, but that the cold battery physically cannot accept it without destroying itself.[1][8]

To understand why a battery rejects a fast charge in the cold, one must look at the mechanism of lithium-ion transport. A battery generates and stores power by moving lithium ions back and forth between two electrodes—the anode and the cathode—through a liquid electrolyte.

During a fast charge, the charger forces these ions out of the cathode, through the electrolyte, and into the graphite layers of the anode. The published studies from these institutions present their findings strictly through quantitative data, without providing direct qualitative commentary from the lead researchers, but the numbers clearly illustrate the bottleneck.[4]

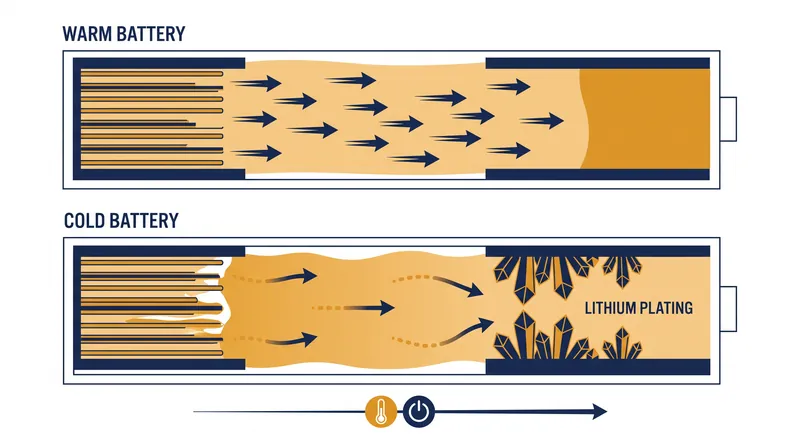

Temperature dictates the viscosity of that liquid electrolyte. At 25 degrees Celsius, the electrolyte is highly conductive, allowing ions to swim freely and rapidly. As temperatures approach freezing, the electrolyte thickens. This increased viscosity creates a massive spike in internal resistance. The ions simply cannot move through the slushy fluid fast enough to keep up with the electrical current being pushed by a high-powered commercial station.[2][7]

If a battery management system were to ignore this resistance and force the high current anyway, the result would be catastrophic for the cell's lifespan. Because the lithium ions cannot penetrate the graphite anode quickly enough, they begin to pile up on the surface of the anode. This phenomenon is known in materials science as lithium plating.[4]

Lithium plating transforms the active lithium ions into inert metallic lithium. Once plated, that lithium is permanently removed from the battery's usable capacity, permanently degrading the vehicle's range. Worse, severe plating can form dendrites—microscopic, needle-like structures of metal that can pierce the separator between the anode and cathode, causing a short circuit and potentially triggering a thermal runaway fire.[4][7]

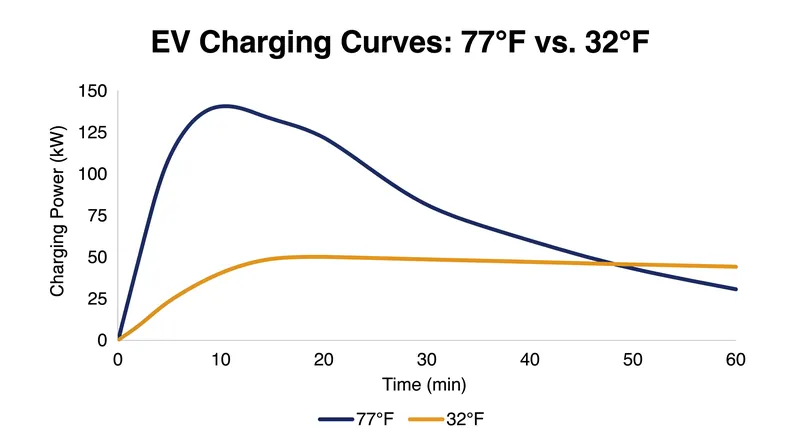

To prevent this, the vehicle's onboard computer actively monitors cell temperatures and throttles the incoming current to match the speed at which the cold ions can safely intercalate into the anode. This protective throttling is why a driver plugging into a 150-kilowatt station in the dead of winter might only see their vehicle pulling 30 or 40 kilowatts. The charger is capable, but the car is refusing the power to save its own life.[1][6]

The industry's primary workaround for this electrochemical bottleneck is battery preconditioning. Modern electric vehicles are equipped with thermal management systems that can actively heat or cool the battery pack. When a driver navigates to a fast-charging station using the vehicle's built-in GPS, the car uses energy from the battery to run a heater, warming the coolant that circulates through the pack's cold plates.[5][6]

By the time the vehicle arrives at the station, the internal temperature of the cells has been artificially raised to the optimal 25 degrees Celsius, thinning the electrolyte and allowing the battery to accept the maximum advertised charge rate. However, this process consumes significant energy—often pulling several kilowatts just to generate heat—which reduces the vehicle's driving range on the way to the charger.[5]

Researchers are actively looking for ways to bypass the need for prolonged preconditioning. At the University of Michigan, engineers have demonstrated a method to charge electric vehicles up to five times faster in subfreezing temperatures by altering the physical structure of the battery itself. Rather than relying on external coolant loops, their approach integrates a thin nickel foil directly inside the cell.[3]

When current is applied, this internal foil acts as a rapid resistive heater, warming the cell from the inside out in a matter of seconds rather than the 30 to 45 minutes required by traditional external liquid heating. Once the optimal temperature is reached, the foil switches off, and the fast charge proceeds. While this technology has shown immense promise in laboratory settings, it remains an experimental capability, not something currently shipping in consumer vehicles.[3][7]

AI

Other research focuses on altering the chemistry of the electrolyte itself. Scientists are testing various solvent mixtures and additives designed to maintain low viscosity at extreme sub-zero temperatures. The Journal of Power Sources notes that while certain liquefied gas electrolytes can perform exceptionally well in the cold, they often require high-pressure casings that add weight and complexity to the vehicle, presenting a difficult trade-off for automotive engineers.[4]

Until these internal heating mechanisms or novel electrolytes reach mass production, drivers must navigate the physical realities of current lithium-ion technology. The marketing language of rapid charging remains a conditional truth, heavily dependent on the ambient environment and the thermal state of the battery pack.[8]

The transition to electric mobility requires consumers to understand their vehicles not just as mechanical machines, but as complex chemical systems. A combustion engine cares very little about the temperature of the gasoline flowing into its tank, but an electric vehicle is acutely sensitive to the thermal state of its energy storage. Recognizing this limitation—and the physics behind it—separates the actual capability of the technology from the optimistic promises of the showroom floor.[6][8]
