The Mechanism of Solid-State EV Batteries: Why Replacing the Liquid Electrolyte Eliminates Thermal Runaway

During a recent interview broadcast from Valencia, Spain, BYD Executive Vice President Stella Li and FinDreams Battery Chief Technology Officer Sun Huajun laid out a timeline that the electric vehicle industry has chased for a decade. Speaking to automotive media, they confirmed that by 2027, BYD plans to put its first solid-state battery technology into a small-batch trial of roughly 1,000 vehicles, likely under its high-end Yangwang or Denza marques. By 2030, the company targets large-scale commercial production.[1]

The statement sets a near-term demonstration target but does not establish an immediate retail launch for the mass market. "Any battery technology, I guarantee you will find in one corner of BYD R&D; we are studying that," Li said during the interview. "So, talking about solid-state battery, BYD is in the leading position; we're in the leading position for the commercial line, and for the technology."[1]

The announcement from the world's largest electric vehicle manufacturer signals that solid-state batteries are finally moving from laboratory curiosities to road-going prototypes, though the reality of what is shipping remains far narrower than the marketing suggests. For years, the industry has relied on liquid lithium-ion batteries, which power everything from smartphones to the Tesla Model Y. But liquid electrolytes have fundamental physical limits that engineers have struggled to bypass.[2][3]

In a conventional lithium-ion cell, a liquid or gel electrolyte sits between the graphite anode and the metal-oxide cathode. This liquid allows lithium ions to shuttle back and forth during charging and discharging. However, the organic solvents used in these liquids are highly volatile and flammable.[2]

When a liquid-electrolyte battery is punctured in a crash, or overheats due to a short circuit, the liquid can ignite. This triggers a chain reaction known as thermal runaway, where the heat from one failing cell ignites its neighbors, leading to fires that are notoriously difficult to extinguish.[2][3]

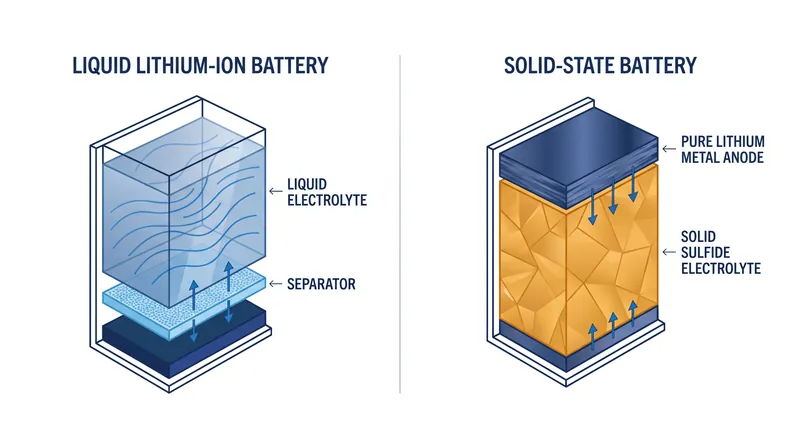

Solid-state batteries replace that flammable liquid with a solid material—typically a ceramic, glass, or sulfide compound. This solid layer acts as both the electrolyte, conducting ions, and the separator, preventing the anode and cathode from touching.[2]

Because the solid electrolyte is not flammable, the risk of thermal runaway is virtually eliminated. This inherent safety allows engineers to rethink the entire battery architecture. Without the need for heavy cooling systems and protective armor, the battery pack becomes significantly lighter and smaller.[2][3]

More importantly, a solid electrolyte enables the use of a pure lithium metal anode instead of graphite. Graphite is bulky; it merely acts as a host structure to store lithium ions. A pure lithium anode drastically increases the energy density of the cell, potentially pushing it beyond 500 watt-hours per kilogram, compared to the 250 watt-hours per kilogram limit of current liquid cells.[2]

But solid-state batteries face their own engineering hurdles, chief among them being dendrites. Dendrites are microscopic, rigid, tree-like structures of lithium metal that grow from the anode during charging.[2]

It was long assumed that a solid ceramic or sulfide barrier would physically block dendrites from growing. However, recent research using X-ray computed tomography and magnetic resonance imaging revealed that dendrites can still form and propagate through microscopic cracks and grain boundaries in the solid electrolyte.[2][3]

Once these lithium needles breach the solid separator and reach the cathode, they cause a short circuit, leading to rapid battery degradation and failure. Solving the dendrite problem is the primary reason solid-state batteries have remained in the lab for so long.[2]

Manufacturers are currently split on which solid material to use. Oxide-based ceramics offer excellent thermal stability but are brittle and require extremely high temperatures to manufacture. Sulfide-based electrolytes, which BYD is pursuing, offer much higher ionic conductivity—approaching 10^-2 Siemens per centimeter, which rivals liquid electrolytes—and are softer, making them easier to manufacture at scale.[1][2]

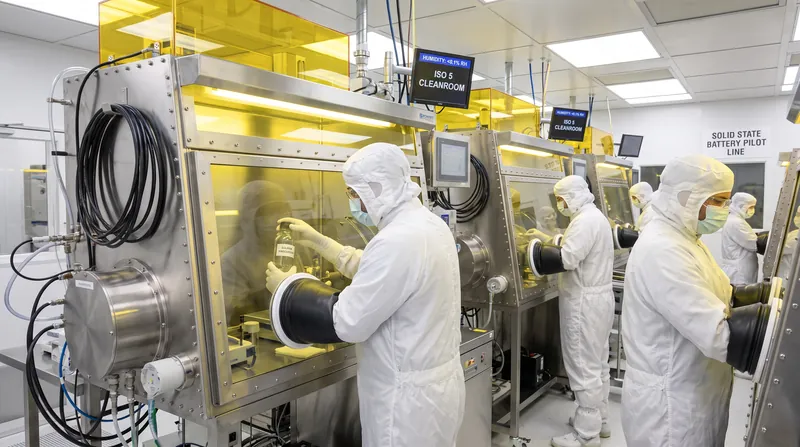

The trade-off is that sulfide electrolytes are highly sensitive to air and moisture. If exposed to humidity during manufacturing, they can react to form toxic hydrogen sulfide gas. This requires the batteries to be assembled in strictly controlled, ultra-dry environments, driving up initial production costs.[2][3]

To combat dendrites in sulfide cells, engineers are turning to mechanical pressure. Researchers have recently demonstrated that applying physical compression to the solid-state cell forces dendrites to spread horizontally rather than vertically, preventing them from piercing the electrolyte, allowing prototype cells to retain nearly 93 percent of their energy after 500 charging cycles.[2]

This complexity explains BYD's cautious rollout, stripping away the hype of an immediate solid-state revolution. Sun Huajun noted that specialized sulfide precursors currently cost dozens of times more than conventional liquid-electrolyte materials. Early applications will be restricted to luxury vehicles where the premium price tag can absorb the battery cost.[1]

BYD Chief Scientist Lian Yubo has cautioned that liquid lithium-ion batteries and all-solid-state systems could coexist for 15 to 20 years, pointing to a longer transition rather than an immediate replacement of conventional batteries.[1]

BYD is not alone in this race. Toyota is targeting a 2027 to 2028 market launch for its own solid-state electric vehicles, while Samsung SDI aims for mass production in 2027. The next three years will determine whether these pilot lines can scale efficiently.[1]

The transition to solid-state batteries will not be an overnight revolution. Liquid lithium-ion cells will continue to dominate the mass market for the foreseeable future, buoyed by continuous improvements in chemistry and cost. But BYD's 2027 trial marks the beginning of the end for the liquid era, promising a future where electric vehicles charge faster, drive further, and never catch fire.[1][3]
