Mapping the Gap: How Rec. 2020 Containers Force Color Compression in HDR Gaming

The exact millisecond a modern graphics card hands a high-dynamic-range frame to a monitor, the image hits a physical wall inside the display’s scaler chip. The GPU has calculated a specific, hyper-saturated neon coordinate—perhaps the glowing red of a cyberpunk sign—and encoded it for delivery.

But the physical light-emitting diodes on the desk cannot reach that coordinate. The scaler must instantly decide whether to clip the color, crushing all detail into a flat red block, or compress the entire scene to make room for it. This algorithmic triage is where HDR gaming color is actually decided.[7]

The conflict stems from a massive discrepancy between the signal standard the gaming industry adopted and the hardware consumers actually own. Games and consoles now routinely output their HDR signals in a format called Rec. 2020. Yet, as of late 2026, no consumer gaming monitor on the market can physically display the full Rec. 2020 color gamut. Instead, the best screens max out at DCI-P3, a smaller color space borrowed from digital cinema.[3][5]

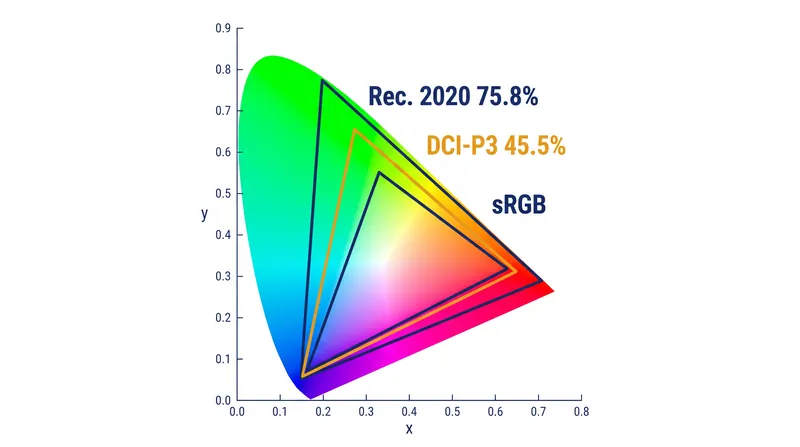

To understand the stakes of this mismatch, one must look at the math of human vision. The International Telecommunication Union (ITU) established the BT.2020 specification to encompass 75.8 percent of the CIE 1931 color space—the mathematical map of all colors the human eye can perceive. It was designed as a future-proof absolute, requiring a minimum of 10-bit color depth to prevent banding across its massive volume.[1]

DCI-P3, by contrast, covers only about 45.5 percent of human vision. It is the standard used by commercial movie theaters and the target that premium gaming monitors—whether QD-OLED, WOLED, or Mini-LED—strive to hit. When a monitor box advertises 99 percent coverage, it is almost always referring to DCI-P3, not Rec. 2020.[2]

The problem arises because modern gaming consoles, like the PlayStation 5 and Xbox Series X, alongside Windows 11 HDR, default to packaging their output in a Rec. 2020 container. As Insight Media analysts note, "BT.2020 is often used as a container for content that is actually mastered to a smaller color gamut like DCI-P3." The container is a massive shipping crate; the actual game art inside usually only fills a fraction of it.[3]

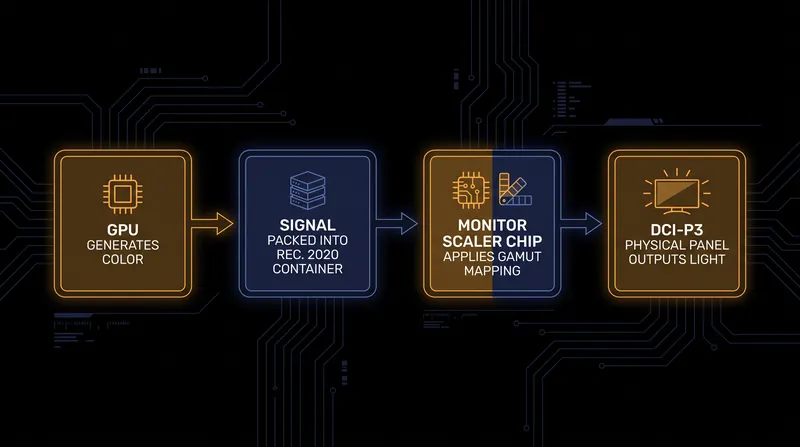

But the monitor receiving the signal does not inherently know whether the crate is full or mostly empty. It only sees a Rec. 2020 flag. This forces the display's internal processor to apply gamut mapping—a mathematical translation layer that attempts to squeeze the incoming coordinates into the physical capabilities of the panel.[7]

DisplayMate Technologies, which measures panel performance, highlights the severity of this translation. In their evaluations of color gamuts from NTSC to Rec.2020, the physical limitations of current phosphors and organic materials become stark. A flagship 2026 gaming monitor might cover 99 percent of DCI-P3, but that translates to roughly 71 to 73 percent of Rec. 2020. Over a quarter of the transmitted color space simply does not exist on the screen.[2]

When a game engine actually pushes a color outside the P3 boundary—say, a blindingly saturated laser blast—the monitor has two choices. The first is colorimetric clipping. The display renders the color at the absolute edge of its physical capability. If the laser has a bright core and a slightly less bright halo that both fall outside the P3 boundary, both are rendered as the exact same maximum red. The visual detail in the highlight is destroyed.[7]

The second choice is perceptual compression. The monitor's scaler shrinks the entire incoming color space, pulling the extreme out-of-bounds colors inward so they can be displayed. However, to maintain the relative difference between the core and the halo of that laser, it must also pull all the normal, in-bounds colors inward. The result is a global desaturation. The laser retains its detail, but the rest of the game looks washed out and lifeless.[7]

This algorithmic guesswork is why PC gamers frequently complain that toggling Windows HDR makes their desktop look gray. The operating system is sending a Rec. 2020 container, and the monitor is applying a compression curve to a signal that, for desktop use, is entirely composed of standard sRGB colors. The scaler is shrinking colors that did not need to be shrunk.[5][7]

Hardware manufacturers are acutely aware of this bottleneck. KTC, a major display manufacturer, explicitly addresses this in their technical documentation, noting the confusion between the container and the actual rendering target. They emphasize that while the console outputs BT.2020, the display's ability to accurately map that signal to its native DCI-P3 hardware is what separates premium monitors from budget alternatives.[5]

BenQ US similarly highlights the role of BT.2020 as a standard that "enhances 4K HDR quality" not by being fully realized today, but by providing a massive ceiling that prevents the signal itself from being the bottleneck. The data pipeline is wide open; the restriction is entirely at the emission layer.[6]

Christie, a company specializing in high-end projection, points out in their technical breakdown that achieving true Rec. 2020 requires highly specific, narrow-band light sources. "Rec. 2020 is a set of specifications... it defines a color gamut that is significantly wider than what was previously available," their engineers note. In practice, hitting those extreme coordinates requires pure RGB lasers, a technology currently too expensive and bulky for desktop gaming monitors.[4]

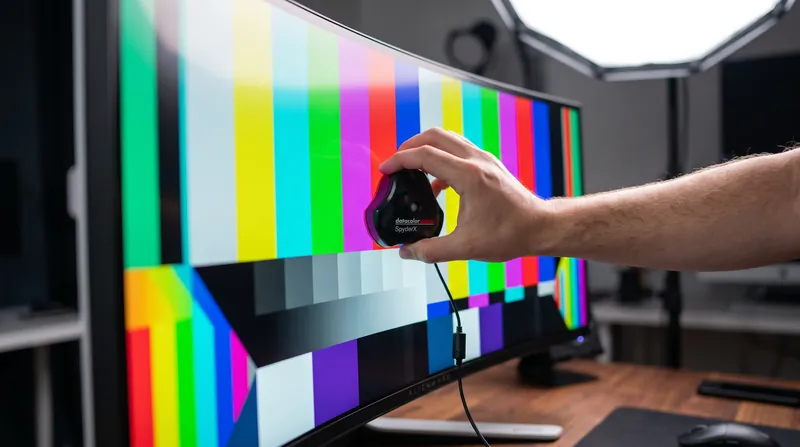

The gaming industry is attempting to bridge this gap through software calibration. Tools like the HDR Calibration app on consoles and Windows allow the player to manually tell the operating system exactly where the monitor's physical capabilities end. By setting these hard clipping points at the source, the game engine can perform the tone mapping before the signal is ever placed in the Rec. 2020 container.[7]

When source-led mapping works correctly, the monitor's scaler is bypassed entirely. The GPU knows the screen maxes out at a specific P3 coordinate, so it never sends a color beyond that point. The display receives the signal and renders it without scaling, preserving both the saturation of the mid-tones and the detail in the extreme highlights.[7]

The transition to true Rec. 2020 hardware remains years away for the consumer market. Panel makers are currently fighting for single-digit percentage gains in the BT.2020 volume using tandem OLED structures and refined quantum dots. Until RGB laser illumination can be miniaturized for a 27-inch desktop footprint, competitive and immersive gaming will remain an exercise in translation—relying on the invisible math of the scaler chip to map the colors of the future onto the hardware of the present.[4][7]
