The Zeolite Catalyst and 500°C Temperature That Dictate a Refinery's Gasoline-to-Fuel Oil Ratio

At the base of a fluid catalytic cracking riser, heavy vacuum gas oil collides with a fluidized powder at 550 degrees Celsius, accelerating upward through the vertical reactor at 40 meters per second. Within a brief window of two to four seconds, the endothermic chemical reaction absorbs enough ambient heat to drop the mixture's temperature to 500 degrees Celsius by the time it reaches the top of the vessel. That 50-degree thermal gradient, combined with the precise ratio of crystalline zeolite embedded in the catalyst powder, dictates whether a refinery successfully produces a high-value barrel of transport gasoline or a less profitable yield of heavy fuel oil and dry gas.[1][4]

The fluid catalytic cracking (FCC) unit serves as the primary gasoline engine of the modern petroleum refinery, fundamentally altering the economics of crude oil processing. Introduced commercially in 1942 to support wartime aviation fuel demands, the technology shifted the industry away from brute-force thermal cracking toward more precise chemical manipulation. 'Unlike atmospheric distillation and vacuum distillation, which are physical separation processes, fluid catalytic cracking is a chemical process that uses a catalyst to create new, smaller molecules,' the U.S. Energy Information Administration notes in its operational guidance. This catalytic approach allows refineries to extract significantly more value from the bottom of the crude barrel.[5]

The feedstock entering this system is typically heavy vacuum gas oil, a dense and viscous fraction of crude oil that boils between 340 and 540 degrees Celsius. Left untreated, this heavy material holds little commercial value beyond heavy marine fuel or asphalt blending. To convert it into lighter transport fuels, refineries circulate a specialized catalyst—a fine powder with an average particle size of 60 to 100 micrometers—that behaves exactly like a liquid when aerated by hot hydrocarbon vapors. This fluidization ensures maximum surface area contact between the heavy oil droplets and the active catalytic sites.[1][4]

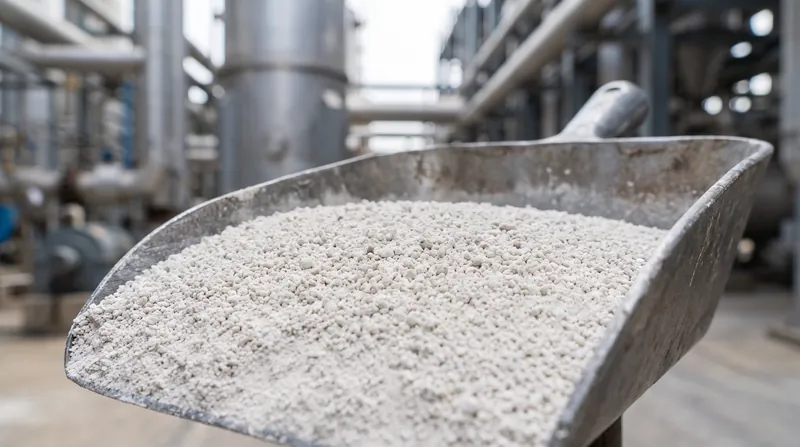

The active engine within that circulating powder is zeolite, specifically an ultra-stable Y-type (USY) crystalline structure designed to withstand extreme industrial environments. A modern commercial FCC catalyst comprises 15 to 40 percent zeolite, embedded within an amorphous matrix of silica-alumina and a clay filler that provides physical durability. The zeolite framework provides the highly acidic sites necessary to break the stubborn carbon-to-carbon bonds of large alkane and cycloalkane molecules, systematically converting them into the shorter, branched-chain alkanes and aromatics that define high-octane gasoline.[2][3]

Refinery operators constantly manipulate the zeolite-to-matrix ratio within their catalyst inventory to chase shifting market economics and seasonal fuel demands. A 2023 analysis published in the journal Catalysts by researchers at the University of the Punjab and King Fahd University of Petroleum and Minerals tested FCC catalysts with zeolite ratios ranging from 18 to 50 percent. Their experimental findings quantified the precise trade-off between raw conversion power and the eventual degradation of the final liquid product. By isolating the zeolite variable, the researchers demonstrated how chemical composition directly influences the refinery's bottom line.[3]

Increasing the zeolite concentration from 18 to 50 percent initially boosted the catalyst's acidity by a staggering 102 percent, providing immense cracking power. However, that aggressive chemical environment proved counterproductive for maximizing liquid fuel yields over the long term. As the zeolite ratio climbed, the selectivity for dry gas, liquefied petroleum gas (LPG), and solid coke increased substantially, while the yield of valuable gasoline and light cycle oil steadily declined as the molecules were broken down too far.[3]

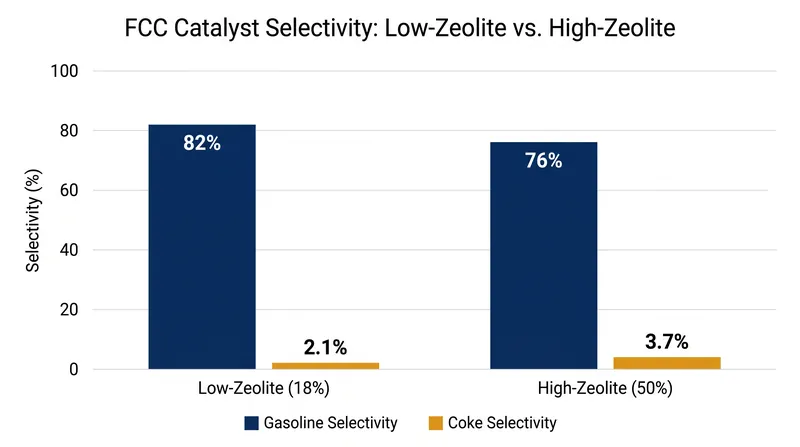

The degradation occurs because dense zeolite concentrations accelerate hydrogen transfer reactions, which overcrack the newly formed gasoline molecules into lighter, less valuable paraffin gases. When subjected to a 750-degree Celsius hydrothermal steaming—a process designed to simulate the harsh, aging conditions of a commercial regenerator—the low-zeolite catalyst maintained an 82 percent combined selectivity for gasoline and light cycle oil. In contrast, the high-zeolite variant dropped to a 76 percent selectivity under the exact same thermal conditions. This demonstrates that raw initial activity does not linearly translate to sustained commercial performance.[3]

Coke production, a critical operational constraint in any refinery, also scales directly with zeolite density. The low-zeolite catalyst generated a manageable 2.1 percent coke selectivity, whereas the high-zeolite sample produced 3.7 percent. Because the FCC unit is heat-balanced—relying entirely on the combustion of that deposited coke in the regenerator to heat the incoming catalyst—excessive coke forces the regenerator to run hotter. This excess heat can permanently damage the equipment metallurgy and accelerate the hydrothermal deactivation of the catalyst inventory.[3]

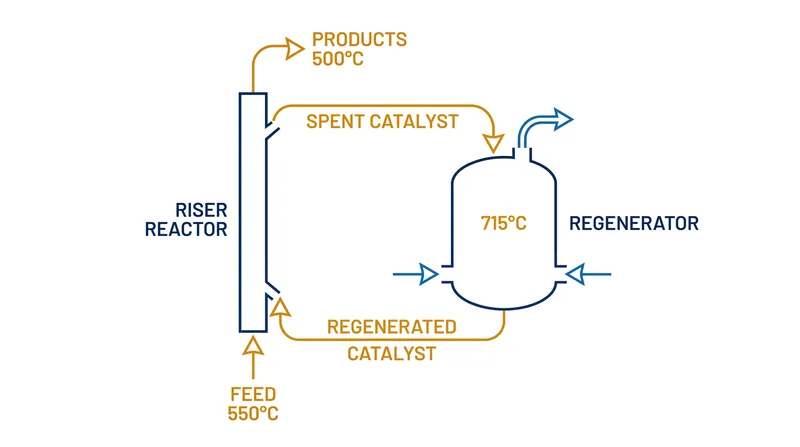

To prevent this overcracking and manage the heat load, operators rely on the second major process lever: the riser temperature profile. The catalytic cracking reaction is inherently endothermic, meaning it actively consumes heat as it breaks molecular bonds. The hot, regenerated catalyst enters the bottom of the riser at roughly 715 degrees Celsius, mixing instantly with the pre-heated vacuum gas oil to establish a base reaction temperature of 550 degrees Celsius at the point of initial contact. This intense initial heat provides the activation energy required to vaporize the heavy feed.[4]

As the vaporized mixture shoots up the vertical reactor, the massive amount of energy consumed by the breaking carbon bonds naturally cools the entire system. By the time the cracked products exit the top of the riser two to four seconds later, the temperature has dropped to 500 degrees Celsius. This rapid, natural cooling acts as a chemical brake, arresting the reaction just as the heavy gas oil has been converted into gasoline, but before that newly formed gasoline can be further cracked into dry gas.[1][4]

If an operator forces the riser temperature higher to process heavier, more contaminated resid feedstocks, the gasoline yield inevitably suffers. Data published by the Royal Society of Chemistry indicates that while higher temperatures successfully increase the absolute conversion rate of the heavy oil, the secondary cracking of gasoline into light olefins like propylene and butene accelerates exponentially. In this scenario, the refinery intentionally trades liquid transport fuel volume for petrochemical feedstocks, altering the fundamental output of the facility.[1]

The physical scale of this chemical balancing act is massive, underpinning the entire global fuel supply chain. The global refining industry consumes an estimated 840,000 metric tons of FCC catalyst annually, applying roughly 0.16 kilograms of catalyst for every single barrel of vacuum gas oil processed. In the United States alone, FCC units process more than 5.3 million barrels of feedstock per day, making the precise calibration of zeolite ratios and thermal gradients one of the most economically consequential calculations in the industrial world.[1][4]

The optimal configuration depends entirely on the refinery's downstream market strategy. Facilities integrated with petrochemical plants may intentionally deploy high-zeolite catalysts and elevated riser temperatures to maximize their propylene output for plastics manufacturing. Conversely, merchant refineries dedicated strictly to transport fuels must cap their zeolite ratios and strictly enforce the 500-degree Celsius riser exit temperature. The number that dictates the margin is not the total conversion rate, but the precise fraction of molecules that survive the two-second journey up the riser without fracturing into gas.[1][6]
