The 0.65% Fraction of Delayed Neutrons That Makes a Nuclear Chain Reaction Controllable

A chemical explosion releases its energy in a fraction of a millisecond, making it impossible to throttle or steer once the reaction begins. A nuclear fission chain reaction would behave in exactly the same uncontrollable manner, were it not for a single, microscopic anomaly in the physics of uranium: roughly 0.65% of the neutrons produced during fission arrive late.[6]

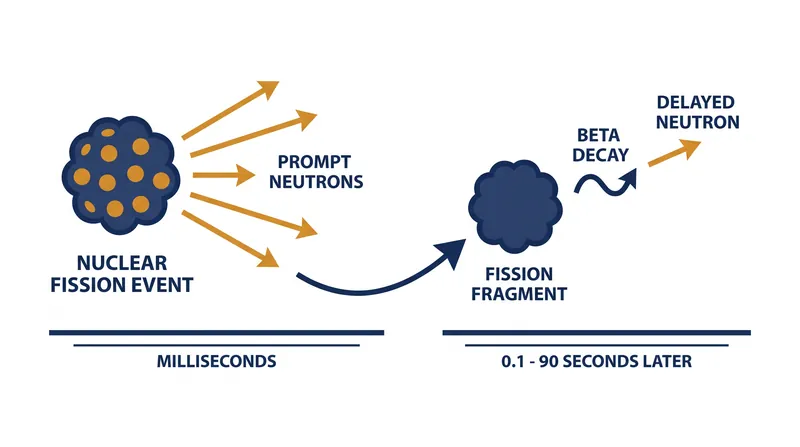

When a uranium-235 nucleus splits, it releases energy, lighter fission fragments, and two or three neutrons. More than 99% of these are "prompt" neutrons, ejected in less than a thousandth of a second. If a reactor relied solely on prompt neutrons, the population of neutrons would multiply so rapidly that mechanical control rods—which take seconds to move—would be entirely useless.[6][7]

"Since the number of neutrons grows exponentially, it is necessary that the e-folding time be on the order of the time associated with mechanical process of moving the rods," notes Stanford University physics documentation. Because prompt neutrons operate on a millisecond time constant, a reactor driven only by them would experience power spikes too fast for any physical system to catch.[6]

The solution to this control problem is provided by the remaining fraction of neutrons, which are delayed by the radioactive decay of the fission fragments. These fragments are highly unstable and undergo beta decay to reach a more stable state. In a small number of cases, this beta decay leaves the resulting daughter nucleus in an excited state, which then ejects a neutron.[7]

Because this emission relies on the beta decay half-life of the precursor isotopes, these "delayed neutrons" enter the reactor core anywhere from tenths of a second to nearly 90 seconds after the initial fission event. This delay acts as a temporal shock absorber, slowing the overall reaction rate just enough for human operators and automated control rods to manage the core.[6][7]

The fundamental discovery of this phenomenon dates back to 1939, when researchers R.B. Roberts and colleagues bombarded lithium and uranium with deuterons. They observed that while prompt neutrons ceased immediately when the beam was turned off, the uranium sample continued to emit neutrons for up to a minute and a half.[6]

In modern reactor physics, this raw 0.65% yield is translated into a critical operational parameter known as the effective delayed neutron fraction, or βeff. The effective fraction differs from the raw physical fraction because delayed neutrons are born at lower energies—typically between 0.3 and 0.9 megaelectron-volts (MeV)—compared to the 2 MeV average of prompt neutrons.[3][7]

Because they start at lower energies, delayed neutrons do not have to slow down as much to sustain the thermal chain reaction, making them less likely to leak out of the reactor core or be absorbed by non-fissile materials. Consequently, their actual importance in sustaining the reaction is mathematically weighted by the specific geometry and materials of the reactor.[2][3]

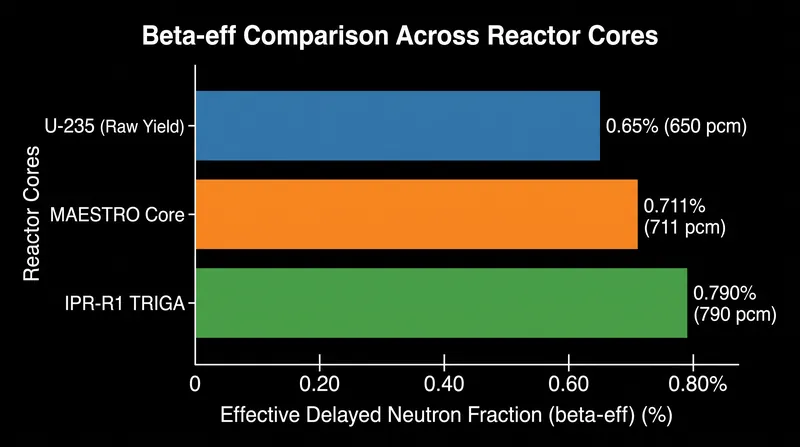

Experimental measurements confirm how core design alters this safety margin. In the MINERVE zero-power reactor at the Cadarache Research Center in France, researchers measured the effective delayed neutron fraction of the MAESTRO core configuration at 711 per cent mille (pcm), or 0.711%.[3]

In smaller, highly enriched systems, the effect is even more pronounced. Measurements taken at the 100-kilowatt IPR-R1 TRIGA Mark I research reactor in Brazil, which achieved its first criticality in November 1960, demonstrated an effective delayed neutron fraction of 790 pcm (0.790%). The reactor's 20% enriched uranium fuel and cylindrical graphite reflector ensure that delayed neutrons are highly utilized, expanding the control margin.[2]

"Delayed neutrons are of fundamental importance in the field of nuclear reactor dynamics and control," researchers noted in a 2015 study of the MINERVE reactor. This parameter is so central to operations that it is often used as the fundamental unit of reactivity, known as the "dollar."[3][5]

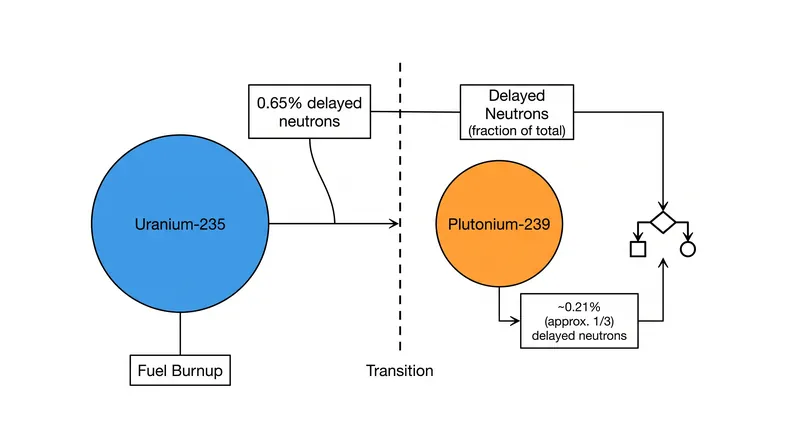

However, the delayed neutron fraction is not static over the lifetime of a reactor. As a light-water reactor operates, it consumes its initial uranium-235 fuel and gradually breeds plutonium-239 from the surrounding uranium-238.[7]

Plutonium-239 produces a significantly lower fraction of delayed neutrons when it fissions—roughly one-third the amount produced by uranium-235. As the plutonium content of the fuel increases toward the end of the operating cycle, the overall effective delayed neutron fraction of the core drops, tightening the margin for error and requiring more precise control rod movements.[7]

The physics of delayed neutrons also present unique challenges for advanced reactor designs, particularly molten salt reactors where the liquid fuel circulates through loops. In these systems, the delayed neutron precursors physically move with the fluid flow.[5]

If the fluid moves too quickly, the precursors may decay while they are outside the active core region, meaning their delayed neutrons are lost to the chain reaction. Calculating the effective delayed neutron fraction for these circulating-fuel systems requires complex continuous-energy Monte Carlo simulations to account for the exact velocity and piping geometry of the reactor.[5]

Without the 0.65% fraction of delayed neutrons, nuclear energy would be physically impossible to harness for civilian power. The entire architecture of nuclear safety—from the speed of control rod insertion mechanisms to the thermal limits of the fuel cladding—is engineered around the grace period provided by these late-arriving particles.[6][7]
