How Arps' Decline Curve Equations Forecast Oil Production and Where They Fail in Shale Reservoirs

When horizontal drilling and multi-stage hydraulic fracturing unlocked the Marcellus Shale in the late 2000s, the petroleum industry's standard forecasting mathematics broke. Engineers had relied on a specific set of equations to predict how much oil and gas a well would ultimately produce. But when applied to these new ultra-low permeability reservoirs, the equations began generating physical impossibilities, sometimes overestimating reserves by massive margins. The failure forced reservoir engineers to confront the mathematical limits of a tool that had governed energy valuation for over half a century.

The tool in question was developed by Jan Arps while working for Shell Oil Company. In 1945, Arps published three empirical equations in the Transactions of the American Institute of Mining and Metallurgical Engineers that fit nearly every conventional oil and gas well decline anyone had observed. The equations were not derived from reservoir physics; they were fit to historical production data.[2]

Decline curve analysis assumes that historical production trends can be characterized mathematically and extrapolated into the future. The simplicity and robustness of the Arps equations led to their widespread adoption, making them the industry standard for estimating ultimate recovery and forecasting future production from oil and gas wells globally.

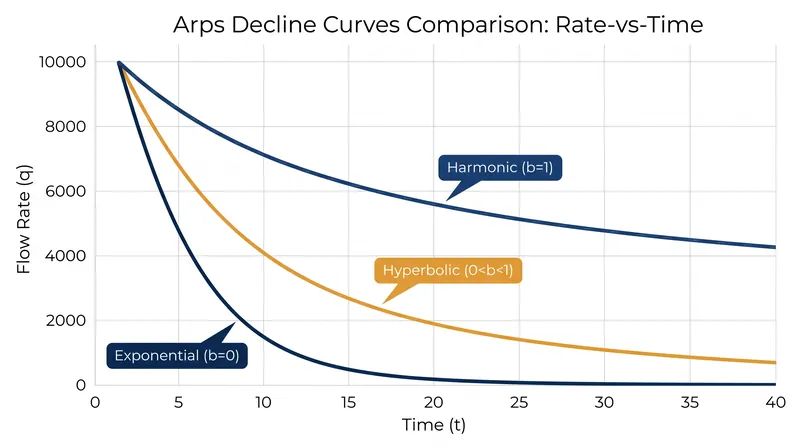

The three Arps forms differ primarily in one parameter: the decline exponent, commonly known as the b-factor. This single variable dictates the shape of the production curve and fundamentally alters the financial valuation of a well over its 20- to 30-year operational lifespan.

Setting the b-factor to zero yields exponential decline. In this regime, the decline rate remains constant over time. It represents a conservative, mathematically stable forecast that typically applies to mature wells or tight reservoirs with highly stable internal pressure conditions.

Setting the b-factor to exactly one produces harmonic decline. Here, the effective decline rate drops continuously as time progresses. This model is often used when production decline slows significantly, such as in reservoirs with strong water drives or gas cap expansions.

Any value between zero and one generates hyperbolic decline. This is the most common form for conventional reservoirs, where early-time production declines rapidly before flattening out into a more gradual, predictable depletion curve.

Decades after Arps published his work, researchers demonstrated which specific reservoir flow regimes produce which Arps form, granting the empirical equations physical legitimacy. The b-factor was revealed to be reservoir physics in disguise, signaling underlying flow behavior rather than acting merely as a curve-fitting knob.[1]

However, the mathematical elegance of the Arps equations relies on a critical physical assumption. "Important: Arps equations are only valid during boundary-dominated flow," notes the Petroleum Office in its technical documentation. The equations assume that the pressure transient has reached the physical boundaries of the reservoir and that operating conditions remain constant.

Unconventional shale and tight gas reservoirs violate this assumption entirely. Because of their ultra-low permeability, these wells exhibit extended transient flow that can last for years before boundary-dominated flow is ever established.

When engineers attempt to fit the Arps hyperbolic equation to this early transient flow, the math demands a b-factor greater than one. While the curve may visually fit the early production data perfectly, the underlying mathematics become highly unstable.

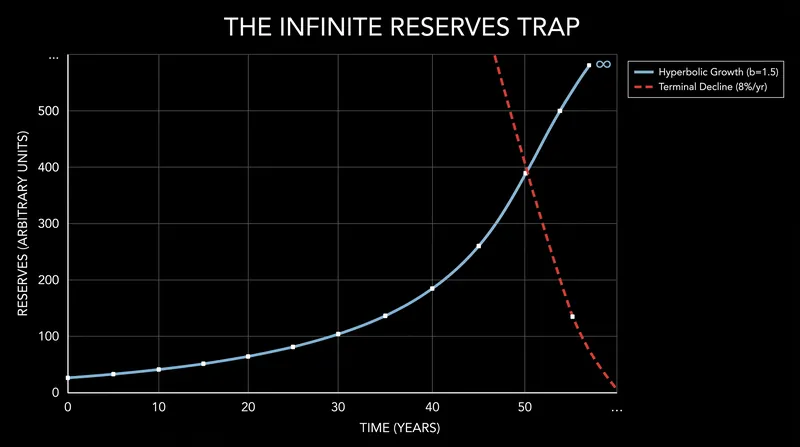

Extrapolating a hyperbolic curve with a b-factor greater than one to infinity mathematically predicts infinite cumulative production. To prevent this physical impossibility, reserves estimators are forced to intervene manually, applying a terminal decline switch that forces the curve into an exponential decline once the rate drops below a threshold of 6 to 10 percent annually.

Even with terminal switches, the Arps method remains highly sensitive to the chosen fitting window. "A b = 0.8 fit on three years of data can produce an EUR twice as large as the same well refit at year ten with b = 0.4," explains production engineering firm R Four Energy. The method provides a confident-looking curve but does not warn the user when the underlying flow regime is shifting.

To address these limitations, modern reservoir engineering is increasingly turning to machine learning and alternative physics-based models like the Stretched Exponential or Duong models. These approaches fold reservoir porosity, completion design, and offset-well interference into the forecast, rather than relying solely on a single historical trend line.[3]

Machine learning models have demonstrated accuracy improvements of 20 to 30 percent over traditional Arps decline curves in complex unconventional fields. Yet, despite the rise of algorithmic forecasting, the Arps equations remain the foundational language of the industry, a 1945 empirical observation that still anchors billions of dollars in global energy reserves.[3]
