How Perovskite-Silicon Tandem Cells Bypass the Shockley-Queisser Limit to Push Solar Efficiency Past 33 Percent

Utility-scale solar developers are now modeling project economics around a fundamental shift in panel architecture, as tandem cells move from laboratory records toward commercial pilot lines. By layering a synthetic perovskite crystal over a standard silicon base, researchers have broken the theoretical efficiency ceiling that has constrained single-junction solar panels since 1961. This dual-layer approach captures high-energy blue light in the top layer and low-energy red light in the bottom, increasing the power yield per square meter by roughly 15% relative to today's premium commercial modules.[2]

The physical barrier driving this shift is known as the Shockley-Queisser limit. Calculated 65 years ago, this thermodynamic rule dictates that a standard silicon solar cell can never convert more than 29.4% of the sun's energy into electricity. Silicon possesses a fixed bandgap of 1.1 electron volts (eV), meaning it is highly effective at absorbing infrared and red light, but it wastes the excess energy of higher-frequency visible light as heat.

"You cannot negotiate with the bandgap of a single material," notes the 2026 Fraunhofer ISE Photovoltaics Report, which tracks global module performance. "To push beyond the 30% threshold, the architecture must divide the solar spectrum before the light is thermalized."[1]

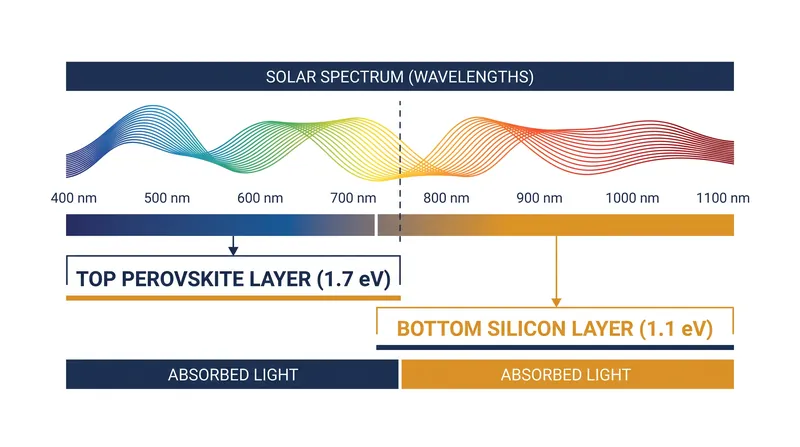

Perovskite materials solve this spectral mismatch. Named for their specific crystal structure, synthetic perovskites can be chemically tuned to possess a wider bandgap—typically around 1.7 eV. When deposited as a thin film directly on top of a standard silicon cell, the perovskite layer acts as a high-energy filter. It absorbs the blue and green wavelengths, converting them to electricity at a higher voltage, while allowing the red and infrared light to pass through to the silicon layer below.[2]

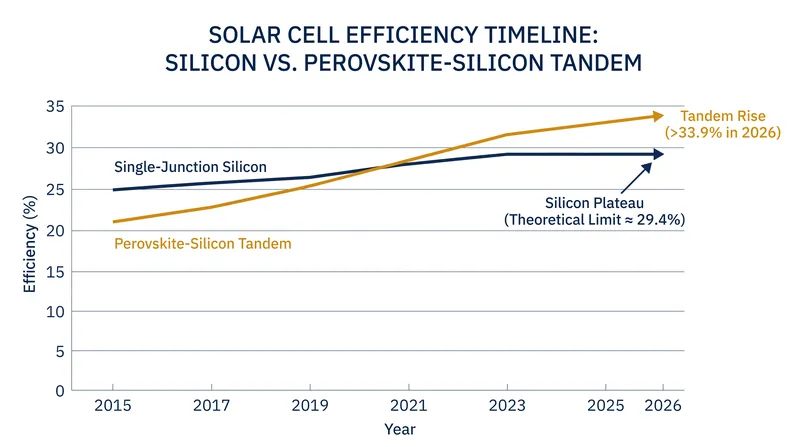

This spectral division has triggered an unprecedented surge in laboratory performance. The National Renewable Energy Laboratory (NREL) recently certified a perovskite-silicon tandem cell at 33.9% efficiency, a record achieved by the manufacturing firm LONGi. For context, it took the global solar industry three decades to push commercial silicon efficiency from 15% to 23%. The tandem architecture bypassed silicon's absolute theoretical maximum in less than five years of focused development.

The economic leverage of this efficiency gain applies directly to land use and balance-of-system costs. A solar farm's capital expenditure is heavily weighted toward the physical footprint: the land acquisition, the steel mounting racks, the copper wiring, and the labor required to install the array. If a panel generates 15% more power, a developer can achieve the exact same target capacity while purchasing 15% less land and installing 15% fewer support structures.[2]

However, the transition from certified laboratory cells to 25-year commercial assets hinges on material durability. Perovskite crystals are inherently sensitive to moisture, oxygen, and sustained ultraviolet exposure. While a standard silicon module degrades at a predictable rate of roughly 0.4% per year, early perovskite iterations degraded within hours of atmospheric exposure.[1]

Encapsulation technology has since stabilized these materials, but the industry standard for utility-scale deployment requires a module to survive rigorous accelerated aging tests. The Fraunhofer ISE report emphasizes that any tandem module entering the market must match the 25-year warranty of the silicon cell it sits upon, otherwise the levelized cost of energy will actually increase due to premature replacement cycles.[1]

Manufacturing integration presents the final hurdle. The global solar supply chain is optimized for producing billions of single-junction silicon wafers. Tandem commercialization requires depositing the perovskite layer using vapor deposition or slot-die coating directly onto the textured surface of a silicon cell without disrupting existing high-throughput manufacturing lines.

Pilot facilities in Europe and Asia are currently testing these exact deposition techniques on standard M10 and G12 wafer sizes. The data generated by these initial production runs over the next 24 months will determine whether tandem architecture remains a laboratory triumph or becomes the baseline technology for the next terawatt of global solar deployment.[2]
