The Iron-56 Peak and the Binding Energy Curve That Dictate Nuclear Yields

Chemical combustion releases energy by rearranging electron bonds, yielding a few electron-volts per reaction, but nuclear reactions rearrange the nucleus itself, yielding millions of times more energy per event. The single respect in which nuclear energy differs from chemical energy is its reliance on the strong nuclear force, a mechanism mapped entirely by the curve of binding energy.[1][6]

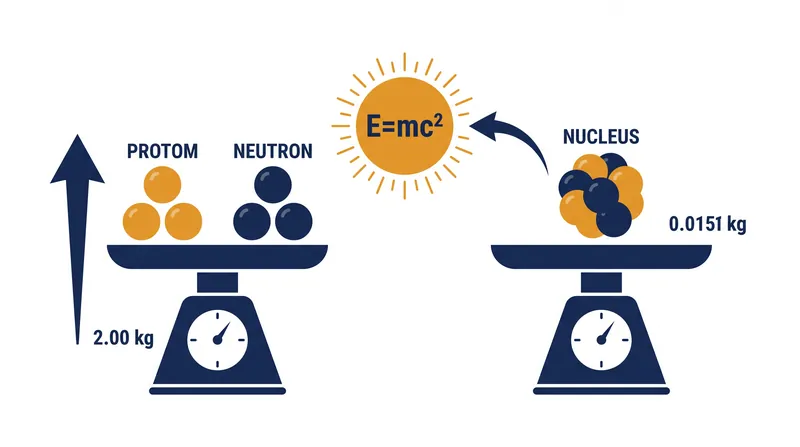

At the core of this mechanism is a universal physical constant: the mass of an atomic nucleus is always less than the sum of the individual protons and neutrons that comprise it. This "mass defect" is converted directly into energy, binding the nucleus together and dictating the stability of the element.[1][3]

According to the National Aeronautics and Space Administration (NASA), this binding energy is the glue that overcomes the electrostatic repulsion between positively charged protons. "The binding energy is the energy required to disassemble a whole system into separate parts," NASA documentation states.[3]

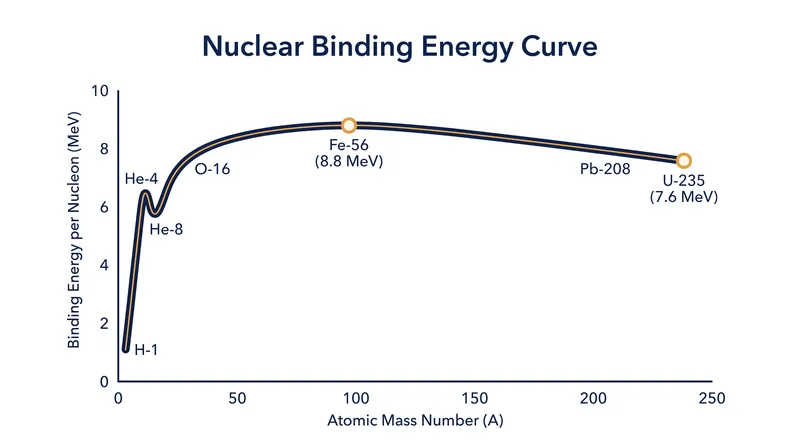

When physicists plot the average binding energy per nucleon against atomic mass, the resulting curve rises steeply from hydrogen, peaks in the transition metals, and gradually declines toward uranium. This curve is the topographic map of nuclear physics, dictating which elements can yield energy and which require energy to change.[1][4]

At the absolute summit of this curve sits iron-56, alongside its close neighbor nickel-62. West Texas A&M University physicist Christopher Baird notes that while nickel-62 has the highest binding energy per nucleon, iron-56 has the lowest mass per nucleon, making it the ultimate endpoint of stellar nucleosynthesis.

"Iron-56 is the most tightly bound of all the nuclides," the HyperPhysics project at Georgia State University explains. "It costs more energy to take it apart than any other nucleus."[5]

Because iron-56 represents the lowest energy state, any nuclear reaction that moves an element closer to iron on the periodic table releases energy. Elements heavier than iron release energy when split, while elements lighter than iron release energy when combined.[1][4]

In a fission reactor, heavy isotopes like uranium-235 are bombarded with neutrons, causing them to become unstable and split into lighter fragments. The Encyclopædia Britannica defines this process as one where "the nucleus splits into two lighter nuclei, which are called fission products."[2]

The combined mass of these fission products is slightly less than the original uranium nucleus. This missing mass, roughly 0.1 percent of the total, is converted into kinetic energy and gamma radiation, yielding approximately 200 mega-electron-volts (MeV) per fission event.[2]

Divided across the 236 nucleons involved in the reaction, fission yields about 0.85 MeV per nucleon. This energy heats water to drive steam turbines, forming the basis of the 390 gigawatts of commercial nuclear capacity operating globally in 2026.[2][6]

Conversely, fusion operates on the steep left side of the binding energy curve. When light isotopes like deuterium and tritium are forced together under extreme temperature and pressure, they fuse into helium-4, shedding a neutron in the process.[1][4]

The University of Oregon's astrophysics department notes that the mass difference in fusion is even more pronounced than in fission. "The fusion of four protons to form a helium nucleus releases about 27 MeV of energy," the university's curriculum states.[4]

For the deuterium-tritium reaction pursued by most terrestrial fusion projects, the yield is 17.6 MeV. Spread across the five nucleons involved, this equates to roughly 3.5 MeV per nucleon—more than four times the specific energy yield of uranium fission.[1][6]

However, accessing this energy requires overcoming the Coulomb barrier—the electrostatic repulsion between positively charged nuclei. While fission can be initiated at room temperature by a single slow neutron, fusion requires temperatures exceeding 100 million degrees Celsius to strip electrons and force nuclei into proximity.[1][4]

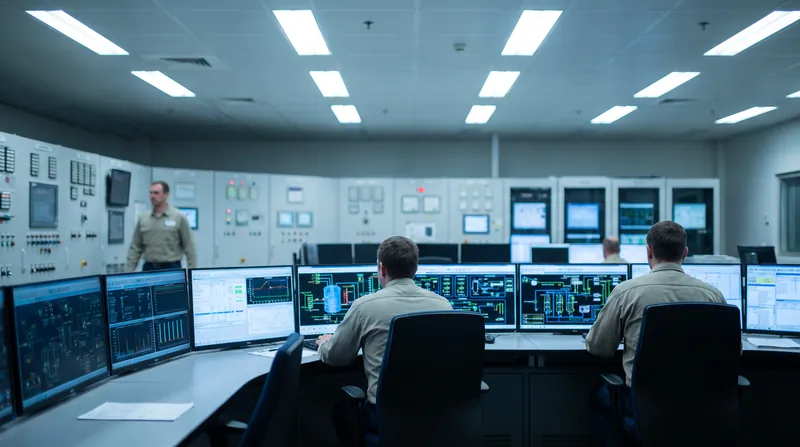

This thermodynamic hurdle explains why commercial fission has powered electrical grids since 1954, while commercial fusion remains an engineering challenge in 2026. The energy required to maintain the plasma state historically exceeded the energy yielded by the fusion reactions.[6]

Both processes ultimately halt at the iron peak. A star can fuse hydrogen into helium, helium into carbon, and carbon into oxygen, releasing energy at each step. But once a stellar core fuses silicon into iron, the energy generation stops.[4]

"Since iron is the most stable nucleus, it cannot be fused into heavier elements without the input of energy," the University of Oregon explains. This sudden cessation of outward thermal pressure causes massive stars to collapse, triggering supernovae that forge the heavier elements.[4]

For grid-scale energy infrastructure, the binding energy curve dictates the physical limits of power density. The theoretical maximum energy extractable from nuclear fuel is strictly bounded by the mass defect relative to iron-56.[6]

Understanding this curve is essential for evaluating next-generation reactor designs. Whether engineers are optimizing fast-neutron fission reactors or magnetic-confinement fusion tokamaks, they are fundamentally designing machines to harvest the mass defect mapped by this single physical law.[6]

The pursuit of fusion is not merely an attempt to build a better power plant; it is an effort to move from the shallow, gradual slope of the heavy elements to the steep, high-yield cliff of the light elements, maximizing the energy extracted per unit of mass before reaching the iron-56 floor.[1][6]
