The Break-Even Distance and Conversion Cost That Dictate the Choice Between HVAC and HVDC Transmission

Utility planners and grid advocates frequently argue that expanding the existing alternating current (AC) network is the most straightforward path to integrating remote renewable energy. But the physics of power transmission contradict that assumption. As alternating current travels over long distances, the continuous reversal of voltage and current generates reactive power, turning the transmission line into a giant capacitor that bleeds energy before it ever reaches a city. To move gigawatts of power across continents or under oceans, grid operators are increasingly forced to abandon AC in favor of High-Voltage Direct Current (HVDC) lines, a choice dictated entirely by a mathematical threshold known as the break-even distance.[1][4]

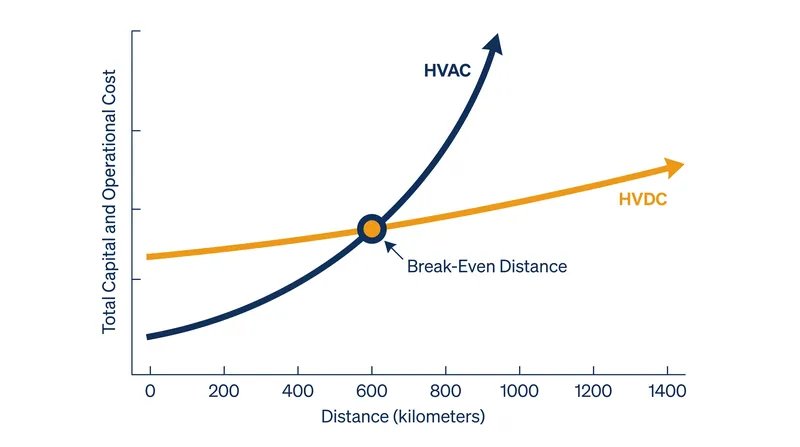

The break-even distance is the exact geographic point where the massive upfront capital required to build HVDC converter stations is eclipsed by the per-kilometer savings of DC transmission. "HVDC transmission has significant advantages compared to conventional alternating current (AC) lines, including greater efficiency over long distances, lower costs at these distances, and the ability to connect asynchronous systems," wrote Andre Pereira, a program manager at the Department of Energy's Office of Electricity, in a 2023 policy brief. According to the agency, that threshold sits at approximately 200 kilometers (124 miles) for overhead lines and just 60 kilometers (37 miles) for submarine cables. Beyond those markers, the economics flip entirely, making HVDC the only viable option for bulk power transfer.[5]

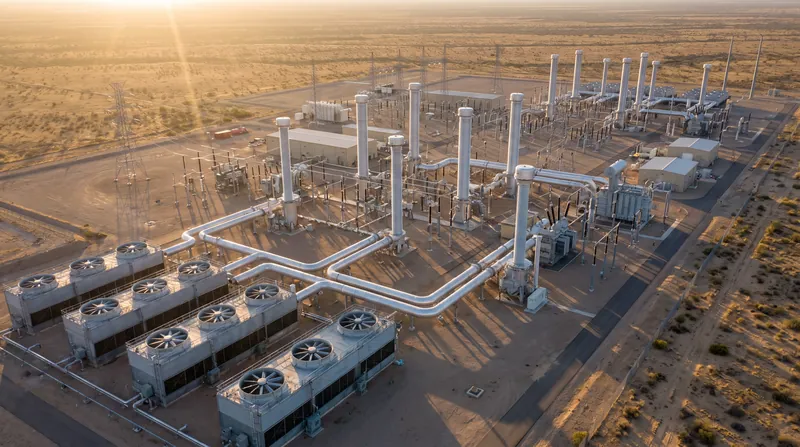

The cost disparity begins at the terminal stations. A High-Voltage Alternating Current (HVAC) system requires relatively simple substations to step voltage up and down using standard, passive transformers. An HVDC system, however, requires complex voltage source converters at both ends of the line to translate the alternating current generated by power plants into direct current for the journey, and then back to AC for the local distribution grid. These converter stations are massive industrial facilities filled with power electronics and cooling systems. Recent industry estimates place the cost of a single 500-kilovolt, multi-gigawatt converter station at roughly $350 million.[2][4][6]

That $700 million fixed penalty for a two-way link makes HVDC economically prohibitive for short distances. If an offshore wind farm is only 40 kilometers from a coastal city, the fixed costs and the slight energy losses introduced by the conversion process itself dominate the equation. In that scenario, a standard HVAC line is cheaper to build, simpler to operate, and more efficient overall. The heavy capital requirement of the converter stations acts as a barrier to entry, ensuring that AC remains the undisputed standard for local and regional distribution within the break-even radius.[3][4]

But as the transmission distance extends, the physical properties of the cables begin to dictate the economics. An HVAC circuit requires three separate conductors to carry three-phase power. An HVDC system requires only two conductors—a positive and a negative pole—and can even operate in a monopolar configuration using the earth or sea as a return path in emergencies. This physical reduction means HVDC transmission towers are smaller, require less right-of-way clearance, and consume significantly less steel and aluminum per kilometer of line built.[1]

More importantly, direct current flows continuously in one direction. It does not suffer from the "skin effect," a phenomenon where alternating current tends to crowd toward the surface of a conductor, increasing the effective electrical resistance. It also entirely eliminates the reactive power losses that plague AC systems. In an HVAC line, the charging current required to energize the line's natural capacitance grows continuously with distance. For overhead lines, this effect becomes severe over hundreds of kilometers, requiring expensive compensation devices to be installed along the route.[1][4]

For submarine cables, where the conductors are surrounded by water rather than air, the capacitance penalty is vastly higher. The reactive current drawn by an underwater HVAC cable is so large that it consumes the cable's entire current-carrying capacity within a short distance, rendering AC transmission practically useless beyond 70 kilometers. The Department of Energy notes that over distances of 1,000 kilometers, HVDC transmission losses are 30 to 50 percent lower than comparable HVAC systems. When moving thousands of megawatts of power, that efficiency gain translates into millions of dollars in recovered revenue annually.[5]

Beyond raw economics, HVDC provides a critical operational advantage: the ability to connect asynchronous grids. The North American power network is not a single synchronized machine; it is divided into the Eastern Interconnection, the Western Interconnection, and the Texas Interconnection. Because these massive regional grids operate independently, their alternating current frequencies are not perfectly aligned. Attempting to connect them directly with an HVAC line would result in immediate instability, equipment damage, and cascading failures as the out-of-phase frequencies clash.[5]

An HVDC link acts as an electrical buffer between these independent networks. By converting the AC power to DC, the system strips away the frequency entirely. The receiving converter station then rebuilds the AC waveform to perfectly match the frequency and phase of the destination grid, allowing power to flow seamlessly between regions that could never otherwise be connected. This asynchronous capability is increasingly vital as grids absorb higher penetrations of variable renewable energy, allowing operators to balance loads across time zones.[1][5]

If the wind stops blowing in the Midwest, grid operators can import surplus solar power from the Southwest, using HVDC ties to balance the load without risking the stability of either interconnection. Recognizing this strategic value, the Department of Energy launched a $10 million funding initiative in 2023 specifically targeting cost reductions in HVDC voltage source converters. The goal is to lower the capital barrier of the converter stations, effectively shrinking the break-even distance and making HVDC viable for shorter, critical inter-regional links.[5]

Despite these advantages, HVDC is not a blanket replacement for the alternating current grid. AC power can be easily and cheaply stepped down to lower voltages using passive transformers, allowing utilities to tap into the transmission line at multiple points along its route to serve individual towns, neighborhoods, and industrial facilities. Tapping an HVDC line, by contrast, requires building another multi-million-dollar converter station at the exact drop-off point, making multi-terminal DC systems exceedingly rare and highly complex to engineer. Consequently, HVDC is deployed almost exclusively as a point-to-point superhighway.[1][3]

These point-to-point superhighways are designed to move massive blocks of power from a generation hub directly to a major load center, bypassing the congestion of the local network entirely. While the AC grid continues to handle the complex, multi-directional web of local power delivery, the backbone of the future energy transition relies heavily on direct current. The choice between the two is never a matter of preference; it is dictated entirely by the strict mathematics of the break-even distance, the cost of conversion, and the physical limits of the cables themselves.[2][6]
