The Inertia Floor: How Grid-Forming Inverters Replace the Kinetic Energy of Spinning Turbines

The alternating current power grid operates on a strict physical constraint: supply and demand must balance instantaneously to maintain a frequency of exactly 60 hertz (or 50 hertz in much of the world). If demand spikes or a transmission line trips, that frequency drops. Historically, this constraint was satisfied by the sheer physical mass of the grid's generators. Coal, nuclear, and natural gas plants all generate electricity by spinning massive steel rotors. When a sudden imbalance occurs, the kinetic energy stored in those spinning thousands of tons of metal acts as a shock absorber, resisting the change in frequency just as a heavy flywheel resists a change in speed. This property, known as synchronous inertia, is the bedrock of grid stability.

As utilities replace thermal plants with solar panels and battery storage, they are removing that physical mass from the system. Solar arrays and batteries do not spin; they produce direct current (DC) electricity, which must be converted to alternating current (AC) by devices called inverters. Historically, these were "grid-following" inverters. They rely on the existing grid frequency to synchronize their output, essentially listening to the heartbeat established by the remaining spinning turbines and matching its rhythm.[3]

The vulnerability of a grid-following system emerges when the proportion of renewable energy crosses a critical threshold. If too many spinning turbines are retired, the grid's total inertia drops below the minimum floor required to arrest a frequency plunge. In a low-inertia state, a routine fault—such as a tripped 345-kilovolt transmission line—can cause the frequency to collapse faster than grid-following inverters can measure and react to it, triggering cascading blackouts.

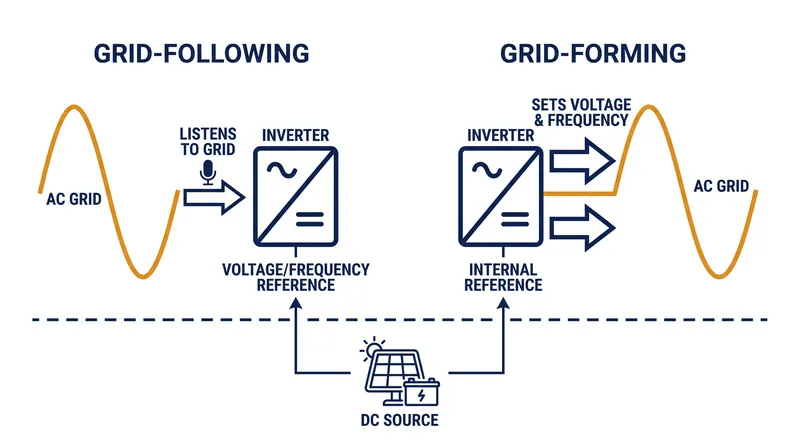

This mechanical deficit is solved by grid-forming inverters (GFMs). Rather than passively listening for the grid's frequency, a grid-forming inverter actively establishes the voltage and frequency reference itself. Using advanced control algorithms and high-frequency insulated-gate bipolar transistors (IGBTs), the GFM continuously calculates what the grid needs and injects the precise amount of active and reactive power required to hold the frequency steady.[2]

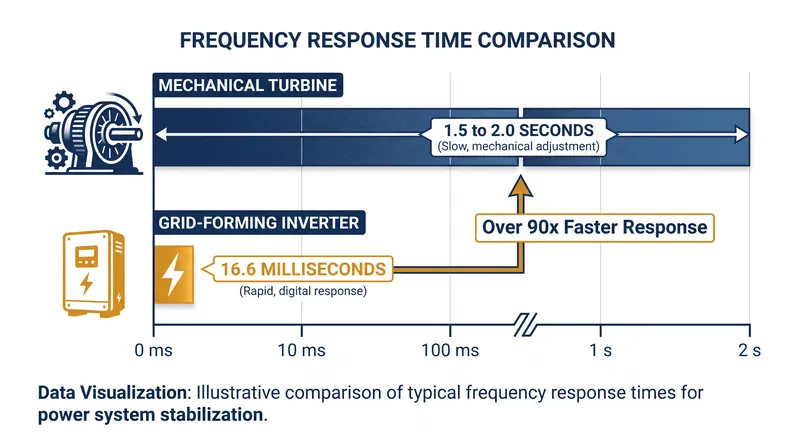

The mechanism relies on synthetic inertia. When a grid-forming inverter detects a drop in frequency, it immediately pulls power from its attached battery or solar array and pushes it onto the grid. Because this process is governed by software rather than physical momentum, the response is nearly instantaneous. While a mechanical turbine might take 1.5 to 2.0 seconds to fully arrest a frequency deviation, a grid-forming inverter can respond within a single electrical cycle—roughly 16.6 milliseconds on a 60-hertz system.[3][4]

This sub-cycle response time fundamentally changes the math of grid stability. Because the software-driven response is up to 60 times faster than physical momentum, the grid requires significantly less total inertia to maintain the same safety margin. The stability of the system transitions from a mechanical property of heavy metal to a digital property of power electronics. "Grid-forming inverters are capable of providing system support functions on power grids with very large amounts of renewable, inverter-based resources," notes the Department of Energy's 2026 technology overview.[1]

The deployment of this technology is moving from pilot projects to system-wide mandates. In regions with high renewable penetration, such as South Australia and Hawaii, grid operators have already begun requiring new battery storage facilities to include grid-forming capabilities. The Dalrymple battery in South Australia demonstrated grid-forming behavior in a live grid environment, delivering the rapid frequency support that spinning turbines once provided automatically.[3]

The transition is not without engineering challenges. Grid-forming inverters must be carefully tuned to avoid competing with one another. If multiple GFMs on the same circuit attempt to set the frequency simultaneously without proper droop control—a software mechanism that tells them how to share the load—they can create oscillating power flows that destabilize the local network. "A large inertia factor allows GFM converters to mimic the dynamic response of synchronous generators but could compromise grid synchronization during extreme frequency events," notes a 2025 IEEE analysis on synthetic inertia design.[4]

Furthermore, while GFMs excel at injecting synthetic inertia, they are constrained by their thermal limits. A spinning steel turbine can endure massive fault currents—often 5 to 6 times its rated output—for several seconds without melting, allowing protective relays time to isolate a short circuit. Power electronics, however, have very little thermal mass. If an inverter pushes too much current into a fault, its silicon components will overheat and fail within milliseconds.[2]

To compensate for this lack of thermal mass, grid planners must over-size the inverter hardware by 20% to 30% or pair GFMs with synchronous condensers—unpowered spinning motors that provide physical fault current without generating electricity. This hybrid approach ensures the grid has both the digital speed of synthetic inertia and the physical durability to clear short circuits.[3]

The standardization of GFM technology is currently the primary focus of utility regulators. The Universal Interoperability for Grid-Forming Inverters (UNIFI) Consortium, funded by the Department of Energy, is developing universal performance specifications to ensure that inverters manufactured by different vendors can seamlessly interact on the same transmission network.[2]

The shift from grid-following to grid-forming architectures represents the final technical hurdle in the decarbonization of the power sector. By proving that a stable electrical grid does not require the continuous combustion of fossil fuels to keep heavy metal spinning, utilities are unlocking a system where reliability is defined by the speed of software rather than the mass of a turbine. The next phase of deployment depends on whether regional transmission organizations will compensate battery operators for providing this digital inertia, creating the market signals necessary to retire the remaining thermal fleet.[1][3]
