The Mechanism of Bone Conduction: Why Wearable Transducers Bypass the Eardrum but Struggle with Bass

Standard dynamic headphones operate like miniature loudspeakers, pushing waves of pressurized air down the ear canal to vibrate the tympanic membrane. Bone conduction transducers discard the air entirely. Instead of generating acoustic waves, these devices press a vibrating piezoelectric or electromechanical plate directly against the temporal bone, turning the human skull itself into the speaker cabinet.[2][5]

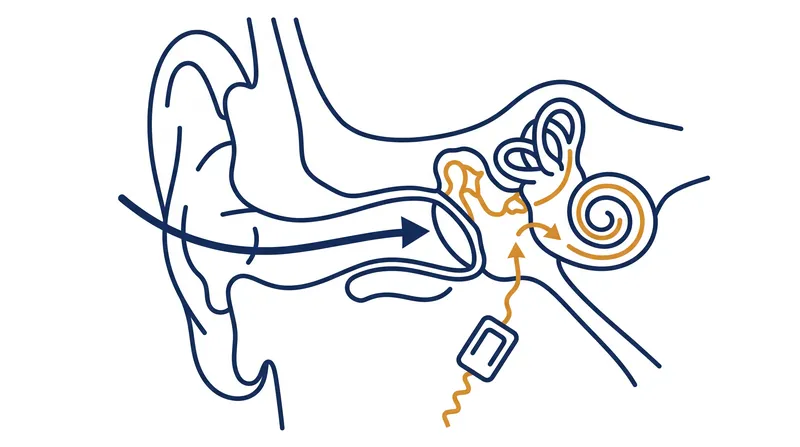

The technology relies on the fact that the inner ear—specifically the fluid-filled cochlea—is encased in the temporal bone. When a transducer vibrates the skull, those vibrations travel through the bone matrix and directly agitate the cochlear fluid. This movement stimulates the hair cells on the basilar membrane, which the brain interprets as sound, completely bypassing the outer ear (pinna) and middle ear (ossicles).[1][3]

While consumer electronics brands have popularized the form factor for runners and cyclists over the last decade, the mechanism was first formalized for medical use. In 1977, the first bone-anchored hearing aids (BAHA) were surgically implanted to treat conductive hearing loss. By routing vibrations around a damaged middle ear, patients could perceive clear audio. Modern consumer gadgets use the exact same mechanical pathway, simply resting the transducer on the skin rather than anchoring it to a titanium post.[3][5]

The engineering challenge arises from the sheer density of the human head. Air is highly compressible and requires very little energy to move. Bone is rigid, heavy, and highly resistant to low-frequency oscillation. To transmit a 1,000-hertz vocal tone, a transducer only needs to generate microscopic, rapid vibrations. To transmit a 60-hertz bass drum, it must physically displace the mass of the skull.[2]

This creates a severe mechanical impedance mismatch. According to 2024 measurements from the University of Colorado Boulder Acoustics Lab, the human temporal bone acts as a natural high-pass filter. Frequencies above 400 hertz travel through the bone with minimal energy loss, allowing for crisp vocal reproduction and clear podcasts. Frequencies below 150 hertz, however, face exponential resistance.

Dr. Stefan Stenfelt, a leading bioacoustics researcher, quantified this limitation in the Journal of the Acoustical Society of America. "The skull acts as a low-pass filter for airborne sound, but for direct mechanical stimulation, the mass of the temporal bone severely attenuates frequencies below 150 hertz, converting acoustic energy into sheer tactile vibration rather than auditory perception," Stenfelt wrote.[1]

When a consumer audio brand claims their bone conduction headset delivers "deep, premium bass," they are fighting physics. To force a 60-hertz wave through the skull at a perceptible volume, the transducer must generate roughly 50 grams of mechanical force against the skin. At this intensity, the vibration ceases to be interpreted purely as sound and is instead felt by the somatosensory system as a distinct, often uncomfortable tickle or buzzing sensation on the cheekbones.[2]

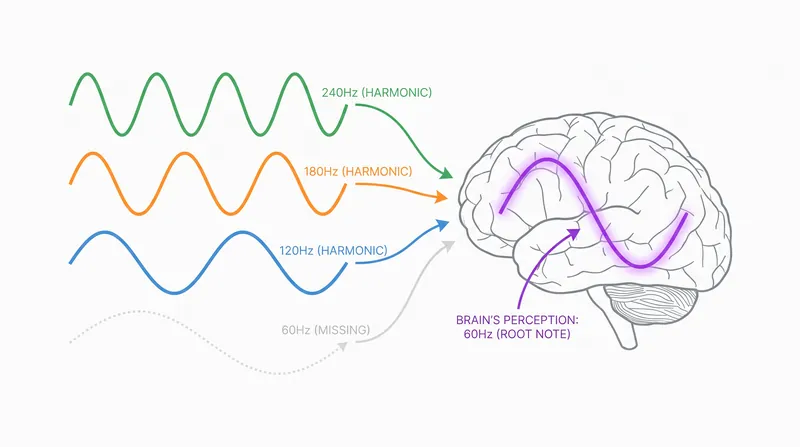

To circumvent this physical barrier, audio engineers rely heavily on digital signal processing (DSP) and psychoacoustics. The most common technique is exploiting the "missing fundamental" effect. If a track contains a heavy 60-hertz bassline, the headset's onboard processor will intentionally remove the 60-hertz tone and replace it with artificially generated harmonics at 120 hertz, 180 hertz, and 240 hertz.[4]

Because the human brain is trained to recognize harmonic patterns, it hears the upper harmonics and subconsciously fills in the missing 60-hertz root note. The listener perceives the presence of bass without the transducer actually having to vibrate at the lower, energy-intensive frequency. This DSP trickery is documented extensively in IEEE standards for piezoelectric audio devices.[4][5]

However, this psychoacoustic illusion cannot replicate the visceral impact of moving air. Standard in-ear monitors seal the ear canal, creating a pressurized acoustic chamber where a 10-millimeter driver can easily reproduce frequencies down to 20 hertz. Bone conduction transducers, resting outside the ear, leak a significant amount of acoustic energy into the surrounding air as they vibrate the skin, further reducing low-end efficiency.[2]

The leakage is not just a bass problem; it is a privacy constraint. Because the transducer is essentially a vibrating plate, it acts as a crude conventional speaker. At volumes exceeding 75 decibels, the skin vibration couples with the surrounding air, making the audio audible to anyone standing within a three-foot radius. Engineers mitigate this by mounting the transducers on internal suspension systems, but the fundamental physics of a vibrating surface cannot be entirely silenced.[2][4]

Despite these acoustic compromises, the technology dominates the endurance sports market for a singular reason: situational awareness. By leaving the ear canal entirely unobstructed, users maintain 100 percent of their natural hearing. A cyclist can listen to navigation prompts while perfectly localizing the sound of an approaching vehicle's tires—a safety feature that no software-based "transparency mode" on standard earbuds can perfectly replicate.[5]

The industry is now shifting toward hybrid architectures to solve the bass deficit. Newer wearable designs combine a traditional directional air-conduction speaker aimed at the ear canal for low frequencies, paired with a bone conduction transducer resting on the cheekbone for mids and highs. This dual-driver approach attempts to bridge the gap between acoustic fidelity and open-ear safety.[2][4]

Yet for pure bone conduction devices, the frequency floor remains fixed. Software updates and advanced titanium enclosures can refine the harmonic distortion and improve battery life, but they cannot alter the mechanical impedance of human osteology. The skull will always resist the bass.[1][5]
