Why Smartphone Batteries Shut Down in the Cold: The Mechanics of Sub-Zero Voltage Sag

Inside a thermal testing chamber chilled to -20 degrees Celsius, an oscilloscope monitors a fully charged smartphone battery. The screen displays a steady voltage curve, but the moment a standard processor load is applied, the line plunges sharply.[5]

Within seconds, the device's screen goes black. The battery management system has triggered an emergency shutdown, even though the chemical cell still holds nearly half of its stored energy.[4]

This laboratory observation mirrors a frustrating winter reality for millions of smartphone users. A device showing a comfortable 40 percent charge suddenly dies in the cold air, leaving the user stranded without navigation or communication.[5]

The phenomenon is rarely a hardware defect or a degraded battery cell. Instead, it is a fundamental limitation of lithium-ion chemistry, driven by the physical behavior of liquids at sub-zero temperatures.[2]

The Viscosity Problem

Every commercial smartphone relies on a lithium-ion battery to deliver power. These cells generate electricity by moving lithium ions back and forth between a graphite anode and a metal oxide cathode.[2]

To make that journey, the ions must swim through a liquid electrolyte. In most modern devices, this electrolyte is a mixture of organic carbonates, heavily reliant on ethylene carbonate to maintain a stable internal environment.[1]

Ethylene carbonate is highly effective at room temperature, but it possesses a relatively high melting point. When the ambient temperature drops below freezing, this liquid begins to change its physical state.[1]

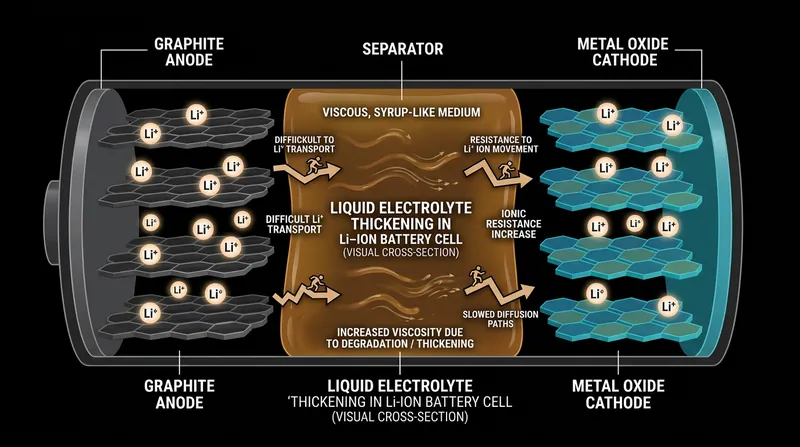

The electrolyte does not freeze solid immediately, but it thickens dramatically. Its viscosity increases, transforming from a thin, easily navigable fluid into a dense, syrup-like barrier.[1]

As the liquid thickens, the mobility of the lithium ions slows down. The chemical reactions that release energy become sluggish, fundamentally altering how the battery responds to the processor's demands.[1]

The Impedance Spike

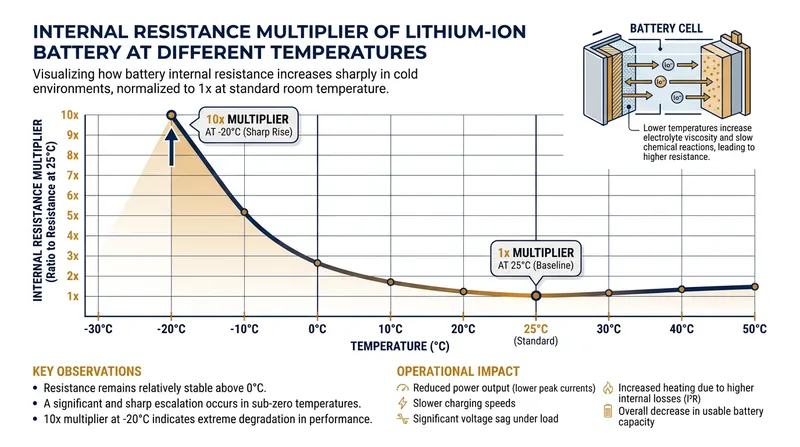

The immediate consequence of this thickened electrolyte is a massive spike in the battery's internal impedance. Impedance is the natural resistance the cell presents to the flow of electrical current.[3]

At standard room temperature, a healthy lithium-ion battery has very low internal resistance, allowing power to flow freely. But as the temperature drops to -20 degrees Celsius, that resistance can increase by an order of magnitude.[1]

This resistance creates a bottleneck at the exact moment the smartphone requires power. The processor, the cellular modem, and the display all demand a continuous, stable flow of current to operate.[5]

When the battery attempts to push that current through the highly viscous, high-resistance electrolyte, it struggles. The energy is trapped inside the cell, unable to exit fast enough to satisfy the hardware.[3]

Furthermore, research indicates that at -5 degrees Celsius, a smartphone's power consumption rate is significantly faster than at 20 degrees Celsius. The device is demanding more power just as the battery is least able to provide it.[5]

The Voltage Sag and Safety Cutoff

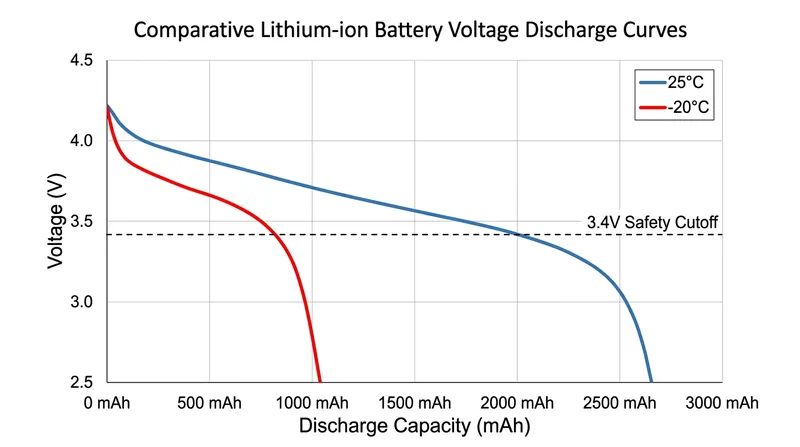

This combination of high demand and high internal resistance leads to a critical electrical event known as voltage sag. As the battery struggles to push current through the resistance, its output voltage drops significantly.[3]

Smartphones do not measure the absolute chemical capacity of the battery to determine when to shut down. Instead, the battery management system constantly monitors the output voltage to gauge the cell's health and remaining power.[4]

Lithium-ion batteries operate safely within a specific voltage window. If the voltage drops too low, the cell risks deep discharge, which can cause irreversible copper dissolution and permanent chemical damage.[2]

To prevent this catastrophic failure, manufacturers program a hard safety cutoff into the device. This low-voltage protection threshold is typically set between 3.2 and 3.4 volts.[4]

When the cold-induced voltage sag pushes the output below this 3.4-volt threshold, the system intervenes. It instantly cuts power to the device, executing a protective shutdown to save the battery from destroying itself.[4]

The Illusion of an Empty Battery

This protective mechanism explains why a phone will shut down while still reporting a 30 or 40 percent charge. The software reads the sudden voltage drop as an empty battery, even though the chemical energy remains intact.[5]

The shutdown is a voltage artifact, not a true capacity failure. The lithium ions are still present in the anode, waiting to be released, but the physical conditions prevent them from moving.[2]

Because the energy is not actually gone, the situation is entirely reversible. When the user brings the dead smartphone back indoors, the ambient heat slowly warms the battery cell.[5]

As the temperature rises, the electrolyte's viscosity decreases and the internal resistance drops back to normal levels. The voltage recovers, and the phone can be powered on again, often displaying the exact same battery percentage it had before the shutdown.[3]

The Danger of Cold Charging

While a cold-weather shutdown is a harmless protective measure, user behavior immediately following the event can cause severe damage. The greatest risk to a cold lithium-ion battery is the introduction of a charging current.[2]

When a user plugs in a freezing-cold phone, the charger forces lithium ions into the anode. Because the electrolyte is still viscous and the reactions are slow, the ions cannot intercalate smoothly into the graphite structure.[1]

Instead of absorbing into the anode, the lithium ions accumulate on the surface, depositing as metallic lithium. This process, known as lithium plating, permanently removes active lithium from the cell's inventory.[1][2]

Lithium plating irreversibly reduces the battery's total capacity and can eventually form dendrites—microscopic metal spikes that pierce the internal separator and cause dangerous short circuits.[1][2]

Future Battery Chemistries

To combat these sub-zero limitations, battery chemists are actively developing new electrolyte formulations. Researchers are experimenting with fluorinated esters and ethers, which maintain low viscosity and high ionic conductivity at freezing temperatures.[1]

Emerging solid-state and semi-solid batteries also offer a potential solution. By reducing or eliminating the reliance on liquid organic carbonates, these cells are far less susceptible to temperature-induced viscosity changes.[2]

Until these advanced chemistries reach the consumer market, smartphone users must rely on thermal management. Keeping the device in an insulated inner pocket preserves the ambient heat required to keep the electrolyte fluid.[5]

The sudden black screen on a winter day is not a flaw in the device, but a strict enforcement of chemical boundaries. The battery shuts down not because it is empty, but because it is prioritizing its own survival.[5]
