Why Polarized Sunglasses Blank Out Digital Screens at Fixed Tilt Angles

A modern smartphone screen emits roughly 1,200 nits of directional luminance, but when viewed through a $20 pair of polarized sunglasses at a 90-degree tilt, exactly zero percent of that illumination reaches the human eye. The display appears entirely black. This is not a software failure or a power state change.[1][2]

The blackout effect is a direct consequence of optical physics interacting with consumer hardware design. Digital displays and anti-glare eyewear both rely on manipulating the orientation of light waves to function. When those two orientation grids cross at perpendicular angles, they form an impenetrable optical wall.[1]

Understanding this interaction requires looking past the marketing claims of infinite contrast ratios or dynamic refresh rates. The fundamental mechanism relies on a 19th-century discovery about light propagation. It dictates exactly how every liquid crystal display on the market generates a visible image.[2]

"If you wear polarized sunglasses, you might not be able to see your device's screen," Apple warns in its official hardware documentation. The company notes that the effect varies by device, advising users to simply "rotate your device" to restore visibility.

The Architecture of a Liquid Crystal Display

To understand the blackout, one must first track how light moves through a standard liquid crystal display, or LCD. The journey begins at the back of the device, where an array of light-emitting diodes produces a brilliant, unpolarized white light. Unpolarized light vibrates in all possible directions perpendicular to its path of travel.[1]

Before this light can form an image, it must be organized. It passes through a rear linear polarizer, a synthetic film stretched during manufacturing to align its long-chain polymer molecules. This film acts like a microscopic picket fence, blocking all light waves except those vibrating in one specific plane.[1]

The light that emerges from this first filter is now linearly polarized, typically oscillating in a purely vertical or horizontal direction. Its intensity drops by exactly 50 percent during this initial filtration step. This organized light then enters the liquid crystal layer, which serves as the active shutter mechanism for the display.[1][4]

Liquid crystals possess a unique optical property called birefringence. This means the material has two different indices of refraction, causing light to travel at different speeds depending on its polarization angle relative to the crystal molecules. By applying a precise electrical voltage, the display controller physically rotates these molecules.

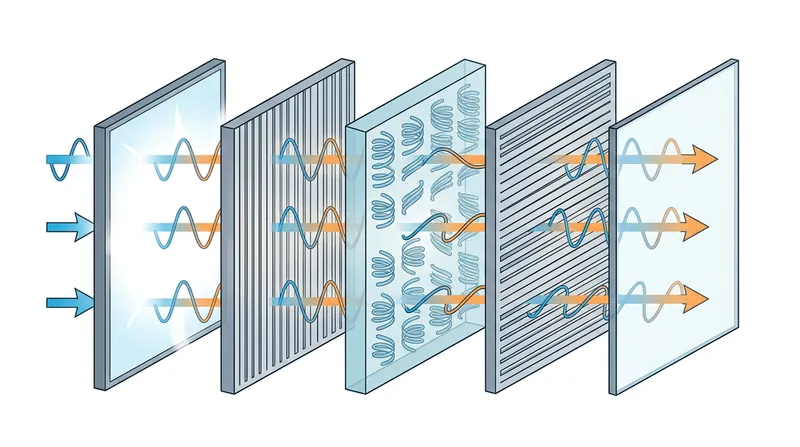

As the polarized light passes through the twisted liquid crystals, its plane of polarization rotates along with the molecular structure. If the pixel needs to appear white, the crystals twist the light by exactly 90 degrees. If the pixel must remain dark, the voltage untwists the crystals, leaving the light's orientation unchanged.[1]

The Final Filtration Stage

The light then hits a second linear polarizer mounted on the front of the screen, known as the analyzer. This front filter is permanently oriented at a 90-degree angle to the rear polarizer. If the liquid crystals twisted the light, it slips through this front fence and reaches the viewer as a bright pixel.[1]

If the light was not twisted, it hits the front polarizer at a perpendicular angle and is entirely absorbed. This binary state is how an LCD creates contrast. Crucially, it means that 100 percent of the light exiting a standard LCD screen is linearly polarized in one specific direction.[1][4]

Display manufacturers must choose an orientation for this final output polarization. Historically, many laptop and monitor panels were aligned at 45 degrees, a diagonal compromise. However, many modern smartphones align their front polarizers strictly vertically or horizontally to optimize manufacturing yields and viewing angles.[1][4]

This engineering choice sets the stage for the conflict with polarized eyewear. The light leaving the phone is highly organized, vibrating in a single plane. It travels through the air toward the user's face, where it encounters a second, entirely independent optical filter designed for a different purpose.[2]

The Physics of Polarized Eyewear

Polarized sunglasses were invented in 1936 by Edwin Land, who later founded the Polaroid Corporation. Their primary function is to eliminate environmental glare, particularly from horizontal surfaces like asphalt roads, snowfields, or bodies of water. When unpolarized sunlight strikes a flat surface, the reflected light becomes partially horizontally polarized.[2]

To combat this specific type of glare, sunglass manufacturers align the polarizing film in their lenses vertically. This vertical transmission axis allows ambient, unpolarized light to pass through while completely absorbing the harsh, horizontally polarized reflections bouncing off the ground.[2][4]

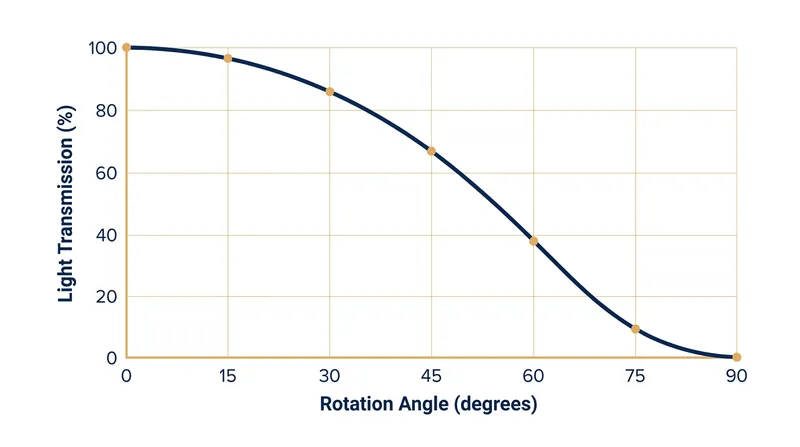

The interaction between the screen's output and the sunglasses is governed by Malus's Law, formulated by French physicist Étienne-Louis Malus in 1809. The law states that the intensity of polarized light passing through a polarizer is proportional to the square of the cosine of the angle between them.[2]

When a user holds a vertically polarized smartphone in portrait mode while wearing vertically polarized sunglasses, the angles align. The transmission rate is near 100 percent, and the screen appears perfectly bright. The two optical grids are parallel, allowing the light waves to slip through unimpeded.[2][4]

The 90-Degree Blackout Effect

The failure occurs when the user rotates the device by 90 degrees into landscape mode. The screen's output polarization is now horizontal, while the sunglasses remain fixed with a vertical transmission axis. The angle between the two filters is exactly 90 degrees.[2]

According to Malus's Law, the cosine of 90 degrees is zero, and zero squared remains zero. The sunglasses absorb the screen's light entirely, dropping the transmission rate to zero percent. The display goes completely black, even though the backlight is firing at maximum brightness and the pixels are fully active.[2][4]

"Birefringence in liquid crystals is the fundamental mechanism that allows LCDs to function, but it also dictates the strict polarization of their output," notes the University of Cambridge's DoITPoMS materials science library. This strict output is what makes the blackout effect so absolute on traditional panels.

A 45-degree rotation results in a 50 percent transmission rate, making the screen appear dim but legible. This is why pilots and boaters, who rely heavily on LCD navigation instruments and polarized sunglasses, often find themselves tilting their heads at awkward angles to read their displays.[2][4]

How OLED Technology Alters the Equation

The transition to Organic Light-Emitting Diode, or OLED, displays has fundamentally changed this optical interaction. Unlike LCDs, OLED pixels generate their own light and do not require a backlight or a shutter mechanism. The light emitted by a bare OLED diode is unpolarized, vibrating in all directions.[3]

However, OLED screens still utilize polarizers, but for a completely different reason: anti-reflection. The microscopic metal electrodes behind the OLED pixels are highly reflective. Without a filter, ambient sunlight would bounce off these electrodes, washing out the image and destroying the display's contrast ratio.[3][4]

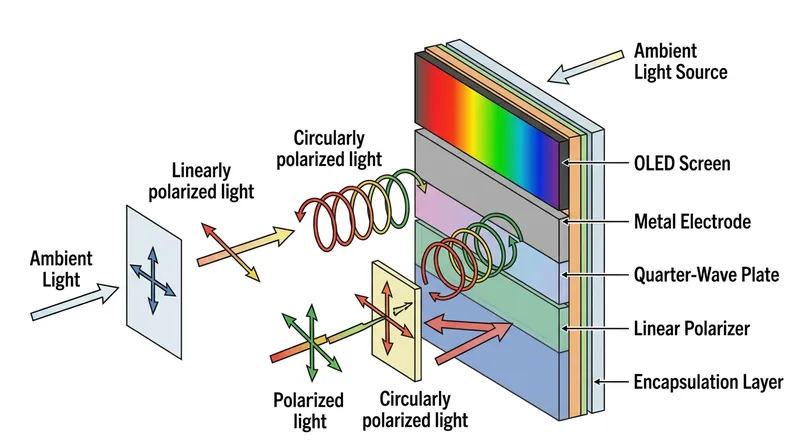

To solve this, engineers apply a circular polarizer to the front of the OLED panel. A circular polarizer consists of two layers: a standard linear polarizer and a quarter-wave plate. The linear polarizer first organizes incoming ambient light into a single plane, dropping its intensity by half.[3]

The quarter-wave plate, a highly specific birefringent material, then shifts the phase of the light by exactly one-quarter of a wavelength, or 90 degrees. This transforms the linearly polarized light into circularly polarized light, which spirals like a corkscrew as it travels toward the reflective electrodes.[3][4]

Eliminating the Optical Dead Zone

When this spiraling light bounces off the metal electrodes, its direction of rotation reverses. A right-handed spiral becomes a left-handed spiral. As it passes back through the quarter-wave plate, it is converted back into linearly polarized light, but shifted by exactly 90 degrees from its original orientation.[3]

Because it is now perpendicular to the linear polarizer, the reflected ambient light is completely absorbed. The screen remains pitch black under direct sunlight. However, the light generated by the OLED pixels themselves only passes through the circular polarizer once on its way out to the viewer.[3][4]

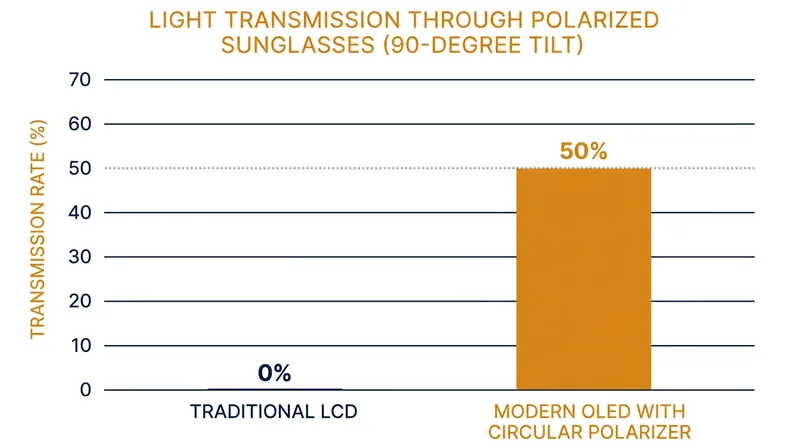

As the OLED's light exits the quarter-wave plate, it emerges as circularly polarized light. When circularly polarized light hits the linear polarizer in a pair of sunglasses, the transmission rate remains at exactly 50 percent, regardless of the rotation angle. The light is never fully blocked.[2][3]

This means a modern OLED smartphone, such as those produced since 2017, will never black out completely when rotated. The screen will simply appear slightly dimmer through the sunglasses, maintaining a constant brightness whether held in portrait, landscape, or any diagonal orientation in between.[3][4]
