Why OLED Displays Flicker at Low Brightness to Preserve Color Accuracy

An LCD panel dims like a standard living room lamp: lower the voltage to the white backlight, and the entire screen gets uniformly darker. The color filters sitting above that light ensure the image remains accurate, because the light source itself does not dictate the hue.

An OLED display cannot do this, because it lacks a unified backlight entirely. In an organic light-emitting diode screen, every single subpixel generates its own illumination, acting as an independent microscopic light source.[1]

When a user drags the brightness slider down, the display controller must figure out how to make millions of independent lights emit fewer photons. The intuitive solution is direct current dimming, which simply reduces the electrical power flowing to the panel.[4]

However, applying direct current reduction to OLEDs at low brightness levels destroys both color accuracy and panel uniformity. To solve this, manufacturers rely on pulse-width modulation, rapidly turning the pixels completely off and on again to create a flicker that the human eye perceives as a dimmer image.[1][3]

The Chemistry of Color Shift

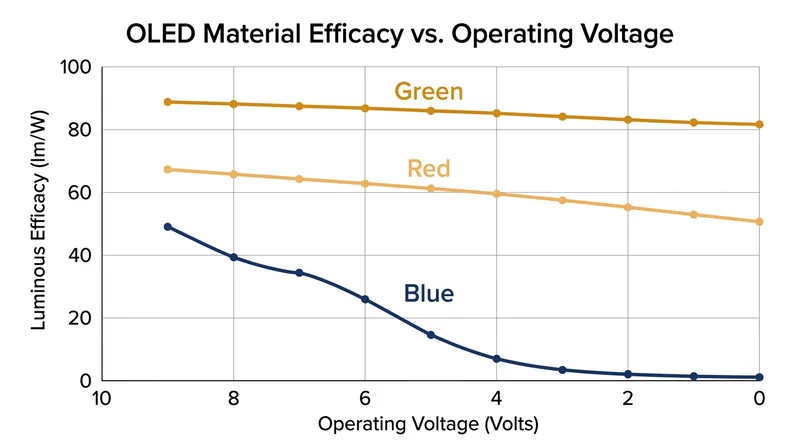

The root of the problem lies in the organic materials used to create red, green, and blue light. Each color compound possesses a different electrical threshold and a unique luminous efficacy curve.[2]

"The blue OLED emitter is notoriously inefficient compared to the green and red phosphorescent materials," notes a 2024 paper published in the Journal of the Society for Information Display. "It requires a higher driving voltage to maintain a stable emission state."[2]

When a display controller lowers the continuous current to hit a 10 percent brightness target, the subpixels do not dim at the same rate. The blue subpixels lose their emission efficiency much faster than their green counterparts.[2][4]

If a smartphone used pure continuous current dimming in a dark room, the white backgrounds on websites would suddenly shift to a sickly yellow or green tint. The display simply cannot maintain a balanced white point when the voltage drops below the blue emitter's optimal operating window.[1]

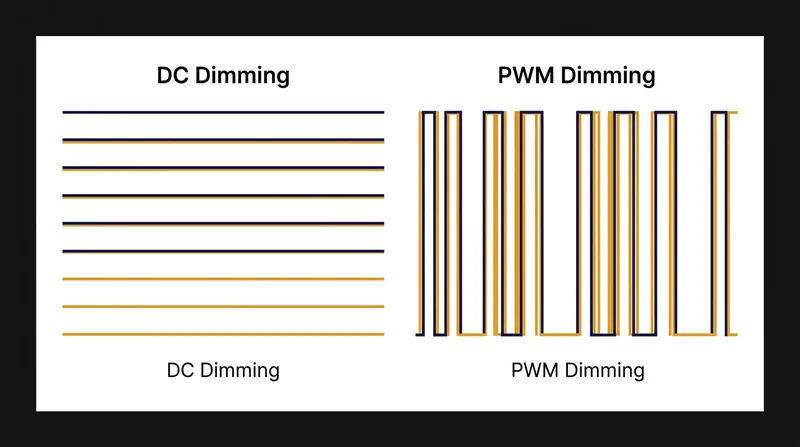

By using pulse-width modulation, the display avoids this chemical limitation entirely. The controller drives the subpixels at a high, stable current where the red, green, and blue materials all operate efficiently and produce accurate colors.[4]

It then achieves the 10 percent brightness target by keeping the pixels turned on for 10 percent of the time and completely off for the remaining 90 percent. Because the current itself never drops, the color balance remains perfect.[3]

Exposing the Silicon Lottery

Color shift is only half of the continuous current problem. The other half is a phenomenon known as mura, a Japanese term adopted by the display industry to describe unevenness or clouding in a panel.[1]

Every OLED pixel is controlled by a thin-film transistor etched into the silicon backplane. Despite advanced manufacturing techniques from companies like Samsung Display and BOE, microscopic physical variances exist between these millions of transistors.[1][4]

At high brightness levels, a relatively massive amount of current flows through the transistors, easily overpowering these tiny physical differences. Every pixel receives roughly the same power, and the screen looks perfectly uniform to the user.[1]

"When you reduce the driving current to near-threshold levels, those microscopic transistor variances suddenly dictate the output," explains a 2024 IEEE Xplore analysis on AMOLED displays. "A five-millivolt difference between adjacent transistors becomes highly visible."[1]

Under low-current dimming, some pixels will light up slightly brighter than their immediate neighbors, while others might not light up at all. The result is a display that looks grainy, blotchy, and covered in a static-like texture.[1][4]

Pulse-width modulation bypasses the mura effect by ensuring the transistors are only ever operated in their high-current, stable state. The display is either pushing enough power to overwhelm the variances, or it is pushing no power at all.[1]

The Biological Cost of Strobing

While strobing solves the hardware limitations of organic light-emitting diodes, it introduces a biological conflict. The rapid flickering of the display can trigger adverse neurological and visual reactions in a subset of users.[3][5]

When a screen flickers at 240 hertz—turning on and off 240 times per second—the human eye cannot consciously perceive the dark frames. However, the optic nerve still registers the drastic changes in luminance and transmits them to the brain.[3][4]

The IEEE PAR1789 standard, which evaluates the health risks of flickering LEDs, notes that low-frequency strobing forces the pupil to rapidly expand and contract. This constant muscular micro-adjustment leads to severe eye strain, dry eyes, and tension headaches.[5]

"A significant portion of the population experiences visual fatigue when exposed to PWM frequencies below 500 hertz," the IEEE documentation states. "The severity of the reaction correlates directly with the modulation depth, or how completely the light turns off."[5]

Because OLED pixels turn completely black during their off phase, their modulation depth is essentially 100 percent. This makes a 240-hertz OLED flicker far more punishing to sensitive eyes than a 240-hertz LCD flicker, where the backlight never fully extinguishes.[3][5]

Marketing Claims and Software Hacks

Recognizing the growing consumer backlash against flicker, smartphone manufacturers have introduced features labeled as DC Dimming or Anti-Flicker Mode. These toggles require a skeptical examination, as they rarely deliver what the marketing implies.[3][4]

True hardware-level continuous current dimming across the entire brightness range does not exist on modern OLED smartphones. When a user enables these modes, the software is simply deploying a hybrid approach to mask the hardware's limitations.[4]

The display controller will use actual current reduction to lower the brightness from 100 percent down to roughly 30 percent, accepting the minor color shifts that occur in that upper range. Below 30 percent, the system quietly switches back to strobing.[4]

Alternatively, some anti-flicker modes lock the physical panel brightness at a high level and use software to artificially darken the image data being sent to the screen. This crushes shadow details and severely degrades the display's contrast ratio.[3][4]

Pushing the Frequency Boundary

The actual engineering solution to the flicker problem is not eliminating the strobe, but accelerating it. If the modulation happens fast enough, it exceeds the biological limits of the human nervous system.[4][5]

Early OLED smartphones typically utilized a 240-hertz frequency, which sat squarely in the danger zone for eye strain. By 2024, the industry baseline had shifted to 480 hertz, providing relief for a majority of affected users.[3]

Today, Chinese display manufacturers like BOE and Visionox are pushing the boundaries of controller silicon. Recent flagship devices boast frequencies of 1,920 hertz, 3,840 hertz, and even 4,320 hertz, effectively rendering the flicker biologically invisible.[4]

Achieving these ultra-high frequencies requires incredibly precise timing controllers and advanced low-temperature polycrystalline oxide backplanes. The display must be able to cycle millions of pixels from absolute black to peak brightness in fractions of a millisecond.[1][4]

Ultimately, the flickering of an OLED screen is not a defect, but a necessary compromise. Until materials science delivers organic emitters with identical electrical curves, rapid strobing remains the only way to guarantee a flawless image in the dark.[2][4]
