The 70-Volt Limit: Why E-Ink Displays Cannot Achieve 60Hz Refresh Rates

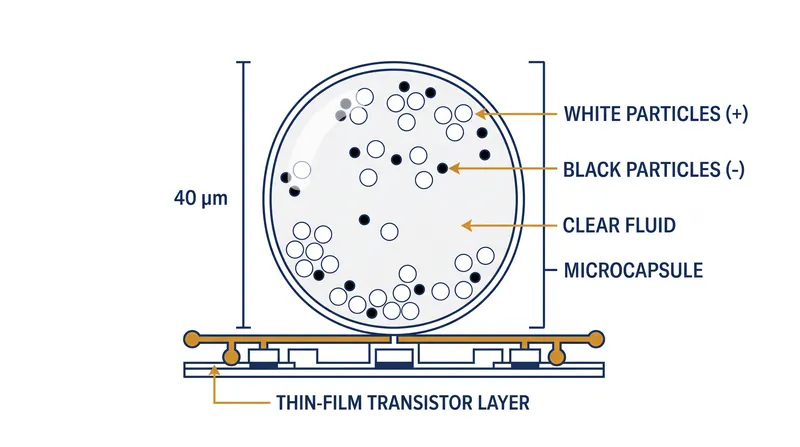

Inside the screen of a standard e-reader, millions of transparent polymer capsules—each exactly 40 micrometers across—contain a suspension of titanium dioxide and carbon black. When a user turns a page, a thin-film transistor applies an electric field across these capsules, physically dragging the white particles to the surface and pushing the black ones to the bottom.[1]

This electrophoretic process is the foundation of electronic paper, delivering a display that reflects ambient light and draws zero power once the image is set. Because the image is formed by physical pigments rather than emitted light, it perfectly mimics the optical properties of ink on paper. But it is also a physical mechanism bound by the laws of fluid dynamics, which is why the technology has remained fundamentally unsuited for the 60-hertz refresh rates standard on liquid-crystal displays.[1]

Manufacturers frequently market new e-paper generations as breakthroughs in speed. E Ink Corporation’s Gallery 3 platform, for instance, improved its black-and-white update time to 350 milliseconds, down from two full seconds in earlier iterations. For standard reading, a third of a second is virtually imperceptible.[3]

Yet even this accelerated pace is orders of magnitude slower than the 16.6-millisecond window required to render a single frame at 60 hertz. To bridge the gap, some device manufacturers deploy partial-refresh waveforms—software algorithms that only move the particles partway through the fluid to achieve faster perceived scrolling.

These partial updates are what cause the faint residual traces known as ghosting. Because the titanium dioxide particles do not complete their full transit to the top or bottom of the capsule, remnants of the previous image remain suspended in the middle of the fluid, visible as a shadow behind the new text. A true, clean refresh requires the particles to transit the entire depth of the microcapsule.

The limitation preventing a 16.6-millisecond full refresh is not the processing power of the device, but the viscosity of the hydrocarbon oil inside the capsule. To move a titanium dioxide particle across a 40-micrometer gap in that time, the particle must travel at approximately 2.4 millimeters per second.[4]

In a vacuum, that velocity would be trivial. But the fluid inside an e-ink capsule is highly viscous—a necessary design choice to prevent the particles from settling due to gravity when the power is off. Achieving a velocity of 2.4 millimeters per second through this thick suspension requires a massive increase in the driving voltage applied by the backplane.[1][4]

This is where the electrical engineering hits a hard physical wall. Additively manufactured polymeric materials, similar to the resins used to form e-ink microcapsules, typically exhibit a dielectric breakdown strength of around 32.1 kilovolts per millimeter. They are insulators, but only up to a point.[2]

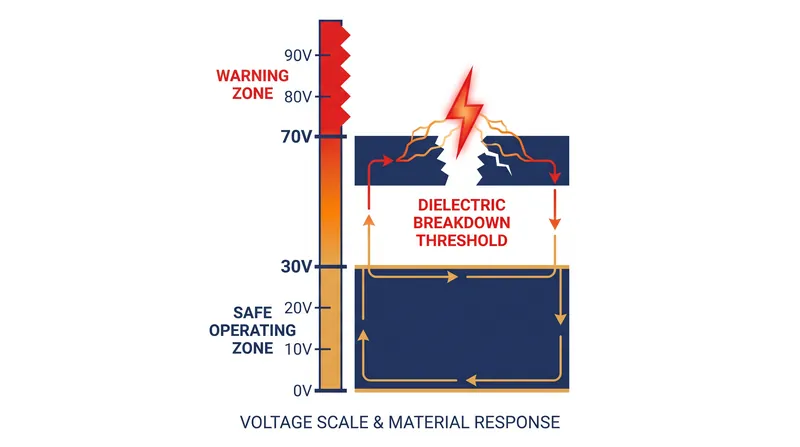

Pushing the electrophoretic particles fast enough to hit a 60-hertz refresh rate would require driving voltages exceeding 70 volts across the microscopic gap. At that voltage, the electric field surpasses the dielectric threshold of the polymer wall. The microcapsule would literally short-circuit, rupturing the polymer and destroying the display permanently.[2][4]

The physics become even more constrained when color is introduced. Advanced Color ePaper (ACeP) systems like Gallery 3 abandon the traditional color filter array in favor of a four-particle ink system: cyan, magenta, yellow, and white. Because all four pigments share the same fluid volume, they must be moved sequentially using complex voltage waveforms to avoid collisions.[3]

Consequently, the best color mode on a Gallery 3 panel requires 1,500 milliseconds to complete a single refresh. The more particles a capsule contains, the slower the transition must be to maintain image fidelity. Attempting to rush this process results in muddy, desaturated colors, as the pigments fail to reach their optimal positions at the surface of the capsule.[3]

Recognizing these physical limits, the display industry has largely stopped trying to force electrophoretic technology to behave like an LCD. Instead of chasing 60-hertz video playback, development has shifted toward optimizing the bistable advantages of the medium. As E Ink CEO Johnson Lee stated regarding the shift toward high-fidelity color, “For the first time, our Gallery full color ink platform series can be offered for an enhanced reading and shopping experience for eBooks, and for colorful document viewing and editing in eNotes.”[3]

The 60-hertz e-ink display remains a physical impossibility under current microcapsule architectures. Until materials science discovers a suspension fluid with near-zero viscosity that can still hold particles suspended indefinitely, or a microcapsule polymer capable of withstanding massive voltage spikes without breaking down, electronic paper will remain a slow, deliberate medium. The technology is defined by its constraints, and those constraints are exactly what make it work.
