Unpowered Voice Coil Actuators Cause Smartphone Camera Lenses to Rattle

Like the read-write head of a mechanical hard drive, a smartphone camera lens floats on an invisible cushion of electromagnetic force. Unlike a hard drive, which physically parks its delicate components when power cuts out, a mobile optical image stabilizer simply drops its payload. That unceremonious drop causes the mechanical rattle users hear when shaking a modern phone.

The sound routinely drives buyers to support forums, convinced their thousand-dollar device carries a broken component. Marketing materials emphasize pro-grade stabilization and gimbal-like smoothness, framing the camera as a solid, precision-machined block. In reality, the core of that system is a sub-gram glass assembly suspended by hair-thin wires, entirely dependent on active electrical current to hold its shape.

When the camera application closes, the current stops flowing to save battery. The lens mass, no longer held rigid by a magnetic field, rests loosely on its mechanical suspension. Any sudden movement of the handset causes that floating element to strike the physical boundaries of its housing, producing a sharp, audible click.

The rattle or clunking sound in your lens is normal, notes PetaPixel, explaining that the noise is simply the stabilizer disengaging from the optics. The mechanism relies on a voice coil motor, a mature technology adapted from audio speakers to shift the lens position in milliseconds.[4]

The Anatomy of a Voice Coil Motor

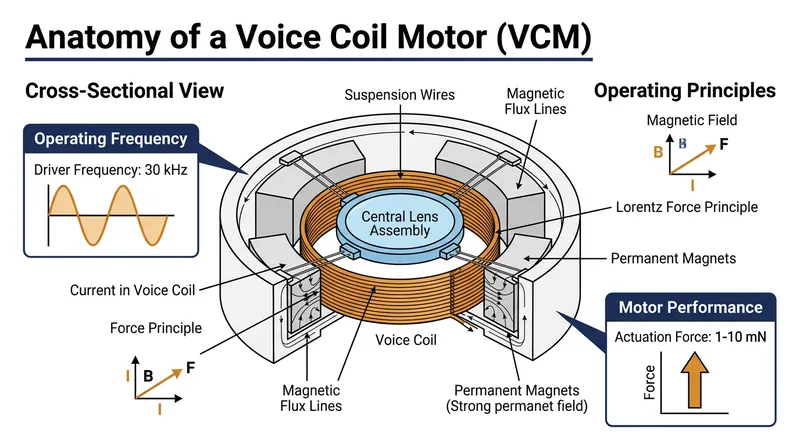

A voice coil motor operates on a straightforward application of the Lorentz force, using a permanent magnet and a coil of conducting wire. When current passes through the coil, it generates a magnetic field that pushes against the permanent magnet. In a smartphone camera, that payload is the lens group itself.[6]

The entire assembly is astonishingly small, with typical units measuring around eight millimeters square and standing less than three millimeters tall. Inside that cramped footprint, the lens is suspended by four delicate metal springs. These tethers allow the lens to shift along the horizontal and vertical axes, compensating for the user's hand movements.

To keep the image steady, the system must react faster than the human hand can shake. Gyroscopic sensors detect the handset's pitch and yaw, typically filtering for motion frequencies below 20 hertz. That telemetry feeds into a microcontroller, which calculates the exact counter-movement required to keep the lens locked on its target.[3]

The motor executes those instructions with extreme prejudice. According to Samsung's technical documentation, its Galaxy smartphones operate the stabilization driver at 30,000 times per second. This high-frequency active feedback loop holds the lens rigidly in its optically neutral position, constantly fighting gravity and inertia.[1]

The Physics of Active Stabilization

That rigid hold requires continuous power. The actuator must generate enough force to lift the lens against gravity and overcome the physical resistance of the suspension wires. Cambridge Mechatronics notes that typical voice coil motors produce between one and ten millinewtons of force, just enough to manipulate a one-gram lens mass.[2]

As long as the camera application is open, the controller is working, even if the phone is resting on a table. As with any active feedback control system, the controller is still working even if it was commanded to stay at a fixed point, explains a technical breakdown from STMicroelectronics.[3]

The system acts like a hovering jet, constantly making micro-adjustments to fight the wind. Because the motor is controlled by electromagnets, the moving element actually pushes back on the lens body. Some of this high-frequency motion bleeds into the audible range, producing a faint buzzing sound when the camera is active.[7]

The De-Energized State

The illusion of solidity vanishes the moment the user switches to another application. To preserve the smartphone's battery, the operating system immediately cuts power to the camera module. The electromagnetic grip dissipates, and the lens assembly is surrendered to the physical limits of its four-wire suspension.

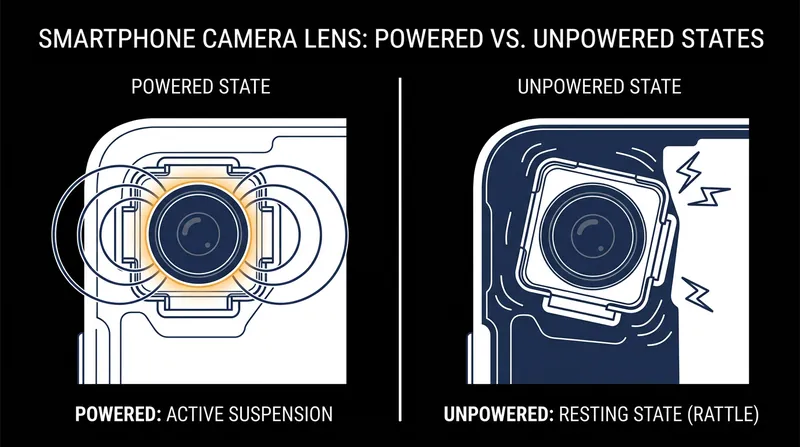

Without the magnetic field to dampen its movement, the lens becomes a tiny pendulum. If the user shakes the phone, the lens swings freely until it hits the plastic or metal stops built into the actuator housing. That collision generates the rattling acoustic signature that frequently alarms new owners.

Camera manufacturers explicitly document this behavior, though the warnings rarely reach consumers before they panic. Canon's technical support database plainly states that the lens inside the camcorder moves and makes a rattling sound when the power is off, confirming it is a mechanical reality rather than a malfunction.[5]

The gap between the lens and the housing is microscopic, often measured in fractions of a millimeter, but the materials are hard enough to produce a sharp click. Because modern flagship phones frequently pack three separate stabilized lenses into a single camera bump, a vigorous shake can sound like a tiny maraca.

The Shift to Heavier Lenses

The rattling phenomenon is becoming more pronounced as smartphone photography evolves. The industry is rapidly shifting toward larger image sensors, which require correspondingly larger glass elements to focus the incoming light. As the payload increases, the acoustic impact of the unpowered lens striking its housing grows louder.

This weight gain is exposing the physical limits of traditional voice coil motors. A magnetic field has low inherent stiffness, making it susceptible to external forces. If a lens grows too heavy, a standard motor struggles to accelerate it quickly enough to provide effective stabilization during intense vibrations.

While standard actuators may be able to move current lens masses, they might lack the force needed to accelerate them quickly enough for effective stabilization, notes Cambridge Mechatronics. Pushing more current through the thin copper wires to generate more force simply creates excess heat and drains the battery faster.[2]

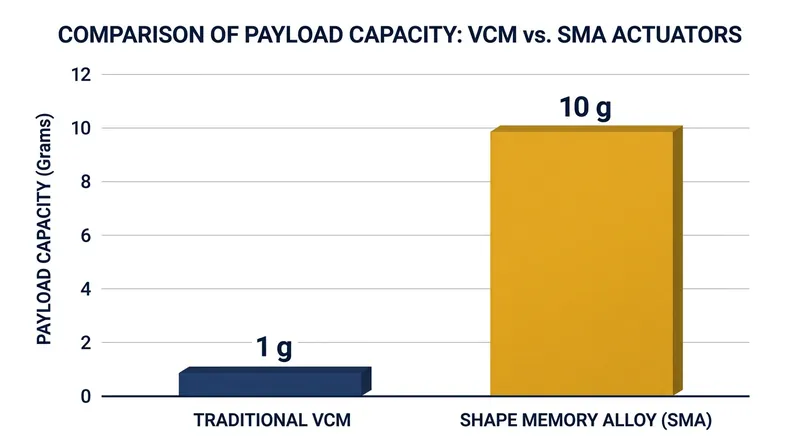

To bypass these limits, some manufacturers are exploring shape memory alloy actuators. Instead of magnets and coils, these systems use special wires that contract when heated by an electric current. This approach can generate roughly ten times the force in the same volume, easily handling heavier payloads.[2]

Why Manufacturers Omit a Parking Brake

If the rattle alarms users, the obvious question is why engineers do not design a physical parking brake for the lens. The answer lies in the brutal space and power constraints of mobile device design. Adding a mechanical locking mechanism would require additional moving parts, increasing the actuator's footprint.

A mechanical lock would also introduce a new point of failure. Every time the camera opened, a microscopic latch would have to disengage before the motor could take over. If that latch jammed due to dust or wear, the entire stabilization system would be permanently disabled.

Furthermore, the camera must be ready to shoot in milliseconds. Waiting for a physical brake to release would introduce unacceptable lag into the camera application's startup time. Smartphone marketing relies heavily on the promise of capturing fleeting moments, making any delay a competitive disadvantage.

Instead, engineers accept the rattle as a harmless trade-off for instantaneous, power-efficient stabilization. The voice coil motor remains the industry standard because it delivers micron-level precision and rapid speed in a package small enough to fit inside a nine-millimeter-thick slab of glass and aluminum.

The Gap Between Marketing and Mechanics

The persistence of the stabilizer rattle highlights a recurring friction in consumer technology. Apple, Samsung, and Google sell their camera systems as monolithic, infallible blocks of computational perfection. This marketing obscures the delicate, kinetic reality operating inside the chassis.

When a user hears a physical component moving inside a device sold as solid-state, their immediate assumption is damage. The tech industry has spent two decades eliminating moving parts from portable electronics, replacing spinning hard drives with flash memory and physical keyboards with glass touchscreens.

The camera module is the last major holdout of mechanical complexity in the modern smartphone. It is a tiny, high-speed robot tasked with fighting human physiology, relying on physical movement to correct for physical movement. The rattle is simply the sound of that robot clocking out for the day.

Until solid-state stabilization technologies, such as liquid lenses or purely computational cropping, can match the optical quality of a physically shifting glass element, the mechanical actuator will remain necessary. Users will simply have to accept that their premium devices contain a tiny, unpowered pendulum waiting to be shaken.
