Why Your Mesh Wi-Fi's Wireless Backhaul Destroys NAS Performance

A gigabit Ethernet port promises 1,000 megabits per second of unyielding throughput—enough to transfer a 4-gigabyte movie file in roughly 35 seconds. But when that port sits on the back of a mesh Wi-Fi satellite node, the math falls apart. Users plugging a Network Attached Storage (NAS) drive into a mesh node often watch their transfer speeds collapse from a theoretical 115 megabytes per second down to 10 or 20 megabytes per second.[1]

The illusion is physical. To the NAS and the computer accessing it, the connection appears as a flawless, full-duplex wired link. The operating system reports a perfect gigabit connection. However, the mesh node must instantly turn around and transmit that data over the air to the primary router using a wireless backhaul.[4]

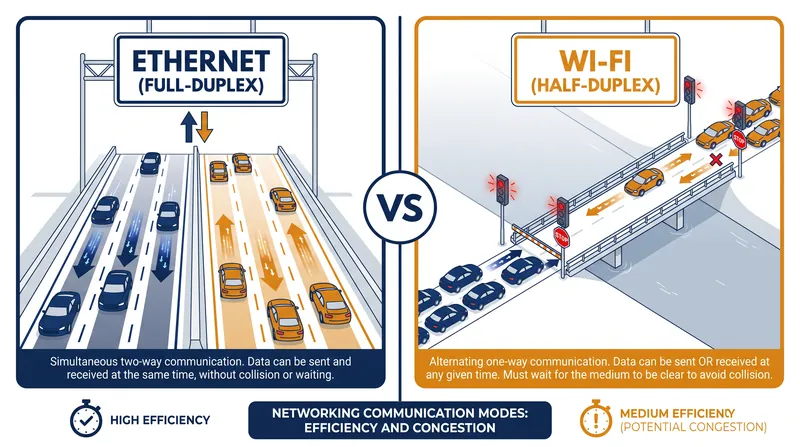

The first bottleneck is the physical nature of wireless transmission. "Wi-Fi is a half-duplex medium, meaning that on a given frequency, only one device can transmit at a time," notes How-To Geek. Unlike an Ethernet cable, which can send and receive data simultaneously on dedicated copper wire pairs, a Wi-Fi radio can only do one or the other.[1]

In standard dual-band mesh systems, this creates a severe traffic jam. The node must receive the data from the NAS, stop listening, and then broadcast it to the main router on the same frequency band. This architectural limitation instantly halves the theoretical bandwidth before a single file is even transferred.[4]

But a 50 percent bandwidth penalty does not explain why speeds often drop by 80 or 90 percent. The true culprit lies in the software layer—specifically, the protocol used to move the files. For Windows and macOS environments, that is the Server Message Block (SMB) protocol.[2]

Originally developed at IBM in 1983 by Barry A. Feigenbaum and later championed by Microsoft, SMB is the default standard for network file sharing. It is a highly synchronous, "chatty" protocol. Instead of blasting a file across the network in one continuous stream, SMB sends a block of data and then waits for the receiving computer to acknowledge it before sending the next block.[2][5]

This introduces a networking concept known as the Bandwidth-Delay Product (BDP). The BDP dictates that to fully utilize a high-capacity link, a sender must keep a large amount of unacknowledged data "in flight." Over a wired network, latency is sub-millisecond, so the acknowledgments return instantly and the data flows continuously.[3]

A wireless backhaul, however, introduces latency and jitter. Every time a microwave oven runs, a neighbor streams a 4K video, or the mesh node waits for clear airtime, the round-trip time spikes. Because SMB is waiting for an acknowledgment, the sender stalls. The transmission window cannot open wide enough to fill the available bandwidth, leaving the high-speed link mostly idle.[3][5]

The solution requires bypassing the shared wireless backhaul entirely. True wired backhauls using Cat6 Ethernet or MoCA (Multimedia over Coax Alliance) adapters restore the full-duplex, low-latency path that SMB expects.[5]

For users who must rely on wireless, modern tri-band or quad-band mesh systems—such as Wi-Fi 6E or Wi-Fi 7 models—dedicate a separate 6 GHz radio exclusively to node-to-node communication. This removes the half-duplex penalty by separating client traffic from backhaul traffic, though it cannot entirely eliminate the wireless jitter that keeps SMB from reaching its maximum potential.[1]
