Why Ethernet Pairs Have Different Twist Rates and How It Causes Delay Skew

If you lay four identical multi-lane highways side by side, traffic on one inevitably bleeds noise and disruption into the others. Ethernet cables face the exact same physical problem with electromagnetic interference, but they solve it by altering the geometry of the roads themselves.

Inside a standard Category 6 cable, the four pairs of copper wire are not twisted identically. By varying the twist rate—or "lay"—of each pair, manufacturers prevent the wires from running parallel and coupling their signals.[2][3]

This geometric trick effectively eliminates internal interference, allowing modern networks to push massive bandwidth through unshielded copper. However, it introduces a secondary physical problem that network hardware must actively solve.[3]

Because a tighter twist requires more wire to cover the same linear distance, the four pairs inside a single cable are physically different lengths. Electrical signals entering the cable at the exact same moment will exit the other side at slightly different times.[1][2]

The Crosstalk Problem

When Alexander Graham Bell first deployed telephone lines alongside power lines, he discovered that twisting the copper pairs reduced electromagnetic interference. Ethernet adopted this same principle to protect data from external noise.[3]

A twisted pair uses differential signaling, sending inverted voltages down each wire. When external noise strikes the twisted pair, it affects both wires equally, allowing the receiving equipment to mathematically cancel out the interference.[2][3]

However, placing four twisted pairs inside a single narrow cable jacket creates a new threat: near-end crosstalk (NEXT). If adjacent pairs share the exact same twist rate, their conductors will repeatedly align at the same points along the cable.[3]

This alignment allows the electromagnetic field from one pair to induce a signal in the neighboring pair. At the high frequencies required for Gigabit and 10-Gigabit Ethernet, this internal crosstalk can completely corrupt the data stream.[1][3]

Engineering the Lay Length

To break this alignment, cable manufacturers engineer a specific, unique twist rate for each of the four color-coded pairs. The blue pair might feature 72 twists per meter, while the brown pair uses only 65.[2][5]

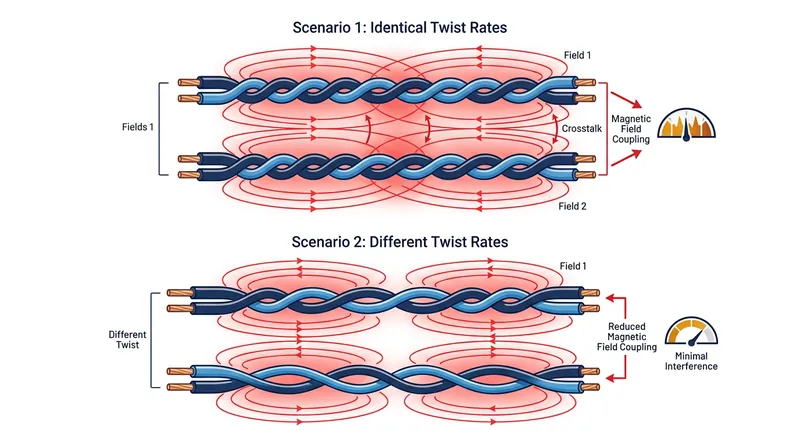

By ensuring the twist rates—or lay lengths—are mathematically distinct, the conductors never run parallel for more than a fraction of a millimeter. This prevents the electromagnetic fields from coupling, drastically reducing pair-to-pair interference.[2][3]

"By varying the twist rate, or 'lay' as it is termed in most catalogs and standards, it is possible to greatly reduce interference between the transmissions on the various pairs within a cable or binder group," notes Cabling Installation & Maintenance.[2]

Higher category cables require even stricter tolerances. Category 6 cables are wound much more tightly than older Category 5e variants, and they often include a central plastic spline to physically separate the pairs and further isolate their magnetic fields.[3][5]

The Copper Length Penalty

While varying the twist rates solves the crosstalk problem, it creates a physical discrepancy. A pair with a tight twist consumes significantly more copper wire to traverse a 100-meter office hallway than a pair with a loose twist.[1][2]

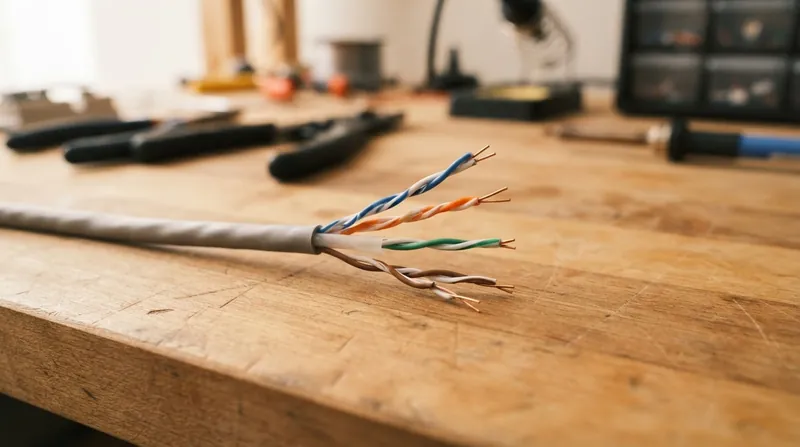

If you strip a 100-meter Ethernet cable and untwist the wires, the tightest pair will be noticeably longer than the loosest pair. When technicians use a professional cable tester, the device will report four different lengths for the exact same cable run.[2]

Electrical signals travel through the copper at a fixed speed, known as the Nominal Velocity of Propagation (NVP). For a typical plenum-rated Category 6 cable, the NVP is approximately 70 percent of the speed of light, or about 210,000 kilometers per second.[1][4]

Because the signals travel at the same speed but cover different physical distances, they do not arrive simultaneously. This arrival difference is called propagation delay skew, and it is a critical metric in network certification.[1]

Buffering the Delay Skew

Early Ethernet standards like 10BASE-T only used two pairs: one for transmitting and one for receiving. Because the data traveled sequentially down a single path, the length difference between the pairs did not matter.[1][3]

Gigabit Ethernet (1000BASE-T) changed the math entirely. To achieve 1,000 megabits per second, the standard divides the data stream and transmits it simultaneously across all four pairs in both directions.[1][3]

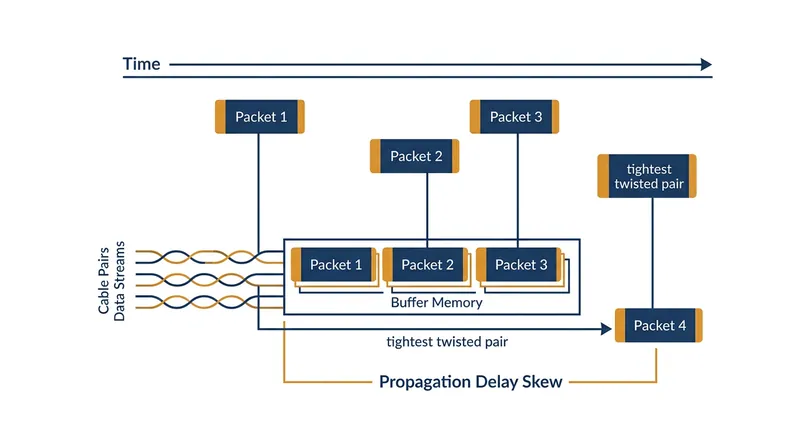

When the split data reaches the receiving network switch or computer, the signals from the loosely twisted pairs arrive first. The receiving hardware must hold this data in a memory buffer while it waits for the rest of the signal to navigate the longer, tightly twisted pairs.[1][5]

The telecommunications standard TIA/EIA-568 strictly limits this delay skew to ensure hardware buffers are not overwhelmed. Across a maximum 100-meter cable run, the delay skew cannot exceed 45 nanoseconds.[1][5]

The Physical Reality of Nanoseconds

A 45-nanosecond delay sounds imperceptible, but at the speed of light, it represents a massive physical distance. Factlen's analysis of the TIA/EIA-568 standard reveals exactly how much extra copper this tolerance permits.[5]

At a 70 percent Nominal Velocity of Propagation, an electrical signal travels roughly 0.21 meters per nanosecond. Multiplying this speed by the 45-nanosecond limit yields a maximum physical length difference of 9.45 meters.[5]

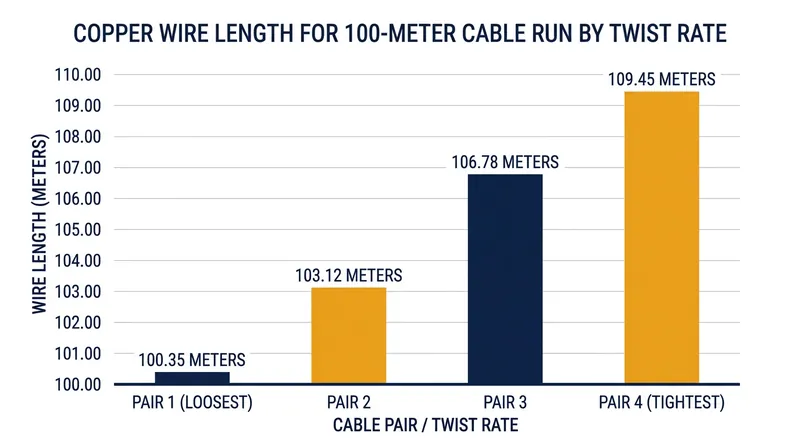

This means that in a standard 100-meter cable run, the tightest twisted pair can contain nearly 10 meters more copper wire than the loosest pair before it fails certification. High-quality cables typically maintain a much tighter tolerance, keeping the skew well below 25 nanoseconds.[1][5]

"While receivers are designed to accommodate some slight variations in delay, a large delay skew will make it impossible to recombine the original signal," Fluke Networks explains in its testing documentation.[1]

When Skew Breaks the System

While digital Ethernet hardware easily buffers standard delay skew, the phenomenon wreaks havoc on analog signals. Audio-visual integrators frequently use Category 6 cable to transmit analog RGB video signals over long distances.[3][5]

In an analog video transmission, the red, green, and blue color channels are sent down separate pairs. If the cable has a high delay skew, the colors arrive at the display at different times, causing the image to separate into a blurred, rainbow-edged mess.[3]

This visual artifact is a direct result of the varying twist rates. Because analog displays lack the digital memory buffers of a network switch, they cannot hold the early colors and wait for the late ones.[3][5]

To solve this, AV integrators must purchase specialized low-skew UTP cables. These cables abandon the varied twist rates in favor of identical lays, sacrificing crosstalk protection—which matters less for analog video—to ensure the physical copper lengths match perfectly.[3]
