Why TT Earthing Systems Rely on the Earth to Clear Electrical Faults

Most modern homes use a TN-C-S earthing system, where the protective earth wire connects directly to the utility's metallic neutral cable to clear electrical faults. A TT system severs that metallic return path entirely. Instead of riding a copper wire back to the grid, the protective earth connects only to a local metal rod driven into the dirt outside the building.[6][7]

This single architectural difference changes how the entire safety mechanism behaves. Because dirt resists electricity far more than copper, standard circuit breakers will not trip during a short circuit. You must install a Residual Current Device to detect the leak, or a faulty appliance will remain lethally energized.[2][4]

The name TT comes from the French word Terre, meaning earth. The first letter indicates that the utility transformer's neutral is directly earthed, while the second letter confirms that the consumer's exposed metalwork connects to its own independent earth electrode.[2][6]

The system forces any fault current to physically travel through the general mass of the earth to complete the circuit. Understanding this invisible path is critical for anyone designing, inspecting, or living with rural electrical installations.[5][6]

The Resistance of Dirt

Copper is an exceptional electrical conductor; soil is not. In a standard TN-C-S arrangement, the metallic return path typically presents a maximum external loop impedance of just 0.35 ohms. Electricity flows through it with almost zero friction.[7]

A TT system abandons that metallic highway. The fault current must exit the consumer's earth rod, navigate through the moisture and minerals in the local soil, and find its way back to the utility transformer's earth rod down the street.[5]

This physical soil path acts as a severe bottleneck for electricity. Depending on the soil composition, moisture content, and temperature, the earth resistance in a TT system typically measures between 10 and 200 ohms.[5]

"Higher external earth fault loop impedances are usually associated with TT earthing systems, which don't provide sufficient fault current to operate fuses or circuit breakers within the required time," according to the Institution of Engineering and Technology.[2]

Dry summer soil or rocky terrain pushes that resistance even higher. Because the earth path is inherently unpredictable, electrical engineers cannot assume a fixed impedance value during the design phase without conducting on-site measurements.[6][7]

Why Circuit Breakers Fail

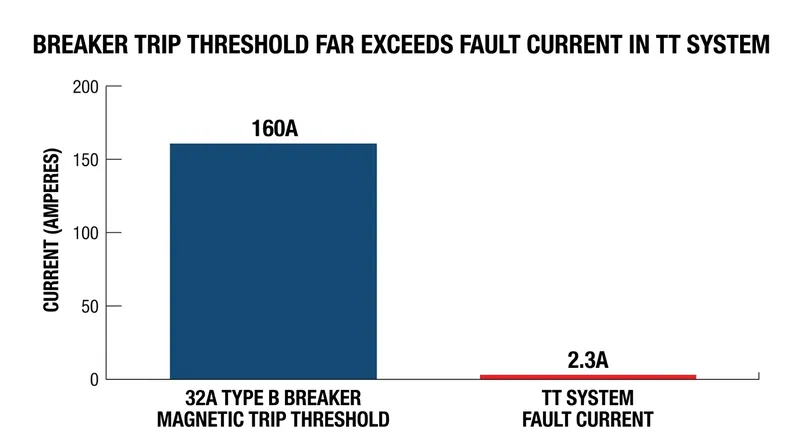

Standard circuit breakers protect wiring by detecting massive overcurrents. A typical 32-ampere Type B breaker requires a sudden surge of at least 160 amperes to trip its magnetic mechanism instantly and cut the power.[4]

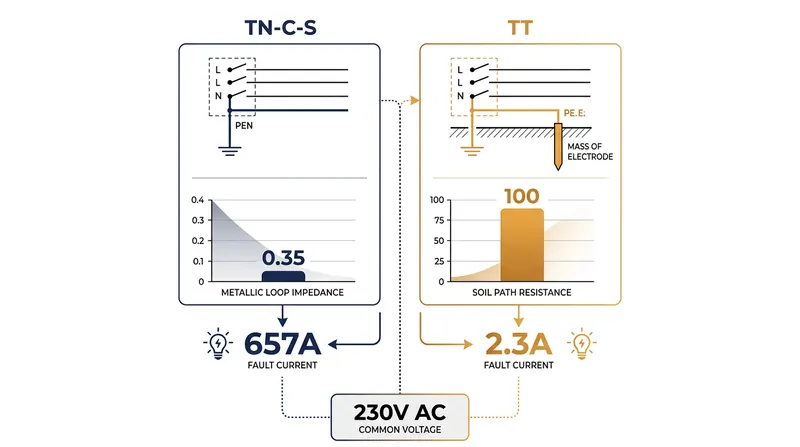

In a TN-C-S system, a 230-volt fault pushing through a 0.35-ohm metallic loop generates a massive 657-ampere surge. The breaker detects the spike and disconnects the supply in milliseconds, rendering the appliance safe.[7][8]

The TT system's dirt path prevents that surge from ever materializing. If the soil resistance measures 100 ohms, Ohm's law dictates that a 230-volt fault will generate just 2.3 amperes of fault current.[3][8]

The circuit breaker never sees the fault. It interprets the 2.3-ampere leak as a normal, low-power appliance running quietly in the background, leaving the circuit fully active and the danger unresolved.[4][8]

Without an alternative safety mechanism, the metal casing of the faulty washing machine or oven remains energized at 230 volts indefinitely. Anyone who touches the casing becomes a parallel path to the ground, absorbing a lethal shock.[3][4]

The RCD Requirement

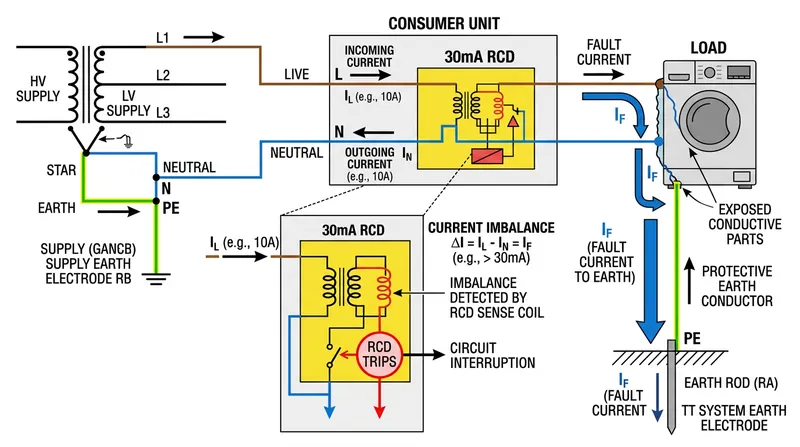

To survive a TT architecture, the installation must abandon overcurrent detection for earth faults and rely instead on a Residual Current Device. This component measures the exact balance of current flowing in and out of the live and neutral wires.[1][4]

If even a tiny fraction of current leaks out of the circuit and into the earth rod, the device detects the imbalance. Modern residential units are calibrated to trip at just 30 milliamperes, cutting the power before the current can cause ventricular fibrillation.[1][2]

International standard IEC 60364-4-41 makes this protection strictly mandatory for all TT systems. Without it, the installation has no reliable automatic disconnection mechanism for earth faults, leaving occupants entirely unprotected.[3][5]

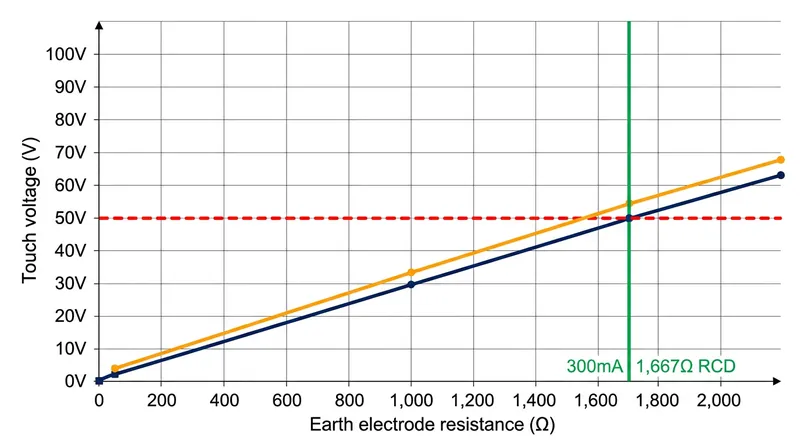

The regulations dictate that the product of the earth electrode resistance and the device's rated residual current must never exceed a safe touch voltage of 50 volts. This mathematical rule ensures the casing voltage remains survivable even during the milliseconds it takes to trip.[2][4]

For a standard 30-milliampere unit, this formula permits a maximum earth fault loop impedance of 1,667 ohms. However, the BS 7671:2018+A1:2020 wiring regulations warn that an electrode resistance exceeding 200 ohms may not remain stable year-round.[2][4]

The Mathematics of Touch Voltage

Touch voltage is the actual electrical pressure applied to a person touching a faulty appliance. In a TT system, the touch voltage depends entirely on the ratio between the consumer's earth electrode resistance and the total loop impedance.[3][5]

If the consumer's earth rod has a resistance of 100 ohms and the utility's transformer earth is 20 ohms, the total loop is 120 ohms. During a 230-volt fault, the consumer's metalwork will sit at roughly 191 volts until the safety switch operates.[3][8]

This high touch voltage is why the 50-volt safety threshold is so critical. The protective device must operate fast enough to disconnect the 191-volt hazard before it causes physiological damage to the user.[3][4]

To maintain low electrode resistance, installers drive copper-clad steel rods deep into the ground, often exceeding 1.2 meters. In poor soil conditions, they may bury copper tapes, plates, or connect to underground structural metalwork.[2][6]

Relying on metallic water pipes as an earth return path is strictly prohibited under modern regulations. Replacing a section with plastic pipe would instantly sever the earth connection, leaving the entire property without fault protection.[2]

Testing and Verification

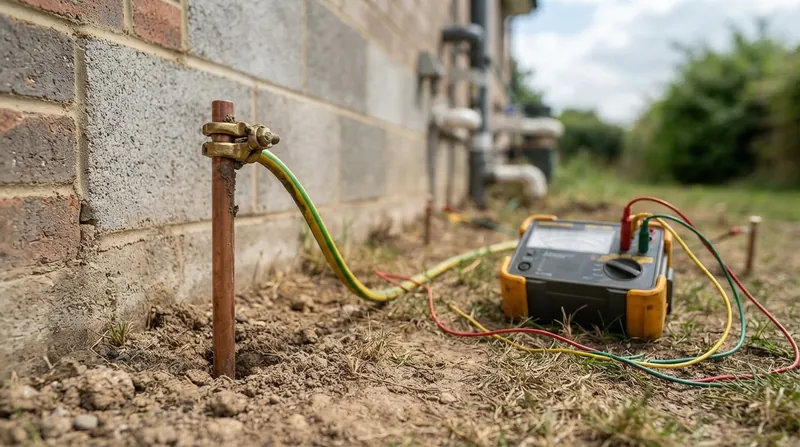

Because the earth return path is invisible, verifying its integrity requires specialized testing equipment. Electricians use earth resistance testers to inject a known current into the ground and measure the voltage drop across auxiliary probes.[6][7]

This three-pole fall-of-potential method provides an accurate measurement of the soil's resistance around the electrode. It confirms whether the driven rod has made sufficient contact with conductive moisture layers deep underground.[6]

If the reading exceeds the 200-ohm stability threshold, installers cannot simply sign off on the paperwork. They must drive additional rods, space them at least one rod-length apart, and bond them together to lower the overall resistance.[2][4]

Routine verification also extends to the protective devices themselves. The mechanical trip mechanism inside the residual current device can seize if left inactive, which is why manufacturers mandate manual push-button testing every six months.[1]

Where TT Systems Dominate

Despite the strict reliance on active monitoring, TT architectures remain the standard in many rural areas and overhead-line distribution networks. Utilities deploy them where providing a continuous, unbroken metallic earth over long distances is impractical.[6][7]

The system offers one massive safety advantage over metallic returns: absolute isolation. If an overhead neutral wire breaks in a storm, a TN-C-S system can dangerously energize every grounded appliance in the house with the grid's return current.[6]

A TT system isolates the home's protective earth from the utility grid entirely. Because the local earth rod has no connection to the broken neutral, the appliance casings remain safely at zero volts.[5][6]

The trade-off for this isolation is strict maintenance. Homeowners must press the test button regularly, and electricians must periodically measure the earth rod's resistance to ensure corrosion hasn't pushed it beyond safe limits.[1][6]
