Why Centrifugal Water Pumps Must Flow Against a Throttled Discharge Valve to Avoid Motor Overload

The moment a centrifugal pump motor trips its overload relay usually happens right at the discharge flange. When an operator opens the discharge valve entirely to maximize fluid transfer, they remove the artificial friction that holds the pump back. This seemingly helpful adjustment immediately destabilizes the system.[1][7]

Without that resistance, the pump accelerates the fluid to its maximum possible flow rate. This extreme condition, known as runout, forces the motor to draw far more electrical current than its internal wiring can survive. The breaker trips to prevent a catastrophic fire.[7]

To understand why a wide-open pipe breaks a pump, you have to look at how centrifugal force translates into electrical load. The relationship between flow, pressure, and power dictates the physical limits of the machine. Ignoring these variables guarantees a shortened equipment lifespan.[4]

Making it easier for the fluid to leave the casing actually makes it harder for the motor to spin the shaft. The sheer volume of water moving through the system overwhelms the mechanical design. Every extra gallon pushed per minute demands a direct toll in torque.[1]

Engineers rely on discharge throttling to keep the system balanced and the electrical draw within safe limits. The valve acts as a necessary brake, preventing the pump from running away with the fluid. Mastering this control point is the foundation of industrial fluid management.[7]

The physics of the pump curve

A centrifugal pump does not positively displace a fixed volume of water with every revolution. Instead, the spinning impeller imparts kinetic energy to the fluid, slinging it outward into the volute casing where that velocity converts into pressure. This dynamic process relies entirely on rotational speed.[1][6]

Because the fluid can slip backward inside the casing, the actual volume delivered depends entirely on downstream resistance. If the piping presents high friction, the pump moves less water but builds more pressure. The fluid always takes the path of least resistance.[6]

Pump manufacturers map this relationship on a performance curve, plotting the total head against the volumetric flow rate. At zero flow, when the discharge valve is completely closed, the pump generates its maximum pressure, known as shutoff head. This represents the absolute ceiling of its pushing power.[1]

As the valve opens and system resistance drops, the flow rate increases while the pressure the pump can sustain steadily falls. The curve slopes downward to the right, illustrating the fundamental trade-off between volume and force. You cannot maximize both metrics simultaneously.[1]

Every point on that curve represents a specific combination of flow and pressure where the pump can operate stably. The system will always find the exact point where the pump's output matches the piping's resistance. Changing the valve position forces a new equilibrium.[7]

Why more flow means more power

It often seems counterintuitive that pumping against a closed valve requires less energy than pumping into a wide-open pipe. When the valve is closed, the impeller merely spins the same trapped water in a continuous circle. The fluid acts like a liquid flywheel.[4]

That closed-valve condition requires only enough torque from the motor to overcome internal friction and fluid turbulence. Because no new mass is moving through the system, the actual mechanical work performed remains relatively low. The electrical draw drops to its minimum baseline.[4]

As the discharge valve opens, new water constantly enters the impeller eye and must be accelerated to high speed. Accelerating that continuous mass of fluid demands real mechanical work from the motor shaft, measured as brake horsepower. This is where the physics exact their price.[4]

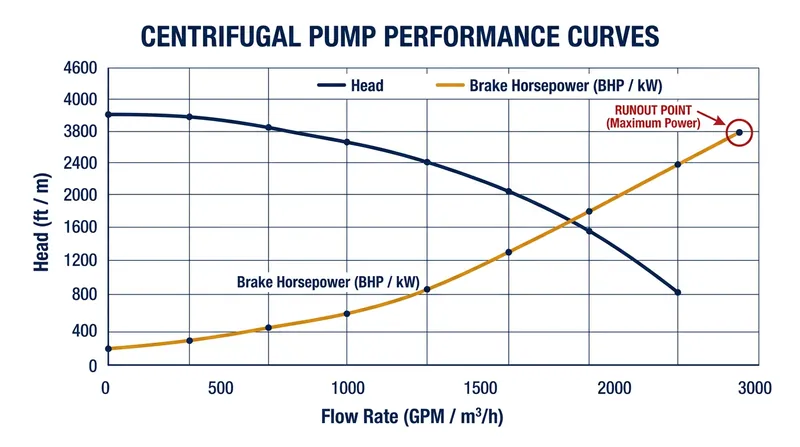

For standard radial-flow centrifugal pumps, the brake horsepower curve rises steadily as the flow rate moves to the right. Even though the discharge pressure is dropping, the sheer volume of water being accelerated dominates the power equation. Mass transfer always outweighs the pressure drop.[4]

The motor must supply the torque necessary to hurl hundreds of gallons of water outward every minute. That massive kinetic energy transfer translates directly into higher electrical amperage pulled from the facility's power grid. The harder the pump throws, the harder the motor works.[4]

The danger of the runout point

Every centrifugal pump features a Best Efficiency Point where the fluid angles perfectly match the geometry of the impeller vanes. Operating near this point minimizes turbulence, vibration, and wasted energy, allowing the motor to run comfortably. Engineers design the entire system around this specific target.[1]

If the discharge valve is opened fully, the system resistance plummets, and the pump operates far to the right of its ideal range. This extreme right-hand edge of the performance curve is called the runout point. It represents the absolute limit of the machine's capacity.[1][7]

At runout, the pump moves a massive volume of water at very low hydraulic efficiency. The drop in efficiency compounds the increased fluid volume, causing the brake horsepower required at the shaft to spike dramatically. The motor suddenly faces an impossible mechanical burden.[4][7]

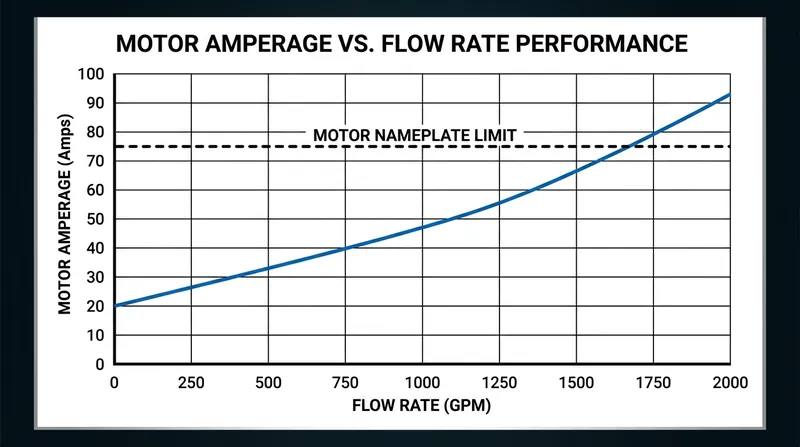

A motor sized specifically for the design point will suddenly draw 115 to 125 percent of its rated nameplate current. This excessive electrical load rapidly overheats the internal copper windings, threatening to melt the insulation. The heat buildup is immediate and severe.[4]

To protect the facility from electrical fires, the motor's thermal overload relay detects the heat and trips the circuit breaker. The pump shuts down entirely, leaving the operators to figure out why a healthy motor failed. The silence that follows is an expensive lesson in fluid dynamics.[7]

Throttling to create artificial head

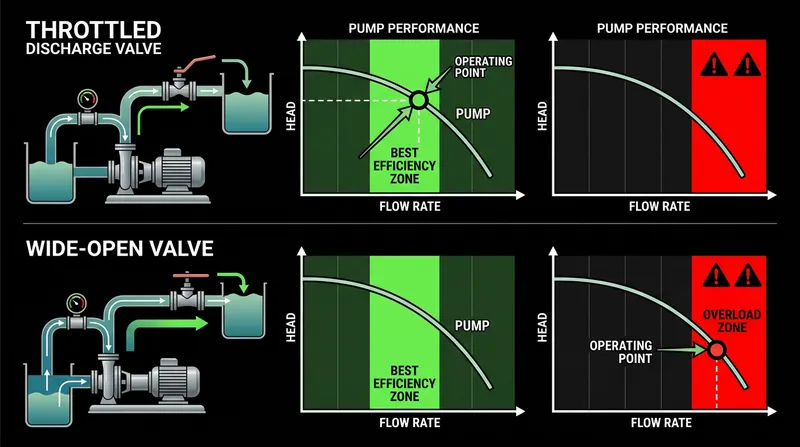

To prevent the motor from burning out, operators must artificially increase the system resistance by throttling the discharge valve. Partially closing the valve creates a deliberate friction bottleneck, adding necessary head to the piping network. This restores the balance the pump requires.[7]

This artificial head forces the pump to operate further to the left on its performance curve. The increased resistance reduces the flow rate back to the original design parameters, stabilizing the entire fluid transfer process. The pump returns to its intended efficiency zone.[7]

By restricting the flow, the valve reduces the mass of water the impeller has to accelerate each second. That reduction in mass transfer directly lowers the brake horsepower required at the shaft. The mechanical demand drops proportionally with the volume.[4]

With the mechanical load reduced, the motor's electrical draw falls back to a safe, continuous operating level. The thermal overload relay cools down, and the pump can run indefinitely without tripping the breaker. The system hums along exactly as the engineers intended.[4]

Throttling is essentially a mechanical governor that keeps the pump matched to the motor's physical capabilities. It sacrifices a small amount of pressure to ensure the electrical system survives the demands of the fluid. It is a necessary compromise for long-term reliability.[7]

The suction valve exception

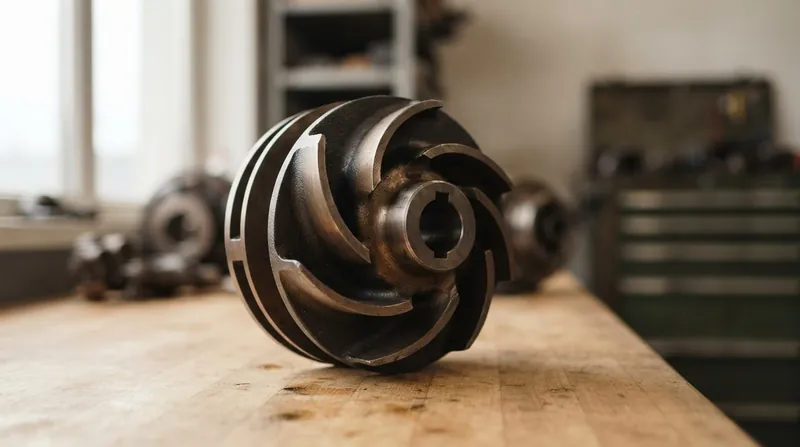

While throttling the discharge valve is standard engineering practice, the suction valve must never be used to control flow. Restricting the inlet starves the pump of fluid, dropping the pressure inside the impeller eye dangerously low. This creates an entirely different, highly destructive problem.[3]

If the pressure falls below the liquid's vapor pressure, the water boils instantly at room temperature. This forms thousands of tiny vapor bubbles that travel into the higher-pressure zones of the spinning impeller. The phase change happens in a fraction of a second.[3][5]

Those bubbles collapse violently against the metal vanes, generating microscopic shockwaves that tear away the steel. This destructive phenomenon, known as cavitation, sounds like gravel passing through the casing and can ruin a pump in hours. The damage is irreversible and incredibly expensive.[5]

To prevent cavitation, the suction valve must remain fully open at all times to maintain the available net positive suction head. The pump must always have a free, unrestricted supply of fluid entering the eye. Any restriction here guarantees a catastrophic mechanical failure.[3]

Only the discharge side can safely absorb the pressure drop required to keep the motor load in check. Controlling the flow after the fluid has already gained its kinetic energy protects both the impeller and the motor. This sequence is the golden rule of pump operation.[7]

Sizing motors for the extremes

System designers face a strict financial choice when specifying the electric motor for a new centrifugal pump installation. They can size the motor strictly for the brake horsepower required at the design point, which saves upfront capital costs. This lean approach looks great on a spreadsheet.[7]

However, if a downstream pipe breaks or an operator leaves the discharge valve wide open, that closely-sized motor will immediately trip offline. The lack of a safety margin makes the system highly vulnerable to operational errors. A single mistake shuts down the entire process.[7]

Alternatively, engineers can specify a motor large enough to handle the maximum brake horsepower at the absolute end of the curve. This non-overloading design ensures the motor survives a runout condition, even if the pump runs inefficiently. The extra capacity acts as an electrical insurance policy.[7]

While the larger motor costs more initially, it provides a crucial safety buffer against system upsets and valve failures. According to the affinity laws, speed and power are linked, but fixed-speed motors rely entirely on the valve. The facility avoids costly downtime simply by installing a robust driver.[7]

Modern facilities increasingly use variable frequency drives to slow the motor instead of throttling the valve. The affinity laws dictate that reducing impeller speed by half drops the power requirement by a factor of eight. This electronic control saves massive amounts of electricity while preventing runout.[2][7]
