Advancing Ice Plugs Compress Trapped Liquid Water: Why Frozen Pipes Burst Downstream Near Closed Taps

Inside an unheated wall cavity during a 20-degree Fahrenheit cold snap, a copper water line splits open—not where the ice actually formed, but three feet away near a closed bathroom faucet. The homeowner discovers the damage only when the thaw arrives and the pressurized water finally escapes.[2]

The intuitive explanation for this failure is that expanding ice simply pushes outward until the metal gives way. However, the physical reality of a burst plumbing line is entirely different. The ice itself rarely breaks the pipe at the exact point of freezing.[4]

Instead, the rupture is a hydraulic failure caused by liquid water. When a section of pipe freezes solid, it creates an impenetrable ice plug that seals the line. The damage occurs in the trapped, pressurized liquid water downstream of that blockage.[3]

Understanding this mechanism changes how homeowners protect their properties during winter. By focusing on pressure relief rather than just temperature control, you can prevent catastrophic floods even if a pipe does succumb to the cold.[6]

The Formation of the Ice Plug

The process begins when the ambient temperature around an exposed pipe drops below freezing. Water inside the line begins to crystallize, with ice forming first along the cold inner walls of the metal or plastic tubing.[1]

As the temperature continues to fall, this ice grows inward toward the center of the pipe. Eventually, it bridges the entire diameter, forming a solid plug that completely blocks the flow of water from the municipal supply.[1]

Water is unique among common liquids because it expands by approximately nine percent as it transitions from a liquid to a solid state. This volumetric expansion is the engine that drives the destructive sequence, but it does not act alone.[2]

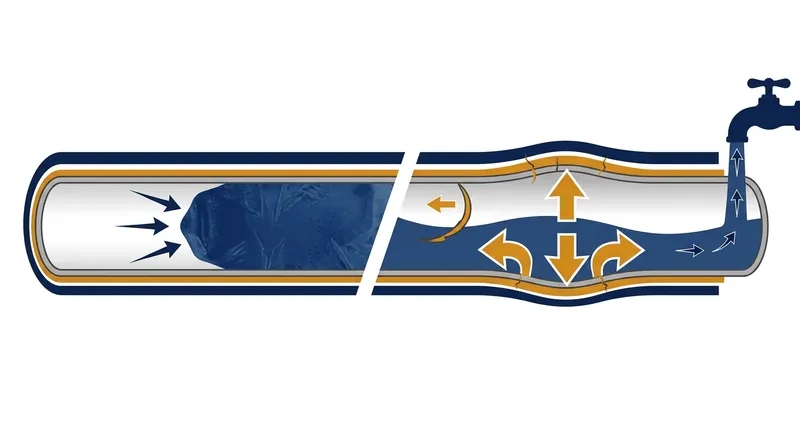

Once the initial plug forms, the freezing process continues along the length of the pipe. The ice plug advances, growing longer and pushing against the remaining liquid water trapped between the blockage and the closed fixture at the end of the line.[1]

The Hydraulic Pressure Spike

This is where the physics turn destructive. Liquid water is nearly incompressible, meaning its volume cannot be squeezed down to accommodate the advancing ice. With the faucet closed, the trapped water has absolutely nowhere to go.[3]

A standard residential plumbing system operates at a baseline pressure of 40 to 80 pounds per square inch. As the ice plug expands into the trapped water, it acts like a hydraulic piston, driving that internal pressure exponentially higher.[5]

Within minutes of the plug forming, the pressure in the downstream section can spike to thousands of pounds per square inch. This extreme hydraulic force pushes uniformly against the interior walls of the pipe, searching for a vulnerability.[2]

The pipe eventually fails at its weakest point along that pressurized liquid stretch. This is why the physical split often occurs several feet away from the actual ice blockage, in a section of the pipe that never even froze.[3]

Material Limits and Burst Thresholds

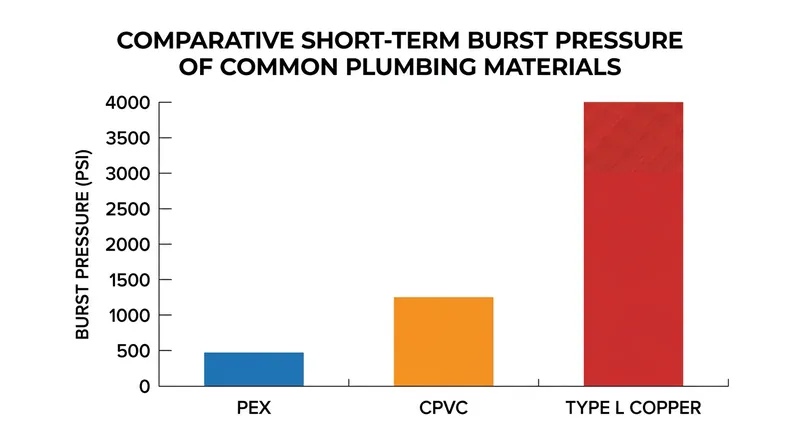

Different plumbing materials offer varying degrees of resistance to this pressure, but none are entirely immune. Type L copper piping, a standard in residential construction, boasts a short-term burst pressure rating of 3,000 to 4,000 psi.[1]

Even with that immense structural strength, the hydraulic force generated by an advancing ice plug can easily exceed 4,000 psi. Once the pressure breaches that threshold, the rigid copper wall tears open, creating a permanent rupture.[1]

Flexible materials like cross-linked polyethylene, commonly known as PEX, are often mistakenly considered freeze-proof. While PEX can expand slightly to absorb some volume change, its short-term burst pressure rating is significantly lower, typically maxing out around 475 psi.[1]

Plumbing-size CPVC falls in the middle, with a burst rating of roughly 1,250 psi. Regardless of the material, if the trapped water cannot escape, the rising hydraulic pressure will eventually defeat the pipe's structural limits.[1]

The Pressure Relief Strategy

The most effective defense against this hydraulic failure is remarkably simple: leave a vulnerable faucet dripping. Opening the tap breaks the seal on the downstream side of the plumbing line, providing an escape route for the trapped water.[4]

When the ice plug advances and pushes against the liquid, the open faucet allows the water to bleed out, preventing any pressure buildup. The pipe may still freeze completely solid, but it will not burst because the hydraulic force never materializes.[4]

A pencil-lead-sized stream of water is sufficient to relieve the pressure. You do not need to run the tap at full volume, which wastes water without providing any additional structural safety for the plumbing network.[4]

Plumbers recommend dripping the faucet that is furthest from the main water valve, ideally one located on a cold exterior wall. This strategy keeps water moving through the greatest length of vulnerable piping, delaying the initial freeze.[4]

Safe Thawing Procedures

If you turn on a faucet and only a trickle emerges, an ice plug has likely formed. The immediate priority is to keep the faucet open. As you begin to treat the frozen section, the melting water will need a clear path to exit.[4]

Never use a blowtorch, propane heater, or any open flame to thaw a frozen pipe. Open flames are a leading cause of house fires during winter cold snaps, and they can boil the trapped water, causing a localized steam explosion.[2]

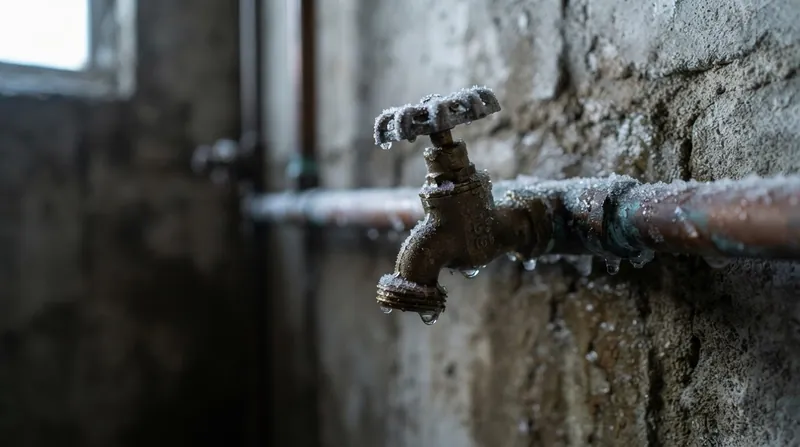

Instead, apply gentle, indirect heat using a hair dryer, a heat lamp, or towels soaked in hot water. Direct the warm air starting from the open faucet and work your way backward along the pipe toward the suspected ice blockage.[2]

Working from the faucet backward ensures that as the ice melts, the resulting liquid can flow freely out of the open tap. If you start heating behind the plug, you risk creating a new pocket of trapped, pressurized water.[6]

Hidden Damage and the Thaw

A burst pipe often remains a hidden problem while the weather stays cold. The solid ice plug prevents the municipal water supply from reaching the rupture, meaning no water actually leaks into the home at the moment the metal splits.[2]

The catastrophic flood begins only when the temperature rises and the thaw arrives. As the ice plug melts, the full 40 to 80 psi of municipal water pressure rushes through the line and escapes through the newly formed crack.[3]

Homeowners returning from winter vacations frequently discover this delayed devastation. A pipe that burst on a Tuesday night might not release a single drop of water until the ambient temperature warms up on Thursday afternoon.[6]

To mitigate this risk when leaving a house unattended during winter, shut off the main water supply valve and open the taps to drain the system. Removing the water entirely eliminates the possibility of an ice plug forming.[5]

Long-Term Prevention

While dripping a faucet is an excellent emergency measure, proper insulation is the definitive long-term solution. Wrapping exposed pipes in fiberglass or foam insulation slows the transfer of heat, keeping the water inside above the 32-degree freezing point.[5]

Pay special attention to pipes located in unheated areas such as basements, crawl spaces, attics, and exterior wall cavities. These cold spots are where the ambient temperature drops fastest, making them the most common origin points for ice plugs.[2]

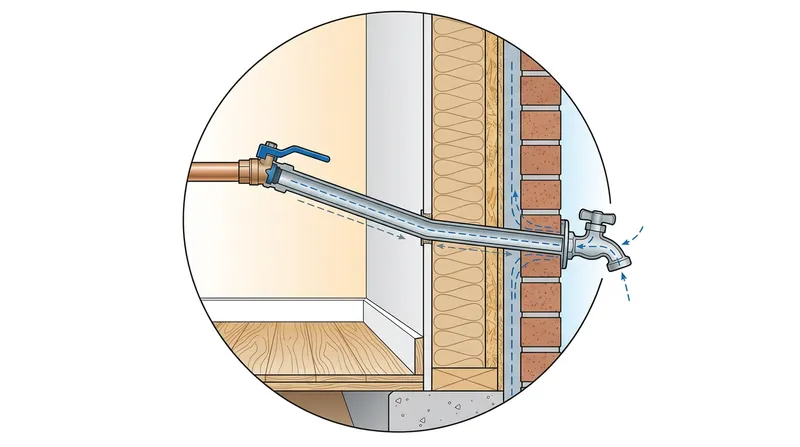

Upgrading outdoor hose bibbs to frost-free sillcocks also prevents exterior freezing. These specialized fixtures place the actual shut-off valve deep inside the heated envelope of the house, keeping the exposed outdoor section completely dry during winter.[6]

By understanding that pressure, not just ice, is the true enemy, homeowners can take targeted, effective action. Managing that hydraulic force by giving the water an escape route is the key to keeping your plumbing intact through the harshest winter freezes.[6]
