Differential Thermal Expansion Across Bonded Bimetallic Strips Drives Snap-Action Thermostat Switching

A standard bimetallic coil, like the one invented by clockmaker John Harrison in 1759, bends smoothly as the ambient temperature rises. It converts thermal energy into a proportional mechanical displacement, making it ideal for moving a thermometer needle.[6]

But proportional movement is a catastrophic failure mode for an electrical switch. If a switch opens slowly, the electrical current bridges the microscopic gap, drawing a plasma arc that can permanently weld the contacts shut.[3]

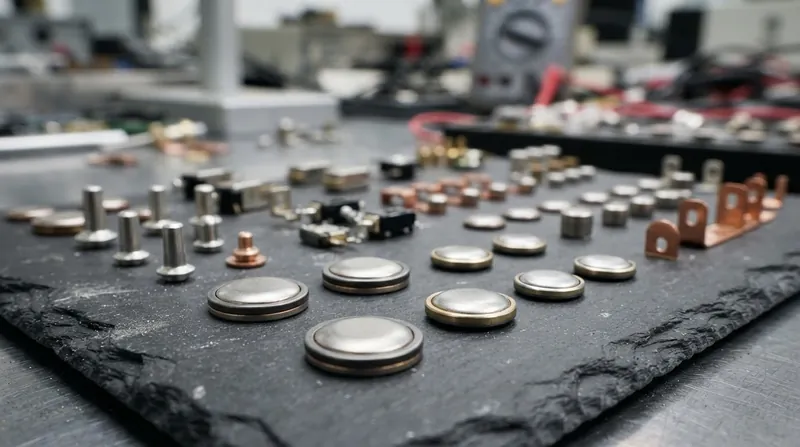

To solve this, engineers do not change the metals; they change the shape. By stamping the bimetallic laminate into a shallow dome, the metal is forced to store the thermal stress until it violently buckles.[3]

This buckling—the snap-action inversion—happens in milliseconds. It separates the electrical contacts with enough speed and force to extinguish any arc instantly, allowing a simple, passive piece of metal to safely control high-voltage household appliances without failing.[3][5]

The Physics of Differential Expansion

The foundation of any thermal switch is the permanent bonding of two dissimilar metals. Every metal possesses a specific linear thermal expansion coefficient, which dictates exactly how much its crystalline structure lengthens per degree of temperature increase.[1]

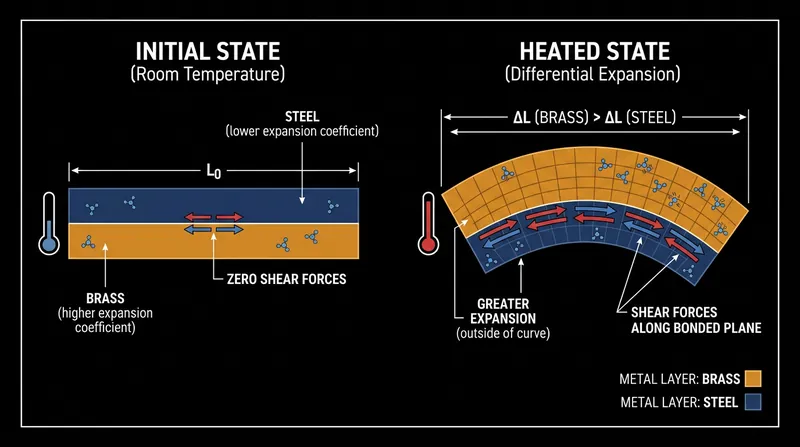

When two metals with different coefficients are welded or clad together, heating them creates immense shear forces along the bonded plane. The metal with the higher expansion rate attempts to stretch, while the low-expansion side resists.[2]

Because the two layers cannot slip past one another, the entire assembly is physically forced to curl. The high-expansion metal forms the outside radius of the curve, pulling the stiffer, low-expansion metal along with it as the temperature rises.[2]

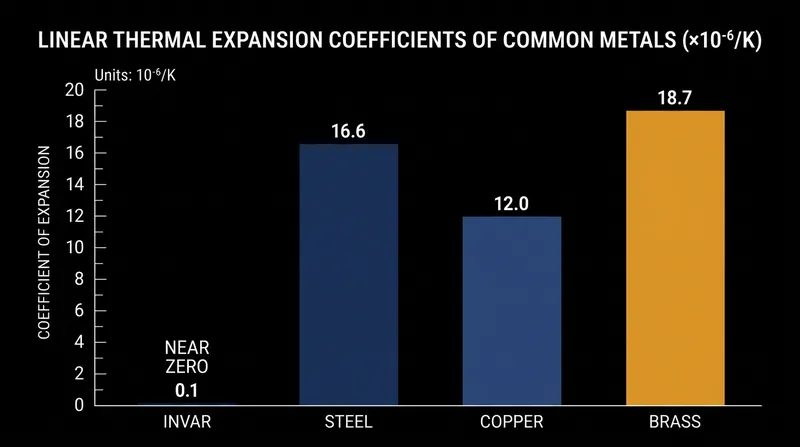

According to the Engineering ToolBox, a common industrial pairing uses brass, which expands at roughly 18.7 parts per million per degree Celsius, permanently bonded to steel, which expands at just 12.0 parts per million under the same heat.[1]

"Since the two metals in the bimetallic strip have different coefficients of expansion, as the temperature changes they expand or contract at different rates," notes the University of California, Santa Barbara physics department. This differential creates the mechanical work.[2]

For extreme sensitivity, manufacturers often pair a high-expansion alloy with Invar, a specialized nickel-iron alloy containing 36 percent nickel. Invar exhibits almost zero thermal expansion at room temperature, maximizing the differential between the two bonded layers.[4][5]

The Geometry of the Dome

While a flat strip or a spiral coil works perfectly for moving a thermometer needle, it lacks the decisive action required for power circuits. This is where the creep-action versus snap-action distinction emerges in thermal engineering.[5]

A creep-action strip bends gradually in direct proportion to temperature changes. As Zbotic explains, these are "used in temperature gauges and slow-response applications," but they completely lack the sudden mechanical break needed to interrupt household mains voltage safely.[5]

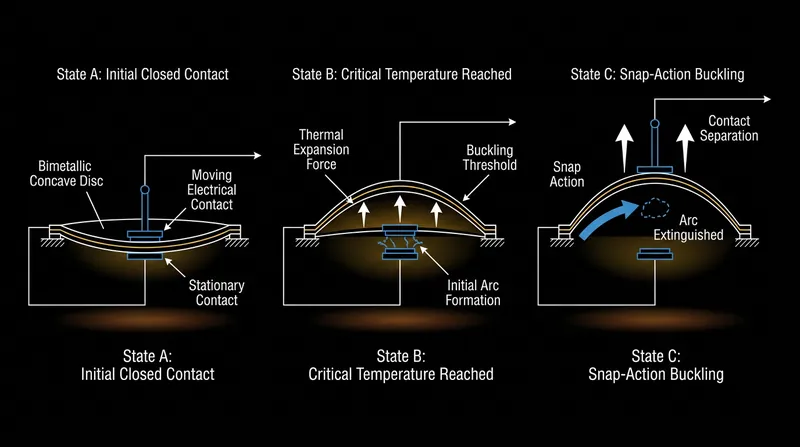

The engineering breakthrough was the snap-action disc. Instead of leaving the laminate as a flat strip, the bimetal is stamped into a concave, dish-like shape. This rigid dome geometry fundamentally alters the mechanical response of the bonded metals.[3]

As the disc heats up, the differential thermal expansion attempts to curl the metal, but the rigid three-dimensional dome resists the deformation. Instead of bending smoothly, the disc builds massive internal mechanical stress along its outer edges.[3]

The applied thermal energy is stored as potential energy within the crystalline structure of the bonded alloys, waiting for a critical threshold. The dome stubbornly holds its shape until the accumulated stress becomes mathematically and structurally unsustainable.[3][7]

At the precise setpoint temperature, the accumulated stress finally overcomes the structural integrity of the dome. The disc instantly buckles, violently inverting its curvature from concave to convex in a fraction of a millisecond to trigger the switch.[3]

Breaking the Electrical Arc

That sudden geometric inversion is the defining feature of a snap-action thermostat. It is not merely a mechanical curiosity; it serves as a critical safety mechanism for everything from residential water heaters to complex aerospace electronics.[5]

When switching 120-volt or 240-volt alternating current, separating two electrical contacts slowly allows the electricity to ionize the air between them. This creates a sustained electrical arc that generates thousands of degrees of destructive heat.[3]

"The quick, forceful motion breaks the contact and the arc fast, so erosion is minimal," explains Teke Thermostat Switch in their detailed mechanical walkthrough of the bimetallic disc's internal operation during a high-voltage switching event.[3]

By snapping across the physical gap in milliseconds, the bimetallic disc ensures the contacts part before a plasma arc can establish itself. This decisive action prevents the switch from melting or welding itself into a permanently closed, dangerous position.[3]

The bimetallic disc serves a brilliant dual purpose in this electrical architecture. As Zbotic notes, "The bimetallic strip is both the sensor and the actuator. It works purely on thermal energy from its environment," requiring no external input.[5]

No external power supply, complex microchip, or software is required to trigger the switch. The immutable physical properties of the bonded metals guarantee that the circuit will break the moment the ambient temperature exceeds the engineered safe limit.[5]

Alloy Engineering and Hysteresis

The exact temperature at which the disc snaps is determined by the specific alloy composition and the depth of the stamped dome. Manufacturers carefully engineer these two variables to target exact operating windows for vastly different household appliances.[4]

Component manufacturer Senasys details one of their high-expansion alloys as containing 72 percent manganese, 18 percent copper, and 10 percent nickel. "As the temperature changes the metals will flex and pull against each other," the company states.[4]

Once the disc has snapped and successfully opened the circuit, the appliance begins to cool. However, the disc does not immediately snap back to its original shape the moment the ambient temperature drops slightly below the initial setpoint.[3]

The rigid dome geometry introduces a mechanical deadband, known in engineering as hysteresis. The disc must cool significantly—often by 5 to 15 degrees Celsius—before the internal stresses reverse enough to buckle the dome back to its starting position.[5]

This thermal hysteresis is a highly deliberate design feature. Without it, a thermostat would rapidly cycle on and off every few seconds as the temperature hovered around the setpoint, quickly destroying the appliance's heavy motors or refrigeration compressors.[5][7]

By engineering a wide, predictable temperature differential between the opening and closing points, the bimetallic disc ensures that heating and cooling cycles run for efficient, sustained durations rather than stuttering through damaging short-cycling phases.[7]

Long-Term Drift and Metallurgical Creep

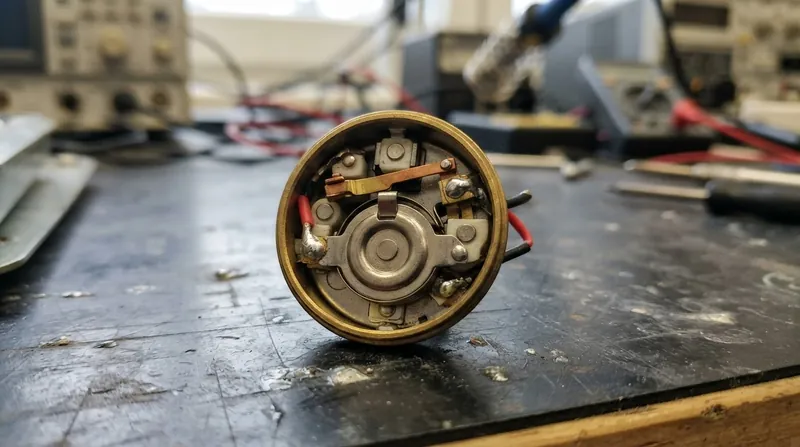

Despite their legendary reliability, bimetallic snap discs are not entirely immune to the laws of thermodynamics and material fatigue. Over tens of thousands of thermal cycles, the violent mechanical buckling takes a measurable toll on the internal metal structure.[7]

The constant, forceful flexing can induce metallurgical creep, which is a slow, permanent deformation of the alloys under stress. As the metal fatigues, the precise geometry of the stamped dome subtly flattens or warps over years of continuous use.[7]

This microscopic deformation shifts the buckling threshold, causing the thermostat to trip at a slightly different temperature than its original factory calibration. In precision industrial applications, this thermal drift ultimately requires the eventual replacement of the entire switch.[7]

Furthermore, the bonded plane between the two metals is constantly subjected to repeated shear forces. In poorly manufactured discs, these extreme forces can cause delamination, separating the layers and destroying the differential expansion effect entirely, rendering the switch useless.[2][7]

Nevertheless, the snap-action bimetallic disc remains one of the most elegant, durable solutions in modern electrical engineering. It reliably translates a microscopic thermal expansion into a macroscopic, high-force mechanical action, protecting billions of appliances entirely passively and without software.[7]
