Microscopic Nickel Sulfide Inclusions Expand 4 Percent Over Months to Shatter Tempered Glass Without Impact

When a tempered glass balcony or high-rise facade suddenly explodes on a calm afternoon, the immediate assumption is a hidden impact, a bird strike, or extreme thermal shock. Building owners routinely search for external damage to explain why a panel engineered to carry hundreds of pounds simply vanished.[4][5]

The evidence points to a microscopic saboteur already inside the panel, rather than an external force. A tiny crystal of nickel sulfide acts as a delayed mechanical trigger, requiring absolutely no environmental stress to shatter the glass from the inside out.[1][4]

The contamination begins in the float glass factory, where raw materials are processed using heavy machinery. Massive stainless steel components shed microscopic traces of nickel, which bond with sulfur in the molten glass melt to form nickel sulfide inclusions.[1][3]

The chemical composition of these impurities varies, ranging from Ni52S48 to Ni48S52, and occasionally forming as Ni9S8 or Ni3S2. When recovered from a shattered panel, the inclusions appear as opaque, golden-yellow spheres or elliptical specks under a microscope.[4]

The Manufacturing Trap

These chemical inclusions are incredibly rare, occurring in roughly one out of every 1,100 tonnes of raw glass. They typically measure between 0.05 and 0.5 millimeters in diameter, making them entirely invisible to the naked eye in ordinary architectural window glass.[1][4]

In standard annealed glass, these impurities remain completely harmless. The slow cooling process provided by the factory's annealing lehr allows the nickel sulfide ample time to stabilize, accommodating its natural expansion while the glass is still soft and pliable.[5]

The danger arises during the tempering process, which is designed to make the glass four to five times stronger. The panels are heated to extreme temperatures, typically between 620°C and 680°C, forcing the nickel sulfide to adopt its high-temperature crystalline structure, known as the alpha-phase.[2][4]

Tempering relies on rapid cooling, or quenching, with blasts of cold air to lock the glass's outer skin in compression. This sudden temperature drop freezes the nickel sulfide in its compact alpha-phase, denying it the time to revert to its natural state.[2][4]

The crystal becomes permanently encased within the central tensile core of the hardened glass panel. The glass matrix is already locked in a state of extreme volatile internal tension, perfectly balancing the compressive forces on the outer surfaces.[2][4]

The Delayed Detonation

Over months or years at ambient outdoor temperatures, the trapped crystal slowly reorganizes itself. It desperately seeks to return to its stable low-temperature beta-phase, a process accompanied by a volumetric expansion of roughly 2.5 to 4 percent.[1][4]

The critical transition threshold where the alpha-phase becomes the beta-phase is approximately 379°C. Because the tempered glass operates far below this temperature in the field, the crystal is thermodynamically driven to convert, operating on a delayed clock dictated by ambient weather.[1]

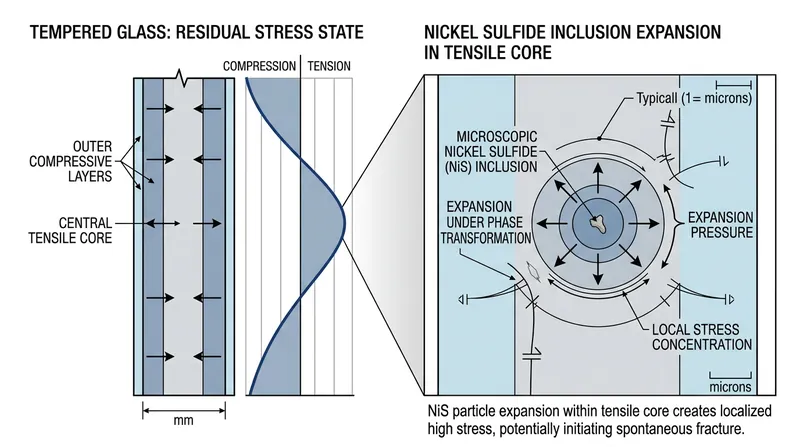

That four percent growth operates as a delayed, controlled explosion within the glass matrix. The expanding crystal pushes outward against the rigid material, creating localized tensile stresses estimated to reach as high as 125,000 psi at the microscopic interaction surface.[4]

When the localized pressure finally exceeds the glass's internal tensile strength, the panel detonates. It instantly dices into thousands of blunt cubes as the stored strain energy is released, without a single person stepping on it or a gust of wind hitting it.[1][5]

Forensic engineers can identify this specific failure mechanism by examining the shattered remains. Nickel sulfide breakages leave a characteristic "butterfly" or "figure-8" fracture pattern radiating directly from the microscopic inclusion, with no external impact mark on the glass surface.[1][2][4]

Forcing Early Failure

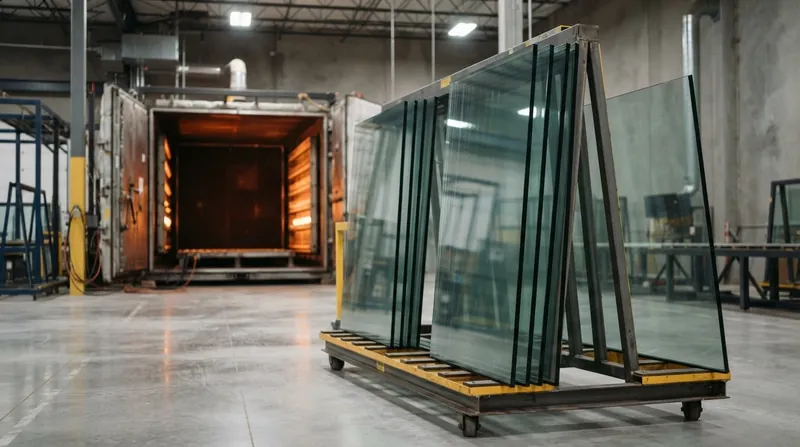

The primary mitigation strategy to prevent this delayed failure in the field is a factory procedure called heat soak testing. Finished tempered panels are placed into massive specialized ovens and reheated to a specific holding temperature before they are shipped.[2][3]

Under the European standard EN 14179, the glass is held at 290°C for at least two hours. This specific thermal cycle artificially accelerates the alpha-to-beta phase transition, forcing the volumetric expansion to happen immediately in a controlled environment.[1][2]

If a panel contains a critical nickel sulfide inclusion, the forced expansion causes it to shatter safely inside the oven. The factory sweeps up the diced glass, recycles the cullet, and ships only the surviving panels to the construction site.[2][4]

Heat soaking reduces the risk of post-installation failure by approximately 95 percent. It brings the statistical probability of spontaneous breakage down from one in 10,000 square meters of glass to just one in a million square meters, virtually eliminating the hazard.[1][4]

However, the process consumes enormous amounts of energy and adds several days to the delivery schedule. Heat soak testing typically adds a 15 to 25 percent cost premium to the tempered glass, making it a difficult economic choice for standard residential projects.[1][3]

Managing High-Altitude Risks

Most building codes do not mandate heat soaking, focusing instead on performance and safety glazing requirements. Because tempered glass breaks into blunt cubes rather than lethal shards, it meets the basic safety criteria even if it shatters spontaneously.[4][6]

For high-rise facades and overhead glazing, a spontaneous failure poses a severe hazard if the diced glass falls to the street below. In these applications, architects often combine heat-soaked tempered glass with lamination to ensure structural integrity.[1][3]

Laminated glass bonds two or more glass sheets with a polymer interlayer, such as polyvinyl butyral or structural ionoplast. If a nickel sulfide inclusion shatters one of the tempered panes, the sticky interlayer holds the fractured net together.[1][3]

The mechanism gained international attention during China's glass bridge boom, which suspended an estimated 2,300 glass walkways over canyons. A 2019 safety crackdown closed dozens of attractions in Hebei Province after spontaneous breakages highlighted the risks of skipping heat soaking.[6]

Many of those projects substituted expensive moisture-resistant structural interlayers for cheaper, hygroscopic polyvinyl butyral. In high-humidity mountain gorges, the plastic absorbed water and delaminated, leaving the glass actively trying to explode from nickel sulfide expansion without its safety net.[6]

The Heat-Strengthened Alternative

Design professionals can also specify heat-strengthened glass instead of fully tempered glass to avoid the issue entirely. Heat-strengthened glass cools more slowly, allowing the nickel sulfide to stabilize, and operates with lower internal stress, virtually eliminating the risk of spontaneous breakage.[3]

However, heat-strengthened glass is only twice as strong as annealed glass, compared to the four-to-five-times multiplier of fully tempered panels. It also breaks into larger, sharper pieces, meaning it must be laminated to qualify as safety glazing under modern building codes.[3][6]

Because manufacturers cannot completely eliminate nickel contaminants from their massive industrial furnaces, the complete absence of nickel sulfide cannot be guaranteed. The microscopic time bombs remain an inherent, calculated risk in modern architectural glass, managed entirely through testing and lamination.[3][4]
