Bicycle Wheels Carry Weight by Reducing Tension in Bottom Spokes Rather Than Pulling From the Top

When a rider sits on a bicycle, common sense suggests the hub hangs from the top spokes like a pendulum suspended by steel ropes. It feels intuitive that the upper wires must stretch and pull harder to keep the rider from crashing to the ground. Yet, mechanical engineers and master wheel builders insist the exact opposite is true.[1][2]

According to the physics of tensegrity, the hub does not hang from the top of the rim at all. Instead, it effectively stands on the bottom spokes, supported entirely by a localized reduction in their tension. The top spokes, despite bearing the full weight of the rider, experience virtually no increase in strain.[3][4]

This counterintuitive mechanism is what allows a structure made of flimsy wire and lightweight aluminum to carry hundreds of pounds across brutal terrain. A bicycle wheel is not a rigid frame, but a carefully balanced web of pre-tensioned forces. Understanding how it manages weight reveals the hidden brilliance of nineteenth-century engineering.[5]

The debate over how wheels carry weight was famously settled by Jobst Brandt, a Stanford mechanical engineer whose 1981 book, The Bicycle Wheel, remains the definitive text on the subject. Brandt demonstrated that wire spokes cannot carry a compression load without buckling. To function, they must be pulled tight during assembly, creating a massive baseline of static tension.[6]

The Illusion of Hanging

Every spoke in a properly built, unloaded wheel carries a static pre-tension of roughly 100 kilograms-force, or about 1,000 Newtons. This means a standard 36-spoke wheel is squeezing its rim with over half a ton of inward compressive force. The hub is suspended perfectly in the center of this high-energy web.[2][6]

When a 100-pound downward force is applied to the hub, the human brain assumes the top spokes must pull upward with 100 pounds of force to compensate. If the wheel were a solid wooden wagon wheel, the bottom spoke would simply compress like a pillar. But because wire collapses when pushed, the physics must route the load differently.

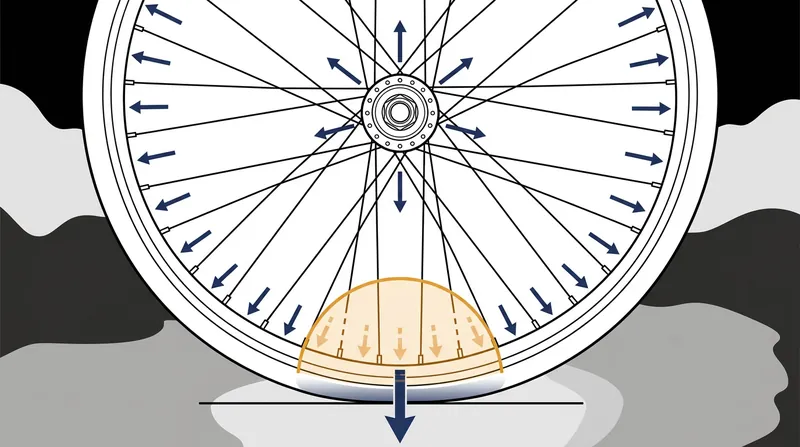

Instead of stretching the top spokes, the weight of the rider causes the bottom of the aluminum rim to flatten slightly against the pavement. This microscopic deformation at the contact patch allows the hub to move downward by a fraction of a millimeter. As the hub drops closer to the flattened rim, the spokes directly between them become shorter.[1][6]

Because these bottom spokes are already stretched tight by their pre-tension, shortening them does not cause them to go slack or buckle. It simply reduces their tension. A spoke that started at 100 pounds of tension might drop to 50 pounds, while the spokes immediately adjacent to it drop to 75 pounds.

Standing on a Tension Deficit

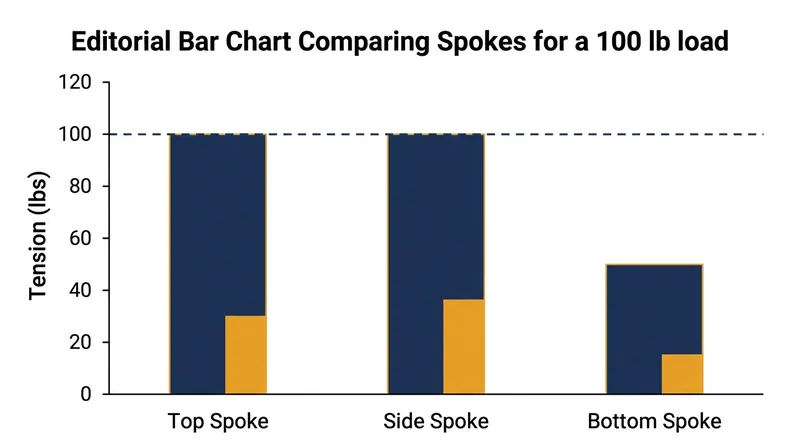

This localized drop in tension is the exact mechanism that holds the bicycle up. The top spokes are still pulling upward with their original 100 pounds of force, but the bottom spokes are now only pulling downward with 50 pounds. The resulting imbalance creates a net upward force of 50 pounds from that single spoke line.[1]

Because a wire spoke cannot push, the hub is supported by the remaining pre-tension of the upper hemisphere pulling against the now-slackened bottom hemisphere. The upward force supporting the rider is generated entirely by the absence of downward pull from the bottom spokes. This analysis by the Factlen Editorial Team highlights the elegance of the tensegrity model.[5]

This means the wheel's maximum load capacity is directly proportional to its static pre-tension, rather than the tensile strength of the steel wire. If a rider hits a pothole too hard, the bottom spokes lose all their tension and go completely slack. Once tension hits zero, the wheel collapses.[6]

Strain-gauge testing conducted by Henri P. Gavin at Duke University in 1996 confirmed Brandt's theoretical models. Gavin instrumented various wheel lacing patterns and recorded the dynamic forces while riding. His data proved that the top spokes saw negligible tension increases, while the bottom spokes absorbed the load through tension reduction.[2]

Why Pre-Tension is Everything

Because the wheel relies on a tension deficit to carry weight, the absolute most important factor in wheel building is achieving high, uniform pre-tension. A wheel with loose spokes will rapidly reach zero tension at the bottom of its rotation. This constant cycling between tension and slackness causes the metal to fatigue and snap at the hub flange.[6]

Uniform spoke tension is a wheel's most important asset, notes veteran wheel builder Ric Hjertberg. Even the most expensive carbon rims and bladed aerodynamic spokes cannot compensate for uneven tension. If one spoke is significantly tighter than its neighbors, it will bear a disproportionate share of the load and fail prematurely.

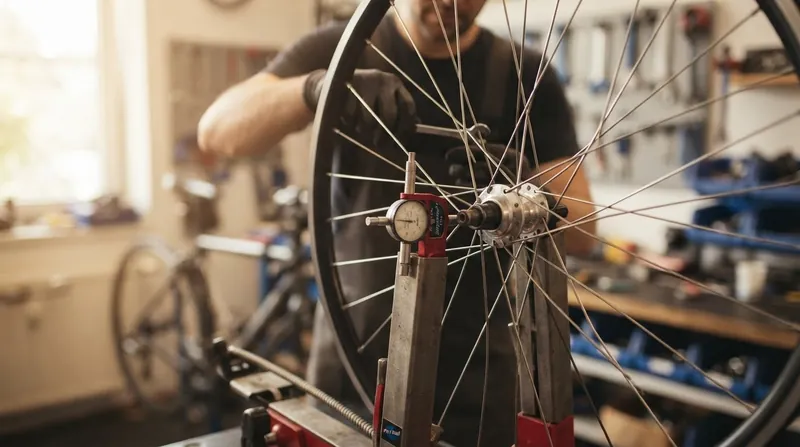

To prevent this, professional mechanics use a specialized tool called a tensiometer to measure the deflection of each wire during assembly. By plucking the spokes and measuring their pitch, or using a calibrated spring gauge, builders ensure every spoke sits within a tight tolerance of the target 100 kilograms-force.

The lacing pattern also plays a crucial role in managing these forces. While radial lacing is aerodynamically efficient, it cannot transfer the twisting torque of pedaling or braking. Most rear wheels use a three-cross pattern, where each spoke weaves past three others, allowing them to brace against one another.[2]

The Tensegrity Principle in Action

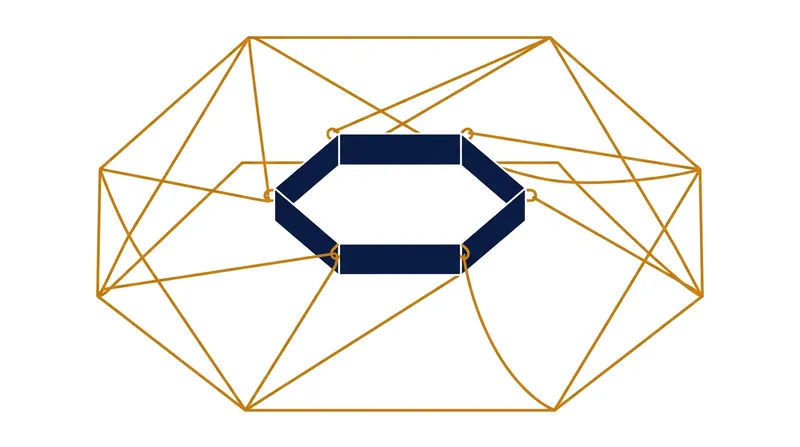

The bicycle wheel is one of the purest everyday examples of tensegrity, a structural principle coined by architect Buckminster Fuller in the 1960s. Tensegrity, or tensional integrity, describes a system of isolated rigid components held together by a continuous network of tensioned cables. The rigid parts never touch each other.[3]

In a bicycle wheel, the hub and the rim are the isolated compression members, and the spokes are the continuous tension network. When a load is applied to a tensegrity structure, the energy is dissipated globally throughout the entire volume rather than causing local overstressing. The structure deforms slightly, but maintains its integrity.[3][4]

This global distribution of force is why a lightweight wheelset can safely carry a heavy rider down a rocky mountain descent. The impact of a rock strike does not simply hammer the rim. It momentarily alters the tension balance of the entire spoke network, absorbing the shock elastically before returning to its baseline state.[4][6]

Modern engineering has pushed this concept to its limits with advanced materials. Carbon fiber rims are significantly stiffer than traditional aluminum hoops, meaning they deform less at the contact patch. This stiffness distributes the tension reduction across a wider arc of bottom spokes, reducing the peak stress on any single wire.[4]

The Limits of the Wire Wheel

Despite its brilliance, the tension-spoked wheel does have vulnerabilities. Lateral forces applied from the side are the enemy of tensegrity structures. Because the spokes are laced at a relatively shallow bracing angle from the narrow hub flanges, they offer limited resistance to being pushed sideways.[1][2]

When a rider corners aggressively or crashes, a severe lateral load can cause the rim to buckle into a potato-chip shape. This catastrophic failure occurs when the side force overcomes the spoke tension on one side of the wheel. The rim folds in on itself to find a lower energy state.[1]

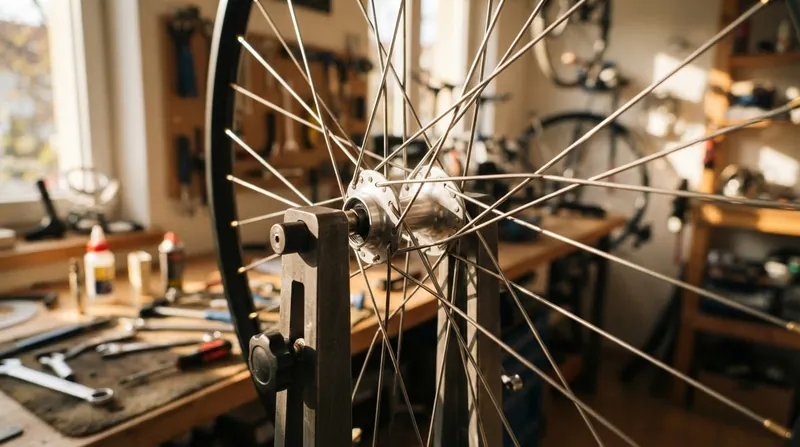

To combat this, modern mountain bikes have adopted wider hub spacing, moving from the traditional 135-millimeter width to 148-millimeter Boost spacing. Spreading the hub flanges wider increases the bracing angle of the spokes. This significantly improves the wheel's lateral stiffness without adding weight to the rim.[4]

The asymmetric nature of rear wheels adds another layer of complexity. Because the cassette of gears takes up space on the right side of the hub, the right-side spokes must be laced at a steeper angle. This requires them to carry significantly higher static tension just to keep the rim centered.[1][6]

Wheel builders mitigate this imbalance by using thicker spokes on the drive side, or by employing asymmetric rims that offset the spoke holes to the left. These subtle geometric tweaks ensure that the tension reduction at the bottom of the wheel does not disproportionately affect one side.[6]

Ultimately, the bicycle wheel remains a marvel of structural efficiency. By relying on the absence of downward pull rather than the brute strength of upward tension, it achieves a strength-to-weight ratio that few other human inventions can match. You are not hanging from the top of the wheel, but standing on a localized deficit of tension.[5]
