How Solid-State Transformers Use Semiconductors to Enable Bi-Directional Smart Grids

Like the transition from incandescent bulbs to light-emitting diodes, the shift from conventional transformers to solid-state transformers replaces a century-old analog mechanism with digital semiconductors. But while an LED merely emits light more efficiently, a solid-state transformer actively routes, conditions, and reverses the flow of power.[7]

Traditional transformers operate on the principle of electromagnetic induction. Two coils of copper wire wound around a heavy iron core step alternating current (AC) voltage up or down. Because they operate at the standard utility frequency of 50 or 60 hertz, the magnetic cores must be massive to handle the magnetic flux without saturating.[5]

These conventional units are highly reliable and achieve up to 98 percent efficiency under optimal loads, but they are entirely passive devices. They cannot route power, filter electrical distortions, or natively integrate direct current (DC) sources like solar panels and batteries.[5][6]

Solid-state transformers (SSTs) discard the heavy iron core in favor of high-frequency power electronics. Using wide-bandgap semiconductors like silicon carbide (SiC) and gallium nitride (GaN)—technologies aggressively developed by firms like ABB Group and Huawei Digital Power—an SST converts the incoming AC power to DC.[1][2]

It then steps the voltage through a much smaller high-frequency transformer operating between 10 and 50 kilohertz, and finally inverts it back to AC. This three-stage AC-DC-AC conversion is the defining architecture of the technology.[1]

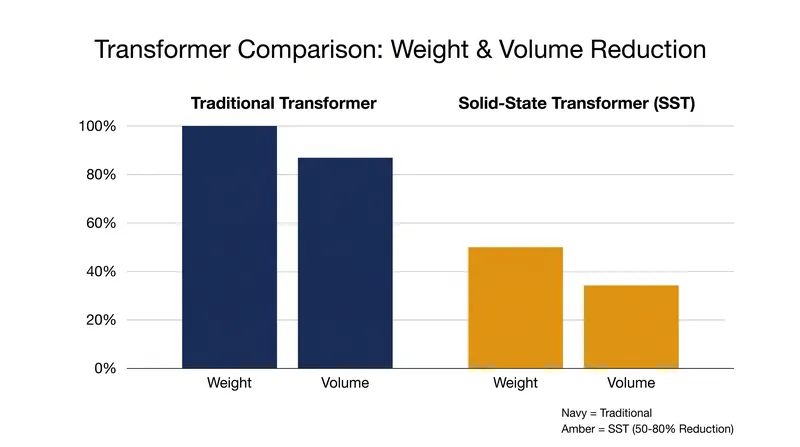

The physics of electromagnetic induction dictate that the size of a transformer's magnetic core is inversely proportional to its operating frequency. By pushing the frequency from 60 hertz to 50,000 hertz, engineers can shrink the physical footprint and weight of the transformer by 50 to 80 percent.[2]

A unit that once weighed several tons, required specialized cranes to install, and relied on hundreds of gallons of mineral oil for cooling can be reduced to a modular, solid-state cabinet. This weight reduction is particularly critical for offshore wind farms and urban substations where space is at a premium.[6]

But the primary advantage of an SST is not its physical size; it is its ability to actively manage power. Because the power passes through an intermediate DC stage, the SST can natively connect to DC microgrids, battery storage systems, and electric vehicle charging stations without requiring separate, bulky rectifiers.[3]

This architecture enables true bidirectional power flow. In a traditional grid, power flows one way: from the centralized substation down to the consumer. In a modern grid saturated with rooftop solar and vehicle-to-grid (V2G) technologies, power must flow in both directions.[3]

An SST can dynamically reverse the flow of energy, allowing a fleet of electric buses to discharge their batteries back into the grid during peak demand. This transforms the transformer from a passive tollbooth into an active traffic cop.[3]

Furthermore, the active semiconductor switches allow the SST to regulate voltage in real time. If the grid experiences a sudden voltage sag due to a fault or a sudden spike in demand, the SST can compensate instantly, maintaining a stable output for sensitive equipment like artificial intelligence data centers.[4]

It also filters out harmonic distortions, ensuring that the power delivered is a clean sine wave. This power conditioning capability eliminates the need for external capacitor banks and harmonic filters, streamlining substation design.[4]

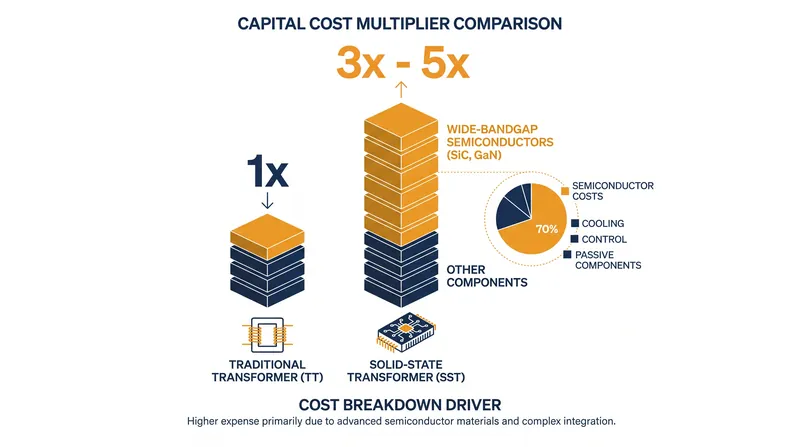

The transition to solid-state technology is not without friction. The advanced SiC and GaN semiconductors required for high-voltage applications are expensive, driving the capital cost of an SST to three to five times that of a conventional transformer.[2]

Additionally, the high-frequency switching generates concentrated heat. While traditional transformers use passive oil cooling, SSTs require sophisticated active thermal management systems, which add complexity and parasitic load to the unit.[2]

Because of this cost premium, SSTs are not yet viable as one-to-one replacements for every utility pole transformer. "This transformer offers capabilities that passive technology simply cannot provide," notes a 2026 technical review by grid equipment manufacturer Transmart, emphasizing that SSTs are preferred where renewable energy, storage, and electric vehicles require smart controls.[5]

Their deployment is currently concentrated at critical grid nodes: electric vehicle fast-charging depots, industrial microgrids, and renewable energy integration points where the value of bidirectional flow and power conditioning outweighs the initial investment.[7]

In 2026, utilities and industrial operators are increasingly piloting medium-voltage SSTs to manage the rising complexity of distribution networks. Eaton's recent acquisition of Resilient Power Systems highlights the industry's push to commercialize ultra-compact SSTs for EV charging depots.[2]

As semiconductor manufacturing scales and costs decline, the economic calculus will shift. The grid of the future requires active management at the distribution edge, and solid-state technology provides the necessary digital control to balance a highly decentralized energy system.[7]
