The Cosine of the Phase Angle: How the Power Factor Dictates Utility Reactive Power Penalties
Industrial electricity bills are governed by a hidden geometric ratio that measures the efficiency of power consumption. By understanding the cosine of the phase angle between voltage and current, facilities can deploy correction circuits to eliminate utility penalties for reactive power.
By Marina Lopez
- Industrial Consumers
- View power factor correction as a capital investment to eliminate punitive utility billing.
- Grid Operators
- View reactive power as a parasitic load that wastes transmission capacity and requires financial penalties to deter.
- Electrical Engineers
- View the power factor as a physical waveform misalignment that must be corrected through circuit design.
Perspectives this story doesn't cover
- Small commercial consumers unaware of hidden reactive power costs
- Renewable energy developers managing inverter-based reactive power
Summary
- The power factor measures the efficiency of electrical consumption, defined as the ratio of real power to apparent power.
- Inductive loads like motors cause the current waveform to lag behind the voltage, creating a phase shift.
- Utilities levy financial penalties on industrial consumers when their power factor drops below a specific threshold, typically 0.90.
- Facilities can eliminate these penalties by installing capacitor banks that supply reactive power locally.
- Correcting the power factor frees up utility transmission capacity and reduces resistive heat losses on the grid.
The utility company determines the billing structure for industrial consumers, possessing the regulatory authority to levy financial penalties for inefficient grid usage, and they exercise this power at the close of every monthly billing cycle. When a manufacturing plant draws electricity from the grid, the utility measures not just the raw energy consumed, but how effectively that energy is converted into useful work. This efficiency is quantified by the power factor, a metric that dictates whether a facility pays standard rates or incurs steep reactive power penalties.[3]
The mechanics of this penalty system are rooted in the fundamental physics of alternating current (AC) circuits. In an ideal electrical system, the voltage and current waveforms rise and fall in perfect unison. However, industrial environments are dominated by inductive loads—such as electric motors, transformers, and high-intensity discharge lighting—which rely on magnetic fields to operate. These magnetic fields cause the current waveform to lag behind the voltage waveform, creating a phase shift.[1]
This phase shift introduces a critical distinction between the different types of power flowing through the grid. Real power, measured in kilowatts (kW), is the actual energy that performs physical work, like turning a motor shaft. Reactive power, measured in kilovolt-amperes reactive (kVAR), is the energy required to sustain the magnetic fields. While reactive power does no useful work, it still occupies capacity on the utility's transmission lines and transformers.[6]
The relationship between these power types is geometrically represented by the power triangle. The vector sum of real power and reactive power yields the apparent power, measured in kilovolt-amperes (kVA), which is the total power the utility must generate and deliver. The power factor is mathematically defined as the ratio of real power to apparent power. Crucially, this ratio is exactly equal to the cosine of the phase angle between the voltage and current waveforms.[1][6]
A power factor of 1.0, or unity, indicates that voltage and current are perfectly aligned, meaning all delivered power is performing useful work. As the phase angle increases due to inductive loads, the cosine of that angle decreases, resulting in a lower power factor. For example, a power factor of 0.70 means that only 70 percent of the power drawn from the grid is doing actual work, while the remaining 30 percent is reactive power sloshing back and forth to maintain magnetic fields.[1]
A power factor of 1.0, or unity, indicates that voltage and current are perfectly aligned, meaning all delivered power is performing useful work.
From the utility's perspective, this inefficiency represents a significant infrastructure burden. To deliver the necessary real power to a facility with a low power factor, the utility must generate and transmit a much larger amount of apparent power. This requires oversized generators, thicker transmission cables, and larger transformers to handle the excess current, which also increases resistive heat losses along the distribution network.[4]

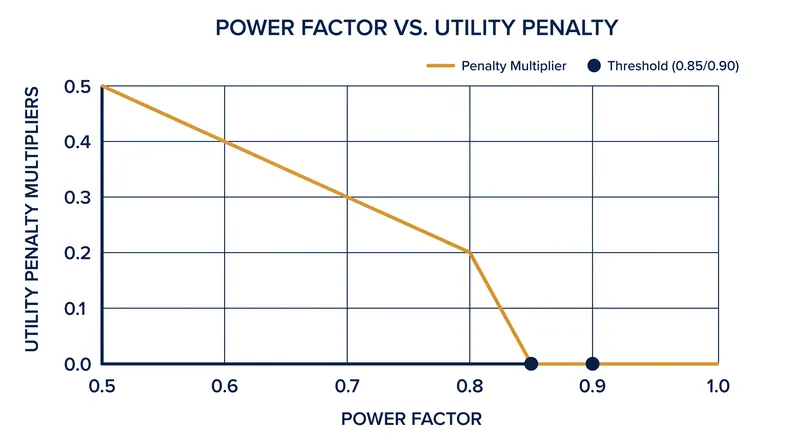

To recover the costs of this oversized infrastructure, utilities impose reactive power penalties on industrial and large commercial consumers. These penalties typically trigger when a facility's power factor drops below a specific threshold, often set between 0.85 and 0.95 by regional grid operators, according to data from the New York State Energy Research and Development Authority (NYSERDA). The billing adjustments can be substantial. "Power factor penalty is the penalty charged by the electricity board or utility company to the consumer for not maintaining the power factor within the prescribed limit," explains a 2026 briefing from Heaven Green Energy, noting that such penalties can inflate total electricity costs by up to 20 percent.[3][4]

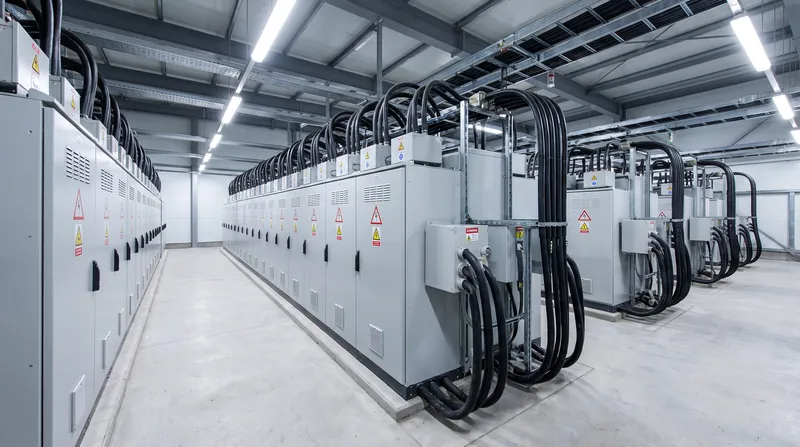

The primary defense against these penalties is power factor correction (PFC). By installing capacitor banks parallel to the inductive loads, facilities can counteract the lagging current. Capacitors store and release reactive power in a way that leads the voltage waveform, effectively canceling out the lagging reactive power demanded by the motors and transformers. This localized exchange of reactive energy prevents it from having to travel all the way from the utility's generators.[2][5]

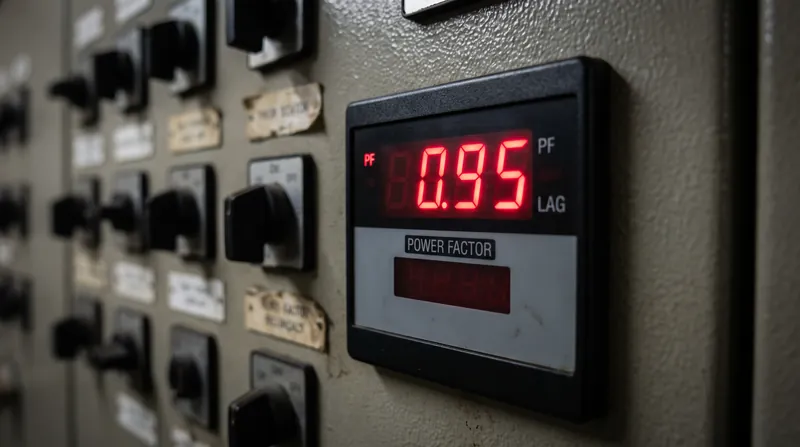

Implementing at-load power factor correction requires a precise assessment of the facility's electrical profile. Engineers must calculate the exact kilovolt-ampere reactive (kVAR) rating of the capacitor banks needed to reduce the phase angle and raise the power factor above the utility's penalty threshold. "Power factor correction (PFC) circuits are used to improve the power factor of electrical loads," notes technical documentation from Toshiba America Electronic Components, detailing how active PFC circuits can dynamically adjust the capacitance in real-time as different machines cycle on and off.[2][4]
The financial logic of power factor correction is driven by the payback period. The capital expenditure required to purchase and install capacitor banks or synchronous condensers is weighed against the monthly savings achieved by eliminating utility penalties. For heavy industrial users operating continuously, the return on investment is often realized rapidly, transforming a regulatory penalty into a predictable infrastructure upgrade, as outlined in industry guidance from Schneider Electric.[5]
Beyond individual billing, widespread power factor correction plays a crucial role in broader grid stability. As electrical grids transition toward higher penetrations of renewable energy in 2026 and beyond, managing reactive power becomes increasingly complex. Traditional fossil-fuel generators naturally provide reactive power support, but inverter-based resources like solar and wind require sophisticated control systems to mimic this behavior.[7]
By minimizing the reactive power burden at the consumer level, utilities can free up existing transmission capacity, deferring the need for costly grid expansions. The cosine of the phase angle, therefore, is not merely an abstract mathematical concept; it is a foundational metric that governs the physical efficiency and economic viability of the modern electrical infrastructure.[7]
Definitions
- Power Factor
- The ratio of real power used to perform work to the apparent power supplied by the utility.
- Reactive Power
- Power that oscillates between the source and the load to sustain magnetic fields, performing no actual work.
- Apparent Power
- The vector sum of real and reactive power, representing the total power the utility must generate.
- Phase Angle
- The geometric measurement of how far the current waveform lags behind or leads the voltage waveform.
- Capacitor Bank
- An assembly of electrical components that stores and releases reactive power to correct a lagging power factor.
