Cascading 600°C Exhaust Pushes Combined-Cycle Power Plant Efficiency Past 60 Percent

The binding constraint for any thermal power plant is the Carnot limit, a fundamental thermodynamic law dictating that the temperature difference between a heat source and its sink strictly caps maximum efficiency. When a standalone turbine operates, it inevitably rejects massive amounts of thermal energy into the atmosphere, wasting fuel.[1][3]

Historically, this physical boundary restricted the world’s best single-cycle power plants to converting roughly 35 to 40 percent of their fuel into usable electricity. The remaining 60 percent escaped as waste heat, severely limiting the economic viability and environmental performance of traditional fossil-fired generation facilities.[3]

Engineers have bypassed this bottleneck by physically linking two distinct thermodynamic loops into a single cascading system. By routing the 600°C exhaust from a primary gas turbine directly into a secondary steam cycle, modern facilities extract two separate streams of mechanical work from one initial volume of fuel.[2]

This combined-cycle architecture pushes total plant efficiency past 60 percent, and in some advanced configurations, up to an unprecedented 64 percent. The integration fundamentally alters grid economics, allowing utility operators to generate significantly more baseload power without increasing their natural gas consumption or expanding their emissions footprint.

The Brayton topping cycle

The process begins with the topping cycle, governed entirely by Brayton thermodynamic principles. A massive industrial compressor draws in ambient air, heavily pressurizes it, and forces it into a specialized combustion chamber where it mixes with natural gas before undergoing continuous, high-intensity ignition.[1]

Ignition inside the chamber pushes internal temperatures to between 1,200°C and 1,400°C, creating a high-velocity flow of rapidly expanding gases. This extreme thermal energy drives the primary gas turbine, spinning a massive generator shaft to produce the facility's first major stream of electricity.[3]

In a traditional open-cycle power plant, the thermodynamic process would end here, and the exhaust would vent directly out of a stack. Because strict metallurgical limits prevent the turbine blades from absorbing all the generated heat, the exiting gas remains intensely hot and full of unextracted energy.[1][3]

The exhaust leaves the gas turbine at approximately 600°C, carrying more than half of the natural gas fuel's original thermal energy. Capturing this specific, high-temperature waste stream is the mechanical foundation and primary engineering objective of the modern combined-cycle power plant.[2]

The heat recovery steam generator

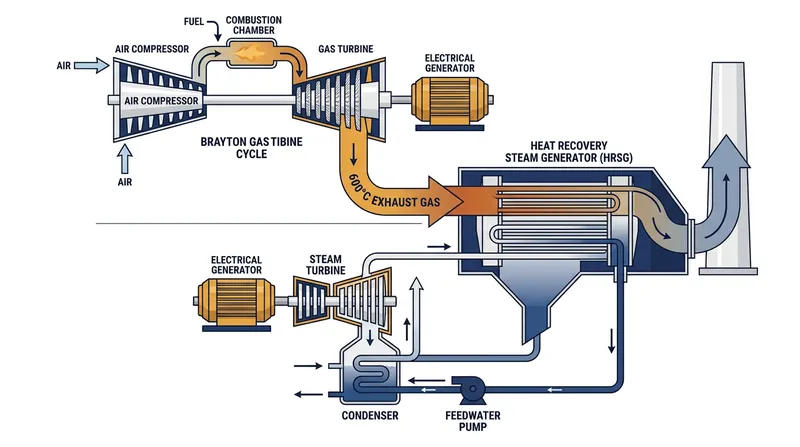

Instead of venting uselessly into the atmosphere, the 600°C exhaust flows directly into a massive heat exchanger known as a heat recovery steam generator, or HRSG. This towering component acts as the critical thermal bridge between the two distinct power cycles, capturing energy that would otherwise be lost.[2]

Inside the HRSG, the hot combustion gases pass over miles of tightly coiled, highly conductive water tubes. The 600°C exhaust provides more than enough thermal energy to boil the circulating water, converting it into high-pressure, superheated steam without requiring any secondary fuel source or additional combustion.[3]

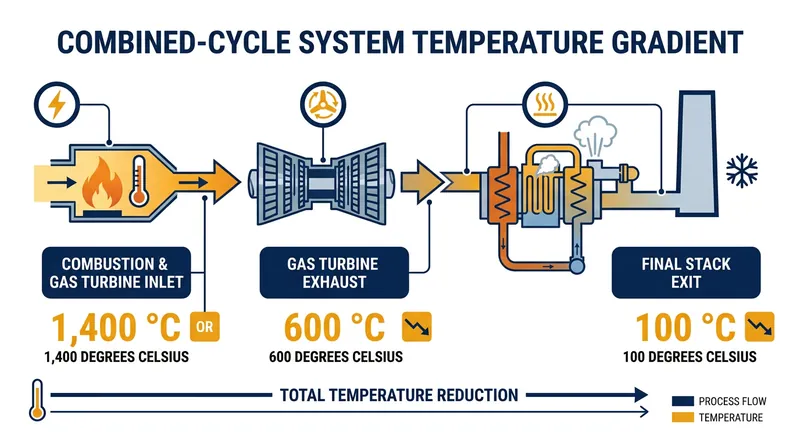

Advanced HRSG designs utilize multiple pressure levels—typically high, intermediate, and low—to extract the maximum possible energy from the progressively cooling exhaust gas. By the time the gas finally exits the facility's stack, its temperature has dropped from 600°C to roughly 100°C, stripping it of useful heat.[2]

The superheated steam generated in this recovery phase is then piped directly into the bottoming cycle. This seamless, closed-loop transfer of waste heat is exactly what allows the combined facility to break through the strict efficiency ceilings that permanently constrain standalone power plants.[1]

The Rankine bottoming cycle

The bottoming cycle operates on Rankine thermodynamic principles, utilizing the exact same mechanism found in traditional coal and nuclear power stations. The superheated steam from the HRSG expands violently against the precision-engineered blades of a dedicated, secondary steam turbine.[1][3]

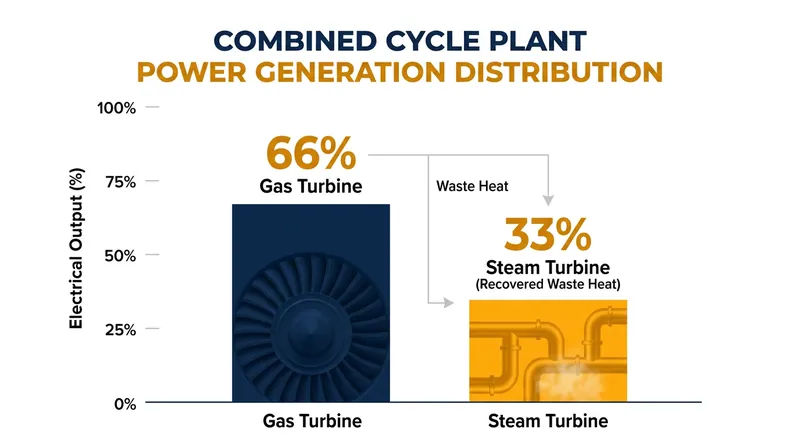

As the high-pressure steam expands, it spins a second generator, producing an entirely separate stream of electricity. This Rankine cycle typically contributes about one-third of the combined-cycle plant's total electrical output, generating hundreds of megawatts of power entirely from recovered waste heat.[2]

After passing through the turbine stages, the spent, low-pressure steam enters a massive condenser where cooling water returns it to a liquid state. Heavy-duty feed-water pumps then push this liquid back into the HRSG, closing the Rankine loop and allowing the thermodynamic cycle to repeat continuously.[2][3]

"The combined-cycle sounds needlessly complicated, but the added steam cycle turbine wrings more work from one unit of fuel than a single gas turbine can," notes the American Society of Mechanical Engineers in a 2023 technical review of modern power generation systems.

Efficiency gains and grid economics

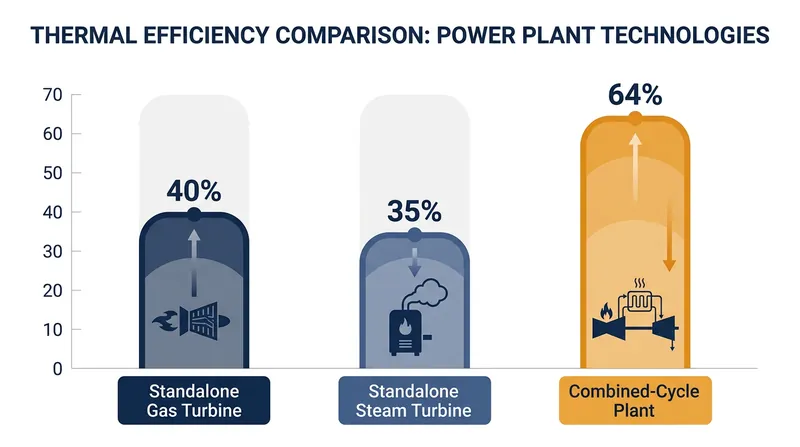

The mathematical result of this cascading architecture is a profound leap in thermal efficiency. While a standalone gas turbine converts about 40 percent of fuel energy into power, the bottoming steam cycle captures enough waste heat to add another 20 to 24 percentage points of net output.[1]

This pushes the total system efficiency to between 60 and 64 percent, making combined-cycle gas turbines the most efficient combustion power plants operating on the global grid today. The massive fuel savings directly translate into substantially lower operating costs for utility companies and ratepayers.

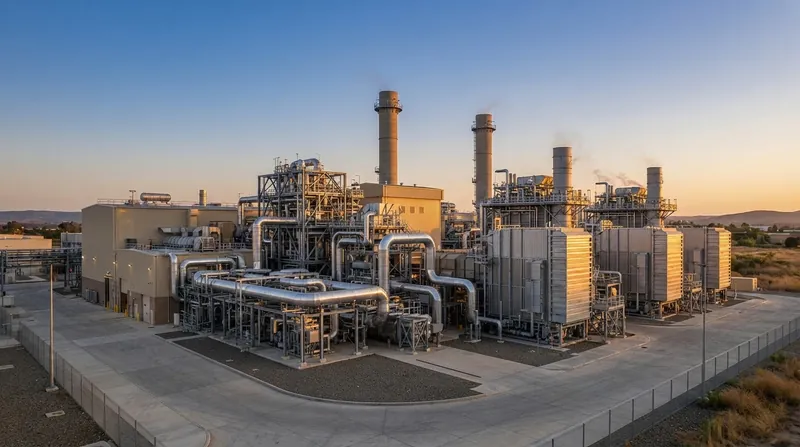

These undeniable economic advantages have fundamentally shifted how grid operators dispatch power across major markets. According to the Energy Information Administration, modern combined-cycle facilities have rapidly become the preferred baseload generators across much of the United States, displacing older, less efficient coal and gas plants.

"Because CCGT units built between 2010 and 2022 typically have the lowest operating costs, they are dispatched more frequently compared with older CCGT power plants," the Energy Information Administration reported in a recent analysis of national grid capacity factors and utilization rates.

Operational flexibility and limitations

Beyond pure thermodynamic efficiency, combined-cycle plants offer crucial operational flexibility for modern grids. The primary gas turbine can ramp up to full power in a matter of minutes, providing immediate electricity to balance intermittent renewable energy sources like wind and solar when weather conditions change.[3]

The secondary steam cycle takes considerably longer to reach optimal operating temperatures, but once fully heated, it stabilizes the plant's massive baseload output. This dual-response capability allows utilities to manage sudden demand spikes without sacrificing the long-term efficiency of the combined system.[3]

However, the technology is not without strict physical limitations. The efficiency of the Rankine bottoming cycle drops significantly when the plant operates at partial load, meaning the facility must run near its maximum capacity to actually achieve its advertised 60 percent efficiency rating.

Additionally, the extreme 600°C exhaust temperatures require advanced metallurgy and active clearance controls to prevent severe turbine blade degradation. Engineers must constantly balance the pursuit of higher firing temperatures against the strict material limits and maintenance costs of the internal turbine components.[2][3]

Advanced cooling and future horizons

To push efficiencies toward the theoretical 64 percent threshold, manufacturers have introduced highly sophisticated cooling mechanisms for the gas turbine blades. By circulating internal air or steam through hollow blade channels, operators can safely increase the initial combustion temperature without melting the hardware.[3]

Higher firing temperatures in the Brayton cycle directly increase the thermal quality of the exhaust entering the HRSG. This hotter exhaust generates higher-pressure steam, which in turn extracts significantly more mechanical work from the Rankine turbine, driving the entire system's efficiency upward.[1]

Some next-generation facilities are also experimenting with supplementary firing, injecting small amounts of natural gas directly into the HRSG. While this increases total steam production during peak grid demand, it slightly lowers the plant's overall thermal efficiency by introducing fuel outside the primary Brayton cycle.[3]

The cascading of Brayton and Rankine cycles represents the absolute pinnacle of fossil-fuel thermodynamics. By systematically eliminating waste heat, engineers have transformed the 600°C exhaust plume from a massive thermodynamic loss into the electrical grid's most valuable and efficient secondary resource.[1][4]
