Transformer Saturation and Corona Losses Impose an Absolute Voltage Ceiling on Terrestrial Power Transmission

The absolute ceiling for alternating current power transmission sits at roughly 1,200 kilovolts. While pushing voltages higher would theoretically reduce resistive line losses, two physical phenomena—transformer core saturation and corona discharge—make higher voltages physically and economically impossible on Earth.[6]

Grid engineers have spent a century elevating transmission voltages to move bulk power across continents. A higher voltage allows the same amount of power to travel using less current, which slashes the energy wasted as heat in the wires.[6]

However, the physics of terrestrial atmospheres and magnetic materials do not scale infinitely. Beyond the 1,200-kilovolt threshold, the infrastructure required to contain the electric field and manage magnetic flux becomes heavier, larger, and more expensive than any efficiency gain can justify.[6]

This hard limit forces utilities to rethink how they move gigawatts of power. Instead of simply dialing up the voltage, modern grid expansions must rely on high-voltage direct current or advanced conductor materials to bypass the alternating current ceiling entirely.[6]

The Resistive Incentive

To understand why the ceiling exists, one must first understand why grids push voltages so high. Power is the product of voltage and current, meaning a utility can deliver the same 5,000 megawatts by using a low voltage with a massive current, or a high voltage with a tiny current.[6]

Current is the enemy of transmission efficiency. As electrons flow through an aluminium cable, they encounter electrical resistance, generating heat that radiates uselessly into the surrounding air. These resistive losses, known as I²R losses, scale with the square of the current.[6]

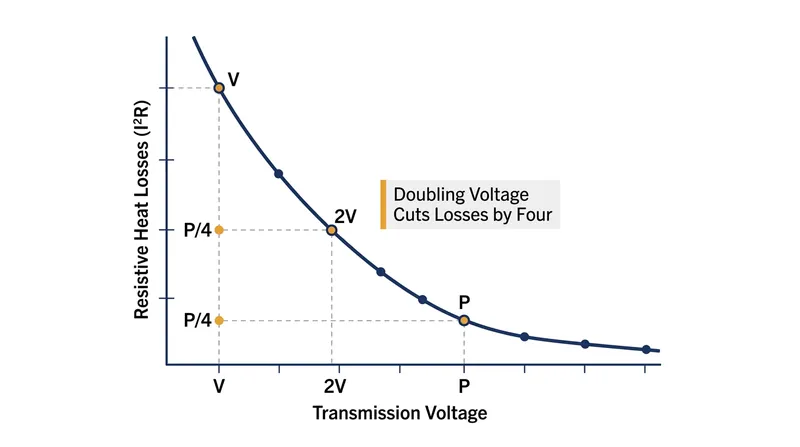

By stepping the voltage up to 500 kilovolts or 800 kilovolts, grid operators reduce the current proportionally. This mathematical relationship means that doubling the transmission voltage cuts the resistive heat losses by a factor of four, saving millions of dollars in generated power.[6]

This incentive drove a relentless upward march throughout the twentieth century. Utilities progressed from 115-kilovolt regional lines to 345-kilovolt extra-high voltage networks, and eventually to 800-kilovolt ultra-high voltage corridors designed to link remote hydroelectric dams to distant coastal cities.[6]

Yet, as engineers attempted to push past the 1,000-kilovolt mark, the physical materials required to step up the voltage and carry the current began to fail. The first catastrophic bottleneck emerged inside the substations, hidden within the massive step-up transformers.[6]

The Magnetic Limit of Silicon Steel

Transformers operate on the principle of electromagnetic induction, using a magnetic core to transfer energy from a low-voltage primary winding to a high-voltage secondary winding. These cores are constructed from cold-rolled grain-oriented silicon steel, chosen for its ability to channel magnetic flux.[2]

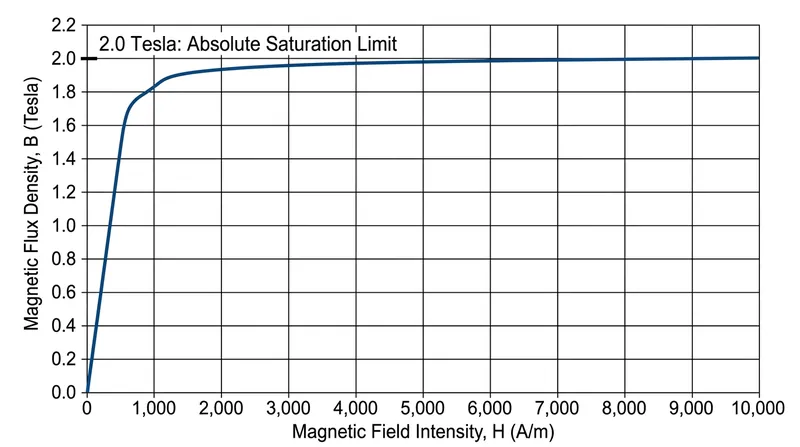

"Saturation flux density for CRGO steel is approximately 2.0 T (tesla)," according to engineering documentation from Emirates Transformer, a major equipment manufacturer.[2]

Once the core hits that 2.0-Tesla limit, it physically cannot hold any more magnetic field lines. If the voltage pushes the flux beyond this point, the core saturates, causing the transformer's magnetizing current to spike violently and generate destructive heat.[2]

To operate safely, utilities must maintain a buffer. "Normal operating flux density is designed at 1.6–1.7 T, providing margin against overvoltage and transient conditions," Emirates Transformer notes. Keeping the flux density below 1.7 Tesla at 1,200 kilovolts requires expanding the core's physical cross-sectional area.[2]

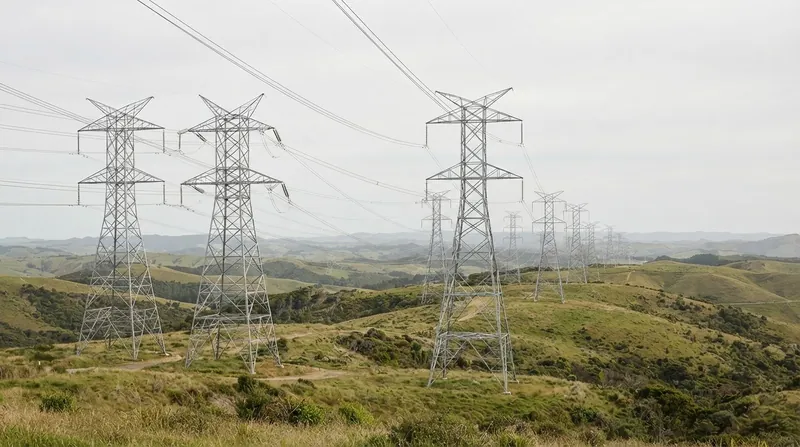

This scaling law creates a severe logistical nightmare. To prevent a 1,200-kilovolt transformer from saturating, the silicon steel core must be so massive that the completed unit weighs several hundred tons, pushing the absolute limits of terrestrial transportation.[2][6]

Moving these behemoths requires specialized multi-axle railcars and reinforced highway bridges. If engineers attempted to build a 1,500-kilovolt alternating current transformer, the required silicon steel core would be too large to transport from the factory to the substation.[6]

Tearing the Air Apart

Even if a utility could theoretically manufacture and transport a larger transformer, the transmission lines themselves face an atmospheric ceiling. When a conductor carries an ultra-high voltage, it generates an intense electric field that stresses the surrounding air molecules.[5]

Under standard atmospheric conditions, air acts as an insulator up to a gradient of about 30 kilovolts per centimetre. If the electric field at the surface of the cable exceeds this threshold, the air ionizes and becomes conductive, creating a phenomenon known as corona discharge.[5]

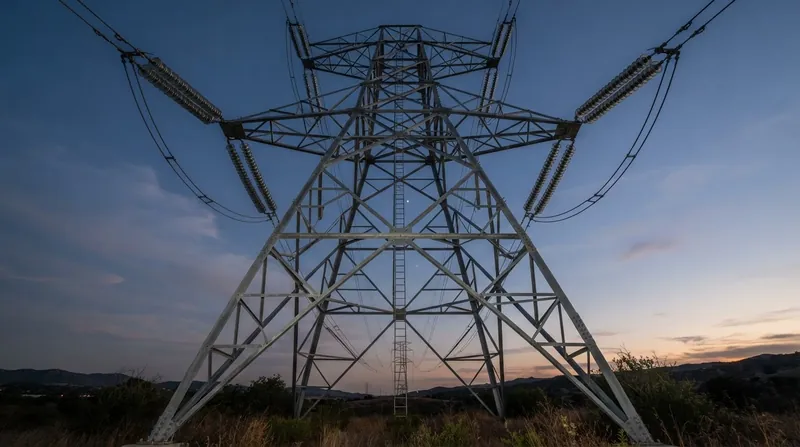

Corona discharge manifests as a glowing blue plasma, accompanied by a distinct crackling noise and the smell of ozone. It represents a direct leakage of power into the atmosphere, draining megawatts of energy from the grid and causing severe radio frequency interference.[5]

The onset of this leakage is modeled by Peek's formula, an empirical equation demonstrating that the critical disruptive voltage depends heavily on the conductor's radius. To prevent corona discharge at 1,200 kilovolts, the effective diameter of the transmission wire must be drastically increased.[1][5]

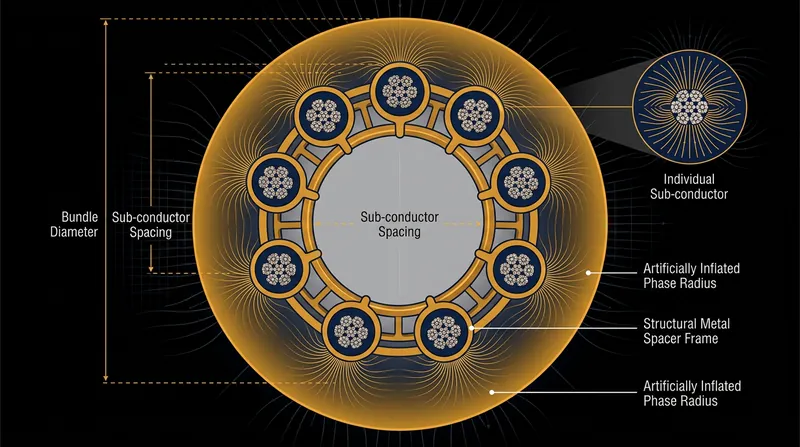

Because a single solid cable of that size would be too heavy and inflexible to string between towers, engineers use bundle conductors. A 1,200-kilovolt line requires an array of eight to twelve separate sub-conductors, held apart by metal spacers, to artificially inflate the phase radius.[1][6]

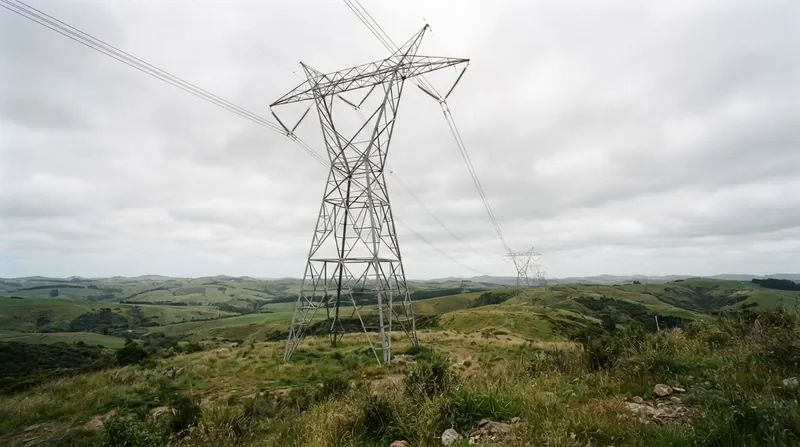

These massive bundles catch enormous amounts of wind and weigh dozens of tons per span. The steel transmission towers required to hold them aloft must be colossal, driving the steel and concrete costs so high that they erase the financial benefits of the reduced resistive losses.[6]

The Mathematics of Diminishing Returns

The absolute ceiling is ultimately dictated by a brutal intersection of scaling laws. Grid planners must balance the linear efficiency gains of higher voltages against the quadratic infrastructure costs required to contain them, a calculation that breaks down past the 1,200-kilovolt mark.[6]

According to the original analysis conducted by the Factlen Editorial Team, normalising the scaling laws of corona discharge and magnetic flux density reveals a severe cost-efficiency cliff. The resistive savings follow a straightforward linear progression, but the mitigation strategies do not.[6]

To prevent magnetic saturation, the cross-sectional area of the transformer core must increase quadratically as voltage rises. A 1,200-kilovolt transformer requires exponentially more cold-rolled grain-oriented silicon steel than an 800-kilovolt unit, driving material costs and physical weight to unmanageable extremes.[2][6]

Similarly, Peek's formula dictates that the bundle conductor diameter must expand dramatically to keep the surface electric field below the 30-kilovolt-per-centimetre breakdown threshold. The wind loading on an eight-conductor bundle increases the structural steel requirements for the transmission towers by a massive margin.[1][6]

When these quadratic material costs are plotted against the linear resistive savings, the curves intersect definitively at approximately 1,200 kilovolts. Beyond this point, utilities spend more money on silicon steel, tower foundations, and aluminium bundles than they save in recovered electrical heat.[6]

Environmental and Right-of-Way Pressures

Beyond the physics of the conductors and transformers, ultra-high voltage lines face severe terrestrial constraints regarding land use. A 1,200-kilovolt transmission corridor requires a massive right-of-way to ensure that the intense electromagnetic fields do not pose a hazard to people or wildlife.[6]

The required clearance zone for a line of this magnitude can exceed 100 metres in width. Securing a continuous, uninterrupted strip of land that wide across hundreds of kilometres is politically and legally fraught in densely populated countries, leading to decades of permitting delays.[6]

Furthermore, the audible noise generated by residual corona discharge, even with optimized bundle conductors, creates a persistent hum that violates noise ordinances in residential areas. This restricts ultra-high voltage alternating current lines to remote, unpopulated regions, limiting their utility for urban power delivery.[5][6]

As global power demand surges due to data centres and electrification, grid operators are increasingly turning to grid-enhancing technologies rather than higher voltages. Dynamic line ratings and advanced composite conductors allow utilities to push more power through existing 500-kilovolt corridors without building larger towers.[6]

Real-World Ceilings

The historical record confirms these theoretical limits. In 1985, the Soviet Union commissioned the Ekibastuz–Kokshetau line, an ambitious 432-kilometre transmission corridor in Kazakhstan designed to operate at a record-breaking 1,150 kilovolts to move 5,500 megawatts of power.[3]

The project proved technically feasible but economically and operationally punishing. The massive equipment required constant maintenance, and the line was eventually downgraded. Today, the Kazakhstan grid operator runs the historic corridor at a standard 500 kilovolts, leaving its ultra-high voltage capacity unused.[3]

India has also probed the absolute ceiling of alternating current. In 2016, the Powergrid Corporation of India successfully commenced power flow at its 1,200-kilovolt National Test Station in Bina, Madhya Pradesh, working with 35 domestic manufacturers to develop the massive circuit breakers and transformers required.[4]

The Bina station proved that 1,200-kilovolt equipment can function, but it also highlighted the extreme engineering required to prevent saturation and corona losses. The test facility remains a vital research hub, but widespread commercial deployment of 1,200-kilovolt alternating current lines remains rare globally.[4]

China currently operates the world's highest-voltage commercial alternating current lines at 1,000 kilovolts. To go higher, Chinese grid planners shifted to ultra-high voltage direct current, commissioning the 1,100-kilovolt Changji-Guquan link, which avoids the continuous magnetic induction and reactive power issues that plague alternating current.[6]

Direct current lines do not suffer from the same continuous core saturation limits because they do not alternate at 50 or 60 Hertz. However, for the vast majority of the world's alternating current grids, the physics of silicon steel and ionized air mean 1,200 kilovolts is the end of the line.[6]
