How High-Voltage Shore Connection Decouples Ship Hotel Loads from Auxiliary Diesel Engines

The outcome of a zero-emission port stay is determined in a window of milliseconds: the moment of phase synchronization. When a modern container vessel docks, it cannot simply unplug its diesel generators and plug into the grid without blacking out the ship. Instead, the vessel's automated switchboard must precisely match the frequency and phase angle of the onshore high-voltage substation. Only when the two massive electrical systems are perfectly aligned does the breaker close, allowing the ship to seamlessly transfer its megawatt-scale hotel loads to the land-based grid. That single mechanical click is the step that decouples global shipping from localized air pollution.[3]

For decades, a ship at berth was essentially a stationary power plant. Even with its massive main propulsion engines shut down, a modern vessel requires enormous amounts of electricity to keep cargo refrigerated, crew quarters heated, and communication systems online. To meet this demand, ships run auxiliary diesel engines, typically consuming between two and six tons of heavy fuel oil per day. Because these auxiliaries operate continuously, they have historically been the primary source of nitrogen oxide (NOx) and sulfur oxide (SOx) emissions in port cities.[2][3]

The engineering solution is known as cold ironing—a term held over from the coal era when shutting down the boilers allowed the iron engines to physically cool. Today, the industry refers to it as High-Voltage Shore Connection (HVSC) or Alternative Maritime Power (AMP). By connecting the ship's internal microgrid directly to the local utility, the vessel can completely shut down its onboard generators, eliminating 100 percent of its at-berth exhaust emissions.[2]

Moving the required amount of energy from dock to deck is an exercise in extreme electrical engineering. A large cruise ship or refrigerated container vessel can draw upwards of 16 megawatts of power—equivalent to a small town. Transmitting that much energy at standard low voltages would require an unmanageable number of thick, heavy cables. To solve this, the International Electrotechnical Commission (IEC) and IEEE established the 80005-1 standard, which dictates that shore power be delivered at high voltages, specifically 6.6 kV or 11 kV AC.[1][3]

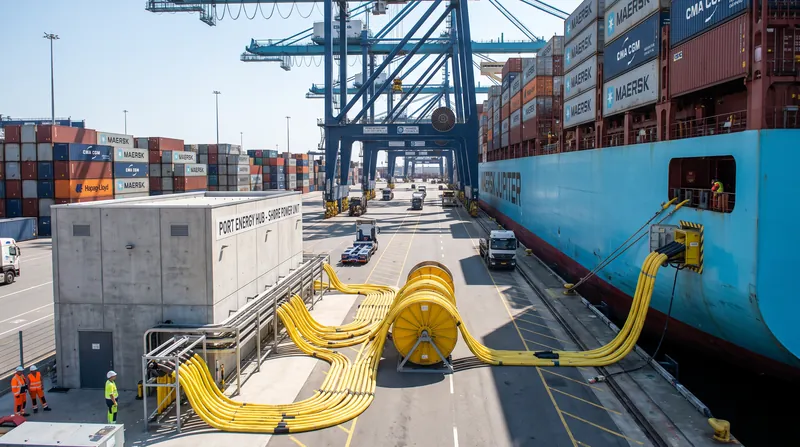

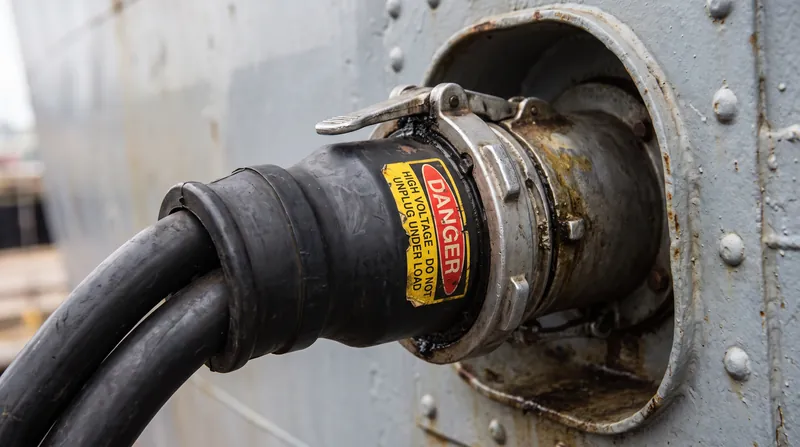

Operating at 11 kV allows the power to flow through a single, highly insulated cable assembly. These cables are deployed using a dockside Cable Management System (CMS)—a specialized crane that lowers the heavy connectors into the ship's receiving vault. The connectors themselves are safety-interlocked; if the tension on the cable exceeds a safe limit, or if the connection is compromised by the ship shifting on the tide, the system automatically trips the breakers to prevent a high-voltage arc.[1]

One of the most significant technical hurdles in global cold ironing is the frequency divide. The vast majority of the world's oceangoing fleet operates on a 60 Hz electrical standard, a legacy of American post-war shipbuilding dominance. However, the terrestrial power grids in Europe, Asia, and parts of the Middle East operate at 50 Hz. Plugging a 60 Hz ship directly into a 50 Hz grid would catastrophically damage the vessel's pumps, chillers, and sensitive electronics.[3]

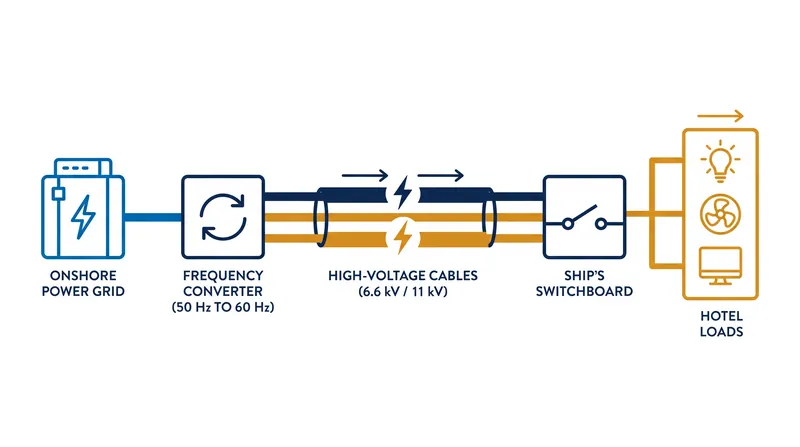

To bridge this gap, modern shore power installations include massive solid-state frequency converters housed in dockside substations. These converters take the local 50 Hz power, rectify it to direct current (DC), and then invert it back to a perfectly stable 60 Hz alternating current before sending it across the water. This infrastructure is expensive, but it ensures that a vessel can plug in safely whether it is docking in Rotterdam, Shanghai, or Los Angeles.[3]

The environmental dividends of this infrastructure are immediate and measurable. Replacing marine fuel with grid electricity cuts at-berth particulate matter, NOx, and SOx by more than 80 percent. When the onshore grid is powered by renewable sources like wind or solar, the carbon footprint of the vessel's hotel load drops effectively to zero.[2][3]

Adoption is rapidly shifting from voluntary to mandatory. As noted by engineering firm ESL Power Systems, "With growing regulatory pressure from CARB, IMO, and other governing bodies, shore power is no longer optional. It's becoming essential infrastructure for modern port operations." The California Air Resources Board (CARB) pioneered this shift, requiring container, cruise, and refrigerated cargo vessels to use shore power for a specified percentage of their visits. By 2026, the Port of Los Angeles had installed 80 AMP vaults, equipping 100 percent of its container and cruise berths.[1]

Europe is now following suit with aggressive timelines. The European Union's TEN-T directive mandates that all core ports must offer shore-side electricity by December 2025. As these regulatory deadlines approach, the maritime industry is racing to retrofit older vessels with the necessary transformers and switchgear, ensuring that the future of global shipping leaves the air in port cities clean.[2][3]
