Waterplane Area Fluctuations at Twice the Natural Roll Frequency: Why Head Seas Trigger Violent Parametric Rolling in Container Ships

When a vessel rolls violently in heavy seas, the standard culprit is synchronous rolling. This condition occurs when waves strike the side of the hull at the exact frequency of the ship’s natural pendulum motion, pushing it like a swing.

Parametric rolling operates on a fundamentally different mechanism. Instead of waves pushing the ship from the side, it is triggered by waves striking the bow head-on. This causes the vessel to rapidly lose and regain its own hydrostatic stability as the water passes along the hull.

The phenomenon has become a defining hazard for modern maritime logistics. During the winter season of 2020 to 2021, the shipping industry recorded a series of exceptional container losses in the Pacific, prompting the formation of the TopTier project to investigate the structural failures.

Researchers determined that unfavorable combinations of rolling period, vessel speed, and wave conditions were triggering sudden roll motions. These oscillations can rapidly exceed 30 degrees, threatening the safety of the vessel, its crew, and millions of dollars in cargo.

The Geometry of Modern Container Ships

The root of the vulnerability lies in the specific architectural demands of modern container carriers. To maximize cargo capacity above the waterline while minimizing hydrodynamic resistance below it, naval architects design these vessels with a pronounced bow flare and a wide, flat transom stern.

This geometry creates a hull that is highly streamlined at the keel but expands dramatically near the main deck. While this shape allows a ship to carry thousands of steel boxes efficiently, it also means the vessel’s cross-sectional profile changes radically depending on how deep it sits in the water.

When the ship sails in calm water, its stability is governed by a constant waterplane area—the two-dimensional footprint of the hull where it intersects the ocean surface. This area dictates the metacentric height, the primary metric of a ship's resistance to tipping.

The Mechanics of Waterplane Area Fluctuations

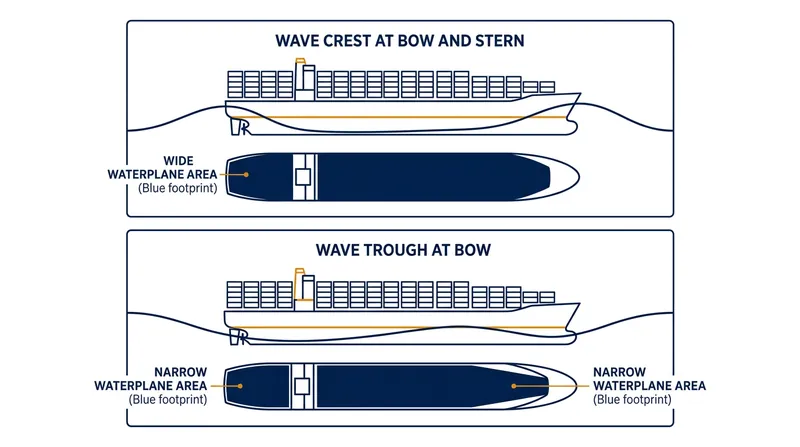

As a container ship drives into head seas, it pitches up and down over the incoming waves. When the vessel pitches its bow down into a wave crest, the flared upper sections of the bow and the wide stern are simultaneously immersed in the water.

This sudden immersion drastically increases the waterplane area. The expanded footprint pushes the metacentric height higher, making the ship extremely stiff and highly stable for a brief moment, forcefully resisting any tendency to lean.

Seconds later, the wave crest moves amidships, leaving the bow and stern suspended over the wave troughs. Now, only the narrow, streamlined lower hull is fully supported by the water, causing the waterplane area to shrink significantly.

With the waterplane area reduced, the metacentric height plummets. The ship becomes tender and momentarily unstable, losing its natural restoring force. As the waves pass, the vessel cycles continuously between these two extremes of high and low stability.

The 2:1 Resonance Ratio

This continuous fluctuation in stability does not automatically cause a problem. The danger arises only when the frequency of these wave encounters aligns mathematically with the ship’s own natural rolling rhythm, creating a dynamic instability known as parametric resonance.[2]

According to a 2023 analysis by Mariners Galaxy, the critical threshold is reached when the waterplane changes occur at exactly twice the natural roll frequency of the ship. In this state, the vessel experiences two stability fluctuations for every single complete roll cycle.

The timing creates a devastating feedback loop. As the ship naturally begins to roll to one side, it hits a wave trough, loses stability, and falls further into the roll. Just as it reaches the maximum angle, it hits a wave crest, regains immense stability, and is violently snapped back upright.

This restoring force acts like a compressed spring, throwing the ship through the center point and over to the other side with increased momentum. The cycle repeats, with each wave adding energy to the pendulum motion.

The physics governing this instability are described by the Mathieu equation, a mathematical model used to predict parametric resonance in oscillating systems. It demonstrates that instability can occur whenever the restoring stiffness of a system varies periodically.[2]

For a typical 240-meter container ship, the natural roll period might be around 32 seconds. If that vessel steams into head seas with a wave encounter period of 16 seconds, the 2:1 ratio is perfectly satisfied, priming the ship for a violent reaction.

The Amplification Cycle

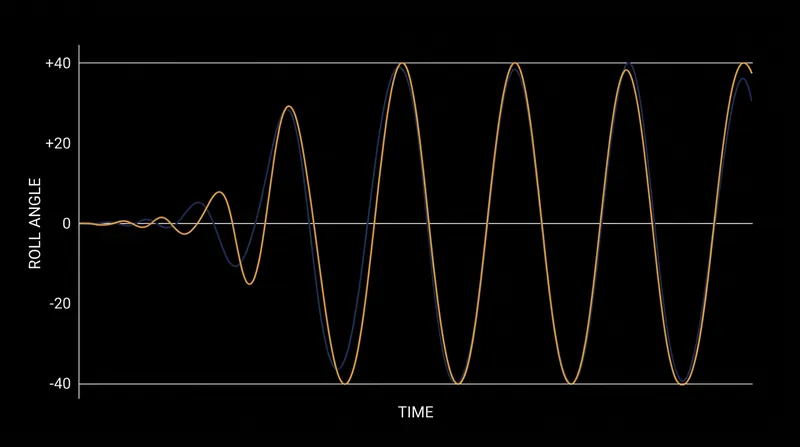

Because the energy is injected by the ship’s own fluctuating buoyancy rather than a direct sideways push, the escalation is incredibly fast. A vessel can go from a gentle sway to a catastrophic 40-degree roll in just five or six wave cycles.

A November 2025 study published by AIP Publishing modeled this behavior using computational fluid dynamics on a C11 class container ship. The researchers found that the excitation originates entirely from variations in hydrostatic restoring forces, rather than from externally applied moments.[1]

The AIP Publishing researchers emphasized the insidious nature of the phenomenon. They noted that "since the excitation originates from variations in hydrostatic restoring forces, rather than from externally applied moments, even small initial disturbances can experience rapid amplification."[1]

The study also discovered that water depth plays a critical role in the severity of the motion, complicating navigation in coastal shipping lanes. In deep water simulations, the parametric roll amplitude stabilized at 20.72 degrees.[1]

However, when the same vessel encountered identical wave conditions in shallow water, the roll amplitude increased significantly. The motion stabilized at 26.12 degrees due to the altered hydrodynamic pressures under the keel, representing a severe escalation in risk.[1]

The maritime community first recognized the sheer scale of this threat following the APL China incident in October 1998. Sailing through the North Pacific during a severe storm, the vessel encountered massive head seas that triggered violent parametric rolling.

The ship experienced rolls exceeding 35 degrees, resulting in the loss of over 400 containers overboard and severe damage to 1,000 more. The incident caused an estimated $50 million in cargo losses and forced naval architects to rethink container lashing systems.

Operational Mitigation

Breaking this resonance requires immediate intervention from the bridge. Because parametric rolling depends on a precise mathematical relationship between the wave encounter frequency and the ship's natural roll, altering either variable will collapse the feedback loop.

The most direct method is to change the vessel's heading. Turning the ship away from head seas and into a beam or quartering sea alters the relative speed at which the waves pass along the hull, immediately changing the encounter frequency.

Adjusting the ship's speed accomplishes the same goal. Slowing down or speeding up changes how fast the vessel hits the next wave crest, breaking the 2:1 synchronization and allowing the ship's natural damping to absorb the rolling energy.

The American Bureau of Shipping (ABS) now mandates a full numerical procedure to evaluate parametric roll vulnerability. If a hull design is found susceptible, operators must be provided with polar diagrams that map out the exact combinations of speed and heading to avoid.

Advanced detection systems are also being deployed to monitor pitch and heave correlations. By analyzing these subtle motions, onboard computers can warn navigators of impending parametric resonance before the roll angles reach destructive levels, ensuring the vessel can alter course in time.[2]
