Skewed Blades and Kort Nozzles Quench Cavitation Pulses to Protect Ship Hulls

A single cavitation bubble collapsing against a ship's hull strikes the steel with a localized force of 7.03 kilograms per square centimeter. That impact hits the metal with nearly seven times the weight of standard atmospheric pressure. When multiplied by millions of bubbles collapsing every second, the resulting pressure pulses can tear apart a steel hull.[4]

The phenomenon begins with the geometry of the ship itself. As a vessel moves, its hull and stern skeg drag water along, creating a turbulent, uneven flow known as the wake field. Water moves much slower directly behind the skeg—often at just 40 to 50 percent of the ship's forward speed—than at the outer edges of the propeller disk.[6]

When a propeller blade rotates through this uneven wake field, its angle of attack changes violently. The blade suddenly bites into denser, slower water, causing the hydrodynamic pressure on its suction side to plummet. If that local pressure drops low enough, the physics of the water fundamentally change.[1]

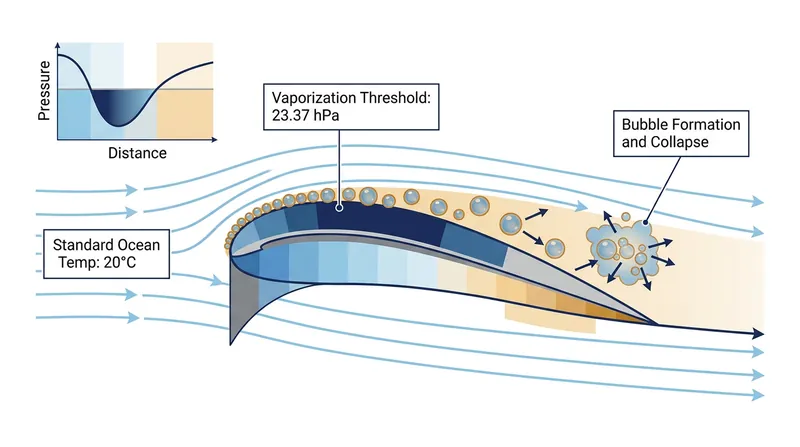

At a standard ocean temperature of 20 degrees Celsius, water normally requires immense heat to boil. However, if the suction-side pressure falls below 23.37 hectopascals, the water evaporates instantly at ambient temperature. This rapid vaporization forms thousands of vapor-filled voids along the trailing edge of the blade.[5]

These vapor voids, known as cavitation bubbles, do not last long. As the rotating blade carries them out of the low-pressure shadow and back into normal water, the surrounding pressure forces the bubbles to condense. The voids collapse inward violently, seeking to fill the empty space.[5]

The Hammer of Cavitation

The collapse of a cavitation bubble is not a gentle dissolution. Jeffrey Casciani-Wood, an honorary fellow at the International Institute of Marine Surveying, notes that "these bubbles collapse and can cause hammer like impact loads on the blades often in excess of 7 kg/cm2." This microjet slams into the metal with immense concentrated energy.[4]

These implosions generate severe pressure pulses that radiate outward through the water. Because the blades pass through the wake shadow at a constant rotational speed, the pulses strike the hull in a rhythmic, continuous bombardment. Naval architects measure these broadband hull pressure fluctuations carefully during the design phase.[3]

On most commercial vessels, these pressure fluctuations hit the hull at frequencies between 30 and 100 Hertz. That specific frequency range is highly destructive, as it often aligns with the natural resonant frequencies of the ship's structural panels, which often sit between 40 and 60 Hertz. The resulting vibration travels easily through the steel framework.[3]

For passenger cruise ships and luxury yachts, this low-frequency vibration ruins the onboard experience, creating a constant droning noise in the aft cabins. For cargo vessels, the continuous shaking fatigues metal welds and damages sensitive shaft bearings. Engineers must intervene at the propeller level to stop the pulses at their source.[2]

How Blade Skew Smooths the Impact

Traditional straight-bladed propellers suffer the most from wake field variations. Because the entire leading edge of a straight blade enters the slow-water shadow simultaneously, the pressure drops all at once. This triggers a massive, instantaneous burst of cavitation that produces a synchronized shockwave when it collapses.[6]

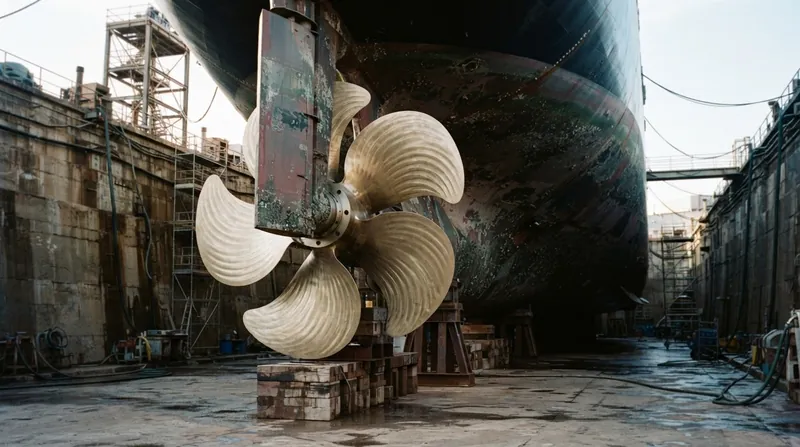

To break this synchronization, marine engineers alter the geometry of the blades using a technique called skew. A skewed blade is swept back tangentially along its radius, often reaching skew angles of 25 to 50 degrees. This tangential wrapping fundamentally changes how the metal interacts with the uneven water flow.[7]

Instead of hitting the wake shadow simultaneously, the leading edge of a skewed blade enters the dense water gradually. The inner root of the blade engages first, followed smoothly by the outer sections. This gradual entry shares the hydrodynamic load across a longer fraction of the rotation.[6]

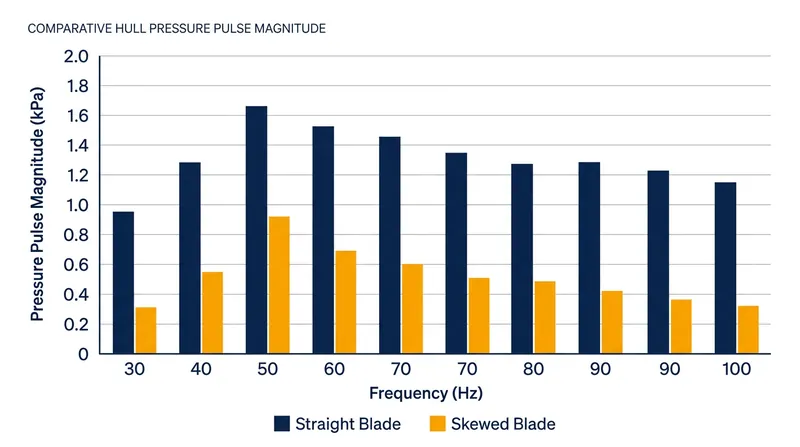

By smoothing the transition into the wake shadow, skew prevents the sudden formation of a massive cavitation sheet. The vapor bubbles form and collapse in a staggered sequence rather than all at once. This staggered collapse drastically quenches the peak magnitude of the resulting pressure pulses.[7]

Tip Off-Loading and Flow Control

Skewed geometry also enables a secondary hydrodynamic trick known as tip off-loading. Engineers reduce the pitch angle at the outermost 10 to 15 percent of the swept blades, intentionally making the tips less aggressive. This shifts the primary thrust burden inward toward the hub, where the metal moves slower.[7]

Because cavitation is most severe at the fast-moving tips, off-loading this region prevents the worst vapor voids from forming in the first place. Propulsion manufacturers like Wärtsilä have relied on the combination of heavy skew and tip off-loading since the early 2000s to minimize load variation. The resulting propeller operates with a significantly quieter acoustic signature.[7]

The reduction in pressure pulses directly translates to a smoother ride for the vessel above. The hull receives a gentle, continuous push rather than a series of violent hammer strikes. However, highly skewed propellers are complex to cast and can be more fragile when striking submerged debris.[6]

Furthermore, skew alone cannot solve the vibration problem for every type of ship. Heavy-duty workboats, such as river towboats pushing 10,000-ton barge strings, require massive thrust at very low speeds of 4 to 6 knots. Their propellers operate under such extreme loads that severe cavitation and pressure pulses are mathematically unavoidable.[2]

The Shielding Effect of Kort Nozzles

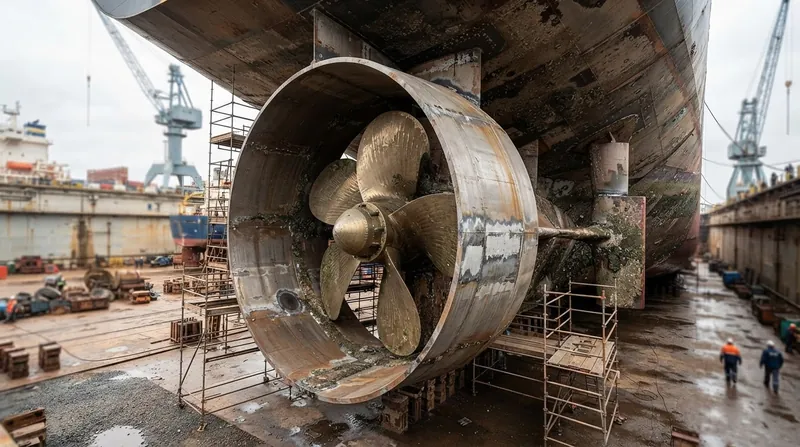

When blade geometry cannot eliminate the pressure pulses, naval architects deploy a physical barrier first patented in 1936. They enclose the propeller inside a hydrodynamic ring known as a duct, or a Kort nozzle. This duct accelerates the water flowing into the blades, significantly boosting the propeller's low-speed thrust efficiency.[2]

Beyond generating thrust, the duct serves as a heavy acoustic and structural shield. As the propeller blades rotate, they shed violent tip vortices—spiraling trails of cavitation that can reach temperatures of several thousand degrees Kelvin upon collapse. The solid steel ring of the duct physically contains these destructive vortices.[1]

Instead of radiating upward to strike the ship's hull, the pressure pulses slam directly into the inner surface of the Kort nozzle. The duct absorbs the 7.03-kilogram-per-square-centimeter impacts that would otherwise fatigue the vessel's primary structure. This isolation keeps the main hull quiet and vibration-free.[4]

To survive this continuous bombardment, the nozzle itself must be heavily reinforced. Engineers weld thick internal stiffeners spaced every 200 to 300 millimeters inside the duct's segmental construction to prevent the steel ring from failing under the blade-passage pressure pulses. If the stiffeners are insufficient, the nozzle's inner plating will quickly erode.[2]

Ultimately, the choice between skewed blades and ducted propellers depends on the vessel's mission. Fast cruise ships rely on the elegant load-sharing of skewed blades to maintain high speeds without vibrating the cabins. Heavy tugboats accept the drag of a Kort nozzle to gain thrust and shield their hulls.[8]

In both cases, the goal is to manage the violent physics of boiling water. By controlling exactly where and how cavitation bubbles collapse, marine engineers protect the structural integrity of the global fleet. The battle against hull vibration is won entirely beneath the surface.[8]
