Cyclic Hull Compaction Spikes Pore Water Pressure to Liquefy Solid Ore Cargoes and Capsize Bulk Carriers

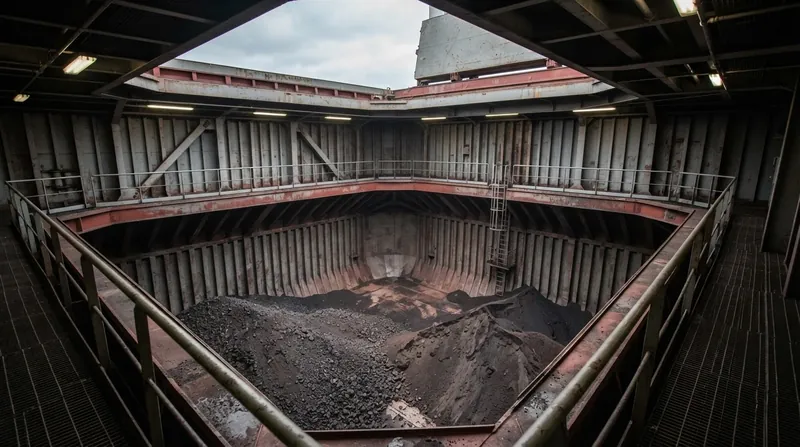

Unprocessed mineral ores arrive at the loading berth looking like any other dry bulk. When a conveyor drops thousands of tonnes of nickel ore or bauxite fines into the hold of a bulk carrier, the material appears granular, stable, and unremarkable.[2][6]

Hidden within the microscopic spaces between those solid particles is a suspended matrix of water. A few days into an ocean voyage, that seemingly solid mountain of rock can suddenly behave like a fluid.[4][5]

The transition happens at the molecular level, triggered by the relentless cyclic loading of the ship's engines and the rhythmic pounding of ocean swells. When it occurs, the cargo sloshes to one side of the hold, and the ship takes on a massive, unrecoverable list.[1][5]

The Mechanics of Pore Water Pressure

Solid bulk cargoes are two-phase materials, consisting of solid mineral grains and the air and water trapped in the voids between them. When the cargo is first loaded, it is loosely packed.[5]

The friction between the individual particles gives the pile its shear strength, allowing it to hold its shape and act as a solid mass. As the vessel gets underway, the cargo is subjected to continuous vibration and motion.[4][5]

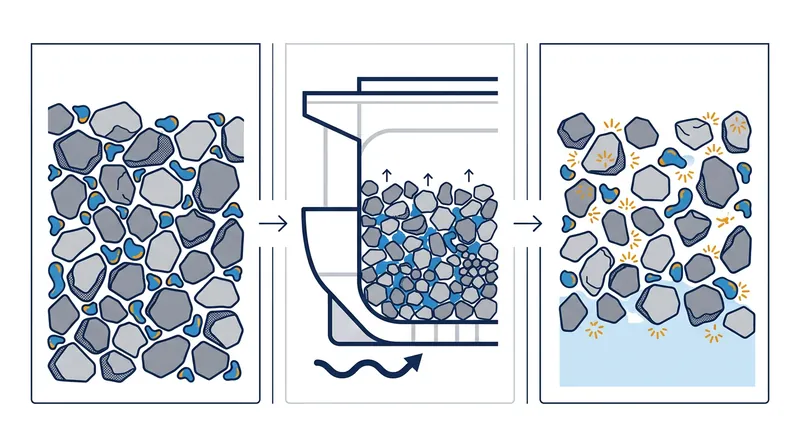

This cyclic hull compaction forces the solid particles to settle into a denser arrangement. The volume of the void spaces between the grains shrinks, but the water trapped inside those spaces cannot compress.[4][5]

Because ore fines are essentially clay-like, the water cannot easily drain away. With nowhere to go, the trapped water bears the weight of the settling cargo, and the pore water pressure spikes dramatically.[4][5]

When this internal fluid pressure equals or exceeds the weight of the overlying material, the effective stress between the solid particles drops to zero. The friction holding the grains together vanishes, and the entire cargo mass loses its shear strength.[5]

The Free-Surface Effect

Once the shear strength collapses, the cargo enters a flow state. It no longer behaves as a solid pile but as a dense, heavy liquid, triggering one of the most dangerous phenomena in naval architecture: the free-surface effect.[2][5]

As the bulk carrier rolls with the ocean swells, the liquefied ore flows downhill to the lower side of the cargo hold. Unlike a solid cargo, which stays where it was stowed, the liquefied ore does not flow back when the ship rolls the other way.[4][5]

The material settles into its new position, permanently shifting the vessel's center of gravity off the centerline. The ship develops a severe list, drastically reducing the vessel's righting lever—the physical force that pushes a rolling ship back upright.[4][5]

With the cargo permanently pooled on one side, the ship's rail dips dangerously close to the waterline. Subsequent waves can easily wash over the deck, breaching the hatch covers and flooding the holds, which accelerates the capsize.[1][4]

The Lethality of Liquefaction

The speed of a liquefaction capsize makes it uniquely deadly. When a ship runs aground or suffers a structural failure, the crew typically has hours to issue distress calls, don survival suits, and launch lifeboats.[1][6]

A liquefaction event offers no such window, and the vessel can roll over in a matter of minutes. This suddenness is reflected in maritime casualty data.[1]

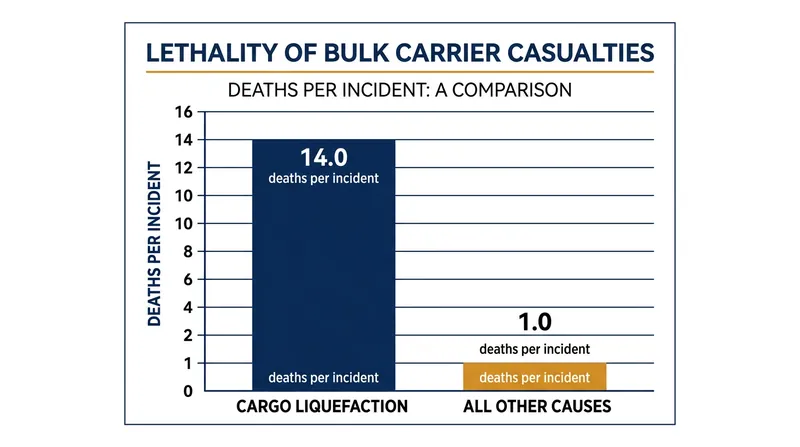

Over a ten-year period, cargo liquefaction accounted for just 18.5 percent of total bulk carrier losses, but it caused 76.1 percent of all fatalities. While other types of maritime disasters averaged exactly one death per lost vessel, liquefaction incidents averaged 14 deaths per sinking.[1][6]

This makes it the single greatest threat to bulk carrier crews, far outpacing groundings or collisions. The most dangerous cargoes are unprocessed ores shipped from tropical regions with heavy rainfall.[1][2]

Nickel ore from Indonesia and the Philippines, bauxite from Malaysia, and iron ore fines from India are particularly notorious. These materials are often stored in open stockpiles at remote mining ports, where they absorb massive amounts of monsoon rain before being loaded onto ships.[2][5]

The IMSBC Code and Moisture Limits

To combat this risk, the International Maritime Organization governs the transport of dangerous materials through the International Maritime Solid Bulk Cargoes (IMSBC) Code. The Code classifies materials that are liable to liquefy as Group A cargoes.[2][3]

For any Group A material, the shipper must scientifically determine the cargo's Flow Moisture Point (FMP). The FMP is the exact water content, expressed as a percentage of total mass, at which a specific sample of ore will begin to flow under vibration.[3]

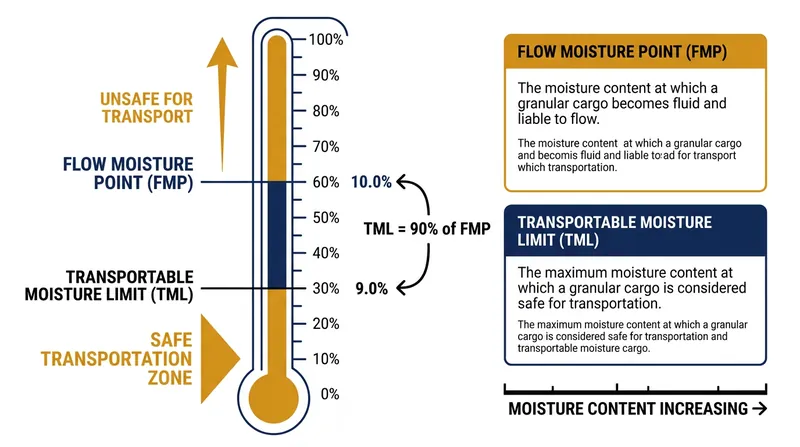

Because loading a ship anywhere near this threshold is catastrophic, the IMSBC Code mandates a strict safety buffer. The legal maximum water content allowed on board is called the Transportable Moisture Limit (TML).[2][3]

Under standard flow table testing, the TML is set at exactly 90 percent of the Flow Moisture Point. If a cargo's moisture content exceeds the TML, it is legally barred from being loaded onto a standard bulk carrier.[3]

The shipper must provide the vessel's master with a signed certificate declaring both the TML and the actual moisture content of the cargo. This moisture testing must be conducted no more than seven days prior to loading.[3]

The Testing Gap at the Berth

Despite these strict regulations, ships continue to sink because the testing regime often breaks down at the loading berth. In remote anchorages, masters frequently face immense commercial pressure to accept cargoes without independent verification.[1][2]

"Unusually, this report is not targeted at ship operators. They are well aware of the risks to their crews and their vessels caused by carrying cargos prone to liquefaction," says Uttam Kumar Jaiswal, Vice-Chairman of INTERCARGO.[1]

He notes that the failure lies in the lack of consolidated effort from shippers, receivers, and port state authorities to enforce the rules. The only tool immediately available to the crew is the "can test," a rudimentary field check defined in Section 8.4 of the IMSBC Code.[1][2]

To perform a can test, a crew member half-fills a cylindrical can with the ore and strikes it sharply against a hard surface repeatedly. If free moisture appears on the surface, the cargo is definitively too wet and must be rejected.[2]

However, the test is dangerously asymmetrical: if the sample remains dry, the cargo might still contain moisture above the TML. The can test can condemn a cargo, but it can never clear one.[2][6]

Yet, in the absence of accessible laboratory facilities, a negative can test is often used as false justification to proceed with loading. Once the hatches are closed and the ship heads into open water, the cyclic compaction begins, the pore water pressure rises, and the physics of liquefaction take over.[4][5]
