The Nernst Equation and the Proton Exchange Membrane That Dictate Fuel Cell Voltage and Efficiency

On January 15, 2026, when commercial vehicle manufacturers finalized the power specifications for the next generation of Class 8 hydrogen trucks, the engineering bottleneck was not the carbon-fiber hydrogen tanks, but a 137-year-old thermodynamic formula. The Nernst equation dictates that a hydrogen fuel cell can never exceed 1.229 volts at standard temperature and pressure.[6]

That theoretical ceiling governs every proton exchange membrane (PEM) fuel cell deployed today, from stationary backup generators to heavy-duty transit. Walther Nernst formulated the relationship in 1889, linking the reversible thermodynamic potential of an electrochemical reaction to temperature and reactant concentration. For a hydrogen-oxygen system, the math is absolute.[4]

"The Nernst equation provides the theoretical maximum voltage that a fuel cell can produce," notes the University of Washington's mechanical engineering curriculum. However, achieving that 1.229-volt output requires a perfectly reversible reaction with zero current draw. The moment a circuit is closed and electrons begin to flow, the voltage collapses.[4]

The disparity between the Nernst potential and the actual open-circuit voltage is the first penalty exacted by physical reality. According to researchers publishing in MDPI, this initial drop is heavily influenced by the catalyst layer. Even before a load is applied, hydrogen crossover through the membrane and internal short currents pull the resting voltage down to roughly 0.95 to 1.0 volts.[2]

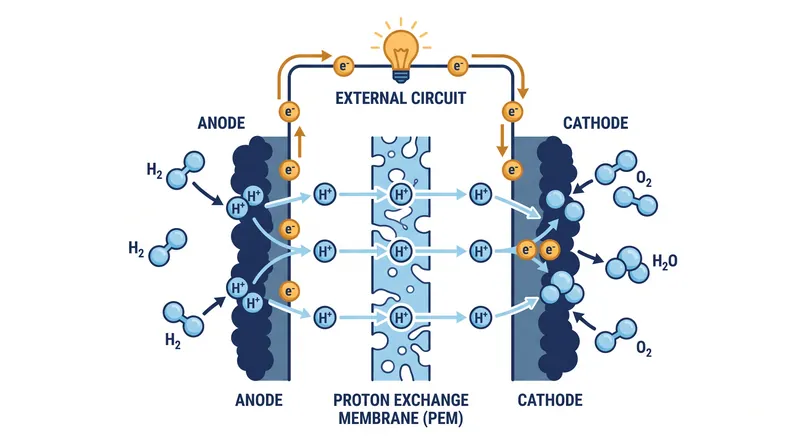

At the core of this system sits the proton exchange membrane, typically a sulfonated tetrafluoroethylene-based fluoropolymer-copolymer. The membrane is engineered to do exactly one thing: allow positively charged hydrogen protons to pass through while blocking negatively charged electrons.[1]

By forcing the electrons to travel through an external circuit, the PEM generates the electrical current. "The electrolyte layer is the heart of the fuel cell," explains technical documentation from the Fuel Cell Store published on April 23, 2019. If the membrane is too thick, proton resistance increases; if it is too thin, reactant gases mix prematurely.[5]

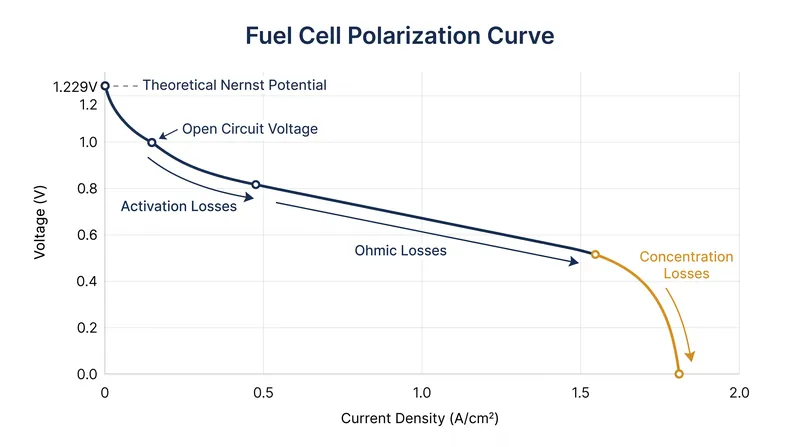

When a commercial operator demands power, the fuel cell enters the active region of its polarization curve, where voltage drops further due to activation losses. These losses are driven by the sluggish kinetics of the oxygen reduction reaction at the cathode.[7]

Overcoming this activation barrier requires a portion of the generated voltage to be consumed simply to drive the chemical reaction forward. Platinum catalysts are deployed to minimize this penalty, but the voltage drop remains steep at low current densities.[2]

As current demand increases, the fuel cell enters the ohmic loss region. Here, the voltage drops linearly in direct proportion to the electrical resistance of the bipolar plates and the ionic resistance of the polymer membrane.[8]

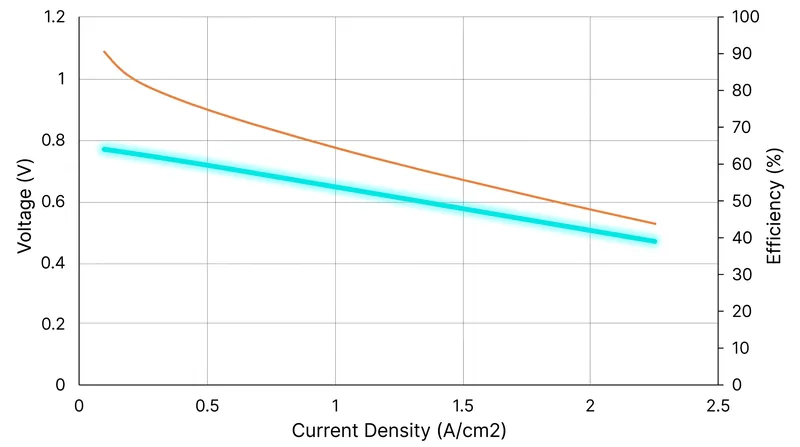

"Fuel cell performance can be predicted by understanding these voltage drops," states a July 2, 2019, technical brief from the Fuel Cell Store. In this middle regime, engineers must balance power output against efficiency. Operating at 0.7 volts yields high efficiency, while dropping to 0.6 volts yields higher power but generates significantly more waste heat.[3]

At the extreme end of the polarization curve, concentration losses take over. Also known as mass transport limitations, this occurs when hydrogen and oxygen cannot reach the catalyst sites fast enough to sustain the reaction.[7]

Water, the only byproduct of the reaction, becomes a liability at high current densities. If it is not removed efficiently, it floods the porous electrodes, physically blocking oxygen from reaching the platinum catalyst and causing the voltage to plummet toward zero.[1]

The efficiency of a PEM fuel cell is directly tied to its operating voltage. SFC Energy defines fuel cell efficiency by comparing the actual electrical energy produced against the chemical energy contained in the hydrogen fuel.[9]

Mathematically, the thermal efficiency is calculated by dividing the operating voltage by the thermoneutral voltage of 1.482 volts, which represents the higher heating value of hydrogen. A fuel cell operating at 0.6 volts is therefore operating at roughly 40.5 percent electrical efficiency.[6]

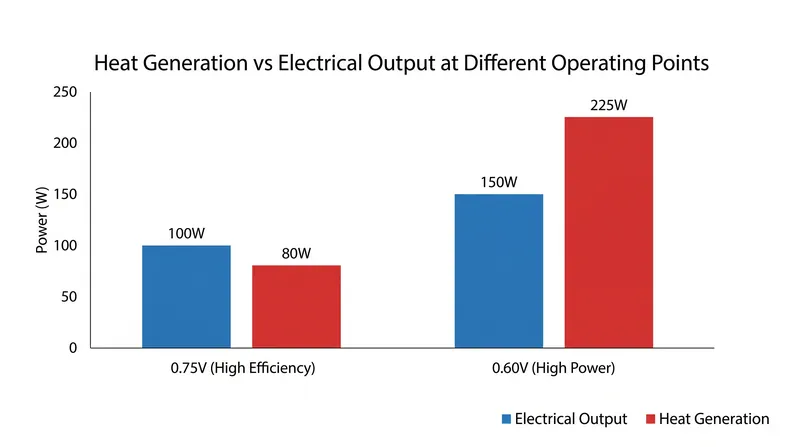

The remaining 59.5 percent of the energy is released as heat. In a 100-kilowatt automotive fuel cell stack, operating at peak power means managing nearly 150 kilowatts of thermal rejection. This necessitates massive radiators that compromise vehicle aerodynamics.[8]

To avoid this thermal penalty, system integrators often choose to oversize the fuel cell stack. By deploying twice as many membrane electrode assemblies, the system can deliver the required power while operating at a higher voltage, typically around 0.75 volts.[3]

This design choice increases the capital expenditure of the system, as platinum and specialized membranes are expensive, but it drastically reduces the lifetime operating cost by consuming less hydrogen fuel per kilowatt-hour generated.[9]

Advanced one-dimensional steady-state models are now used to optimize this trade-off. By simulating the precise water and thermal management requirements across the membrane, engineers can push the operating voltage higher without sacrificing current density.[8]

The absolute limit, however, remains tethered to the thermodynamics mapped out in 1889. The Nernst equation ensures that no amount of engineering can extract more than 1.229 volts from a single hydrogen-oxygen cell at standard conditions.[4]

As the energy transition accelerates, the battle for commercial viability will not be won by rewriting the laws of physics, but by navigating the narrow, highly optimized operating window between the Nernst potential and the ohmic resistance of the proton exchange membrane.[1]
