The λ/D Ratio: Why the Diameter of a Telescope's Mirror, Not Its Magnification, Sets the Ultimate Limit on Resolution

Anyone who has purchased a department-store telescope boasting 600x magnification has already experienced the optical illusion of empty magnification: a target that appears larger, but resolves into a dim, featureless blur. The physical universe does not allow infinite zooming through a small tube. The fundamental ability to distinguish two distant objects is dictated entirely by the physical size of the telescope's aperture and the wavelength of the light entering it, a boundary that no eyepiece can cheat.[2]

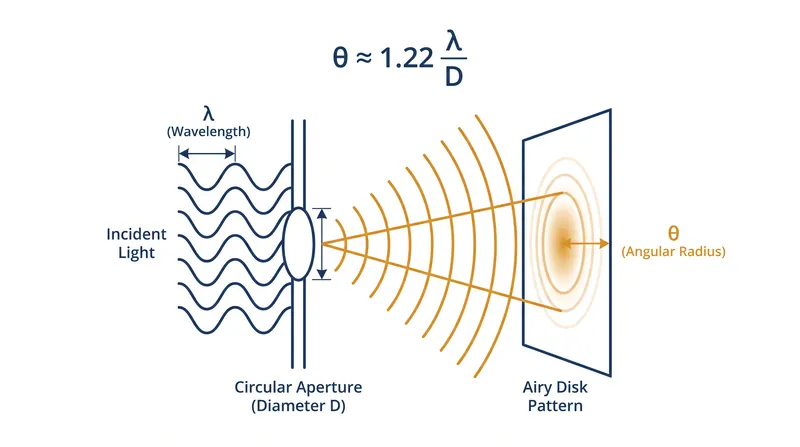

This hard boundary is known as the Rayleigh criterion, formulated by Lord Rayleigh in 1879. Because light travels as a wave, it bends—or diffracts—when it passes through a circular opening like a telescope lens or mirror. The criterion dictates that "two point sources are just resolvable when the center of the diffraction pattern of one is directly over the first minimum of the diffraction pattern of the other."[1]

Instead of forming a perfect point on a sensor or a retina, a star's light spreads out into a central bright spot surrounded by faint concentric rings, a pattern called an Airy disk. If two stars are too close together in the sky, their Airy disks overlap into a single elongated blob. No amount of magnification can separate them once they have merged at the focal plane; as optical physicists note, pushing past this limit means magnifying the image merely magnifies the blur.[2][3]

The mathematics governing this limit are absolute and are expressed by the ratio θ = 1.22λ / D. In this equation, θ represents the minimum angular separation required to distinguish two objects, λ is the wavelength of the light, and D is the diameter of the aperture. To make θ smaller—meaning the telescope can resolve finer details—an optical engineer must either observe at a shorter wavelength or build a larger mirror.[1][4]

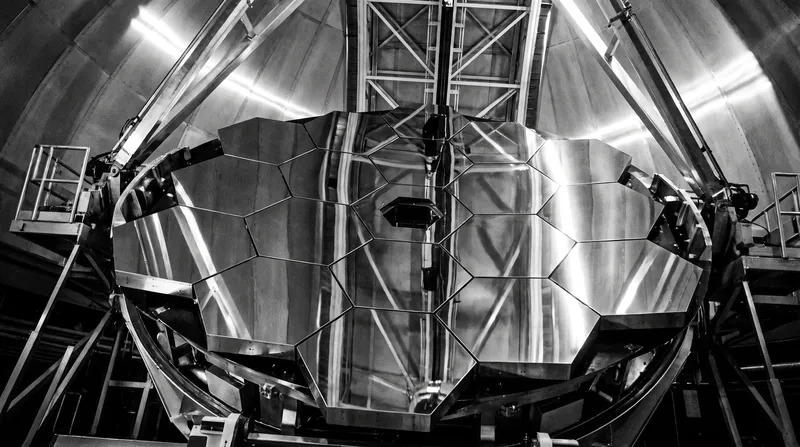

This ratio explains the architectural evolution of modern astronomy. The James Webb Space Telescope, launched in 2021, was designed primarily to observe infrared light. Because infrared wavelengths are significantly longer than visible light, a telescope requires a proportionally larger mirror to maintain the same resolution. Webb's 6.5-meter primary mirror is not just a light-gathering bucket; it is a mathematical necessity to achieve high resolution at longer wavelengths.[3]

The same physics constrain the microscopic world. A microscope's ability to resolve cellular structures is similarly limited by the wavelength of the illuminating light and the numerical aperture of the objective lens. Visible light, with wavelengths between 400 and 700 nanometers, simply cannot resolve structures smaller than roughly 200 nanometers, regardless of how powerful the eyepieces are.[5]

To bypass this limit, scientists had to abandon visible light entirely. The invention of the electron microscope in 1931 utilized electrons, which have wavelengths thousands of times shorter than visible photons, driving the λ in the numerator down and allowing for atomic-level resolution. In astronomy, the equivalent workaround is interferometry: linking multiple smaller telescopes across vast distances to synthesize a massive effective diameter (D), as was done by the Event Horizon Telescope in 2019 to image a black hole.[4][5]

The persistent marketing of "high power" consumer telescopes relies on a public misunderstanding of these optics. A standard 60-millimeter refractor hits its diffraction limit at roughly 120x magnification. Pushing it to 600x violates the λ/D ratio, yielding an image that is larger but contains zero additional information. The true measure of an optical instrument's power is not how closely it can zoom, but how widely it can open its eye to the universe.[2][6]
