How FlashAttention Bypasses the GPU Memory Bottleneck to Enable Long-Context AI

The speed of an artificial intelligence model is rarely limited by how fast its processors can multiply numbers. It is limited by how fast it can move those numbers out of memory. In modern graphics processing units (GPUs), the arithmetic cores can perform trillions of operations per second, provided the data arrives in time. But for the standard Transformer architecture that powers large language models, the data almost never arrives in time. The bottleneck lies in the attention mechanism, which requires the model to compare every word in a sequence against every other word to understand context.

As the sequence grows, the memory required to store these comparisons scales quadratically. A 2,000-token sequence is manageable, but doubling it to 4,000 tokens quadruples the memory footprint. By the time a model attempts to read a 64,000-token book, the intermediate attention matrix becomes too large to fit in the GPU's ultra-fast on-chip cache, known as Static Random-Access Memory (SRAM). Instead, the hardware is forced to constantly read and write data to the larger, slower High Bandwidth Memory (HBM).

This constant shuffling of data creates a severe traffic jam. According to researchers at Stanford University, standard attention implementations on an Nvidia A100 GPU spend the vast majority of their time simply waiting for memory transfers, reaching only 25% to 40% of the hardware's theoretical maximum computing capacity. The arithmetic cores sit idle while the memory bus struggles to keep up.[2]

In May 2022, researchers Tri Dao and Dan Fu published a solution that fundamentally altered how the industry trains language models. Their algorithm, named FlashAttention, bypassed the memory bottleneck not by changing the math, but by changing where the math happens. "FlashAttention is an algorithm that reorders the attention computation and leverages classical techniques (tiling, recomputation) to significantly speed it up and reduce memory usage from quadratic to linear in sequence length," Dao explained.[1]

The core innovation of FlashAttention is a technique called tiling. Instead of loading the entire sequence into HBM, computing the massive attention matrix, and writing it back, the algorithm breaks the input into smaller blocks, or tiles. It loads a single tile from the 80-gigabyte HBM into the tiny but blistering fast 20-megabyte SRAM, which boasts a bandwidth of 19 terabytes per second.[1][3]

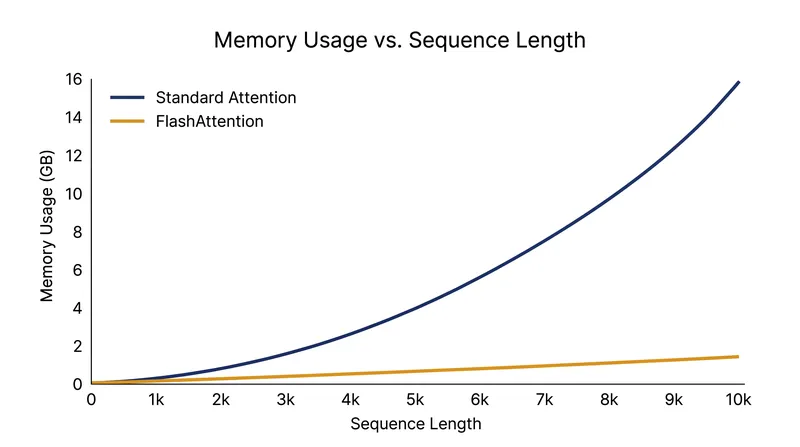

Once the tile is in SRAM, the GPU performs the attention computation locally and updates the final output directly. The massive intermediate matrices are never written to HBM at all. By eliminating these unnecessary memory reads and writes, the original FlashAttention algorithm achieved a 15% end-to-end wall-clock speedup on BERT-large models and a 3x speedup on GPT-2. More importantly, it reduced the memory requirement from quadratic to linear, suddenly making it possible to train models on sequences of 16,000 tokens or more.[1]

The impact on the artificial intelligence industry was immediate. Hugging Face integrated the algorithm into its core Transformers library, noting that it "can significantly speedup inference by additionally parallelizing the attention computation over sequence length." Major open-weight models, including Llama and Falcon, adopted it as the standard for both training and inference.[4]

However, the first iteration still left performance on the table. While it reduced memory traffic, it did not perfectly divide the computational labor among the GPU's internal threads. In July 2023, Dao released FlashAttention-2, which rewrote the kernel to optimize work partitioning. The update distributed the workload more efficiently across the GPU's warps—groups of 32 threads that execute instructions simultaneously.[2]

This partitioning reduced the need for threads to synchronize and share memory with one another. The results pushed hardware utilization to unprecedented levels. FlashAttention-2 reached training speeds of up to 225 teraflops per second on an A100 GPU, achieving 72% of the theoretical maximum model FLOP utilization. It was roughly twice as fast as the original version.[2]

The linear memory scaling unlocked entirely new capabilities for language models. Prior to 2022, context windows were largely capped at 2,048 or 4,096 tokens. Following the widespread adoption of IO-aware attention algorithms, developers began releasing models capable of processing 32,000, 100,000, and eventually 1,000,000 tokens simultaneously. This allowed users to upload entire codebases, financial reports, or novels into a single prompt.

The optimization race has continued alongside the deployment of new hardware. In July 2024, researchers introduced FlashAttention-3, designed specifically for Nvidia's Hopper architecture, including the H100 GPU. This version exploits the asynchronous capabilities of the new Tensor Cores, allowing the chip to overlap computation and data movement simultaneously.

By interleaving matrix multiplication and softmax operations, FlashAttention-3 pushes the H100 to 75% of its theoretical maximum capacity, reaching up to 740 teraflops in 16-bit precision. When utilizing lower-precision 8-bit floating point formats, the algorithm approaches 1.2 petaflops.

The evolution of these algorithms highlights a shift in artificial intelligence research. For years, the focus was primarily on designing novel neural network architectures. Today, the most consequential breakthroughs often occur at the intersection of software and hardware, where researchers treat the physical constraints of the silicon as part of the algorithm itself. The ceiling on model performance is dictated by the physical distance data must travel.
