The 1:40 Ratio: How the Ghyben-Herzberg Relation Governs Saltwater Intrusion in Coastal Aquifers

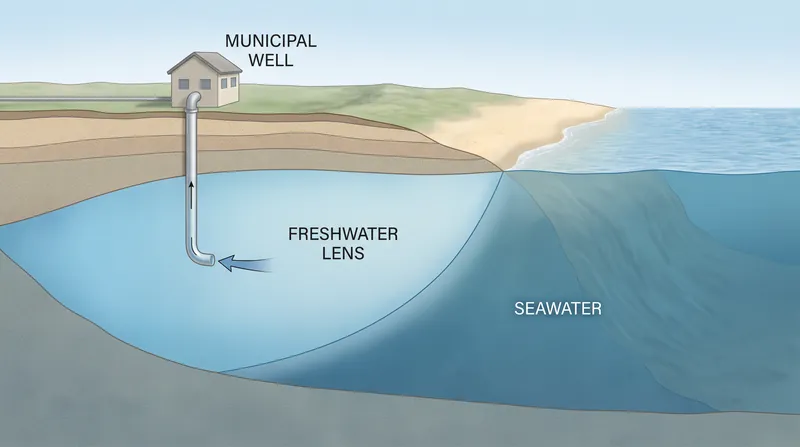

The viability of a coastal aquifer is decided entirely by the exact elevation of its freshwater table above mean sea level, because that single metric controls the depth of the saltwater interface below. When a municipal pump draws water from a coastal aquifer, it is not the lateral distance to the ocean that protects the well, but the vertical weight of the fresh water pushing down on the denser seawater beneath it.[4]

This balance is governed by the Ghyben-Herzberg relation, a fundamental principle of hydrogeology formulated independently by Willem Badon Ghijben in 1888 and Alexander Herzberg in 1901. They observed that because fresh water has a density of approximately 1.000 grams per cubic centimeter and seawater has a density of 1.025 grams per cubic centimeter, the two fluids do not readily mix. Instead, the lighter fresh water floats on the heavier salt water like an iceberg in the ocean.[2]

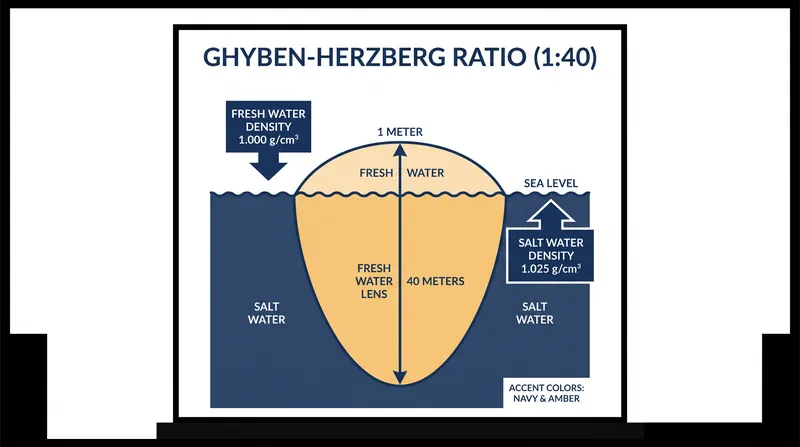

The slight difference in density creates a strict mathematical multiplier: the 1:40 ratio. For every one meter of fresh water that extends above sea level, the freshwater lens extends forty meters below sea level before encountering the saltwater interface. "The relation of salt water to fresh water in aquifers is dictated by this density contrast, meaning a small change in the water table elevation causes a massive shift in the interface depth," notes the educational material from Groundwater.[4]

This multiplier is the reason coastal aquifers are so vulnerable to over-extraction. If a municipal well field pumps enough water to lower the local water table by just one meter, the saltwater interface beneath that well does not rise by one meter—it rises by forty meters. This phenomenon, known as upconing, can rapidly pull saline water into the well screen, rendering the infrastructure useless for drinking water or agricultural irrigation.[3]

The United States Geological Survey relies heavily on this principle to map the inland extent of saltwater intrusion. In a 2022 assessment of the Biscayne aquifer in Miami-Dade County, Florida, researchers used the Ghyben-Herzberg relation as a baseline to model how sea-level rise and municipal pumping interact. The Biscayne aquifer is highly transmissive, meaning water moves through the porous limestone with very little resistance, making the density balance the primary defense against the Atlantic Ocean.[1]

However, the theoretical 1:40 ratio assumes a sharp, impermeable boundary between the fresh and salt water. In reality, the boundary is a transition zone of brackish water created by tidal fluctuations, seasonal recharge, and molecular diffusion. According to a 2010 study published in Water Resources Research, relying solely on the sharp-interface approximation can lead to miscalculations in critical pumping rates.[6]

To account for this, hydrogeologists apply a correction factor to the Ghyben-Herzberg equation. Researchers found that mixing in the transition zone alters the effective density gradient. "A correction factor to account for mixing in Ghyben-Herzberg and critical pumping rate approximations is essential for accurate management of seawater intrusion," the authors wrote, noting that the actual usable freshwater boundary deviates from the theoretical forty-meter mark depending on the aquifer's dispersivity.[6][9]

Managing this balance requires continuous monitoring of the hydraulic head—the elevation of the water table. The INOWAS platform, developed in 2018, provides modeling tools that utilize these simple saltwater intrusion equations. By inputting the hydraulic conductivity, recharge rates, and fluid densities, water managers can simulate how different pumping scenarios will affect the interface over decades.[7]

When saltwater intrusion does occur, reversing it is exceptionally difficult. Because seawater is denser, it sinks to the bottom of the aquifer and flows inland along the bedrock. Flushing it out requires raising the freshwater head significantly above its historical average to push the heavier salt water back toward the sea, a process that can take centuries of natural recharge or massive investments in artificial injection wells.[3][5]

Mathematical models have evolved significantly since 1888 to capture these complexities. A comprehensive review in the Journal of Hydrology highlights that while the Ghyben-Herzberg relation remains the conceptual foundation, modern three-dimensional variable-density flow models are required to simulate the intricate dynamics of real-world aquifers. These models incorporate the physical geometry of the aquifer, the heterogeneous distribution of permeability, and transient stresses like droughts and storm surges.[8]

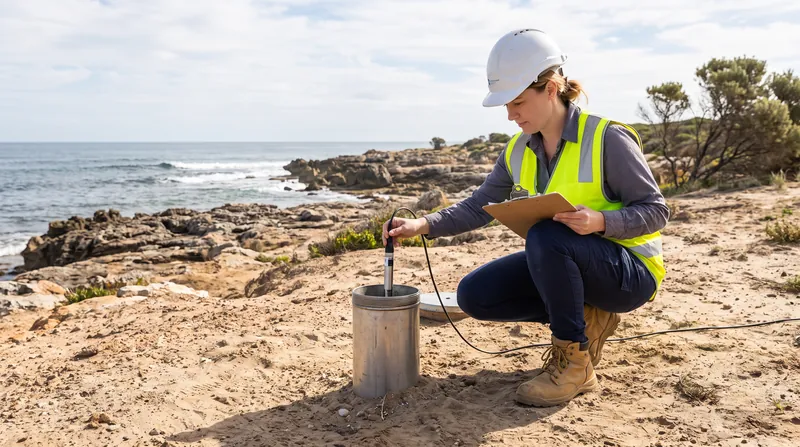

Recent advances in investigation and management, as detailed in Advances in Water Resources in 2012, emphasize the need for proactive strategies. Rather than waiting for chloride concentrations to rise in municipal wells, coastal cities are deploying networks of deep monitoring wells equipped with conductivity sensors. These sensors detect the rising transition zone long before it reaches the extraction depth, providing an early warning system for upconing.[5]

The stakes for maintaining this density balance are global. Coastal aquifers supply fresh water to more than a billion people worldwide. As sea levels rise, the baseline elevation of the ocean increases, which inherently reduces the relative elevation of the freshwater table unless inland recharge increases proportionally. This shifting baseline means that even without changes in pumping rates, the 1:40 multiplier will drive the saltwater interface further inland and closer to the surface in the coming decades.[1][9]
