How Linux Namespaces and Control Groups Isolate Container Resources Without Hardware Virtualization

In September 2006, Google engineers Paul Menage and Rohit Seth submitted a patch to the Linux kernel mailing list proposing "process containers"—a mechanism to track and limit the memory and CPU usage of a collection of tasks. This code, later renamed to "control groups" or cgroups to avoid confusion with the broader concept of containers, merged with an older isolation feature called namespaces. Together, they form the foundation of modern cloud infrastructure, allowing thousands of isolated environments to run simultaneously on a single operating system.[1][6]

The technology industry frequently markets containers as "lightweight virtual machines," but from the perspective of the Linux kernel, this framing is entirely false. A virtual machine relies on a hypervisor to emulate physical hardware, running a complete, separate guest operating system. A container, by contrast, does not exist as a first-class object within the Linux kernel. It is simply a standard Linux process, identical to a background service or a user application, that has been subjected to two specific kernel features: namespaces for visibility isolation, and cgroups for resource limitation.[3][5]

Namespaces dictate what a process is permitted to see. According to the official Linux manual pages, "A namespace wraps a global system resource in an abstraction that makes it appear to the processes within the namespace that they have their own isolated instance of the global resource." When a container runtime launches a process, it assigns that process to a specific set of namespaces, effectively blinding it to the rest of the operating system.[2]

The Linux kernel currently supports eight distinct types of namespaces, each isolating a different system resource. The first to be introduced was the mount namespace in 2002, developed by kernel maintainer Al Viro, which isolates the file system mount points. A process inside a mount namespace sees a specific directory as its root file system, completely unaware of the host's actual storage hierarchy.[2][4]

The Process ID (PID) namespace, introduced in Linux 2.6.24, provides perhaps the most recognizable container illusion. In a standard Linux environment, the initialization process holds PID 1, and all subsequent processes receive sequential numbers. When a process is placed in a new PID namespace, it becomes PID 1 within that isolated context. It can spawn child processes and manage them, but it cannot see or interact with any processes running outside its namespace, including the host's actual PID 1.[2][3]

Network namespaces isolate the system's networking stack. A process in a new network namespace begins with no network interfaces whatsoever—not even a loopback interface. The container runtime must create a virtual Ethernet pair, placing one end in the host's network namespace and the other inside the container's namespace, before assigning it an IP address. This is why a container can bind to port 80 without conflicting with a host process also listening on port 80.[2][5]

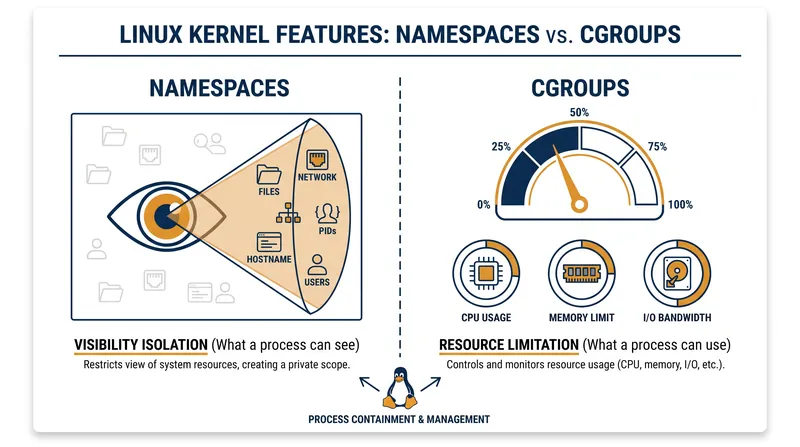

While namespaces restrict visibility, control groups (cgroups) restrict consumption. If namespaces prevent a process from seeing its neighbors, cgroups prevent it from starving them of resources. The Linux kernel documentation defines cgroups as "a mechanism to organize processes hierarchically and distribute system resources along the hierarchy in a controlled and configurable manner."[1][4]

Without cgroups, a poorly written application inside a namespace could still consume 100 percent of the host's CPU or exhaust its physical memory, triggering an out-of-memory (OOM) panic that would crash the entire server. Cgroups allow administrators to set hard limits: a specific process group might be restricted to a maximum of two CPU cores and four gigabytes of RAM. If the processes attempt to allocate more memory than their cgroup permits, the kernel's OOM killer terminates them without affecting the rest of the system.[1][3]

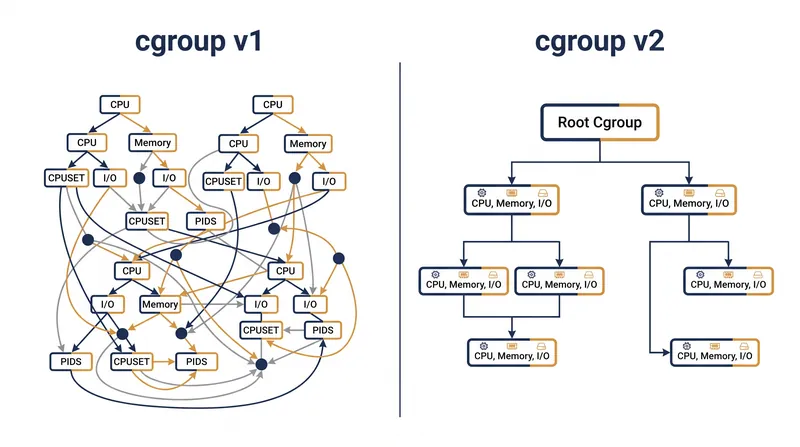

The original implementation, now known as cgroup v1, allowed different resources—controllers for CPU, memory, and block I/O—to be mounted in separate, independent hierarchies. While flexible, this design became notoriously difficult to manage at scale. A process could belong to one hierarchy for memory limits and a completely different hierarchy for CPU limits, leading to complex race conditions and inconsistent states when processes spawned children.[1][6]

To resolve these architectural flaws, kernel developer Tejun Heo led the development of cgroup v2, which was officially marked as non-experimental in Linux kernel 4.5, released in March 2016. Cgroup v2 enforces a unified hierarchy: a process belongs to exactly one cgroup, and all resource controllers are applied along that single tree. This unified model drastically simplified kernel code and provided predictable behavior for container runtimes.[1]

The transition to cgroup v2 was slow, as it required rewriting the resource management logic of every major container runtime. Docker, Kubernetes, and systemd operated on cgroup v1 for years. However, by 2021, the ecosystem had largely migrated, driven by the need for advanced features like better memory pressure tracking and the eBPF (Extended Berkeley Packet Filter) integration that cgroup v2 enables.[3][6]

Despite the robust isolation provided by namespaces and cgroups, the shared kernel architecture presents a fundamental security trade-off. Because every container on a host communicates directly with the same underlying Linux kernel, a vulnerability in the kernel itself can compromise all isolated environments. If a process inside a container discovers a privilege escalation flaw in a kernel system call, it can break out of its namespace and access the host system.[6]

This shared vulnerability profile is why hardware virtualization proponents maintain that containers are not a true security boundary. In high-security environments, cloud providers often deploy "sandboxed containers" using technologies like Kata Containers or AWS Firecracker. These tools wrap each container in a lightweight micro-virtual machine, utilizing hardware virtualization to ensure that even if the kernel is compromised, the blast radius is contained to that specific micro-VM.[6]

The success of the container ecosystem stems from the fact that Docker and its successors did not invent process isolation; they merely democratized it. By wrapping the complex, low-level kernel APIs of namespaces and cgroups into accessible command-line tools and declarative configuration files, they transformed obscure kernel features into the default deployment model for global software infrastructure.[5][6]
