The Cavity Resonator and the Electron Trajectory: How a Magnetron Converts High-Voltage DC to 2.45 GHz Microwaves

A standard kitchen microwave blasts 1,000 watts of electromagnetic energy into a space no larger than a breadbox, utilizing a 4,000-volt direct current to boil a cup of water in 90 seconds. That energy does not come from a modern silicon microchip, but from a heavy, copper-lined vacuum tube known as a magnetron. [1][1]

The magnetron is a crossed-field device, meaning it relies on electric and magnetic fields intersecting at right angles to manipulate subatomic particles. [2] While solid-state transistors have replaced vacuum tubes in almost every other consumer appliance, the magnetron remains the only cost-effective mechanism capable of generating the sheer wattage required for rapid dielectric heating.[2]

The process begins at the wall outlet, which supplies standard 120-volt alternating current (AC). Because a magnetron requires a massive electrical potential to strip electrons from its core, a heavy high-voltage transformer steps this 120V AC up to approximately 2,000 volts. [5][5]

A specialized high-voltage capacitor and a high-voltage diode then act as a voltage doubler and rectifier. They convert the alternating current into a pulsating direct current (DC) of roughly 4,000 volts. [5] This extreme voltage is fed directly into the magnetron's central component: the cathode.[5]

The cathode is a heated filament running down the center of the vacuum tube. When the 4,000-volt potential is applied, the cathode heats up and boils off electrons into the surrounding vacuum through a process called thermionic emission. [3][3]

Surrounding the cathode is the anode, a thick block of copper that carries a positive charge. Naturally, the negatively charged electrons want to fly straight outward from the cathode to the anode. If they did, the device would simply act as a short circuit, generating no useful radio frequency energy. [4][4]

This is where the magnetic field intervenes. Two powerful permanent magnets are positioned at the top and bottom of the tube, creating a magnetic field parallel to the cathode. As the electrons accelerate toward the anode, they cross these magnetic lines of force. [1][1]

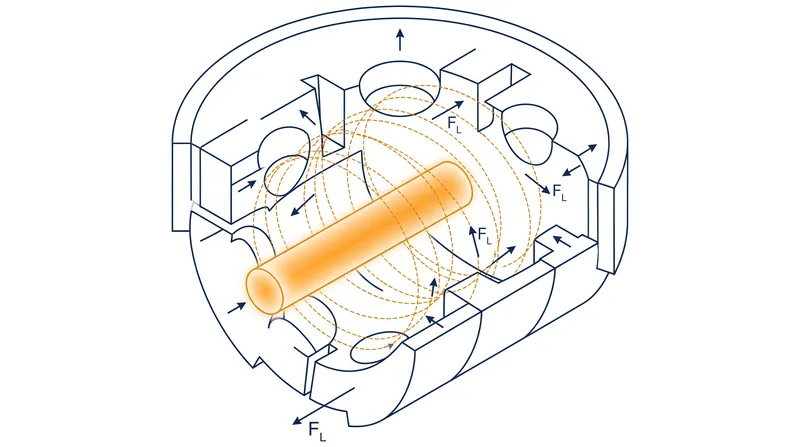

According to the Lorentz force law, a charged particle moving through a magnetic field experiences a force perpendicular to both its direction of motion and the magnetic field. As EE World Online notes, "Magnetrons are crossed-field devices where the electric and magnetic fields are perpendicular to each other." [2] This forces the electron cloud to swirl around the cathode in a cycloidal path, like a hurricane.[2]

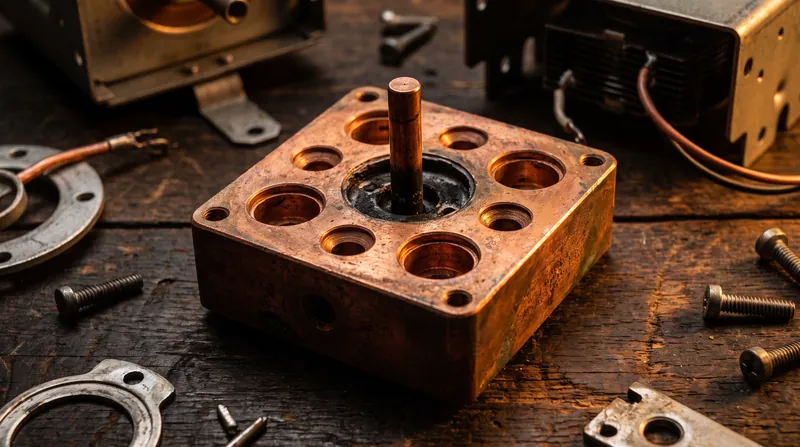

The inner surface of the copper anode is not smooth; it is machined with a series of hollow chambers called cavity resonators. As the swirling cloud of electrons brushes past the openings of these cavities, it induces a high-frequency oscillation. [3][3]

The physical mechanism is identical to blowing air across the open top of a glass bottle to produce a tone. Instead of acoustic waves, however, the electrons generate electromagnetic waves. The physical dimensions of the cavities strictly dictate the frequency of the resulting wave. [4][4]

In consumer microwaves, these cavities are precisely tuned to generate a frequency of 2.45 gigahertz (GHz), which corresponds to a wavelength of about 12.2 centimeters. [1] This specific frequency sits within the Industrial, Scientific, and Medical (ISM) radio band, chosen not because it is a unique resonant frequency of water, but because it penetrates food effectively while remaining legally clear of telecommunications frequencies. [6][1][6]

The oscillating electromagnetic energy is collected by a small wire loop acting as an antenna, which channels the microwaves out of the vacuum tube and into a metal waveguide. [4] The waveguide directs the 2.45 GHz waves into the cooking chamber, where they rapidly alternate the orientation of polar water molecules in the food, generating friction and heat. [5][4][5]

Despite its 1940 origins with British physicists John Randall and Harry Boot, the cavity magnetron remains an engineering marvel. [6] It converts high-voltage DC to microwave RF with roughly 65 percent efficiency, a figure that modern solid-state amplifiers still struggle to match at a consumer price point of under $15 per unit. [7][6][7]

The remaining 35 percent of the electrical energy is lost as heat, absorbed by the copper anode block. This is why every microwave oven contains a loud cooling fan; without constant airflow across the magnetron's aluminum cooling fins, the tube would melt its own internal structures within minutes. [5][5]
