Why a CAT III 600-Volt Multimeter Absorbs Six Times More Fault Current Than a 1000-Volt Tool

"A 1000-volt multimeter is inherently safer than a 600-volt model," many amateur electricians and DIY enthusiasts assume when browsing the hardware store aisle. The logic seems flawless on the surface. A higher voltage rating should logically provide a thicker margin of safety against electrical shocks.

The international safety standards governing electrical test equipment completely contradict that assumption. When a massive voltage spike surges through a building, a CAT III 600-volt multimeter is actually engineered to survive a vastly more destructive physical impact than a CAT II 1000-volt tool.[1][2]

The hidden variable that makes the lower-voltage tool safer is source impedance. By analyzing the testing parameters established in the IEC 61010-1 standard, the physics reveal that a CAT III 600-volt meter must absorb exactly six times more transient fault current than its 1000-volt counterpart.[3]

The Threat of Transient Overvoltage

Electrical systems do not simply carry a smooth, steady flow of power. Whenever a heavy industrial motor starts, a large capacitor discharges, or lightning strikes a nearby transmission line, the system generates a violent, high-speed spike known as a transient overvoltage.[4]

These invisible spikes travel through the wiring at incredible speeds, often reaching peak values of 6,000 to 8,000 volts in a fraction of a millisecond. If a technician happens to be measuring a circuit when a transient hits, the multimeter absorbs the brunt of that massive energy wave.[4]

"The CAT rating on a digital multimeter tells you how much transient overvoltage energy the meter can safely absorb at a specific measurement location," explains Fluke Corporation in their 2026 safety guidelines. This category rating dictates survival during a catastrophic surge.[4]

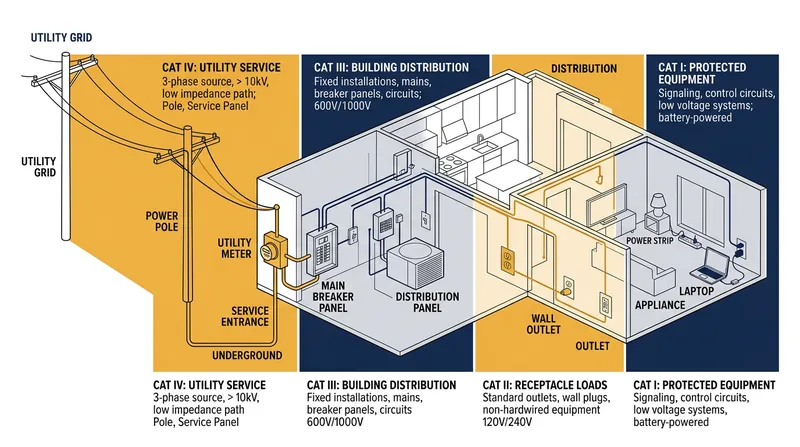

The International Electrotechnical Commission published the IEC 61010-1 standard to classify these measurement environments. The standard divides a building's electrical distribution system into distinct categories, ranging from CAT I for protected electronics up to CAT IV for the outdoor utility service entrance.[3][5]

How Distance Dampens Electrical Energy

The severity of a transient spike depends entirely on how close the technician is standing to the main power source. As a high-energy transient travels through the physical copper wiring of a building, the natural resistance of the cables dampens the surge.[3]

This natural dampening effect is formally known as source impedance. In a CAT III environment, which includes the main distribution panels and heavy three-phase industrial motors, the wiring is thick and short. The IEC standard defines the source impedance in this zone as a mere 2 ohms.[1]

Moving further away from the main panel into a CAT II environment changes the math entirely. A CAT II zone covers standard single-phase receptacle outlets and plug-in household appliances. Because the wiring run is much longer, the IEC defines the CAT II source impedance as 12 ohms.[1]

That difference in resistance dictates how much raw power can physically reach the multimeter during a fault. A spike originating at the main breaker panel loses a significant amount of its lethal amperage by the time it travels through 50 feet of wire to a bedroom wall outlet.[3]

Calculating the Six-Fold Current Difference

To earn a safety certification, both a CAT III 600-volt meter and a CAT II 1000-volt meter must survive a simulated 6,000-volt transient spike. Because the test voltage is identical, buyers frequently assume the two tools offer identical protection against sudden surges.[1][3]

"The 6000 V transient for CAT III 600 V and the 6000 V transient for CAT II 1000 V are not the same," notes the technical documentation from MyFlukeStore. "This is where source impedance comes in." The actual current forced into the tool varies wildly.[3]

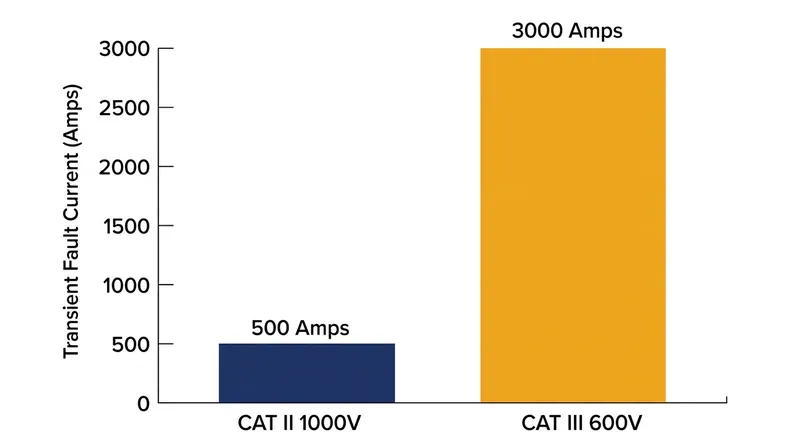

Applying Ohm's Law—which states that current equals voltage divided by resistance—reveals the massive hidden disparity. In the CAT III test, the 6,000-volt spike pushes through just 2 ohms of source impedance. That calculation results in a staggering 3,000 amps of fault current hitting the meter.[1][6]

Performing the exact same calculation for the CAT II 1000-volt meter yields a completely different physical reality. The 6,000-volt spike pushes through 12 ohms of source impedance, restricting the maximum fault current to just 500 amps.[1][6]

Despite carrying a lower steady-state voltage rating on its casing, the CAT III 600-volt tool must safely absorb 3,000 amps of current. That is exactly six times the 500 amps the CAT II 1000-volt tool is required to handle during the same 6,000-volt spike.[6]

The Mechanics of Arc Flash Prevention

When 3,000 amps of fault current suddenly enter a handheld device, the internal components face immense thermal and mechanical stress. If the meter cannot contain the energy, the air inside the casing ionizes, creating a conductive plasma fireball known as an arc flash.[5]

An arc flash explosion can cause severe burns, permanent hearing damage, and lethal shrapnel injuries. To prevent this, CAT III multimeters feature highly robust internal architectures. They utilize specialized high-energy fuses filled with sand to quickly extinguish any internal arcing before it breaches the plastic shell.[2][5]

CAT II meters lack this heavy-duty internal shielding because they are never expected to face a 3,000-amp surge. If a technician mistakenly connects a CAT II 1000-volt meter to a 480-volt CAT III motor starter, a transient spike could easily overwhelm the tool's lighter fuses.[4]

"While a CAT II rating can be higher voltage than a CAT III rating... the higher CAT rating is almost always the safer rating," confirms a 2021 safety analysis published by Pro Tool Reviews. The category dictates the physical blast shielding, not just the measurement scale.[2]

Actionable Steps for Tool Selection

When purchasing a new multimeter for professional or serious DIY use, prioritize the measurement category over the maximum voltage limit. A CAT III 600-volt rating is the absolute minimum baseline for anyone opening a residential breaker panel or working on hardwired appliances.[1]

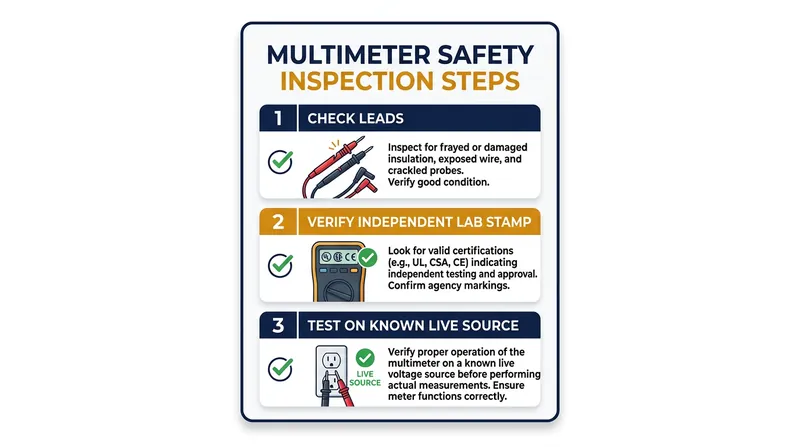

Never trust a CAT rating printed on a cheap, unbranded multimeter without verifying its independent laboratory certification. Look for the official stamps of recognized testing organizations, such as Underwriters Laboratories, the Canadian Standards Association, or TÜV Rheinland, clearly printed on the device casing.[5]

Inspect the test leads just as rigorously as the meter itself. The leads must carry a CAT rating equal to or greater than the multimeter. Using CAT II test probes on a CAT III meter instantly downgrades the safety of the entire assembly to the CAT II level.[5]

Finally, remember that these safety ratings only apply when the tool is functioning correctly. Before measuring any potentially dangerous circuit, verify the meter's operation on a known live source, such as a standard 120-volt wall outlet or a dedicated proving unit, to ensure the internal fuses remain intact.[5]

The financial cost of upgrading to a properly rated tool is negligible compared to the physical risks of an arc blast. Premium manufacturers like Fluke, Klein Tools, and Southwire routinely offer CAT III 600-volt multimeters for under $100, making industrial-grade safety accessible to casual hobbyists.[2]

Industrial electricians working on utility service entrances must step up even further to CAT IV 600-volt equipment. In these extreme environments, the source impedance drops below 2 ohms, meaning a transient spike carries enough raw amperage to vaporize inadequately shielded testing equipment instantly.[3][4]

Understanding the physics of source impedance fundamentally changes how technicians view their diagnostic tools. A multimeter is not merely a passive measurement screen; it is a critical piece of personal protective equipment designed to absorb catastrophic electrical anomalies so the user does not have to.[6]
