Trapped Hose Pressure Masks Closed Cylinder Valves: Why Divers Must Watch Gauges While Inhaling

Checking a car's fuel gauge before a road trip confirms the tank is full, and starting the engine proves the fuel lines are clear. The critical difference in scuba diving is that the pressure gauge can display a completely full tank, and the regulator can deliver a flawless breath of air, even when the main cylinder valve is tightly shut.

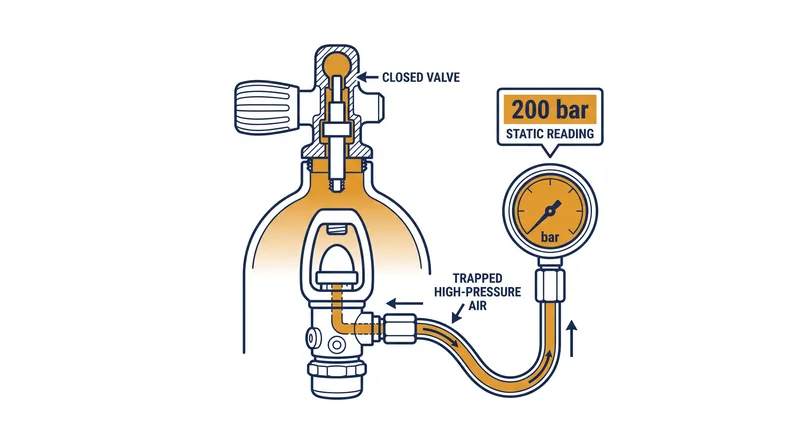

This mechanical illusion stems from the gas trapped inside the regulator's hoses. When a diver opens the cylinder valve to assemble their gear, the high-pressure hose fills with compressed air directly from the tank.

If the valve is subsequently closed—often by a well-meaning deckhand trying to prevent leaks—that trapped pressure remains sealed inside the system. The submersible pressure gauge continues to read 3,000 psi or 200 bar, reflecting the pressure in the hose rather than the isolated tank.

"The gauge only knows what is happening inside the hose it is attached to," explains the Divers Alert Network in their 2023 incident analysis. "It cannot warn you that the bridge to the main air supply has been cut off."

To defeat this mechanical trap, diving agencies mandate a specific pre-dive sequence. Divers must take three deep breaths from their primary regulator while staring directly at the pressure gauge to watch for needle deflection.

The Physics of the High-Pressure Hose

A standard scuba regulator system consists of a first stage attached to the cylinder, which routes gas into high-pressure and low-pressure hoses. The high-pressure hose feeds the analog gauge or digital transmitter, while the low-pressure hose feeds the mouthpiece.

At a standard fill pressure of 200 bar, the internal volume of a typical high-pressure hose holds a highly compressed, but very small, mass of air. When the cylinder valve is closed, this trapped gas has nowhere to escape.

Because the first stage regulator locks the pressure in, the gauge needle stays pinned at the maximum reading. A diver glancing at their console sees a full tank and assumes they are ready to enter the water.

The National Oceanic and Atmospheric Administration Diving Manual notes that this static pressure reading is the leading cause of out-of-air emergencies at the surface. The gauge is functioning perfectly, but it is measuring a closed loop.

The only way to break the static reading is to consume the trapped gas. This requires the diver to physically inhale from the second stage regulator, drawing air out of the low-pressure hose and forcing the first stage to attempt to pull from the closed tank.

The Physiology of the First Breath

When a diver takes a breath from a closed system, the initial inhalation feels entirely normal. The first stage regulator steps the 200 bar trapped pressure down to an intermediate pressure of about 10 bar above ambient, delivering smooth airflow.

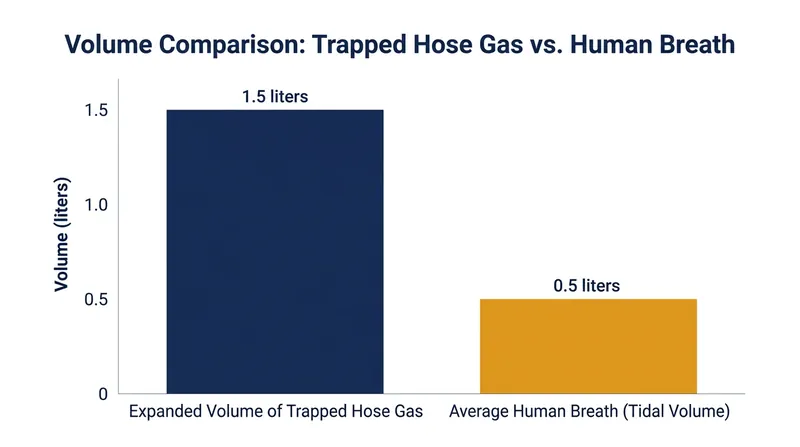

An average human tidal volume—the amount of air inhaled in a normal breath—is roughly 0.5 liters. The expanded volume of the gas trapped in the hoses is typically between 1.0 and 1.5 liters at surface pressure.[2]

This mathematical reality creates a deadly window of false confidence. The trapped gas provides exactly enough volume for one or two normal breaths before the pressure drops below the threshold required to open the second stage valve.[2]

"Divers who simply take a quick test breath without looking at their gauge will feel smooth, effortless airflow," the British Sub-Aqua Club warns in its 2024 safety guidelines. "They step off the boat, exhale, and find nothing there for the next breath."[1]

Once the diver is in the water, the ambient pressure increases rapidly. At just 2 meters of depth, the remaining trapped gas lacks the pressure differential to flow, cutting off the air supply instantly.

The Danger of the Quarter-Turn

The closed-valve illusion is frequently compounded by an outdated equipment practice. Through the 1980s and 1990s, divers were taught to open their cylinder valves all the way, and then turn the handwheel back a quarter-turn.

This practice originated with older brass valves that could jam if forced tightly against their open stops. However, modern Teflon-seated valves manufactured after 2000 do not suffer from this jamming issue, making the quarter-turn unnecessary.

The Professional Association of Diving Instructors officially removed the quarter-turn from its Open Water Diver curriculum in 2020. The agency now mandates that valves be opened completely and left against the stop.

The danger of the quarter-turn arises when a diver mistakenly believes a valve is open when it is actually closed. If they turn it a quarter-turn back, they are actually opening a closed valve by just a fraction of a millimeter.

This fractional opening allows high-pressure gas to slowly trickle into the hoses, re-pressurizing the system over several minutes. The gauge reads full, but the restricted orifice cannot deliver the high volume of air required during a deep inhalation.

Executing the Gauge Test

Detecting a closed or restricted valve requires a dynamic test of the system under load. The diver must force the regulator to demand more air than a restricted valve can supply, or deplete the trapped air in a closed system.

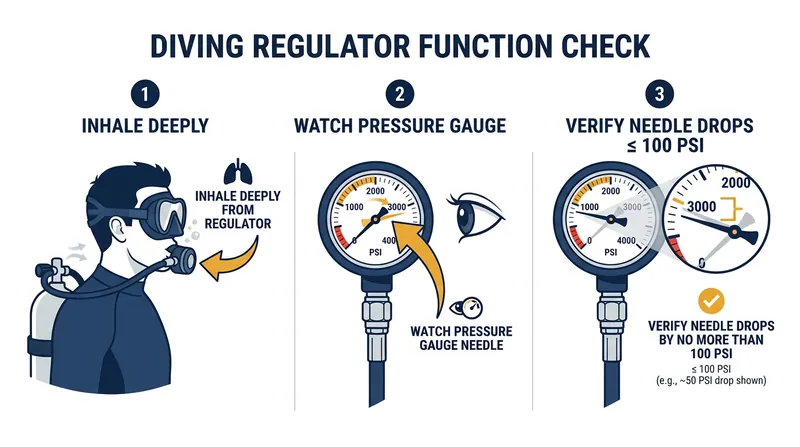

The correct procedure requires the diver to hold the pressure gauge at eye level. While staring directly at the needle or digital readout, the diver takes three rapid, deep breaths from the primary regulator.

If the cylinder valve is fully open, the needle will remain completely steady or twitch by no more than 100 psi during the inhalation. The unrestricted flow from the tank instantly replaces the gas consumed by the breath.

If the valve is closed, the needle will plummet toward zero on the first or second breath. The diver is literally watching the trapped pressure drain out of the high-pressure hose in real time.

"The visual confirmation is the entire point of the check," states the Factlen Editorial Team's 2026 analysis of dive accident reports. "Breathing from the regulator proves the hose works; watching the needle proves the tank is open."[2]

Equipment Variations and Digital Gauges

The transition to wireless air integration has slightly altered how this safety check is performed. Many modern divers use a transmitter threaded into the first stage, which beams the pressure reading to a wrist computer.[1]

The physics of the trapped gas remain identical. The transmitter reads the static pressure in the first stage port, and will happily broadcast a 200 bar reading to the wrist computer even if the tank is shut.[1]

Digital computers often have a slight refresh delay, typically between one and three seconds. Divers using wireless integration must take their test breaths and pause slightly to ensure the digital readout does not drop.[1]

Some advanced dive computers introduced in 2025 now feature a flow-rate warning. If the computer detects a rapid pressure drop characteristic of a closed valve during surface breathing, it triggers a vibrating alarm on the diver's wrist.[1]

Despite these technological advances, the fundamental mechanical check remains the ultimate safeguard. The physical act of watching the pressure reading while inhaling guarantees that the life-support system is connected to its source, rather than running on fumes.[2]
