Short-Range Chromium Ordering Causes Type K Thermocouples to Drift Negative Between 250°C and 550°C

If your industrial process relies on Type K thermocouples operating between 250°C and 550°C, your temperature readings have likely already drifted lower than reality. This hidden measurement error stems from a reversible metallurgical shift inside the sensor wire, quietly compromising thermal profiles without triggering system alarms.

The phenomenon is known as short-range ordering. Inside the positive leg of the thermocouple, chromium atoms rearrange themselves into a highly structured lattice when held at these specific temperatures. This structural change alters the electrical properties of the wire, causing the electromotive force to drop.[1]

Because the drift leaves no physical mark on the probe, operators routinely miss the discrepancy until a calibration audit fails. Understanding why the Chromel alloy behaves this way allows facilities to either correct the error through thermal annealing or upgrade to a more stable sensor chemistry.

The Mechanics of the Seebeck Effect

To understand the negative drift, one must first look at how a thermocouple measures heat. The device relies on the Seebeck effect, where two dissimilar metal wires are joined at one end to form a measurement junction inside the process environment.

When this junction is heated, a temperature gradient forms along the length of the wires back to a colder reference point. This thermal gradient generates a tiny millivolt signal, or electromotive force, which a programmable logic controller translates into a precise temperature reading.

A Type K sensor pairs a positive Chromel leg with a negative Alumel leg. Invented by A. L. Marsh in 1906, the Chromel wire consists of roughly 90 percent nickel and 10 percent chromium, while the Alumel wire contains 95 percent nickel alongside aluminum, manganese, and silicon.[7]

This specific pairing dominates industrial applications because it offers a wide measurement range from −200°C to 1,260°C. However, the exact voltage produced depends entirely on the crystalline consistency of the alloys along the entire temperature gradient, making the internal structure critical to accuracy.[2]

How Short-Range Ordering Alters the Lattice

The vulnerability of the Type K sensor lies in the behavior of the chromium atoms within the positive leg. At room temperature, the nickel and chromium atoms are distributed randomly throughout the alloy matrix, producing a baseline electrical resistance.

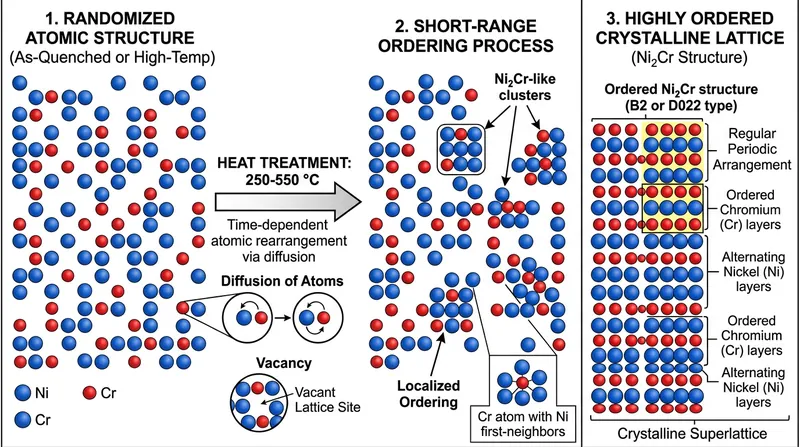

When the wire is exposed to this mid-range heat, the thermal energy allows the atoms to migrate. According to Cleveland Electric Laboratories, "the Nickel and Chromium atoms within the Chromel leg undergo a localized atomic migration, forming a highly ordered crystalline lattice structure."[1]

This structural reorganization is called short-range ordering. The ordered lattice changes the Seebeck coefficient of that specific section of wire, fundamentally altering how it conducts the thermoelectric signal back to the controller and skewing the final measurement.[1]

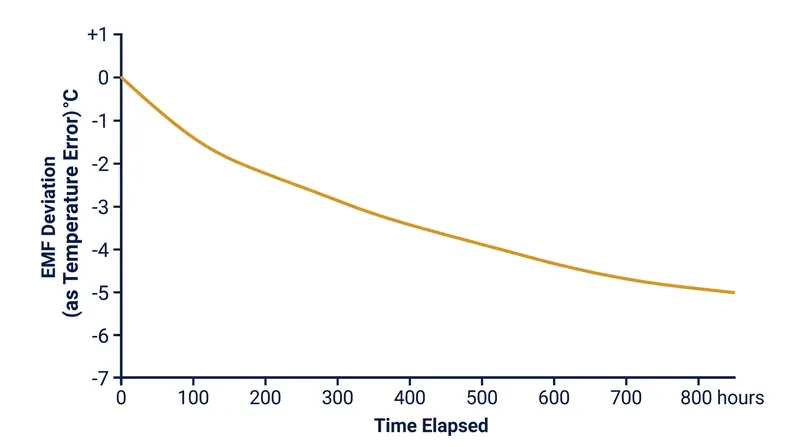

Consequently, the electromotive force drops, causing the instrument to register a negative drift. Industrial calibration laboratories report that this phenomenon can introduce measurement errors of up to 4°C to 5°C, depending on the duration of exposure and the depth of the insertion.[1][3]

The error only manifests if the ordered section of the wire sits within a temperature gradient. If the entire ordered zone remains at a uniform temperature, the altered voltage cancels out, masking the underlying structural change from the monitoring equipment.[3]

The Reversible Nature of the Drift

Unlike oxidation or chemical contamination, short-range ordering does not permanently destroy the thermocouple wire. The lattice shift is entirely reversible through a process known as thermal annealing, which resets the atomic structure of the alloy.[4]

If the affected Type K sensor is heated above 600°C, the thermal energy overwhelms the ordered structure. The chromium atoms break out of their rigid lattice and return to a randomized distribution within the nickel matrix, restoring the original electrical properties.[4]

Once the wire cools rapidly from this elevated temperature, the randomized state is locked in, and the original calibration is restored. This reversibility often creates severe confusion during routine maintenance checks and annual calibration audits.[4]

A technician might pull a drifting sensor from a 400°C process and test it in a high-temperature calibration block at 700°C. The testing process itself anneals the wire, erasing the short-range ordering and making the sensor appear perfectly accurate on the bench.[4]

When the newly verified sensor is returned to the 400°C environment, the chromium atoms gradually reorder, and the negative drift returns. This hysteresis cycle can lead to endless troubleshooting if the metallurgical cause remains unidentified by the maintenance team.[3][4]

Operational Consequences in Industrial Heating

A negative drift of 5°C carries severe consequences for tight-tolerance industrial processes. In aerospace heat treatment or pharmaceutical manufacturing, a few degrees can dictate whether an entire batch of critical components passes quality control or requires expensive, time-consuming rework.

Because the sensor reads artificially low, the programmable logic controller compensates by driving significantly more power to the heating elements. The furnace ends up running hotter than the intended setpoint, potentially compromising the metallurgical properties of the product being treated.

The drift accumulates gradually over time, meaning the error is not immediately apparent when a brand new sensor is installed. It requires hours or even days of sustained exposure in the 250°C to 550°C band for the chromium lattice to fully order and shift the voltage.[1]

Facilities that cycle their ovens above and below this critical temperature band experience highly unpredictable hysteresis. The sensor's accuracy fluctuates depending entirely on its recent thermal history, making it impossible to apply a static software offset to correct the reading in the control system.[1]

Upgrading to Type N Chemistry

To permanently resolve the short-range ordering problem, metallurgists developed the Type N thermocouple in the 1960s. This alternative sensor uses a Nicrosil positive leg and a Nisil negative leg to maintain stability at high temperatures without succumbing to lattice shifts.[6]

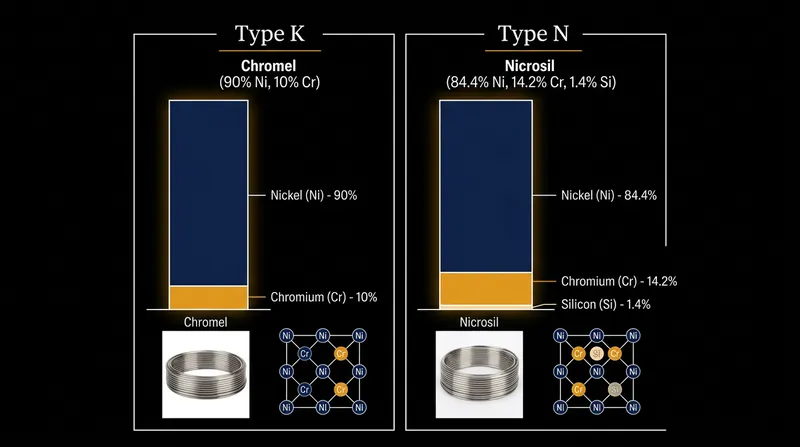

Nicrosil increases the chromium content and adds silicon to the nickel base. This specific chemical adjustment physically suppresses the atomic migration that plagues the Chromel alloy in standard Type K sensors.[2]

The added silicon stabilizes the lattice, preventing the chromium atoms from forming an ordered structure between 250°C and 550°C. As a result, the Type N sensor maintains a highly stable electromotive force across the entire mid-temperature band.[2]

Upgrading to Type N requires more than just swapping the probe inside the furnace. Facilities must also replace the extension wires, as Type K uses yellow ANSI-coded jackets while Type N requires orange, and reprogram the controller to interpret the new millivolt curve.[1]

Despite the integration effort, eliminating the reversible drift drastically reduces the frequency of out-of-tolerance audit failures. For continuous processes held in the vulnerable temperature band, the chemical stability of Nicrosil provides a definitive engineering solution.[2]

Distinguishing Ordering from Irreversible Degradation

It is crucial to distinguish the reversible drift of short-range ordering from irreversible failure modes like Green Rot. Green Rot occurs in low-oxygen environments above 800°C, where chromium selectively oxidizes out of the alloy entirely.[1][4]

Unlike lattice ordering, selective oxidation permanently alters the chemical composition of the wire. The depleted chromium leaves behind a greenish scale, and the sensor's voltage output drops sharply and permanently, ruining the thermocouple.[1]

While annealing can rescue a sensor suffering from short-range ordering, a thermocouple degraded by Green Rot must be discarded and replaced. Understanding which temperature band the sensor occupies is the only way to diagnose the root cause of the drift.[4]

By mapping the thermal profile of the process, engineers can predict whether a Type K sensor will succumb to reversible lattice shifts or permanent oxidation. This data allows them to specify the correct alloy and avoid costly measurement errors.
