The Eutectic Point and the Phase Diagram: How a Mixture's Melting Point Can Be Lower Than Its Components

A mixture's melting point drops below that of its pure components because the differing molecules physically disrupt each other's ability to form a stable, ordered crystal lattice. This specific compositional ratio, where the mixture melts at a single, sharp, and lowest possible temperature, is known as the eutectic point. Rather than simply averaging the thermal properties of the individual ingredients, the combination creates a structural vulnerability within the solid phase that requires far less thermal energy to break apart into a liquid, fundamentally altering how the material behaves under heat.[4]

The phenomenon is not driven by a chemical reaction that creates a new compound, but rather by a physical interference between the constituents. When two distinct elements or compounds are mixed—whether they are industrial metals like aluminum and silicon or pharmaceutical agents like lidocaine and prilocaine—their differing atomic sizes and molecular shapes prevent them from packing neatly together. This geometric mismatch prevents the formation of the tightly bound structures that characterize pure solids, leaving the internal bonds weaker and more susceptible to thermal disruption.[3][4]

Because the resulting solid structure is inherently less stable, it requires significantly less thermal energy to transition into a liquid state. The phase diagram, a standard temperature-composition map used extensively in materials science and physical chemistry, visualizes this thermal valley as a distinct "V" shape. The eutectic point sits at the very bottom of this curve, representing the absolute minimum temperature required to maintain the mixture in a fully liquid state without any solid crystals precipitating out of the solution.

To understand the mechanics of this melting point depression, it is necessary to consider the baseline thermal behavior of pure substances before they are mixed. Pure aluminum, for instance, melts at exactly 660 degrees Celsius. Because its atoms are identical in size and shape, they are able to stack perfectly into a highly ordered, tightly bound face-centered cubic lattice. This uniform internal architecture strongly resists the transition to a disordered liquid state, requiring substantial heat to break the metallic bonds.[3]

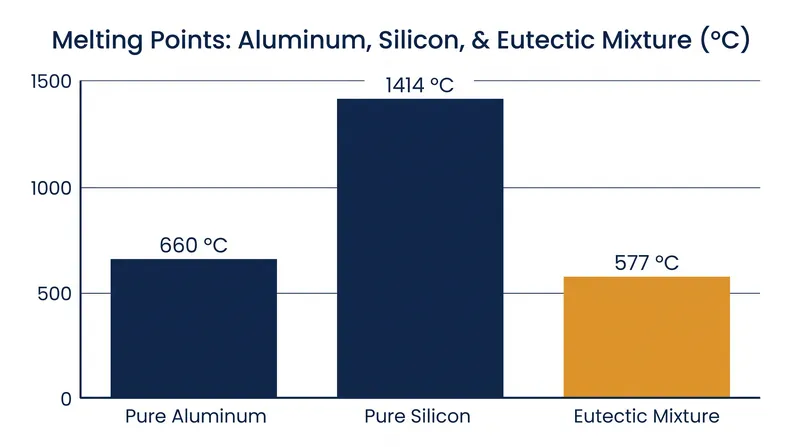

Silicon, a metalloid frequently alloyed with aluminum to improve casting properties, possesses an even more robust crystalline structure and melts at a much higher 1,414 degrees Celsius. Yet, when metallurgists combine roughly 88 percent aluminum with 12 percent silicon, the resulting alloy does not melt at a temperature somewhere between those two high extremes, as one might intuitively expect. Instead, the introduction of silicon atoms into the aluminum matrix disrupts the uniform lattice, creating a new material profile that defies simple averaging.[3]

According to thermal processing data published in a 2025 technical guide by Ipsen Global, this specific aluminum-silicon solution melts at just 577 degrees Celsius, or 1,070 degrees Fahrenheit. This is nearly 100 degrees Celsius cooler than pure aluminum, which is the lower-melting of the two original constituents. The data illustrates the profound impact of the eutectic disruption: by simply adding a small amount of a metal with a much higher melting point, the overall thermal threshold of the system is driven downward rather than upward.[3]

This 577-degree threshold represents the exact eutectic temperature for the aluminum-silicon binary system. At this precise 88-to-12 ratio, the mixture behaves thermodynamically like a pure element. It transitions directly from a solid to a liquid without passing through a slushy, semi-solid phase that characterizes most other non-eutectic alloy compositions. Because it melts and freezes so sharply, this specific composition is highly predictable and stable during manufacturing processes, allowing foundries to cast complex parts without worrying about uneven solidification.[3][4]

The phase diagram maps this behavior explicitly across all possible mixing ratios, serving as an essential navigational tool for chemists and engineers. The vertical axis of the diagram represents temperature, while the horizontal axis tracks the composition from 100 percent of component A on the left side to 100 percent of component B on the right side. By plotting the melting and freezing points of every possible ratio, the diagram provides a complete thermal landscape that reveals exactly where the eutectic valley is located.

The liquidus line on this diagram marks the exact temperature at which a liquid mixture begins to solidify upon cooling. For non-eutectic mixtures, this boundary line slopes downward as the concentration of the second component increases, visually reflecting the phenomenon of melting point depression. As the lattice becomes increasingly disrupted by the foreign atoms, the temperature required to maintain the solid state drops, driving the liquidus line deeper into the graph until it reaches the central minimum.

Conversely, the solidus line marks the temperature where the mixture becomes completely solid. In a standard non-eutectic blend, there is a wide thermal gap between the liquidus and solidus lines. This gap creates a two-phase region where solid crystals float in a liquid melt, much like ice water, before the entire mass finally freezes. Navigating this slushy zone is often problematic in manufacturing, as the partial solidification can lead to uneven material distribution and structural weaknesses in the final product.

However, at the specific eutectic composition, the liquidus and solidus lines intersect at a single coordinate at the bottom of the thermal valley. The two-phase slush region vanishes entirely at this precise point. The mixture freezes and melts congruently at a single, sharp temperature, dictated by this invariant point on the graph. This intersection guarantees a uniform phase transition across the entire material, which is why eutectic alloys are so highly prized in precision casting and joining applications.

This thermodynamic principle extends far beyond metallurgy, playing a critical role in the modern pharmaceutical industry. Many active pharmaceutical ingredients suffer from poor aqueous solubility in their standard solid crystalline forms. This rigid solid state severely limits their bioavailability when ingested or applied to the skin, rendering the drugs less effective because the body struggles to absorb them into the bloodstream. Overcoming this crystalline energy barrier is one of the primary challenges in drug formulation and delivery, prompting researchers to look toward phase diagrams for solutions.

By formulating a eutectic mixture, pharmaceutical chemists can drastically alter the physical state of a drug without changing its underlying chemical identity. A classic example is the combination of lidocaine and prilocaine, two local anesthetics that are both stable solid powders at standard room temperature when kept in their pure, isolated forms. By leveraging the same lattice-disruption mechanics used in metal alloys, chemists can force these two solid powders to interfere with one another, fundamentally changing how they behave at ambient temperatures.[4]

When mixed in a specific 1:1 ratio, their crystal lattices disrupt one another so profoundly that the eutectic melting point of the combined system drops to just 16 degrees Celsius, or 61 degrees Fahrenheit. Because this threshold sits below standard room temperature, the resulting mixture exists as a clear, stable oil. This liquid state allows the anesthetics to be formulated into a highly effective topical cream that can easily penetrate the skin barrier, a feat that would be impossible if the drugs remained in their solid powder forms.[4]

Similar room-temperature eutectic liquids can be constructed using common organic compounds. Menthol and camphor, both of which are solid at room temperature, form a liquid eutectic when mixed in proportions ranging from 8:2 to 5:5. This physical property is widely exploited in pharmacy extemporaneous preparations and over-the-counter topical analgesics. By relying on the eutectic depression rather than adding chemical solvents, formulators can create concentrated liquid medications that deliver a higher dose of the active ingredients directly to the affected area.[4]

The thermodynamic driving force behind this deep thermal depression is fundamentally rooted in entropy. The liquid state of a mixture is inherently more disordered—and thus possesses a significantly higher entropy value—than the liquid state of a pure substance. Because nature favors states of higher entropy, the liquid mixture becomes thermodynamically highly favorable compared to the ordered solid lattice. This increased stability of the liquid phase means that less heat is required to push the system out of its solid state.[1]

Because the liquid mixture is thermodynamically more stable, the solid lattice must be heated to a lesser degree to induce the phase transition. In physical chemistry terms, the Gibbs free energy curve of the liquid phase intersects the free energy curves of the solid phases at a significantly lower temperature. This intersection establishes the eutectic point on the diagram, representing the exact moment where the free energy of the liquid and the two solid phases are perfectly balanced and in equilibrium.[1]

In heavy industrial applications, precise control over the eutectic point is a matter of both safety and operational efficiency. "When an unexpected eutectic event occurs in a vacuum furnace, the process can warp parts, create brittleness or unexpected hardness, [or] melt your parts and fixtures into a puddle," warns the 2025 technical guide from Ipsen Global. This catastrophic melting occurs because operators fail to account for the phase diagram interactions between different metals placed in close proximity under high heat.[3]

If two incompatible metals touch at high temperatures inside a furnace, they can trigger localized melting at their exact contact point, even if the furnace is operating well below the melting point of either pure metal. This contact-induced melting is a direct, practical consequence of the phase diagram's thermal valley. As the atoms diffuse across the boundary between the two metals, they form a microscopic layer of eutectic mixture that instantly liquefies, potentially destroying expensive components and halting production lines.[3]

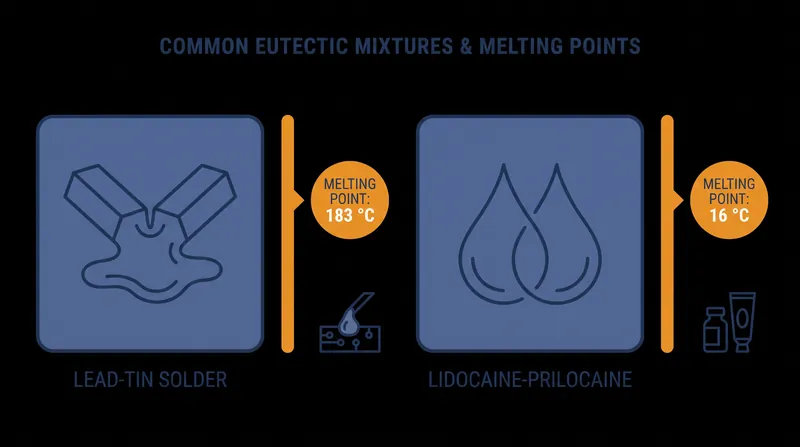

Conversely, intentional eutectic reactions form the foundational mechanics of soldering and brazing in electronics manufacturing. Traditional lead-tin electrical solder relies on a precise eutectic composition of 63 percent tin and 37 percent lead, which melts sharply at 183 degrees Celsius. This is well below the melting points of pure tin or pure lead, allowing technicians to join delicate copper wires and circuit board components without applying enough ambient heat to damage the surrounding plastic substrates or sensitive microchips.[4]

This sharp, congruent melting point ensures that the solder solidifies instantly as it cools down from the iron. This rapid transition prevents the formation of weak, fractured, or "cold" joints that frequently occur if a mechanical joint is disturbed while the metal is lingering in a semi-solid, slushy state. By bypassing the two-phase region entirely, the eutectic solder guarantees a clean, reliable electrical connection that can withstand mechanical stress and thermal cycling over the lifespan of the device.[4]

Advanced thermodynamic investigations, such as those utilizing differential scanning calorimetry, continue to map these phase boundaries with increasing precision in modern laboratories. By carefully measuring the exact heat flow into and out of a sample as it is slowly warmed, researchers can pinpoint the eutectic temperature and the enthalpy of fusion for complex binary systems. These precise thermal measurements allow scientists to discover new eutectic pairings that can be utilized in next-generation battery materials and advanced pharmaceutical formulations.[2]

These precise calorimetric measurements confirm that the eutectic point is a strict invariant state governed by fundamental physical laws. According to Gibbs' phase rule, at a constant atmospheric pressure, a binary system at the eutectic point possesses exactly zero degrees of freedom. This mathematical constraint means that the temperature and composition remain absolutely fixed as long as the liquid and the two distinct solid phases coexist, preventing any thermal drift until the phase transition is entirely complete.

Understanding the phase diagram and the eutectic point provides a highly predictive map for material behavior across multiple scientific disciplines. It allows mechanical engineers to design custom alloys that cast easily at lower temperatures, pharmaceutical chemists to formulate life-saving drugs that absorb rapidly into the bloodstream, and industrial technicians to avoid catastrophic melting failures in high-temperature environments. By mapping these thermal valleys, the phase diagram transforms trial-and-error mixing into a precise, calculable science that underpins modern manufacturing and drug delivery.[5]

The ability to manipulate melting points simply by altering mixing ratios remains one of the most powerful and elegant tools in materials science. It proves that the physical architecture and geometric packing of a mixture are just as important in determining its macroscopic behavior as its underlying chemical identity. Whether joining copper wires with lead-tin solder or delivering topical anesthetics through the skin, the eutectic point demonstrates how structural disruption at the atomic level can be harnessed to solve complex engineering challenges.[5]
