The Seven Layers of Abstraction: How the OSI Model Separates Network Communication Functions

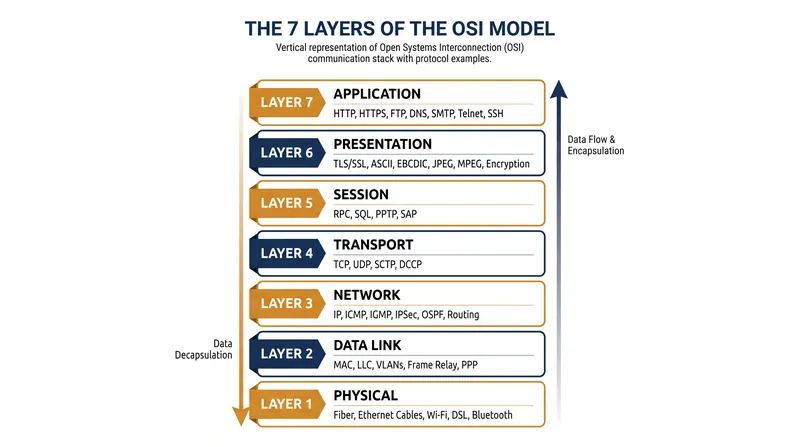

For any two devices to exchange data across the globe, a binding constraint must hold: both the sender and the receiver must agree on exactly how electrical signals translate into applications. Currently, this interoperability is achieved through layered abstraction. If a web browser had to know the physical voltage of the copper wire transmitting its request, the internet would collapse under its own complexity. The Open Systems Interconnection (OSI) model, formalized by the International Organization for Standardization (ISO) in 1984 as ISO/IEC 7498-1, solves this by dividing network communication into seven distinct, independent layers. Learning this framework is the single most valuable investment for an IT professional, as it provides a universal troubleshooting map. Each layer performs a specific function and only communicates with the layers immediately above and below it, shielding software developers from hardware mechanics.[1]

The foundation begins at Layer 1, the Physical layer. This layer defines the electrical, optical, and radio specifications for transmitting raw bits over a physical medium. It encompasses Ethernet cables, fiber optics, and Wi-Fi radio frequencies. Immediately above it sits Layer 2, the Data Link layer, which organizes these raw bits into logical frames and handles node-to-node delivery using 48-bit Media Access Control (MAC) addresses. Switches operate primarily at this layer, directing traffic within a single local area network (LAN) without needing to understand the broader internet topology.[3][5]

Layer 3, the Network layer, introduces global routing. While Layer 2 only cares about devices on the same local network, Layer 3 uses 32-bit IPv4 or 128-bit IPv6 addresses to route packets across multiple interconnected networks. This is where routers operate, determining the most efficient path for data to travel from a source in Tokyo to a destination in London. According to Cisco's learning documentation, this layer is responsible for "logical addressing and routing," making it the backbone of internet-wide communication.[3]

Layer 4, the Transport layer, ensures that the data actually arrives intact. It segments the data and uses protocols like the Transmission Control Protocol (TCP) to guarantee delivery through error-checking and retransmission, or the User Datagram Protocol (UDP) for speed over reliability in streaming video. This layer acts as the critical boundary between the physical network infrastructure below and the application software above, utilizing 65,535 available ports to direct traffic to the correct application on a single device.[9]

The upper three layers handle the software side of the connection. Layer 5, the Session layer, establishes, maintains, and terminates communication sessions between two applications, ensuring that a dropped connection can be resumed. Layer 6, the Presentation layer, translates data formats, handling SSL/TLS encryption and data compression so that the receiving application can understand the payload regardless of the underlying operating system.[6]

Finally, Layer 7, the Application layer, provides the interface directly to the user's software. It utilizes protocols like HTTP for web browsing, SMTP for email, and FTP for file transfers. As Amazon Web Services (AWS) notes in its architectural guidance, Layer 7 is "where the user interacts with the application," serving as the entry and exit point for all network data.[2]

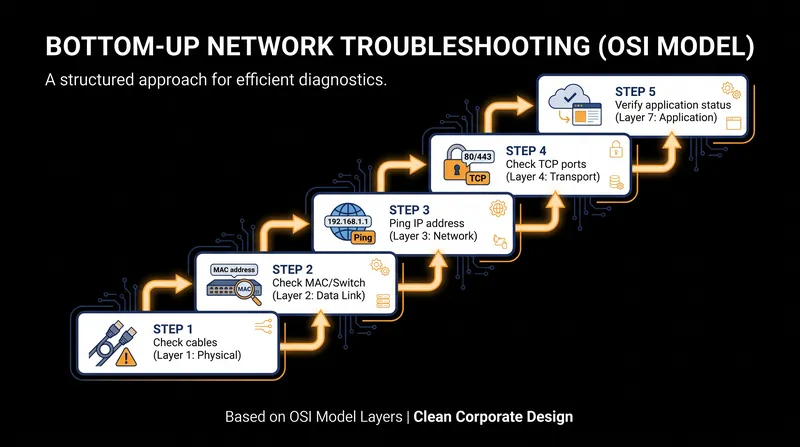

In practice, network engineers use the OSI model as a troubleshooting flowchart, typically working from the bottom up. If a user cannot access a website, a technician first checks Layer 1 by verifying the physical cable connection, then Layer 3 by pinging the IP address, before investigating Layer 7 to see if the web server application has crashed. This systematic isolation prevents engineers from wasting hours debugging software when a switch port has simply failed.[7]

While the simpler four-layer TCP/IP model more closely matches the actual architecture of the modern internet, the OSI model remains the universal language of networking. Security certifications from bodies like GIAC heavily emphasize OSI layers to define firewall rules, distinguishing between a Layer 3 network attack and a Layer 7 application exploit. By maintaining these strict boundaries of abstraction, the 1984 standard continues to govern how modern cloud infrastructure is built and defended.[4][8]
