The 20-Year Lifetime and 80% Capacity Threshold That Define a Solar Panel's Warranty

For a solar installation to function as a bankable asset, the rate at which its silicon cells degrade must be predictable over a multi-decade horizon. That condition currently holds across the industry, anchored by a standardized metric: the 25-year performance warranty guaranteeing at least 80% of nameplate capacity. Without this baseline, the financial models that underwrite both utility-scale farms and residential rooftops collapse.[4][5]

The 80% threshold represents the intersection of materials science and project finance. When a photon strikes a photovoltaic cell, it dislodges an electron, creating a current. Over time, the materials facilitating this reaction degrade. The industry standard dictates that a panel must not lose more than 2% of its output in the first year, and no more than 0.5% to 0.55% annually thereafter.[2][4]

The physics of this decline are well documented. The Photovoltaic Lifetime Project has tracked the performance of thousands of modules. According to their empirical data, the median degradation rate for modern silicon panels is approximately 0.5% per year.

"The degradation of photovoltaic modules is a continuous process driven by environmental stressors," notes the analytical review published on OSTI.GOV. "Understanding these rates is critical for predicting the levelized cost of energy."[1]

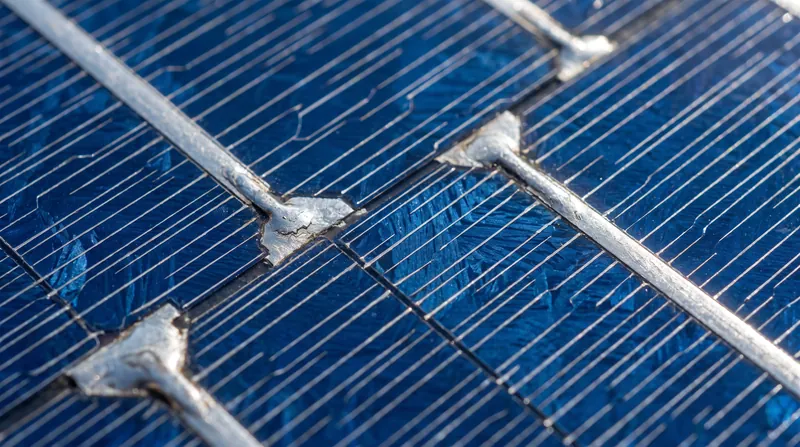

The primary drivers of this degradation are thermal cycling, damp heat, and ultraviolet exposure. As panels heat up during the day and cool at night, the differing thermal expansion coefficients of the glass, silicon, and metal ribbons cause micro-stresses. Over 20 to 25 years, these micro-stresses lead to increased electrical resistance and a gradual loss of power output.[1][3]

To ensure panels can survive these conditions, manufacturers rely on accelerated testing protocols. The most critical of these is IEC 61215, the international standard for design qualification and type approval of terrestrial photovoltaic modules.[3]

IEC 61215 subjects panels to extreme conditions that simulate decades of real-world exposure. This includes 200 thermal cycles between -40°C and 85°C, and 1,000 hours of damp heat at 85°C and 85% relative humidity.[3]

"Certification to IEC 61215 is the baseline requirement for bankability," states UL Solutions, which conducts these rigorous evaluations. Passing these tests is what allows manufacturers to confidently issue 25-year warranties without facing catastrophic liability.[2]

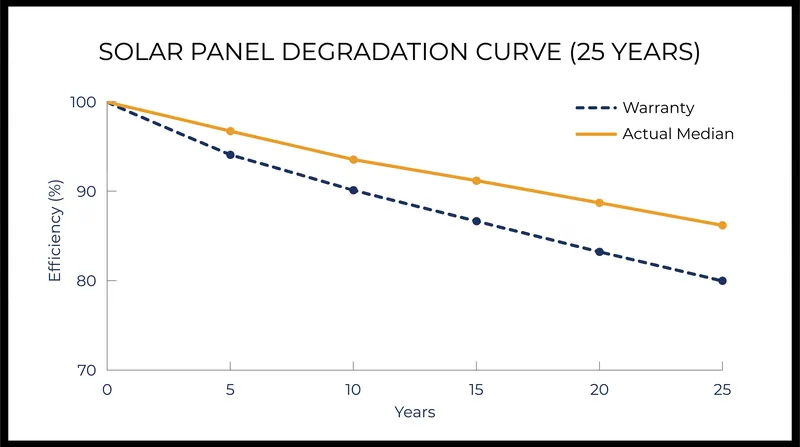

However, the 80% warranty threshold is fundamentally a financial boundary, not a physical cliff. If a panel degrades at the median rate of 0.5% per year after a 2% initial drop, it will retain roughly 86% of its original capacity at year 25.[1][5]

This creates a built-in safety margin for the manufacturer. By setting the warranty at 80%, companies protect themselves against the statistical outliers—panels that degrade at 0.7% or 0.8% annually due to localized extreme weather or minor manufacturing variances.[4][5]

For the asset owner, this margin represents unpriced upside. A utility-scale solar farm modeled to hit 80% capacity at year 25 will likely produce significantly more power than projected, improving the project's long-term return on investment.[4]

The distinction between product warranties and performance warranties is also critical. While the performance warranty guarantees the 80% output threshold over 25 years, the product warranty—covering physical defects in materials and workmanship—historically lasted only 10 to 12 years, though premium manufacturers now extend this to 25 years as well.[4]

As the industry pushes toward 30-year and even 35-year lifespans, the focus is shifting to the encapsulants and backsheets that protect the silicon. Innovations in dual-glass module designs are reducing moisture ingress, potentially lowering the annual degradation rate to 0.4% or less.[1][2]

The 80% threshold at 20 or 25 years remains the load-bearing pillar of solar finance. It translates the complex, slow-moving physics of semiconductor degradation into a predictable cash flow model, enabling the deployment of terawatts of renewable capacity worldwide.[4][5]
