The Time-Bandwidth Product: Why a Signal's Duration and Frequency Range Have a Fixed, Inverse Mathematical Relationship

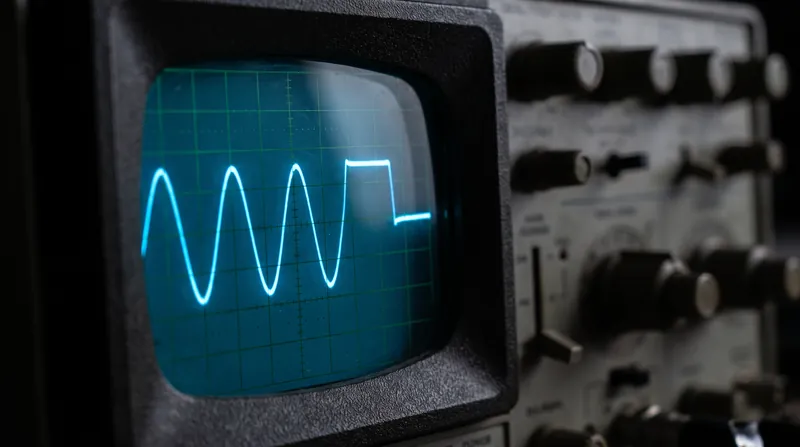

The exact moment a telecommunications engineer decides how fast a 5G network can transmit data, the outcome is already determined by a single mathematical operation: truncation. A pure, continuous sine wave possesses exactly one frequency, but it stretches infinitely through time. The instant that wave is chopped into a discrete pulse to carry a bit of information—a 1-millisecond burst, for example—it ceases to be a single frequency.

Truncating the wave mathematically forces it to be constructed from a spread of multiple frequencies. This is the step that matters, because it establishes a hard boundary that no amount of engineering can cross: the shorter the pulse in time, the wider its spread in frequency.[5]

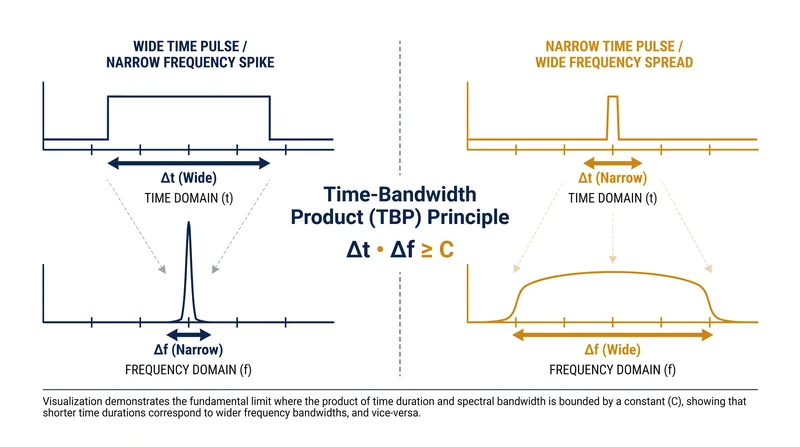

The assumption driving billions of dollars in hardware research is that better materials and faster processors will eventually yield infinite resolution. This is false. The limitation is not technological; it is a fundamental property of waves known as the time-bandwidth product. Stated plainly, the product of a signal's duration and its frequency bandwidth must always be greater than or equal to a specific constant. You can squeeze the time, but the frequency will bulge out, and vice versa.[1][4]

The formalization of this concept dates back to 1946, when physicist Dennis Gabor applied the mathematics of quantum mechanics to communication theory. Gabor demonstrated that the Heisenberg uncertainty principle—which states you cannot simultaneously know a particle's exact position and momentum—is actually just a specific case of a broader wave phenomenon. In signal processing, time is the equivalent of position, and frequency is the equivalent of momentum.[4]

To understand why this happens, one must look at the Fourier transform, the mathematical engine that translates a signal from the time domain into the frequency domain. "The short-time Fourier transform provides a natural tool to analyze non-stationary signals," notes the UC Davis mathematics department, but it comes with a structural trade-off.

If you want to know exactly when an event happened, you must use a very short observation window. But a short window captures very few cycles of the wave, making it impossible to determine exactly what frequency it is.[5]

Consider a standard radar system attempting to track a fast-moving aircraft. To get a precise location (high time resolution), the radar must emit a very brief pulse, perhaps 1 microsecond in duration. According to the time-bandwidth product, a 1-microsecond pulse requires a minimum frequency bandwidth of 1 megahertz. If the engineers want to pinpoint the aircraft with 10 times more precision, they must shrink the pulse to 0.1 microseconds, which instantly demands 10 megahertz of bandwidth.[2]

The strongest counter-argument from hardware optimists is that advanced modulation schemes—like orthogonal frequency-division multiplexing used in modern Wi-Fi—can cheat this limit by overlapping signals. While highly efficient, these schemes do not violate the time-bandwidth product; they merely pack the available frequency space as tightly as mathematically permissible without the waves interfering with each other. The absolute floor remains intact.[6]

This inverse relationship is the invisible architect of the modern wireless economy. In 2020, the deployment of 5G networks required telecom companies to spend billions acquiring new spectrum licenses in the 3.5 gigahertz to 30 gigahertz ranges. They did not buy this spectrum because higher frequencies are inherently better—in fact, they penetrate buildings poorly. They bought it because higher base frequencies offer wider available bandwidths, which is the only mathematical way to transmit the ultra-short pulses required for gigabit-per-second data rates.[6]

The same constraint governs digital audio and medical imaging. When compressing an audio file or focusing an ultrasound beam, engineers rely on specific mathematical functions to minimize the leakage of energy outside the desired time and frequency windows. Research published in 2023 highlights the Slepian basis of order zero as the optimal mathematical tool for this job, as it achieves the maximum possible energy concentration within a finite time-frequency region. Yet, even the Slepian functions cannot reduce the product below the theoretical minimum.[3]

"The uncertainty principle states that a signal cannot be highly concentrated both in time and in frequency," researchers explain in a comprehensive review of signal concentrations. This is not a failure of measurement. Even if an engineer possessed a perfect, noiseless transmitter and an infinitely sensitive receiver, a 1-millisecond pulse of energy simply does not have a single, definable frequency. The frequency spread is a physical reality of the truncated wave itself.[1]

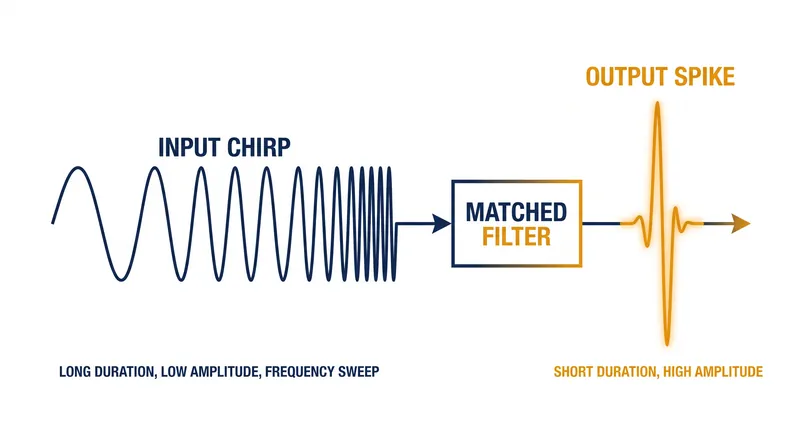

To navigate around this hard limit, radar engineers developed a technique called pulse compression. Instead of transmitting a short pulse (which requires massive peak power and wide bandwidth), they transmit a long pulse—say, 100 microseconds—but sweep its frequency from low to high during the transmission. This technique is known as a chirp.[2]

When the chirp bounces off a target and returns, the receiver uses a specialized filter that delays the early, low-frequency part of the signal until the later, high-frequency part catches up. This compresses the 100-microsecond energy into a sharp 1-microsecond spike inside the computer. The system achieves the time resolution of a short pulse while using the physical duration of a long one, but it still requires the full 1 megahertz of bandwidth to execute the sweep. The time-bandwidth product is satisfied, just rearranged.[2]

As the technology industry pushes toward 6G communications and quantum sensing, the time-bandwidth product will dictate the architecture of the next decade. Engineers are currently exploring non-linear systems and quantum entanglement to see if multi-particle states can offer workarounds to classical wave limits. Until those theoretical frameworks yield physical hardware, the capacity of our networks will remain strictly governed by the mathematics of the Fourier transform. The wave dictates the terms.[7]
