ANSI/BHMA Grades 1, 2, and 3: How Cycle Testing, Impact Resistance, and Force Loads Dictate a Lock's Security and Durability

Hardware manufacturers frequently market their baseline residential locks as offering "maximum security" or "heavy-duty protection" based on thick metal finishes or brand reputation. The Builders Hardware Manufacturers Association (BHMA) and the American National Standards Institute (ANSI) test those claims in a laboratory, and their data shows that a lock's physical strength is dictated entirely by its certified grade, not its marketing. A Grade 3 deadbolt marketed as "secure" will fail after two hammer blows, while a Grade 1 deadbolt is certified to withstand ten.

"Grade 1 is one of the most misused phrases in building products, because it is printed on packaging as a quality claim when it is a test result," notes Super Arbor's 2026 specification guide. ANSI/BHMA A156 standards rank door hardware by tested durability and strength, not by price or finish.

The grades run from 1 (highest performance) to 3 (residential baseline), earned by passing independent laboratory tests. To claim a grade, a product must pass three kinds of tests: cycle testing for endurance, strength testing for static and torque loads, and security testing for impact resistance.

The testing protocols are divided by hardware type. The Builders Hardware Manufacturers Association writes the A156 standards, and accredited laboratories test the physical products to those exact specifications. ANSI/BHMA A156.2 covers bored and preassembled locks, which include the standard knob and lever sets most consumers buy. A separate standard, A156.36, governs auxiliary locks, including deadbolts.[3]

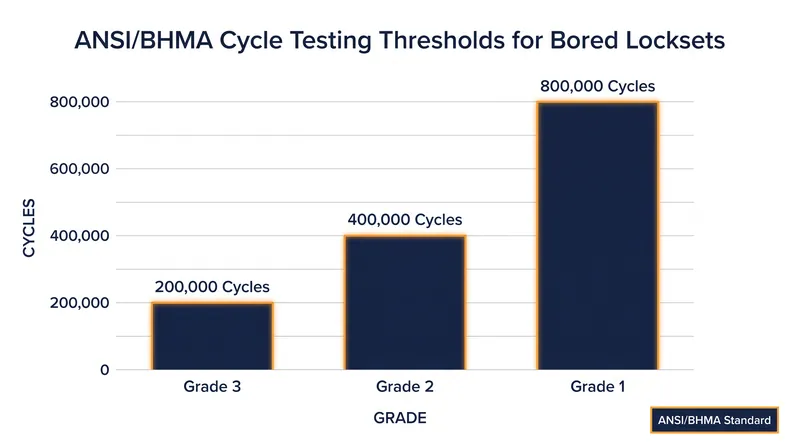

Cycle testing measures how long a mechanism keeps working before it fails. A machine operates the lock repeatedly to simulate years of use. For bored locksets, a Grade 3 lock must survive 200,000 cycles. A Grade 2 lock must reach 400,000 cycles, and a Grade 1 lock must endure 800,000 operations.

Deadbolts face different cycle thresholds because they are operated less frequently than levers. A Grade 3 deadbolt must survive 100,000 cycles, a Grade 2 deadbolt must reach 150,000 cycles, and a Grade 1 deadbolt must endure 250,000 cycles. These numbers represent the absolute minimums required to earn the certification label.

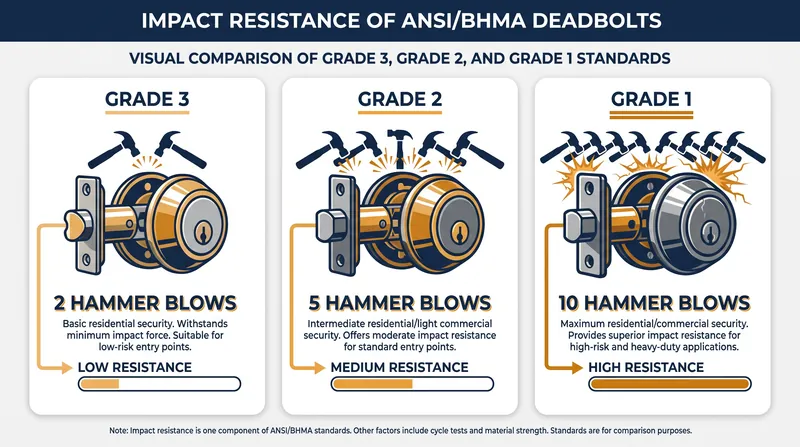

Security testing evaluates how hard the lock is to defeat by physical force. The impact sequence uses a steel ram to strike the projected bolt. A Grade 3 deadbolt is only required to withstand two hammer blows. A Grade 2 deadbolt must survive five blows, and a Grade 1 deadbolt must withstand ten blows.

Strength testing also applies static and torque loads to the lever and latch to ensure the internal components do not snap under pressure. A lock must resist rotational force applied to the handle when locked, preventing an intruder from simply wrenching the lever until the internal spindle breaks.

Grade 3 is the baseline residential standard. It is appropriate and economical for interior doors, such as bedrooms or closets, where privacy is needed but physical security is not a concern. However, installing a Grade 3 lock on an exterior door or a multi-family unit entry creates a significant security liability, as the hardware is not designed to resist forced entry.

Grade 2 covers light commercial and heavy residential use. It is the recommended standard for most single-family front doors, balancing cost with adequate physical security. A Grade 2 deadbolt provides sufficient impact resistance for standard residential threats, especially when the homeowner upgrades the surrounding frame hardware to support the lock's strength.

Grade 1 is the heaviest duty classification, designed for commercial buildings, high-traffic institutional doors, and multi-family entries. These locks feature more steel components and fewer plastic parts, ensuring they survive constant use and aggressive physical attacks. While Grade 1 hardware requires a larger upfront investment, it reduces callback frequency and replacement costs in high-traffic environments.

Upgrading the lock cylinder is only part of the security equation. A Grade 1 deadbolt installed on a standard door frame with a shallow strike plate remains highly vulnerable to kick-in attacks. The physical security of the door relies on transferring the blunt force from the lock to the wall studs, which requires replacing the standard 3/4-inch strike plate screws with 3-inch screws.

Facility managers and homeowners must match the ANSI/BHMA lockset grade to the specific opening. Over-specifying a Grade 1 lock for a residential bedroom wastes money on durability that will never be used, while under-specifying a Grade 3 lock for a busy commercial corridor guarantees premature failure. The grade predicts how long a mechanism keeps working and how hard it is to defeat by force, allowing buyers to make decisions based on tested data rather than packaging claims.
