Why Multi-Port USB-C Chargers Disconnect Active Devices When You Plug in Another

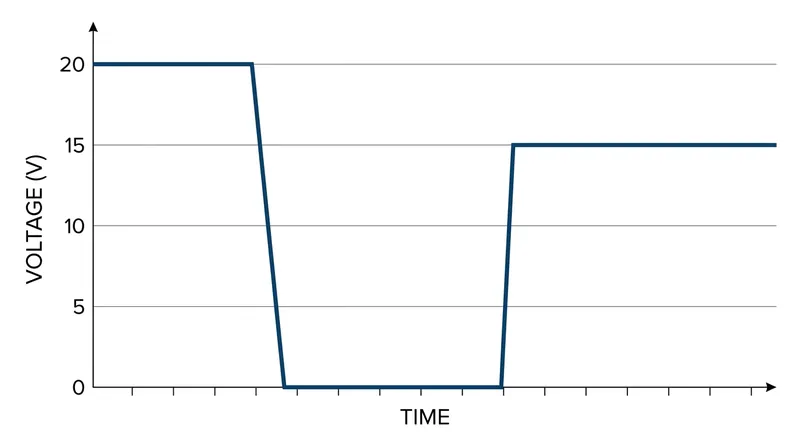

Inside the compliance testing labs at the USB Implementers Forum in Beaverton, Oregon, engineers monitor oscilloscopes that track voltage across Type-C cables. When a second device is plugged into a shared power brick, the graph instantly plunges from 20 volts down to zero.[1]

This sudden drop is not a defect or a power failure. It is a mandatory safety protocol written into the 2023 USB Power Delivery specification. The standard requires the charger to sever the existing power contract before it can negotiate a new one.[1]

For consumers, this mechanism manifests as a momentary annoyance. A laptop screen dims, a phone chimes to announce it has started charging again, and a connected monitor might briefly go black.

The interruption happens because modern multi-port chargers use dynamic power allocation. Instead of hardwiring a fixed wattage to each port, a central microcontroller pools the total available power and distributes it based on what each connected device requests.[2]

The vSafe0V requirement

To understand why the power must stop, you have to look at how USB-C devices communicate. When a laptop connects to a 100-watt charger, it negotiates a specific voltage and current, typically 20 volts at 5 amps.[1]

If a user then plugs a smartphone into the second port, the charger no longer has 100 watts available for the laptop. It must reduce the laptop's allowance to 65 watts to free up 30 watts for the phone.[2]

The USB specification forbids a charger from simply lowering the current while the 20-volt connection remains active. Changing the power ceiling on the fly could cause the laptop to pull more current than the charger can now supply, triggering an overcurrent shutdown.[1]

Instead, the charger executes a hard reset. It drops the primary power pin inside the USB-C connector down to a state called vSafe0V, which literally means zero volts.[1]

"The controller must discharge the VBUS capacitance down to vSafe0V before initiating a new power role swap or contract," notes Texas Instruments in its 2024 application guidelines for dynamic power sharing.[2]

Trading stability for efficiency

This momentary blackout forces every connected device to wake up and ask for power all over again. The charger then replies with new, lower limits for the original devices, making room for the newcomer.

The entire renegotiation process takes between one and three seconds. During that window, devices running without internal batteries, such as smart speakers or external hard drives, will completely power down and reboot.

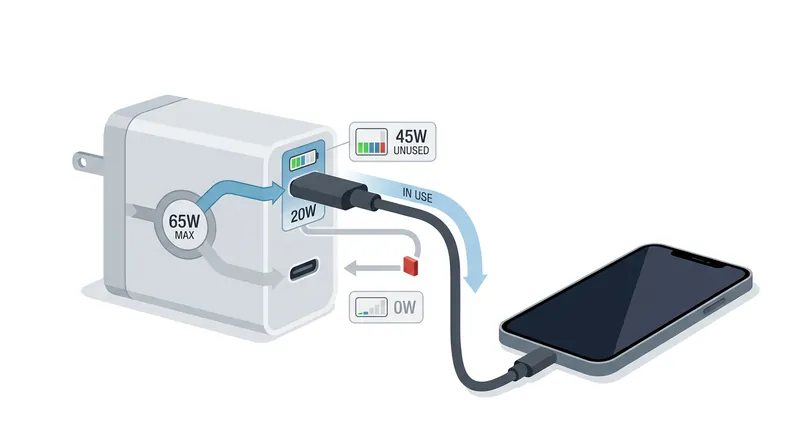

Manufacturers accept this interruption because the alternative is highly inefficient. Older or cheaper multi-port chargers use fixed power allocation, permanently assigning 65 watts to port one and 20 watts to port two.[3]

If you plug a 20-watt phone into the 65-watt port on a fixed charger, the remaining 45 watts are stranded. The second port cannot borrow that unused capacity, even if a laptop plugged into it desperately needs more power.[3]

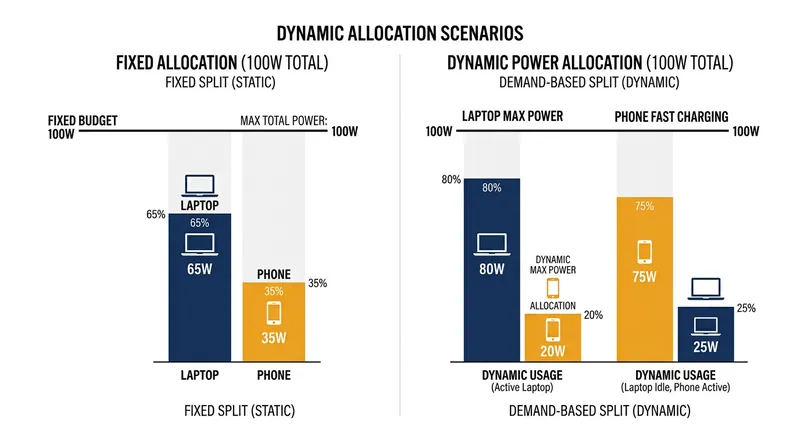

Dynamic allocation solves this stranded-power problem. By pooling the wattage, a 100-watt charger can deliver its full capacity to a single laptop, or split it into 65 watts and 30 watts when a second device appears.[2]

The hardware inside the brick

Managing this dynamic split requires sophisticated silicon. High-end chargers use a dedicated microcontroller unit that constantly monitors the power demands of every active port.[2]

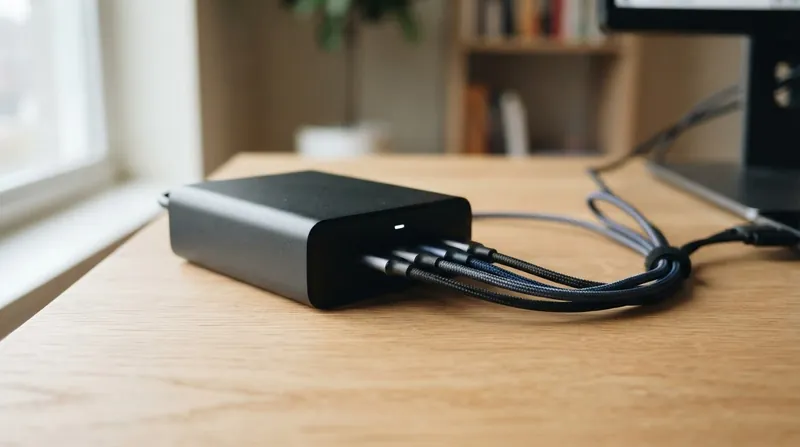

When a new connection is detected, the microcontroller calculates the new distribution math in milliseconds. It then signals the power delivery controllers on the active ports to initiate the vSafe0V drop.[2]

Some premium chargers mitigate the annoyance by using multiple internal power supplies. If a 140-watt charger contains two completely separate 70-watt circuits, plugging a device into the second circuit will not interrupt the first.

However, building multiple isolated power circuits significantly increases the size, weight, and cost of the charger. Most compact gallium nitride chargers rely on a single power supply and dynamic allocation to keep the footprint small.

The USB Implementers Forum has introduced minor revisions to the protocol to speed up the handshake, but the fundamental requirement to drop the voltage remains intact for safety reasons.[1]

Managing the disconnections

Users who rely on bus-powered devices, such as portable monitors or audio interfaces, must plan around this behavior. Plugging a phone into the same brick will instantly sever the data connection to the monitor.[3]

To prevent data loss or hardware resets, bus-powered peripherals should be connected to dedicated single-port chargers. Alternatively, they can be powered directly from the host computer's downstream ports.[3]

For battery-powered devices like laptops and tablets, the momentary drop is harmless. The device simply switches to its internal battery for two seconds before resuming its charge from the wall.

As total power budgets climb toward the 240-watt maximum allowed by the latest specification, dynamic allocation will become even more aggressive. Chargers will constantly shuffle power as laptops reach full charge and reduce their demands.[1]

Ultimately, the brief chime of a reconnecting phone is the sound of the charger protecting the hardware. It ensures that no device ever pulls more current than the shared brick can safely deliver.[3]
